POTTERTON
FLAMINGO RS 20-30 - (Heat Exchanger & Flue Hood)
Appliance Code: 41-601-23

Appliance Diagram

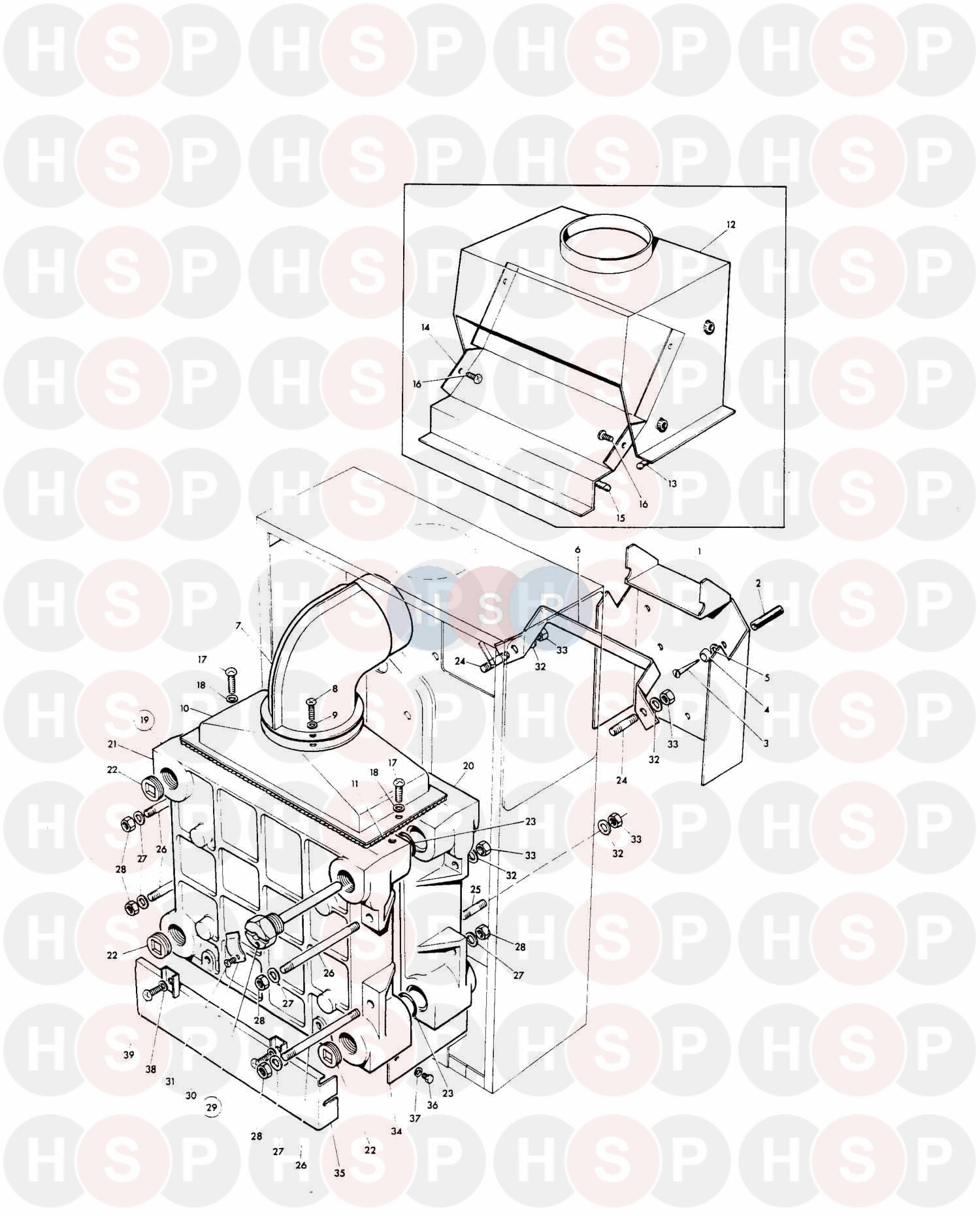

Heat Exchanger & Flue Hood diagram for Potterton Flamingo RS 20-30Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE REGULATOR PRESS V5306A/E HW
Potterton part no. 904751

0   OBSOLETE OPERATOR SOLENOID TRADELINE
Potterton part no. 904750

0   OBSOLETE SKIRT REAR SECTION RS&CF20/3
Potterton part no. 202478

0   OBSOLETE REPLACEMENT CASING PACK
Potterton part no. 907180

0   OBSOLETE CONVERSION KIT - TG TO NG
Potterton part no. 202906

1   OBSOLETE BRACKET - WALL MOUNTING
Potterton part no. 202388

7   OBSOLETE FLUE OUTLET ELBOW
Potterton part no. 202492

10   OBSOLETE FLUE HOOD ASSEMBLY - INCLUDING GLASS TWINE 6MM
Potterton part no. 202443

11 Part number 65063601, ROPE CERAMIC TWIST 5MM 1 MTR ROPE CERAMIC TWIST 5MM 1 MTR
Potterton part no. 65063601

20   OBSOLETE HEAT EXCH REAR CF20 30
Potterton part no. 202538

21   OBSOLETE WATERWAY SECTION - RH
Potterton part no. 906154

22   OBSOLETE PLUG RECESSED SOCKET 1IN
Potterton part no. 629414

23   OBSOLETE KIT O RING
Potterton part no. 906940

23 Part number 401631, OBSOLETE O RING GACO OBSOLETE O RING GACO
Potterton part no. 401631

25   OBSOLETE M8 X 18MM STUD
Potterton part no. 635225
£2.89
26   OBSOLETE TIE ROD M8 X 135MM
Potterton part no. 635811

27   WASHER FROM A M8 SN
Potterton part no. 617158
£2.26
28 Part number 635415, NUT FULL M8 SN NUT FULL M8 SN
Potterton part no. 635415
£5.46
29   OBSOLETE STAT POCKET ASF/G RS.50.S
Potterton part no. 202746

101   OBSOLETE FURIGAS BRNR 126 041
Potterton part no. 414552

104   OBSOLETE BRAY INJ CAT 23 SIZE 850
Potterton part no. 410406

106   OBSOLETE PILOT BURNER ASSY
Potterton part no. 402834

107 Part number 410917, PILOT INJ DUAL ORIFICE PILOT INJ DUAL ORIFICE
Potterton part no. 410917

108 Part number 402492, SHR OFF UNION 6MM LG SHNK (STD SHR OFF UNION 6MM LG SHNK (STD
Potterton part no. 402492
£5.88
109   OBSOLETE ELECTRODE ASSEMBLY
Potterton part no. 407651

111   OBSOLETE ELECTRD LEAD F/G RS40 ETC
Potterton part no. 407635

112 Part number 40225701, NOW USE Q309A2788 THERMOCOUPLE 1000MM Q309/MTRL TY NOW USE Q309A2788 THERMOCOUPLE 1000MM Q309/MTRL TY
Potterton part no. 40225701

112 Part number Q309A2788, THERMOCOUPLE THERMOCOUPLE
Potterton part no. Q309A2788
£8.96
117 Part number 700723, ALUMINIUM TUBE KIT 6MM OD ALUMINIUM TUBE KIT 6MM OD
Potterton part no. 700723

120 Part number 301461, MANIFOLD GASKET MANIFOLD GASKET
Potterton part no. 301461

123   OBSOLETE GAS VALVE BOXED
Potterton part no. 402809

125   OBSOLETE END OUTLET COVER
Potterton part no. 402817

130   OBSOLETE REDUC BUSH 1/2X3/8 BSP MI
Potterton part no. 629101

134   OBSOLETE GAS COCK 1/2
Potterton part no. 629841

138 Part number 404456, THERMOSTAT RANCO CL.6 THERMOSTAT RANCO CL.6
Potterton part no. 404456

139 Part number 200277, THERMOSTAT KNOB THERMOSTAT KNOB
Potterton part no. 200277

140   OBSOLETE PIEZO GENR VERNITRON
Potterton part no. 407627

201   OBSOLETE CASE FRT PNL ASSY RS20 30
Potterton part no. 202422

205   OBSOLETE DEFLECTOR SPACER
Potterton part no. 200375

206   OBSOLETE SIGHT GLASS RETAINER
Potterton part no. 202100

207   OBSOLETE GASKET SIGHT GLASS PR K/F F
Potterton part no. 907166

208 Part number 413501, OBSOLETE SIGHT GLASS OBSOLETE SIGHT GLASS
Potterton part no. 413501

213   OBSOLETE SEALS CASE DOOR FGO RS20/3
Potterton part no. 907201

228   OBSOLETE OUTER AIR DUCT 9 - 15IN FLUE
Potterton part no. 202583

230   OBSOLETE TERML ASSY F/G RS 20 30
Potterton part no. 202420

303   OBSOLETE SEALING STRIP REPL MENT RS20/
Potterton part no. 20248701
