POTTERTON
FLAMINGO CF 50 - (Heat Exch. Flue Hood & Combust)
Appliance Code: 41-601-18

Appliance Diagram

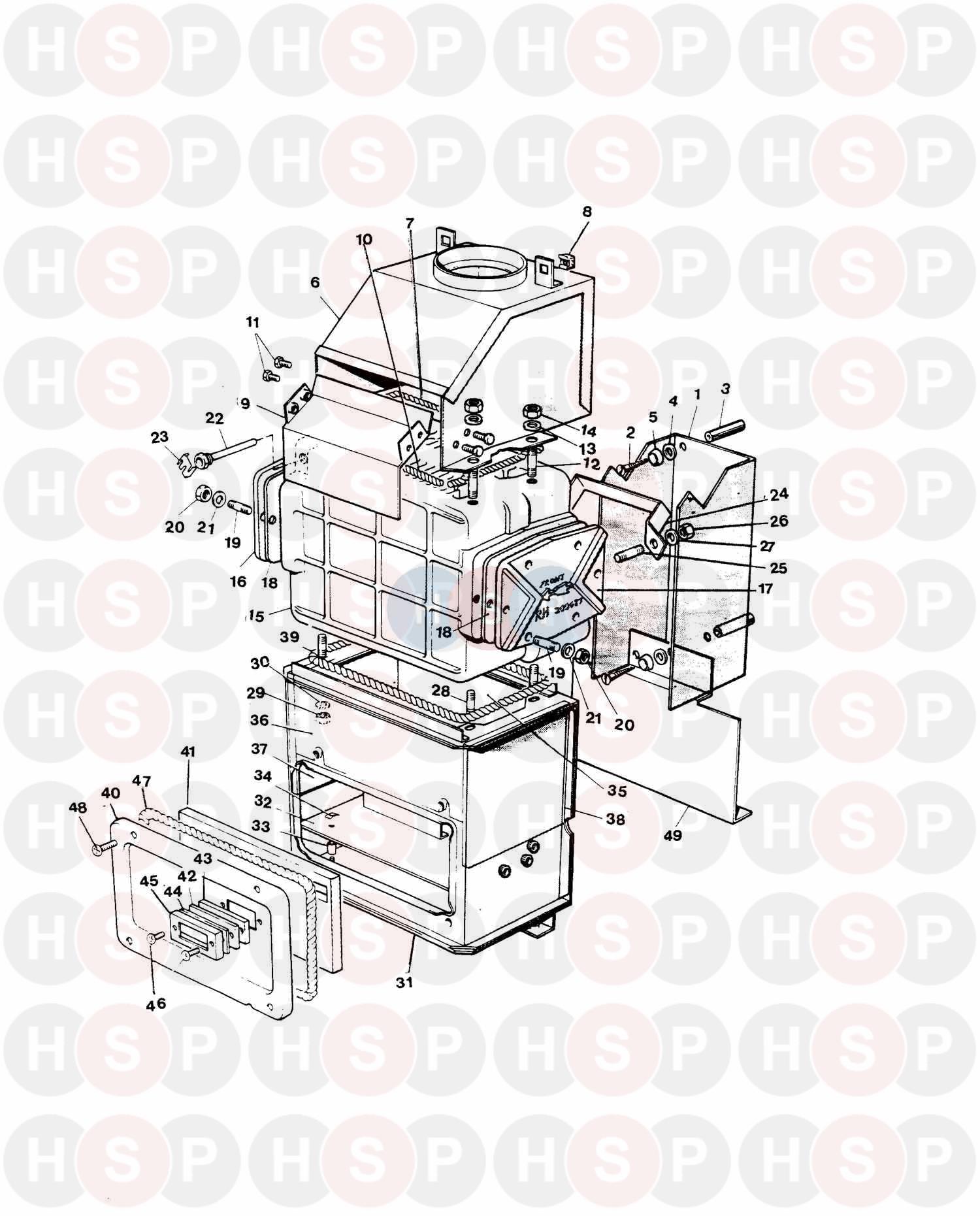

Heat Exch. Flue Hood & Combust diagram for Potterton Flamingo CF 50Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE TERML BLK 12 WAY 10 AMP
Potterton part no. 640303

0   OBSOLETE CONVERSION KIT - TG TO NG
Potterton part no. 202862

1   OBSOLETE BRACKET - WALL MOUNTING
Potterton part no. 202296

6   OBSOLETE FLUE HOOD ASSY F/G CF 50
Potterton part no. 202284

7 Part number 65063701, ROPE CERAMIC CABLE12MM X 1M L ROPE CERAMIC CABLE12MM X 1M L
Potterton part no. 65063701

9   OBSOLETE FLUE HOOD FRONT BAFFLE PLATE ASSY INC. ITEM 10
Potterton part no. 202309

10   OBSOLETE ROPE CERAMIC BRAID 20MM 1 MT
Potterton part no. 65063101

15   OBSOLETE HEAT EX.ASS.FLAMINGO CF50
Potterton part no. 202004

16   OBSOLETE COVER PLATE LH
Potterton part no. 200459

17   OBSOLETE COVER PLATE RH
Potterton part no. 200487

18 Part number 200337, COVER PLATE GASKET COVER PLATE GASKET
Potterton part no. 200337

22   OBSOLETE THERMOSTAT POCKET ASSY
Potterton part no. 206750

24   OBSOLETE BLR SUPRT BRKT F/G CF 50
Potterton part no. 202295

31   OBSOLETE COMBN CHBR ASSYF/G RS 40
Potterton part no. 202788

32   OBSOLETE DEFLECTOR BASE PLATE
Potterton part no. 202787

35   OBSOLETE COMB CHBR INSUL REAR
Potterton part no. 202323

36   OBSOLETE COMB CHAMB INSUL FRONT
Potterton part no. 202092

37   OBSOLETE C/CHBR INSUL LH FL/KFISH
Potterton part no. 202093

38 Part number 202094, OBSOLETE C/CHBR INSUL RH FL/KFISH OBSOLETE C/CHBR INSUL RH FL/KFISH
Potterton part no. 202094

40   OBSOLETE C/CHBR SEAL PL/A RS40&50S
Potterton part no. 202725

41   OBSOLETE COVER PLATE INSULATION
Potterton part no. 202095

42 Part number 413501, OBSOLETE SIGHT GLASS OBSOLETE SIGHT GLASS
Potterton part no. 413501

44   OBSOLETE GASKET SIGHT GLASS PR K/F F
Potterton part no. 907166

45   OBSOLETE SIGHT GLASS RETAINER
Potterton part no. 202100

101   OBSOLETE GAS COCK 1/2
Potterton part no. 629841

105   OBSOLETE GAS VALVE BOXED
Potterton part no. 402809

106 Part number 301461, MANIFOLD GASKET MANIFOLD GASKET
Potterton part no. 301461

109   OBSOLETE END OUTLET COVER
Potterton part no. 402817

109   OBSOLETE REGULATOR PRESS V5306A/E HW
Potterton part no. 904751

109   OBSOLETE BURNER FEED PIPE
Potterton part no. 202340

110   OBSOLETE OPERATOR SOLENOID TRADELINE
Potterton part no. 904750

113   OBSOLETE BRNR INJ 3.5 AEROMATIC
Potterton part no. 410902

114   OBSOLETE BURNER BAR FURIGAS
Potterton part no. 414546

114 Part number 906162, NOW USE 308S111 GASKET BURNER CF20/30 80 10 NOW USE 308S111 GASKET BURNER CF20/30 80 10
Potterton part no. 906162

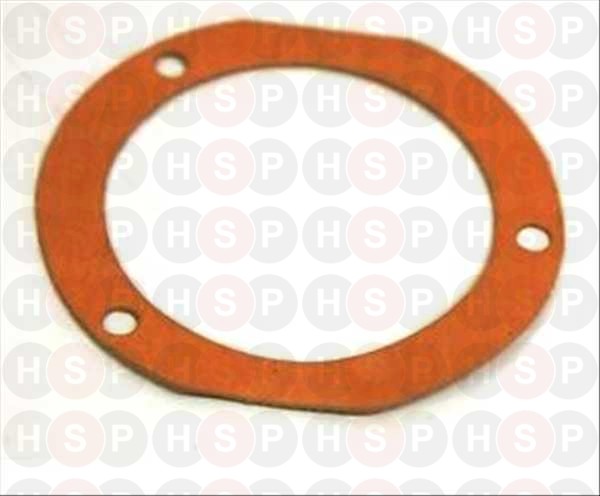

114 Part number 308S111, END PLATE GASKET END PLATE GASKET
Potterton part no. 308S111
£7.73
115   OBSOLETE PIL/BNR MNTG BRKT ASSFL/K
Potterton part no. 202113

118   OBSOLETE PILOT BRNR ASSY F/G RS 13
Potterton part no. 402489

119 Part number 410209, PILOT INJ HONEYWELL BCR 18 PILOT INJ HONEYWELL BCR 18
Potterton part no. 410209

119 Part number 102041, INJECTOR PILOT.NG.BCR-18 INJECTOR PILOT.NG.BCR-18
Potterton part no. 102041

122 Part number 407625, OBSOLETE ELECTRODE ASSEMBLY OBSOLETE ELECTRODE ASSEMBLY
Potterton part no. 407625

124 Part number 407626, ELECTRODE LEAD ELECTRODE LEAD
Potterton part no. 407626

125 Part number 40225701, NOW USE Q309A2788 THERMOCOUPLE 1000MM Q309/MTRL TY NOW USE Q309A2788 THERMOCOUPLE 1000MM Q309/MTRL TY
Potterton part no. 40225701

125 Part number Q309A2788, THERMOCOUPLE THERMOCOUPLE
Potterton part no. Q309A2788
£8.96
126 Part number 402492, SHR OFF UNION 6MM LG SHNK (STD SHR OFF UNION 6MM LG SHNK (STD
Potterton part no. 402492
£5.88
134   OLIVE 6MM BORE
Potterton part no. 401624
£2.95
135   COMPRESSION NUT 1/8" BSP
Potterton part no. 401582
£5.12
136 Part number 700723, ALUMINIUM TUBE KIT 6MM OD ALUMINIUM TUBE KIT 6MM OD
Potterton part no. 700723

136 Part number 700724, OBSOLETE ALUM TUBE, KIT 6MM SIT OBSOLETE ALUM TUBE, KIT 6MM SIT
Potterton part no. 700724

138   OBSOLETE TERM PNL ASY F/G CF50 ETC
Potterton part no. 202312

148   OBSOLETE PIEZO GENR VERNITRON
Potterton part no. 407627

152 Part number 404456, THERMOSTAT RANCO CL.6 THERMOSTAT RANCO CL.6
Potterton part no. 404456

173 Part number 200277, THERMOSTAT KNOB THERMOSTAT KNOB
Potterton part no. 200277

200   OBSOLETE CASNG ASY REPLACEMENT F/G CF50
Potterton part no. 905386

201   OBSOLETE CASNG REPLT F/G II CF50
Potterton part no. 907191

206   OBSOLETE CONTROLS COVER ASSEMBLY
Potterton part no. 202944

214   OBSOLETE FACIA ASSEMBLY
Potterton part no. 202947

218 Part number 200455, OBSOLETE FLUE BRUSH OBSOLETE FLUE BRUSH
Potterton part no. 200455
£2.78
