POTTERTON
DIPLOMAT 30/34 SB(SPERRYN) - (First Line Spares)
Appliance Code: 41-590-25

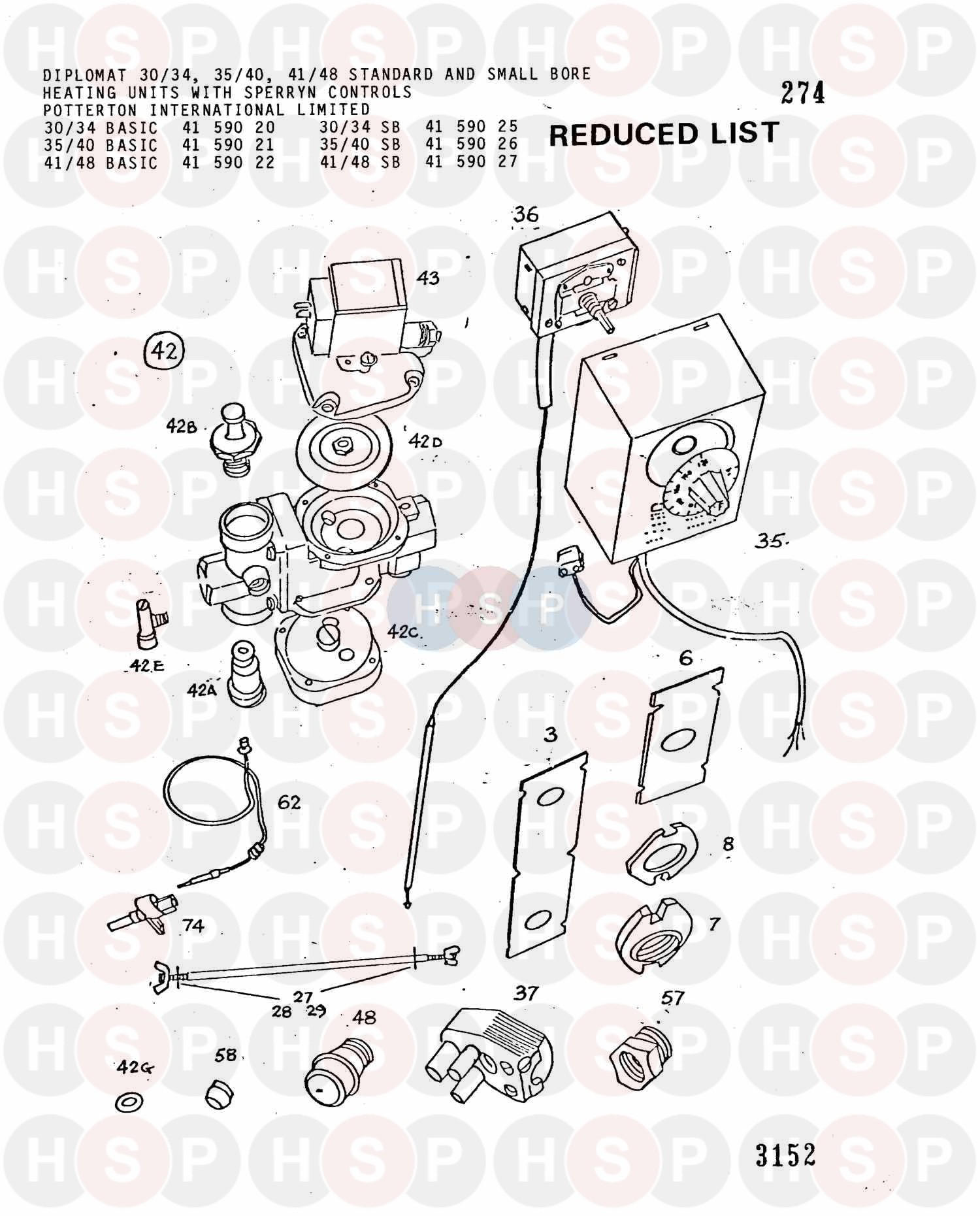

Appliance Diagram


First Line Spares diagram for Potterton Diplomat 30/34 SB(Sperryn)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE INSULATION RETAINER ASSEMBLY
Potterton part no. 314104

0   OBSOLETE DRAUGHT DIVERTER ALUMINIUM
Potterton part no. 314056

0   OBSOLETE INSULATION RETAINER ASSEMBLY
Potterton part no. 375104

1   OBSOLETE WATERWAY SECTION ASSEMBLY
Potterton part no. 906919

2   OBSOLETE FRONT MUD HOLE COVER CI TAPPED 1/2
Potterton part no. 314266

3   OBSOLETE GASKET MUD HOLE COVER
Potterton part no. 31426901

5   OBSOLETE REAR MUD HOLE COVER
Potterton part no. 314110

6   OBSOLETE GASKET MUD HOLE REAR EARLY R/
Potterton part no. 314111

7   OBSOLETE FLANGE 1 1/4 BSP 1 SEC R/
Potterton part no. 314192

8 Part number 376523, OBSOLETE FLOW HEADER GASKET OBSOLETE FLOW HEADER GASKET
Potterton part no. 376523

9   OBSOLETE STUD 3/8WH X 1.1/2 MS SF
Potterton part no. 618103

10   OBSOLETE STUD 3/8 BSW X 1 MS SELF
Potterton part no. 619801

14   OBSOLETE THERMOSTAT POCKET
Potterton part no. 405109

15   OBSOLETE DRAINING TAP 1/2INCH B.S.P.T
Potterton part no. 629751

26   OBSOLETE INSULATION RETAINER ASSEMBLY
Potterton part no. 315104

36   OBSOLETE THERMOSTAT RANCO
Potterton part no. 314133

37   OBSOLETE PLUG 3 PIN SA.2025
Potterton part no. 640205

38   OBSOLETE KNOB THERMOSTAT DEG.F
Potterton part no. 405112

39   OBSOLETE COMBINED SUCTION TEE AND HEADER CI
Potterton part no. 314118

41   OBSOLETE PRES TEST NIPPLE 1/8 BSP
Potterton part no. 400988

43   OBSOLETE SOLENOID VALVE KIT 1/8IN BSP 240V
Potterton part no. 40229201

45   OBSOLETE BRUSH FLUE 6 X 2 DIA X 24 LG
Potterton part no. 595012
£4.68
55   OBSOLETE BUSH RED 1/2 X 1/8 M&F BRA
Potterton part no. 629177

56   OBSOLETE COUPLING MINI 1/8 BSP X 3/
Potterton part no. 401589

62   OBSOLETE T COUPLE 24 T1933 SP N TYPE
Potterton part no. 402349
