POTTERTON
C55/16 BE AND SB - (Outer Case)
Appliance Code: 41-601-05

Appliance Diagram

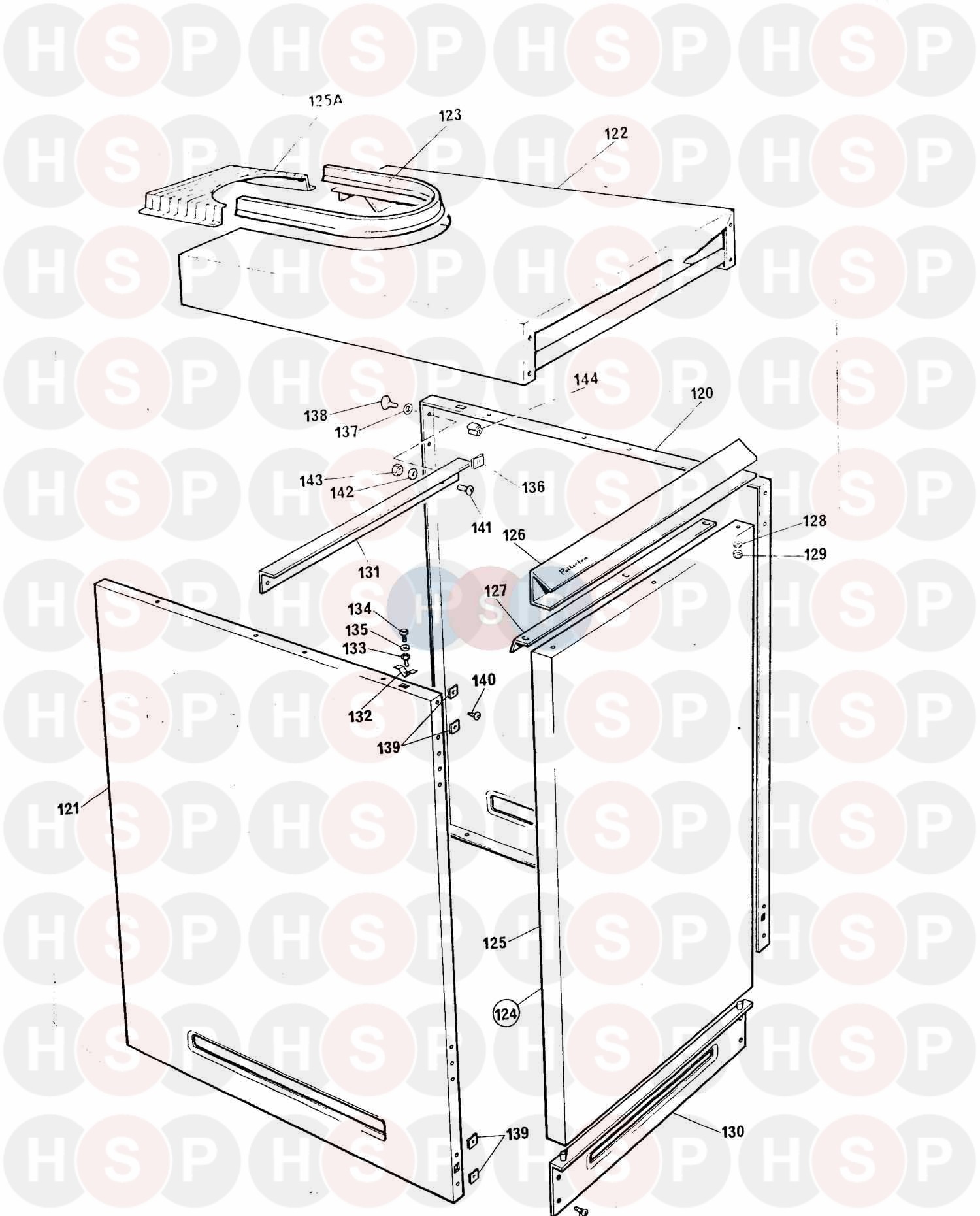

Outer Case diagram for Potterton C55/16 BE And SBClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

3   OBSOLETE STUD 3/8WH X 1.1/2 MS SF
Potterton part no. 618103
4   OBSOLETE STUD 3/8WH X 2 MS SF
Potterton part no. 618104
7   OBSOLETE WATERWAY SECTION SUB ASSEMBLY KIT 55/68
Potterton part no. 906920
8   OBSOLETE STUD 3/8 BSW X 1 MS SELF
Potterton part no. 619801
13   OBSOLETE THERMOSTAT POCKET
Potterton part no. 405109
16   OBSOLETE COMBINED SUCTION TEE AND HEADER CI SPECIAL
Potterton part no. 315118
17 Part number 376523, OBSOLETE FLOW HEADER GASKET OBSOLETE FLOW HEADER GASKET
Potterton part no. 376523
24   OBSOLETE DRAINING TAP 1/2INCH B.S.P.T
Potterton part no. 629751
27   OBSOLETE COVER FLUEWAY R/
Potterton part no. 315110
28   OBSOLETE GASKET FLUEWAY COVER
Potterton part no. 31511101
35   OBSOLETE BASE TRAY MS SPECIAL
Potterton part no. 315150
49   OBSOLETE DRAUGHT DIVERTER C55/16
Potterton part no. 376481
50   OBSOLETE INSULATION RETAINER ASSEMBLY
Potterton part no. 315104
60   OBSOLETE CONTROL MODULE SERVICE KIT
Potterton part no. 90412501
61   OBSOLETE COVER FRONT WITH FUSE ACCESS
Potterton part no. 374626
62   OBSOLETE CONTROL THERMOSTAT
Potterton part no. 404384
63   OBSOLETE THERMOSTAT KNOB RANCO
Potterton part no. 374646
79   OBSOLETE PUMP CIRCULATOR - MYSON SD52 - FLANGED
Potterton part no. 904887
91   OBSOLETE BURNER ASSY FURIGAS (LINT RESISTANT)
Potterton part no. 904555
91   OBSOLETE GAUZE ASSY
Potterton part no. 314847
93   OBSOLETE PRES TEST NIPPLE 1/8 BSP
Potterton part no. 400988
100   OBSOLETE INJECTOR PILOT NG 2033 NHT 2
Potterton part no. 905476
100   OBSOLETE PILOT ASSY
Potterton part no. 905278
100   OBSOLETE PILOT E31/14 NG 6MM WHITE/RO
Potterton part no. 402469
100   BRKT B TYPE L LH TARGET
Potterton part no. 410483
102 Part number Q309A2788, THERMOCOUPLE THERMOCOUPLE
Potterton part no. Q309A2788		 £8.96
102 Part number 40225701, NOW USE Q309A2788 THERMOCOUPLE 1000MM Q309/MTRL TY NOW USE Q309A2788 THERMOCOUPLE 1000MM Q309/MTRL TY
Potterton part no. 40225701
103 Part number 700723, ALUMINIUM TUBE KIT 6MM OD ALUMINIUM TUBE KIT 6MM OD
Potterton part no. 700723
105   OLIVE 6MM BORE
Potterton part no. 401624		 £2.95
106 Part number 402492, SHR OFF UNION 6MM LG SHNK (STD SHR OFF UNION 6MM LG SHNK (STD
Potterton part no. 402492		 £5.88
107   OBSOLETE CONTROL GAS W/ROGERS REPL T K
Potterton part no. 40247301
108   OBSOLETE CONTROL GAS V4400C S VCE KIT
Potterton part no. 906223
109   OBSOLETE OPERATOR SOLENOID TRADELINE
Potterton part no. 904750
110   OBSOLETE REGULATOR PRESS V5306A/E HW
Potterton part no. 904751
111   OBSOLETE POWER UNIT
Potterton part no. 904752
113   OBSOLETE LEAD ASY I.C.G.C 36
Potterton part no. 402432
114 Part number 629828, GASCOCK ASY L/K 1/2MF BRS GASCOCK ASY L/K 1/2MF BRS
Potterton part no. 629828
