POTTERTON
C41/48 BE SB CAT 2TN - (Assembly 1)
Appliance Code: 41-593-67

Appliance Diagram

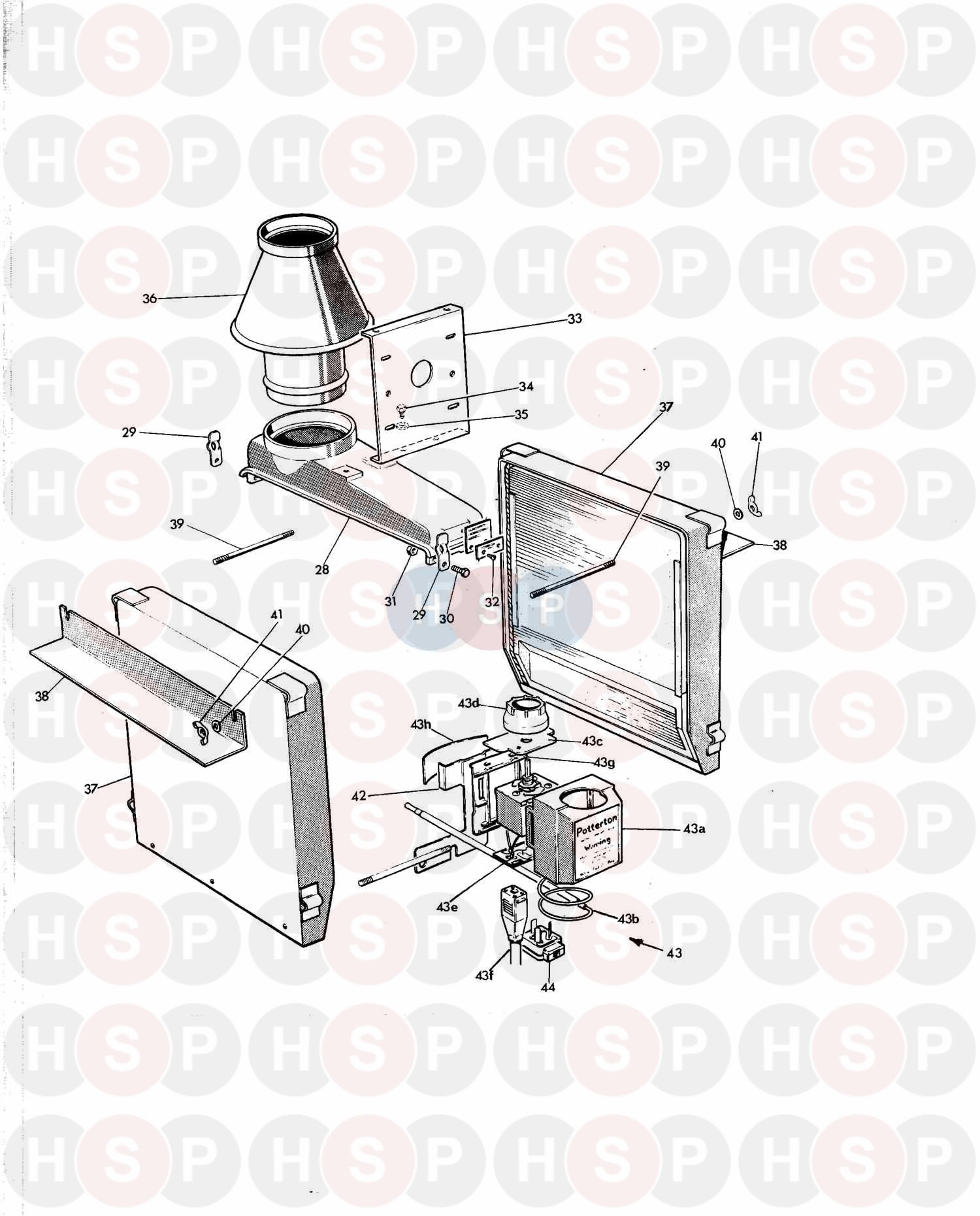

Assembly 1 diagram for Potterton C41/48 BE SB CAT 2TNClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE WATERWAY SECTION ASSEMBLY
Potterton part no. 906919
2   OBSOLETE FRONT MUD HOLE COVER CI TAPPED 1/2
Potterton part no. 314266
3   OBSOLETE GASKET MUD HOLE COVER
Potterton part no. 31426901
4   OBSOLETE FLANGE 1 1/4 BSP 1 SEC R/
Potterton part no. 314192
5 Part number 376523, OBSOLETE FLOW HEADER GASKET OBSOLETE FLOW HEADER GASKET
Potterton part no. 376523
7   OBSOLETE STUD 3/8 BSW X 1 MS SELF
Potterton part no. 619801
8   OBSOLETE STUD 3/8WH X 2 MS SF
Potterton part no. 618104
11   OBSOLETE THERMOSTAT POCKET
Potterton part no. 405109
19   OBSOLETE DRAINING TAP 1/2INCH B.S.P.T
Potterton part no. 629751
36   OBSOLETE DRAUGHT DIVERTER - ALUMINIUM 4IN DIA
Potterton part no. 314088
37   OBSOLETE INSULATION RETAINER ASSEMBLY
Potterton part no. 375104
43   OBSOLETE CONTROL BOX
Potterton part no. 405128
43   OBSOLETE THERMOSTAT RANCO
Potterton part no. 314133
43   OBSOLETE KNOB THERMOSTAT
Potterton part no. 903448
43   OBSOLETE PRINTED CIRCUIT BOARD
Potterton part no. 903451
47   OBSOLETE COMBINED SUCTION TEE AND HEADER CI
Potterton part no. 314118
50   OBSOLETE PUMP CIRCULATOR - MYSON SD52 - FLANGED
Potterton part no. 904887
61   OBSOLETE BURNER TUBE - BRAY 1700 AB 12064
Potterton part no. 414066
62   OBSOLETE HOLDER INJECTOR C/W NUT CAT
Potterton part no. 410186
70 Part number 410209, PILOT INJ HONEYWELL BCR 18 PILOT INJ HONEYWELL BCR 18
Potterton part no. 410209
70 Part number 102041, INJECTOR PILOT.NG.BCR-18 INJECTOR PILOT.NG.BCR-18
Potterton part no. 102041
70 Part number 402492, SHR OFF UNION 6MM LG SHNK (STD SHR OFF UNION 6MM LG SHNK (STD
Potterton part no. 402492		 £5.88
70   OBSOLETE PILOT ASSY Q314A 4834 R/H
Potterton part no. 905326
71 Part number 40225701, NOW USE Q309A2788 THERMOCOUPLE 1000MM Q309/MTRL TY NOW USE Q309A2788 THERMOCOUPLE 1000MM Q309/MTRL TY
Potterton part no. 40225701
71 Part number Q309A2788, THERMOCOUPLE THERMOCOUPLE
Potterton part no. Q309A2788		 £8.96
81 Part number 700723, ALUMINIUM TUBE KIT 6MM OD ALUMINIUM TUBE KIT 6MM OD
Potterton part no. 700723
81   OLIVE 6MM BORE
Potterton part no. 401624		 £2.95
82   COMPRESSION NUT 1/8" BSP
Potterton part no. 401582		 £5.12
85   OBSOLETE PRES TEST NIPPLE 1/8 BSP
Potterton part no. 400988
88   OBSOLETE COCK GAS 3/4 F/F UNION ASSY
Potterton part no. 629765
99   OBSOLETE INJECTOR CAT 11 SIZE 650 BRA
Potterton part no. 410224
122   OBSOLETE BRUSH FLUE 6 X 2 DIA X 24 LG
Potterton part no. 595012		 £4.68
