POTTERTON COMMERCIAL
NXR4I 8-14 SECTIONS ISS 02 - (Casing Insulation)
Appliance Code: NXR4i 8-14 Section iss 02

Appliance Diagram

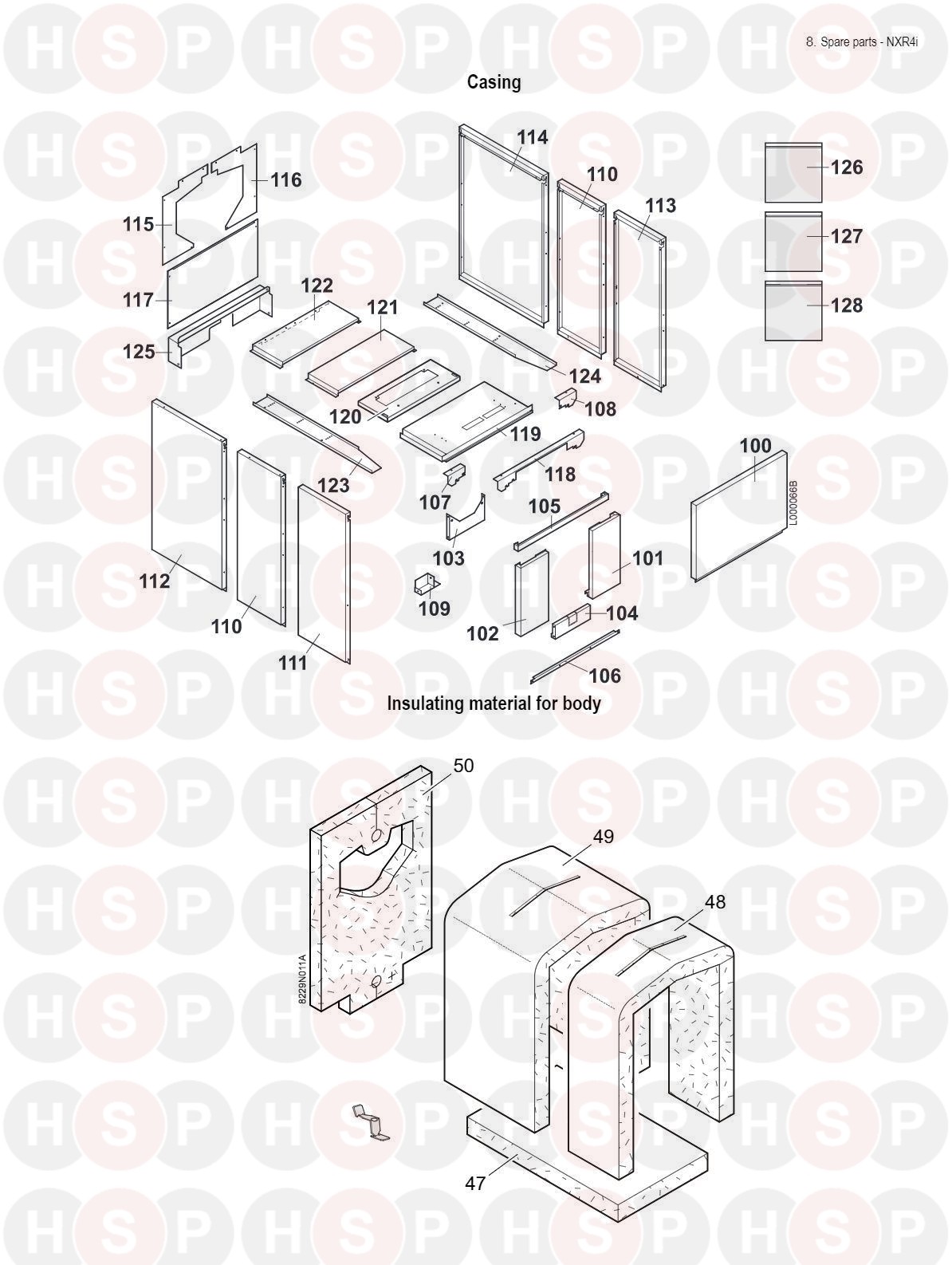

Casing Insulation diagram for Potterton Commercial NXR4i 8-14 Sections iss 02Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

47   LWR INSUL'N, BLR BODY - 8SEC
Potterton part no. 5139887		 £31.06
47   LWR INSUL,BLR BODY- 9&10SEC
Potterton part no. 5139888		 £45.90
47   LWR INSUL,BLR BODY- 11&12SEC
Potterton part no. 5139889		 £46.12
47   LWR INSUL,BLR BODY- 13&14SEC
Potterton part no. 5139890		 £68.03
48   FRONT BLR BODY INS,WID 500MM
Potterton part no. 5139891		 £51.91
49   BLR BODY INSUL
Potterton part no. 5139892		 £46.51
49   INSUL'G MATERIAL - LEN 600MM
Potterton part no. 5139893		 £46.53
49   INSUL'G MATERIAL - LEN 800MM
Potterton part no. 5139894		 £112.10
49   INSUL'G MATERIAL - LEN 900MM
Potterton part no. 5139895		 £103.32
50   REAR INSULATION
Potterton part no. 5139896		 £43.96
100   COMPLETE UPPER FRONT PANEL
Potterton part no. 5139900		 £129.99
101   COMP. LOWER FRONT PANEL, R/H
Potterton part no. 5139901		 £53.10
102   COMP. LOWER FRONT PANEL, L/H
Potterton part no. 5139902		 £54.91
103   NOW USE 82291004 PANEL FOR FURNACE DOOR
Potterton part no. 5139903
103   UPPER FRONT BURNER PANEL
Potterton part no. 82291004		 £36.95
104   PANEL
Potterton part no. 5139904		 £26.54
105   COMPLETE FRONT CSNG SUPPORT
Potterton part no. 5139905		 £36.05
106   LOWER FRONT CROSS PIECE
Potterton part no. 5139906		 £10.78
107   UPPER CASING SUPPORT, LEFT
Potterton part no. 5139907		 £23.05
108   UPPER CASING SUPPORT, RIGHT
Potterton part no. 5139908		 £23.05
109   LOWER CASING SUPPORT
Potterton part no. 5139909		 £16.07
110   SIDE PNL, WIDTH 480MM
Potterton part no. 5139910		 £66.36
111   COMP. FRONT SIDE PANEL, L/H
Potterton part no. 5139911		 £104.99
112   COMP. SIDE PNL,L/H,WID 770MM
Potterton part no. 200007896		 £129.49
112   COMPLETE SIDE PANEL-LEFT/GREY
Potterton part no. 200007898		 £148.94
112   NOW USE 200007896 COMP. SIDE PNL,L/H,WID 770MM
Potterton part no. 5139912
112   COMP. SIDE PNL,L/H,WID 610MM
Potterton part no. 5139913		 £129.18
112   NOW USE 200007898 COMP. SIDE PNL,L/H,WID 930MM
Potterton part no. 5139914
113   COMP. FRONT SIDE PANEL, R/H
Potterton part no. 5139915		 £104.99
114   COMP. SIDE PNL,R/H,WID 770MM
Potterton part no. 200007895		 £125.72
114   SIDE PANEL RIGHT - 930MM GREY
Potterton part no. 200007897		 £186.33
114   COMP. SIDE PNL,R/H,WID 610MM
Potterton part no. 5139916		 £129.18
114   NOW USE 200007895 COMP. SIDE PNL,R/H,WID 770MM
Potterton part no. 5139917
114   NOW USE 200007897 COMP. SIDE PNL,R/H,WID 930MM
Potterton part no. 5139918
115   COMP. UPPER REAR PANEL, L/H
Potterton part no. 5139919		 £39.70
116   COMP. UPPER REAR PANEL, R/H
Potterton part no. 5139920		 £31.72
117   LOWER BACK PANEL
Potterton part no. 5139921		 £33.18
118   COMPLETE UPPER CROSS-BAR
Potterton part no. 5139922		 £37.54
119   COMPLETE FRONT COVER
Potterton part no. 5139923		 £60.21
120   PAINTED CONTROL PANEL BASE
Potterton part no. 5139924		 £28.36
121   COMP. INTERMEDIATE COVER
Potterton part no. 5139925		 £30.72
122   COMP. REAR COVER, WID 170MM
Potterton part no. 5139926		 £18.41
122   COMP. REAR COVER, WID 330MM
Potterton part no. 5139927		 £30.49
122   COMP. REAR COVER, WID 490MM
Potterton part no. 5139928		 £54.52
123   COMP. CABLE WAY, L/H, NXR4-8
Potterton part no. 5139929		 £43.11
123   COMP. CABLE WAY, L/H, NXR4-9
Potterton part no. 5139930		 £38.70
123   COMP CABLE WAY, L/H, NXR4-10
Potterton part no. 5139931		 £48.48
123   COMP CABLE WAY, L/H, NXR4-11
Potterton part no. 5139932		 £53.34
123   COMP CABLE WAY, L/H, NXR4-12
Potterton part no. 5139933		 £43.64
123   NOW USE 82298824 COMP CABLE WAY, L/H, NXR4-13
Potterton part no. 5139934
123   COMP CABLE WAY, L/H, NXR4-14
Potterton part no. 5139935		 £51.96
123   COMP CABLE WAY, L/H, NXR4-13
Potterton part no. 82298824		 £54.31
124   COMP. CABLE WAY, R/H, NXR4-8
Potterton part no. 5139936		 £42.98
124   COMP. CABLE WAY, R/H, NXR4-9
Potterton part no. 5139937		 £39.02
124   COMP CABLE WAY, R/H, NXR4-10
Potterton part no. 5139938		 £48.48
124   COMP CABLE WAY, R/H, NXR4-11
Potterton part no. 5139939		 £53.34
124   COMP CABLE WAY, R/H, NXR4-12
Potterton part no. 5139940		 £43.64
124   NOW USE 82298832 COMP CABLE WAY, R/H, NXR4-13
Potterton part no. 5139941
124   COMP CABLE WAY, R/H, NXR4-14
Potterton part no. 5139942		 £52.95
124   COMP CABLE WAY, R/H, NXR4-13
Potterton part no. 82298832		 £55.22
125   ADDITIONAL LOWER REAR PANEL
Potterton part no. 5139943		 £39.59
126   SCREW BAG, COMMON PARTS
Potterton part no. 5139944		 £18.11
127   SCREW BAG, VAR. PARTS CS11
Potterton part no. 5139945		 £15.69
128   SCREW BAG, VAR. PARTS CS13
Potterton part no. 5139946		 £13.99
