MYSON
MARATHON (LATER) 600C 1997 - (Exploded View)
Appliance Code: 41-494-16

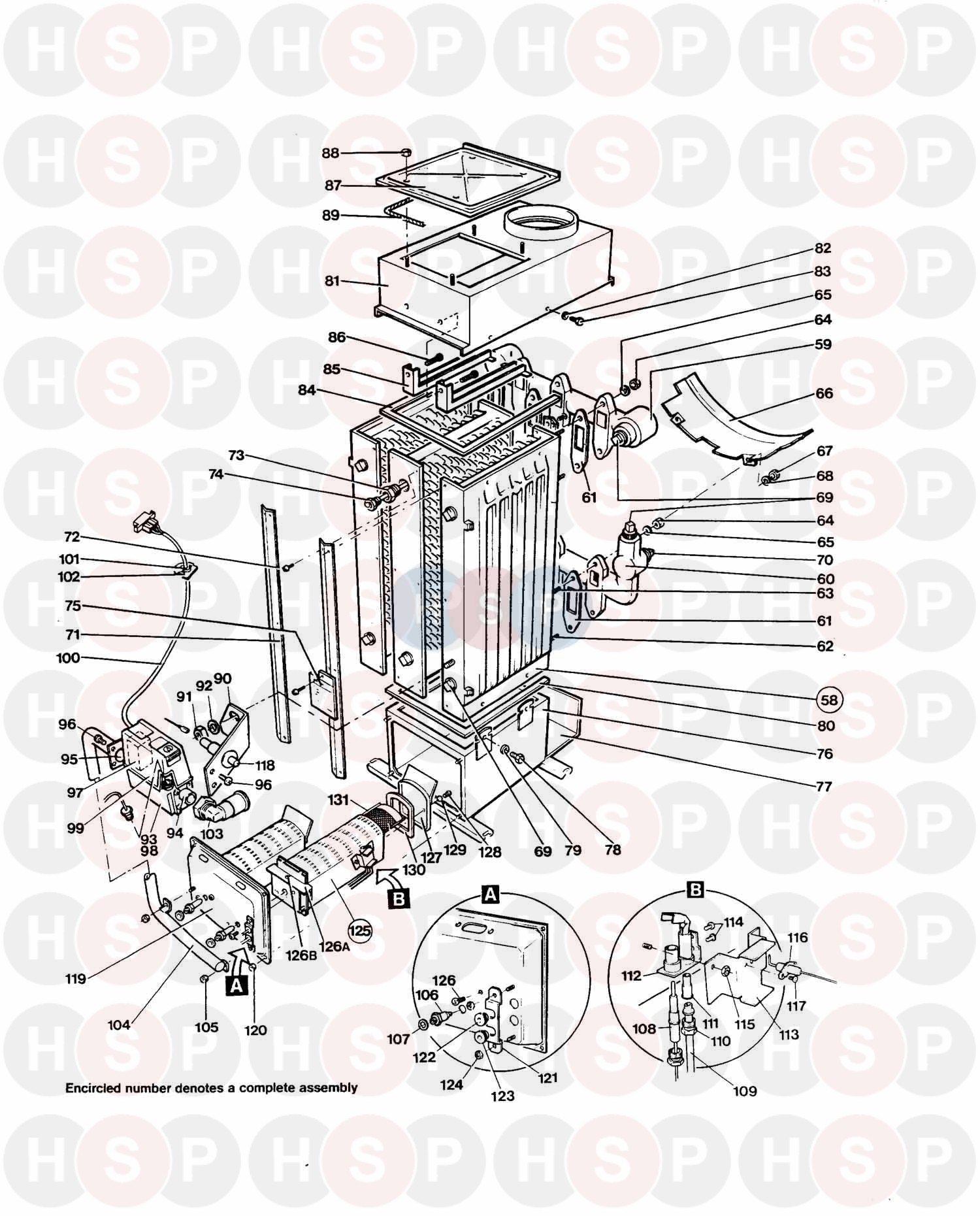

Appliance Diagram


Exploded View diagram for Myson Marathon (Later) 600C 1997Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

5   OBSOLETE TOP COVER MOULDING
Main part no. 305C1438

6   OBSOLETE 8 X 1/2 STEEL SCREW
Main part no. 168S

11 Part number 635506, NUT M5 FULL BRASS NUT M5 FULL BRASS
Main part no. 635506

17   OBSOLETE LABEL - LIGHTING INSTRUCTION
Main part no. 305C1278

32   OBSOLETE THERMOSTAT & HARNESS 231252
Main part no. 305A1250

38   OBSOLETE CONTROL KNOB COMBI
Main part no. 309S371

61   OBSOLETE GASKET 231071
Main part no. 305C205

62   OBSOLETE STUD 231073
Main part no. B53017

64   OBSOLETE NUT M10 231075
Main part no. B53020

71   OBSOLETE SEALING STRIP ASSY FLUE
Main part no. 305A592

74   OBSOLETE THERMOSTAT POCKET
Main part no. B53736

89   OBSOLETE ROPE GASKET 1.22 METRE
Main part no. B1078

90   OBSOLETE MOUNTING BRACKET 231098
Main part no. 305C987

103   OBSOLETE GAS COCK 231110
Main part no. 402S1074

106   OBSOLETE INJECTOR 231443
Main part no. 305S246

107   OBSOLETE BURNER INJECTOR WASHER 1 5MM 2
Main part no. 301C247

116 Part number 402S571, OBSOLETE SPARK ELECTRODE 231111 OBSOLETE SPARK ELECTRODE 231111
Main part no. 402S571

117   OBSOLETE SCREW
Main part no. 11/11592

118 Part number 402S083, SPARK GENERATOR SPARK GENERATOR
Main part no. 402S083

122   OBSOLETE SEALING GROMMET SPECIAL 23109
Main part no. 305C992

127   OBSOLETE BURNER END PLATE AB20601
Main part no. 305S431

130   OBSOLETE END PLATE GASKET
Main part no. 305S432

133   OBSOLETE BURNER END PLATE
Main part no. 305S777

136   GASKET
Main part no. 305S778

136   GASKET BURNER END FOR 414572
Main part no. 906242

137   OBSOLETE FILTER
Main part no. 305S775

145   OBSOLETE KNOB 231830
Main part no. B53116
