IDEAL
W2000 RS 50N - (Wiring Diagram 3)
Appliance Code: 41-429-15

Appliance Diagram

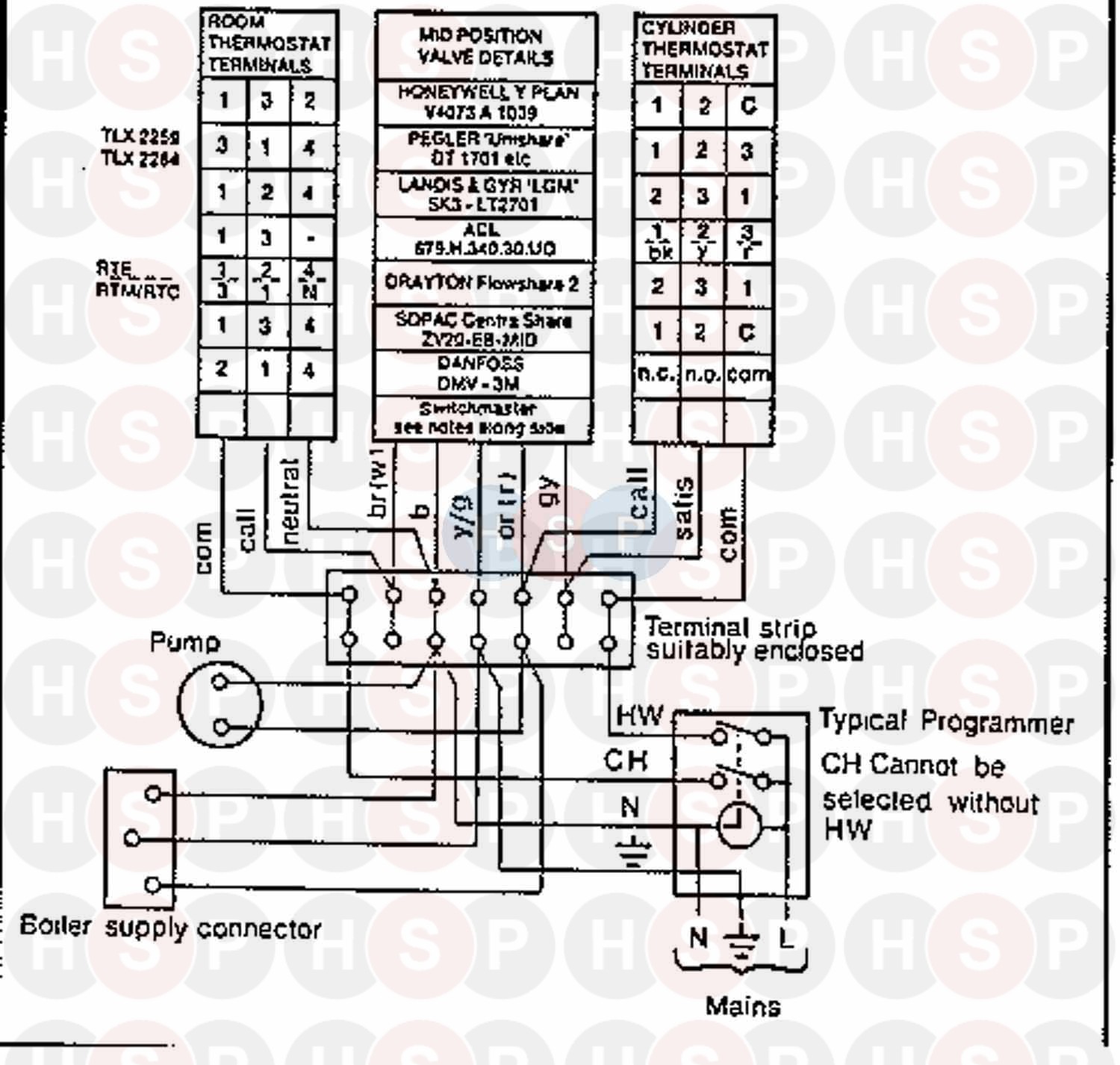

Wiring Diagram 3 diagram for Ideal W2000 RS 50NClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE BLR BODY SCTNS W2000 RS/CF/FAN
Ideal part no. 133102

2   OBSOLETE 2 FLUEWAY BAFFLES:W2000
Ideal part no. 133139

3   OBSOLETE COLL HOOD ASSY W2000 RS 50
Ideal part no. 079229

4   OBSOLETE M6-Z BOLT ASSEMBLY (PAIR)
Ideal part no. 079231

5   OBSOLETE C/O COVER ASS W2000 RS
Ideal part no. 052249

6   OBSOLETE DIST TUBE ASS WRS/WLX/W2000
Ideal part no. 049586

7   OBSOLETE SIGHT GLASS ASSY - BNR BOX
Ideal part no. 079333

8   OBSOLETE GAS MFLD ASS PTD W2000N RS/CF
Ideal part no. 136139

10   OBSOLETE PILOT PIPE W2000 CF40/60
Ideal part no. 079522

11   OBSOLETE MAIN BURNER AEROMATIC AC 19/123256
Ideal part no. 113085

11   OBSOLETE MAIN BURNER AEROMATIC AC 19/123257
Ideal part no. 113086

12   OBSOLETE INJECTOR BNR BRAY CAT 103 SIZE 1450
Ideal part no. 004565

13 Part number 004053, INJECTOR PILOT SIT 0-977-113 DBL INJECTOR PILOT SIT 0-977-113 DBL
Ideal part no. 004053

14   OBSOLETE PILOT BNR C/W INJECTOR
Ideal part no. 079298

15   OBSOLETE PILOT BNR SHIELD W2000N CF/RS
Ideal part no. 136558

16 Part number 078560, H/WELL VALVE 1049 C/W O RINGS H/WELL VALVE 1049 C/W O RINGS
Ideal part no. 078560

17   OBSOLETE GAS VALVE COVER 45900401-007B
Ideal part no. 003986

18 Part number 003248, O-RING 25.0 I/D X 4.0 DES 0038 MN70 O-RING 25.0 I/D X 4.0 DES 0038 MN70
Ideal part no. 003248
£8.80
19   OBSOLETE ELBOW 1/2 INCH RC HONEYWELL 45900400
Ideal part no. 004569

20 Part number 003939, SPARK GENERATOR 60080/002 SPARK GENERATOR 60080/002
Ideal part no. 003939

21 Part number 078611, OBSOLETE IGN E/TRODE 0-007-213 KIT OBSOLETE IGN E/TRODE 0-007-213 KIT
Ideal part no. 078611

23   OBSOLETE THERMOCOUPLE 750MM 0-290-174
Ideal part no. 113107

24   OBSOLETE BNR+CTRLS ASS W2000 RS50N
Ideal part no. 136578

25   OBSOLETE CONTROL BOX W2000 RS/CF
Ideal part no. 079235

26 Part number 004570, OBSOLETE T/STAT RANCO CL6 PO149 OBSOLETE T/STAT RANCO CL6 PO149
Ideal part no. 004570

27 Part number 013909, OBSOLETE CONTROL KNOB ASS T/STAT MX2 SUP OBSOLETE CONTROL KNOB ASS T/STAT MX2 SUP
Ideal part no. 013909

28   T/STAT POCKET ASS W2000N CF/RS
Ideal part no. 134721

29   OBSOLETE PLASTIC CAN SUPPRESSOR STC NO
Ideal part no. 004033

30   OBSOLETE PLUG-BULGIN PX0587/ASHLY C4000
Ideal part no. 003069

31   OBSOLETE BLR CSG COMP W2000 RS N
Ideal part no. 136596

32   OBSOLETE CTRL CSG DOOR ASS W2000 RS/CF
Ideal part no. 134911

33   OBSOLETE CTRL CSG BTM PNL PTD W2000 RS
Ideal part no. 133586

33   OBSOLETE REAR INFILL PNL PTD:W2000N RS
Ideal part no. 136534

34   OBSOLETE JACKET SEAL:W2000 RS30
Ideal part no. 133134

35   OBSOLETE C PACK SHORT FLUE:W2000 RS P
Ideal part no. 133097

36   OBSOLETE B PACK STD FLUE:W2000 RS PROP
Ideal part no. 133096

37   OBSOLETE B1 PACK LONG FLUE:W2000 RSPROP
Ideal part no. 133095

38   OBSOLETE WALL MNTG PLT W/FIX W2000
Ideal part no. 079668

39   OBSOLETE BACK PANEL ASSYW2000 (A)
Ideal part no. 079236

40   OBSOLETE RC1/2 X R1/2 SPRING LD ELBOW GAS COCK
Ideal part no. 003860

41   OBSOLETE BALLOFIX VALVE 1.5INX28 NO 5306
Ideal part no. 003834

44   OBSOLETE PROGRAMMER RWB 4 STELRAD
Ideal part no. 012698

47   OBSOLETE T/STAT L7-P4001 RANCO LO7
Ideal part no. 004706

48   OBSOLETE CONV KIT W2000 RS 45NP-RS50N
Ideal part no. 137548

48   OBSOLETE CONV KIT W2000 RS60NP-60N
Ideal part no. 137547

49   OBSOLETE H/WARE PK W2000N RS/CF
Ideal part no. 136598
