IDEAL
W2000 CF 50 - (Wiring Diagram 4)
Appliance Code: 41-421-40

Appliance Diagram


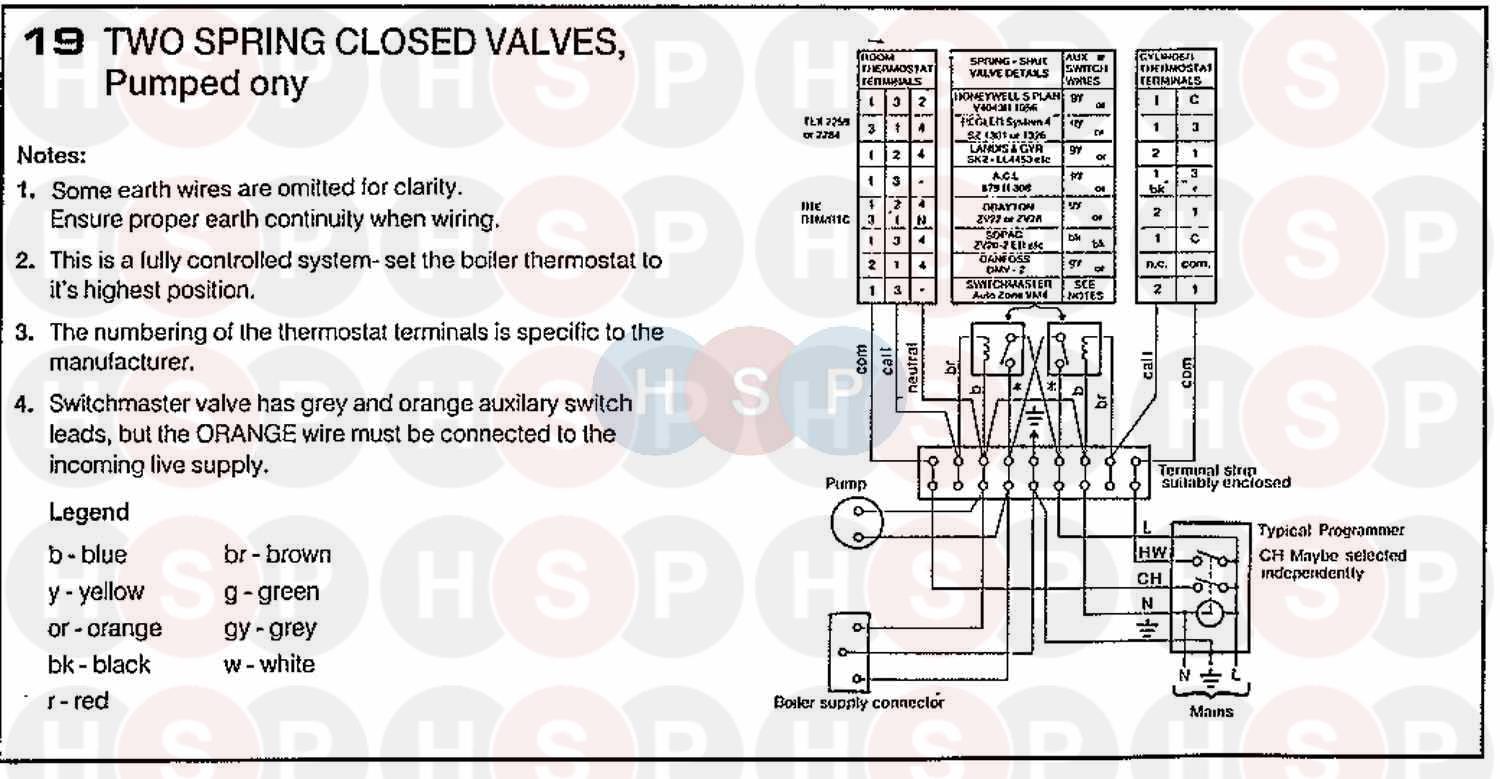

Wiring Diagram 4 diagram for Ideal W2000 CF 50Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE CONVERSION KIT W2000 CF50(KIT)
Ideal part no. 135297
0   OBSOLETE H/WARE PK:W2000 CF 40/60
Ideal part no. 133153
0   OBSOLETE BOILER INSULATION W2000 CF
Ideal part no. 134190
0   MAGNETIC CATCH MX SL
Ideal part no. 004246		 £3.17
0 Part number 002921, OBSOLETE O RING 31.34 I/D X 3.53 DES 0038 EP70 OBSOLETE O RING 31.34 I/D X 3.53 DES 0038 EP70
Ideal part no. 002921
1   OBSOLETE BLR BODY SCTNS W2000 RS/CF/FAN
Ideal part no. 133102
2   OBSOLETE 2 FLUEWAY BAFFLES:W2000
Ideal part no. 133139
3   OBSOLETE COLL HOOD ASSY W2000 CF 50
Ideal part no. 079242
4   OBSOLETE M6-Z BOLT ASSEMBLY (PAIR)
Ideal part no. 079231
5   OBSOLETE C/O COVER ASS W2000 CF
Ideal part no. 052247
6   OBSOLETE DIST TUBE ASS WRS/WLX/W2000
Ideal part no. 049586
7   OBSOLETE SIGHT GLASS ASSY - BNR BOX
Ideal part no. 079333
8   OBSOLETE GAS MANIFOLD ASSY W2000 CF
Ideal part no. 079244
9   OBSOLETE PILOT PIPE W2000 RS/CF 30/60
Ideal part no. 079233
10   OBSOLETE BURNER 41 WRS 30 RS/CF 40/50
Ideal part no. 133114
11   OBSOLETE EXT LINT ARRESTER W2000 CF
Ideal part no. 134510
12 Part number 003965, OBSOLETE INJECTOR BNR BRAY CAT 16 SIZE 1600 OBSOLETE INJECTOR BNR BRAY CAT 16 SIZE 1600
Ideal part no. 003965
13 Part number 079234, PILOT BNR Q359A 1058 W/INJ PILOT BNR Q359A 1058 W/INJ
Ideal part no. 079234
14 Part number 003825, INJECTOR PILOT HONEYWELL 45900421-029 INJECTOR PILOT HONEYWELL 45900421-029
Ideal part no. 003825		 £5.68
16 Part number 078560, H/WELL VALVE 1049 C/W O RINGS H/WELL VALVE 1049 C/W O RINGS
Ideal part no. 078560
17   OBSOLETE GAS VALVE COVER 45900401-007B
Ideal part no. 003986
18 Part number 003248, O-RING 25.0 I/D X 4.0 DES 0038 MN70 O-RING 25.0 I/D X 4.0 DES 0038 MN70
Ideal part no. 003248		 £8.80
19   OBSOLETE ELBOW 1/2 INCH RC HONEYWELL 45900400
Ideal part no. 004569
20 Part number 003939, SPARK GENERATOR 60080/002 SPARK GENERATOR 60080/002
Ideal part no. 003939
21 Part number 078561, OBSOLETE IGN ELECTRODE/HT LEAD ASS/KIT OBSOLETE IGN ELECTRODE/HT LEAD ASS/KIT
Ideal part no. 078561
23 Part number 003876, NOW USE Q309A2747 THERMOCOUPLE 750mm NOW USE Q309A2747 THERMOCOUPLE 750MM
Ideal part no. 003876
23 Part number Q309A2747, Q309A2747 - thermocouple Q309A2747 - THERMOCOUPLE
Baxi part no. Q309A2747		 £9.18
24   OBSOLETE BNR & CTRLS:W2000 CF
Ideal part no. 133150
25   OBSOLETE CONTROL BOX W2000 RS/CF
Ideal part no. 079235
26 Part number 004570, OBSOLETE T/STAT RANCO CL6 PO149 OBSOLETE T/STAT RANCO CL6 PO149
Ideal part no. 004570
27 Part number 013909, OBSOLETE CONTROL KNOB ASS T/STAT MX2 SUP OBSOLETE CONTROL KNOB ASS T/STAT MX2 SUP
Ideal part no. 013909
28   T/STAT POCKET ASS W2000N CF/RS
Ideal part no. 134721
29   OBSOLETE PLASTIC CAN SUPPRESSOR STC NO
Ideal part no. 004033
30   OBSOLETE PLUG-BULGIN PX0587/ASHLY C4000
Ideal part no. 003069
31   OBSOLETE BLR CSG ASS W2000N CF
Ideal part no. 136702
32   OBSOLETE CTRL CSG DOOR ASS W2000 RS/CF
Ideal part no. 134911
33   OBSOLETE CTRL CSG BTM PNL PTD W2000 RS
Ideal part no. 133586
35   OBSOLETE BACK PANEL ASS W2000 CF
Ideal part no. 133147
36   OBSOLETE RC1/2 X R1/2 SPRING LD ELBOW GAS COCK
Ideal part no. 003860
37   OBSOLETE BALLOFIX VALVE 1.5INX28 NO 5306
Ideal part no. 003834
40   OBSOLETE PROGRAMMER RWB 4 STELRAD
Ideal part no. 012698
41   OBSOLETE T/STAT L7-P4001 RANCO LO7
Ideal part no. 004706
