IDEAL
SYSTEMISER SE 80 - (Wiring Diagram 3)
Appliance Code: 41-349-70

Appliance Diagram

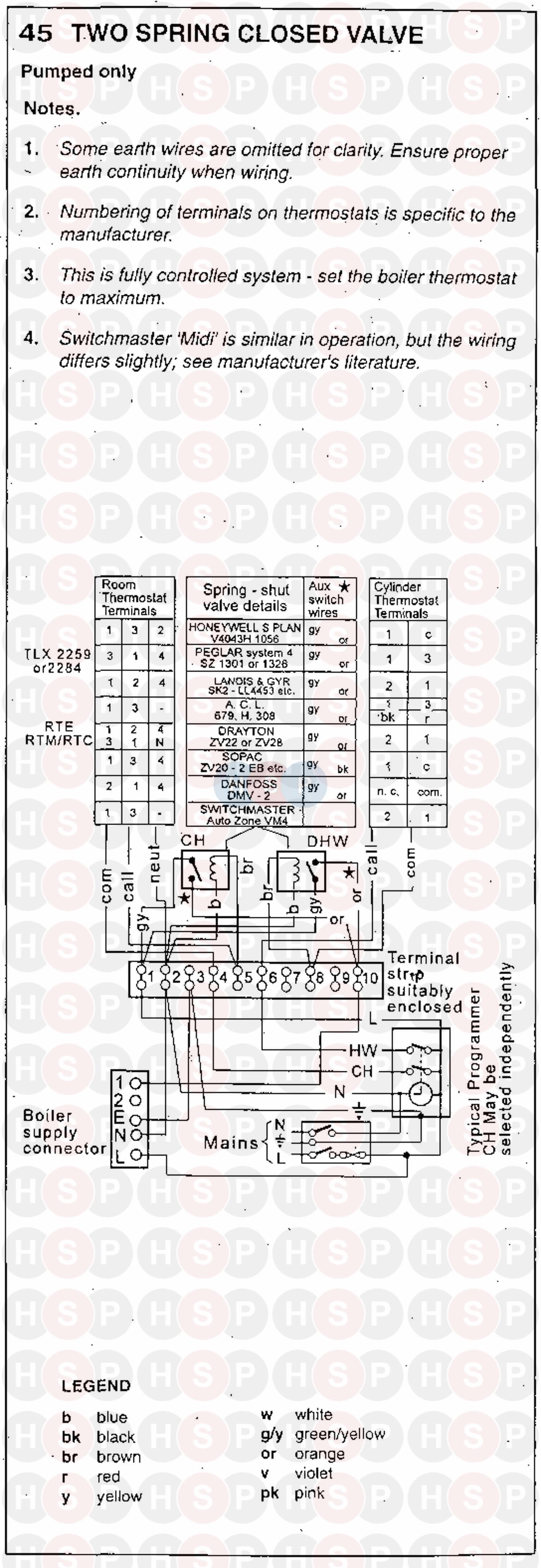

Wiring Diagram 3 diagram for Ideal Systemiser SE 80Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE EXTENSION BRACKET SYS/RES SE
Ideal part no. 151333
0   OBSOLETE CONCEALMENT PANEL SYS/RES SE
Ideal part no. 151334
1   MAIN BURNER ASSY RESPONSE SE
Ideal part no. 075153		 £153.58
2   OBSOLETE INJECTOR BNR BRAY CAT 10 SIZE 2300
Ideal part no. 004760
3 Part number 075152, OBSOLETE GAS VALVE ASSY SIT 0.828.116 RESP/SYS SE OBSOLETE GAS VALVE ASSY SIT 0.828.116 RESP/SYS SE
Ideal part no. 075152
4 Part number 075268, FLAME SENSING ELECTRODE ASSY FLAME SENSING ELECTRODE ASSY
Ideal part no. 075268
5 Part number 075150, IGNITION ELECTRODE ASSY RESPONSE IGNITION ELECTRODE ASSY RESPONSE
Ideal part no. 075150		 £24.68
6 Part number 075149, OBSOLETE GAS MODULE CONTROL BOARD SYS SE OBSOLETE GAS MODULE CONTROL BOARD SYS SE
Ideal part no. 075149
7 Part number 139349, GAS MODULE DISPLAY BD GAS MODULE DISPLAY BD
Ideal part no. 139349		 £40.16

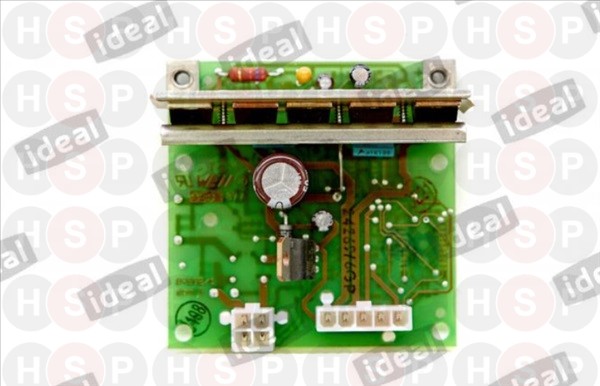

8 Part number 075265, FAN SPEED CONTROL ASS RESP 120 FAN SPEED CONTROL ASS RESP 120
Ideal part no. 075265		 £128.36
9 Part number 075176, WATER PRESSURE SWITCH SIT-0340002 WATER PRESSURE SWITCH SIT-0340002
Ideal part no. 075176
10 Part number 150260, THERMISTOR SYS/RES SE THERMISTOR SYS/RES SE
Ideal part no. 150260		 £17.58
11 Part number 138953, PRESSURE GAUGE IMIT-IC96466228 PRESSURE GAUGE IMIT-IC96466228
Ideal part no. 138953
12 Part number 139603, ROCKER SWITCH ARCOELH8600VBWHITE ROCKER SWITCH ARCOELH8600VBWHITE
Ideal part no. 139603		 £1.98
13 Part number 139368, FAN ASSY RESP/SYS/RES SE FAN ASSY RESP/SYS/RES SE
Ideal part no. 139368		 £178.49
14 Part number 075147, OBSOLETE VENTURI ASSY RESPONSE SE OBSOLETE VENTURI ASSY RESPONSE SE
Ideal part no. 075147
15 Part number 075146, PRESSURE RELIEF VALVE RESP SE PRESSURE RELIEF VALVE RESP SE
Ideal part no. 075146		 £17.96
16 Part number 075142, EXPANSION VESSEL RESPONSE SE EXPANSION VESSEL RESPONSE SE
Ideal part no. 075142		 £108.57
17   OBSOLETE CIRCULATING PUMP RESPONSE SE
Ideal part no. 075139
18 Part number 113116, 3/8 IN AUTO AIR VENT 3/8 IN AUTO AIR VENT
Ideal part no. 113116		 £29.95
19   OBSOLETE PRESSURE SENSING PIPE ASSY
Ideal part no. 075138
20 Part number 112757, OBSOLETE EMC FILTER-BELLING SF4110-5/01 OBSOLETE EMC FILTER-BELLING SF4110-5/01
Ideal part no. 112757
21   OBSOLETE SEALED CSG SEAL PACK RESP SE
Ideal part no. 075137
22   OBSOLETE SYSTEM RET PIPE ASSY SY/MISER
Ideal part no. 075079
25   OBSOLETE PUMP OUTLET PIPE ASSY RESP SE
Ideal part no. 075126
26   OBSOLETE FLOW PIPE ASSY RESP SE
Ideal part no. 075125
27   OBSOLETE SYSTEM FLOW PIPE ASSY SY/MISER
Ideal part no. 075077
30   OBSOLETE GAS PIPE ASSY RESP SE
Ideal part no. 075116
34   OBSOLETE FLEXIBLE HOSE ASSY RESP SE
Ideal part no. 075099
35   OBSOLETE HT EXCHANGER ASSY RESP SE
Ideal part no. 075096
36 Part number 138097, FLUE THERMOSTAT FLUE THERMOSTAT
Ideal part no. 138097
37 Part number 075095, OBSOLETE CONDENSATE TRAP ASSY RESP SE OBSOLETE CONDENSATE TRAP ASSY RESP SE
Ideal part no. 075095
38 Part number 151081, BALL VALVE ASSY 22MM INCL DRAIN BALL VALVE ASSY 22MM INCL DRAIN
Ideal part no. 151081		 £25.61
40 Part number 013324, 3/4IN SEALING WASHER VARS 3/4IN SEALING WASHER VARS
Ideal part no. 013324		 £3.98

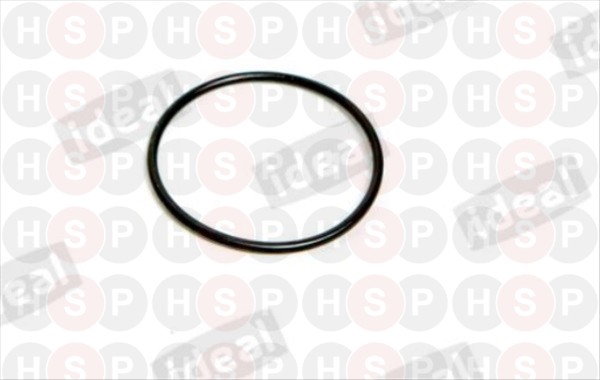

42 Part number 138112, O RING 91.0 I/D X 2.5 DES 0038 SIL70 O RING 91.0 I/D X 2.5 DES 0038 SIL70
Ideal part no. 138112		 £5.44
43 Part number 111739, O RING 47.30 I/D X 2.62 DES 0038 MN70 O RING 47.30 I/D X 2.62 DES 0038 MN70
Ideal part no. 111739		 £2.21
44   O RING 6.0 I/D X 1.5 DES 0038 SIL70
Ideal part no. 139945		 £1.20
45   OBSOLETE GAS LINE MOUNTING GASKET EURO
Ideal part no. 139840
46 Part number 111733, GAS VALVE GASKET MINIMISER GAS VALVE GASKET MINIMISER
Ideal part no. 111733		 £1.98
47   OBSOLETE H/WARE PK SYST/RESP SE
Ideal part no. 151485
48   PRE-PIPING FRAME ASSY SYS SE
Ideal part no. 151418		 £64.56
49   OBSOLETE CASING ASSY SYSTEMISER SE
Ideal part no. 075076
50   OBSOLETE CONTROLS PANEL ASSY RESP SE
Ideal part no. 075092
51   OBSOLETE SEALED CASING FRT PNL ASST
Ideal part no. 075091
52   OBSOLETE 1/2 THRO GAS COCK BODY
Ideal part no. 004914
53   OBSOLETE DRAIN VALVE ALTECNIC 39165
Ideal part no. 075202
54 Part number 075205, EV1 SOLENOID SIT 0.007.424 EV1 SOLENOID SIT 0.007.424
Ideal part no. 075205		 £83.13
55 Part number 075206, OBSOLETE EV2 SOLENOID SIT 0967066 OBSOLETE EV2 SOLENOID SIT 0967066
Ideal part no. 075206
56   3/8IN SEALING WASHER
Ideal part no. 150614		 £2.33
57 Part number 150613, 1IN SEALING WASHER 1IN SEALING WASHER
Ideal part no. 150613		 £1.98
58 Part number 151813, RELAY RESPONSE SE RELAY RESPONSE SE
Ideal part no. 151813		 £46.72
59   OBSOLETE O-RING - INJECTOR PIPE
Ideal part no. 139841
60 Part number 003248, O-RING 25.0 I/D X 4.0 DES 0038 MN70 O-RING 25.0 I/D X 4.0 DES 0038 MN70
Ideal part no. 003248		 £8.80
61 Part number 112219, GASKET MINIMISER GASKET MINIMISER
Ideal part no. 112219		 £2.87
62   OBSOLETE FUSE-QUICK ACT(F)250VAC 2A - 541-4410
Ideal part no. 075080
63 Part number 075090, FUSE ANTI SURGE(T)250VAC 3.15A - 563-621 FUSE ANTI SURGE(T)250VAC 3.15A - 563-621
Ideal part no. 075090		 £4.24
64   BOILER FLUE TUBE ASSY RESP SE
Ideal part no. 075087		 £24.32
65   OBSOLETE WALL MTG TEMPLATE SYS/RES SE
Ideal part no. 151335
70 Part number 075086, OBSOLETE GAS VALVE MOUNTING BRACKET ASS OBSOLETE GAS VALVE MOUNTING BRACKET ASS
Ideal part no. 075086
71 Part number 075084, OBSOLETE GAS VALVE SUPPORT BRACKET ASSY OBSOLETE GAS VALVE SUPPORT BRACKET ASSY
Ideal part no. 075084
72   OBSOLETE GAS INJECTOR PIPE ASSY RESP SE
Ideal part no. 075083
