IDEAL
S26 SYSTEM - (Casing)
Appliance Code: 41-750-54

Appliance Diagram

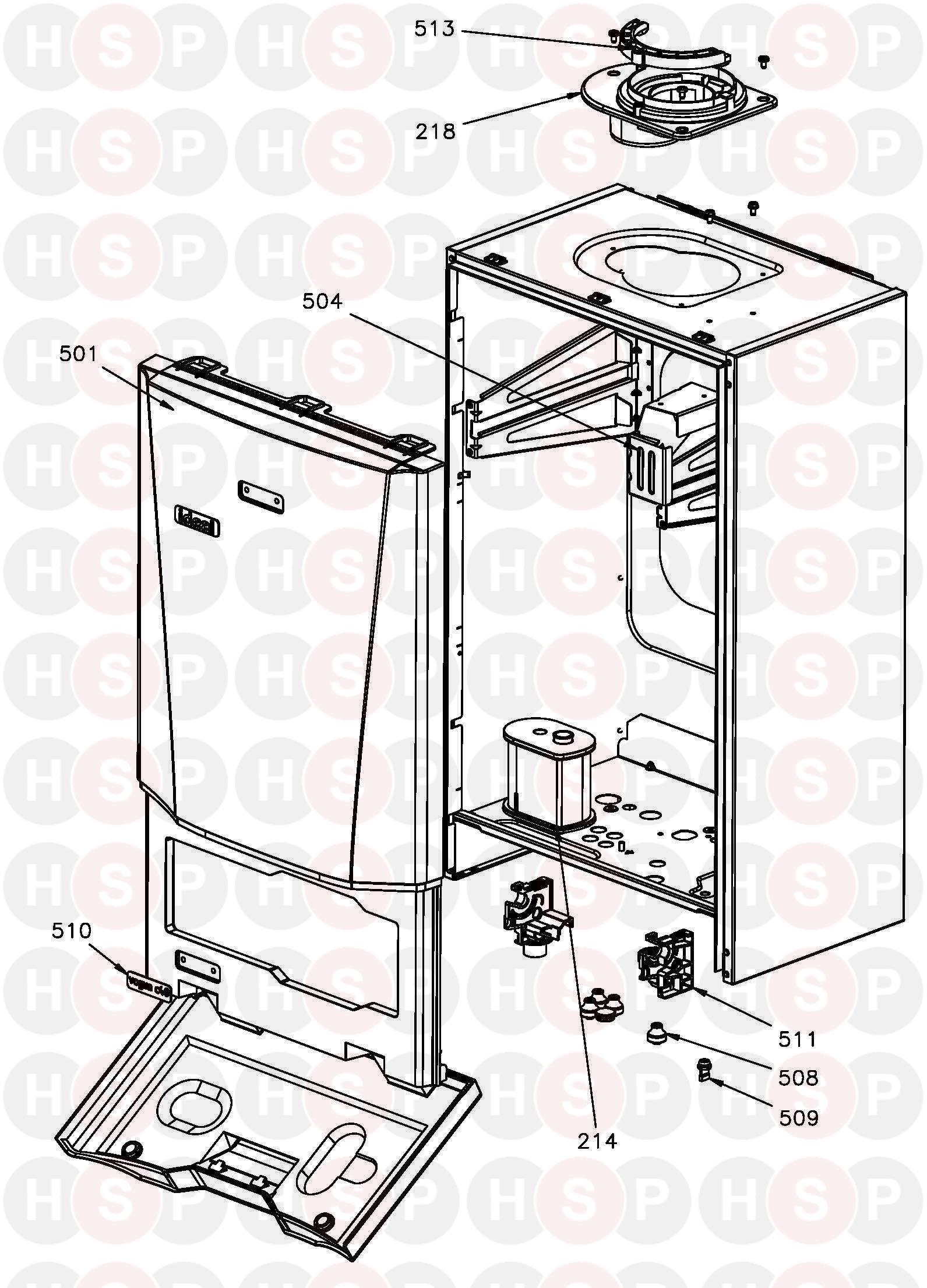

Casing diagram for Ideal S26 SystemClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

214 Part number 175583, SIPHON TRAP KIT SIPHON TRAP KIT
Ideal part no. 175583		 £23.10
218   FLUE MANIFOLD
Ideal part no. 176918		 £42.76
501   FRONT PANEL DOOR KIT SYSTEM
Ideal part no. 176956		 £205.08
504   BRACKET - IGNITION
Ideal part no. 176971		 £12.66
508   GROMMET - CHASSIS DRAIN
Ideal part no. 176972		 £12.49
509 Part number 175639, GROMMET - CHASSIS DRAIN GROMMET - CHASSIS DRAIN
Ideal part no. 175639		 £10.81
510   BADGE KIT - SYSTEM
Ideal part no. 176957		 £20.05
511 Part number 176969, HINGES & FIXING KIT HINGES & FIXING KIT
Ideal part no. 176969		 £16.42
513 Part number 175983, CLAMP RETAINING FLUE TURRET (COMBI ZY ONWARDS - COMBI ES AAQ ONWARDS) CLAMP RETAINING FLUE TURRET (COMBI ZY ONWARDS - COMBI ES AAQ ONWARDS)
Ideal part no. 175983		 £7.10
