IDEAL
S15 SYSTEM - (Gas Management)
Appliance Code: 41-750-56

Appliance Diagram

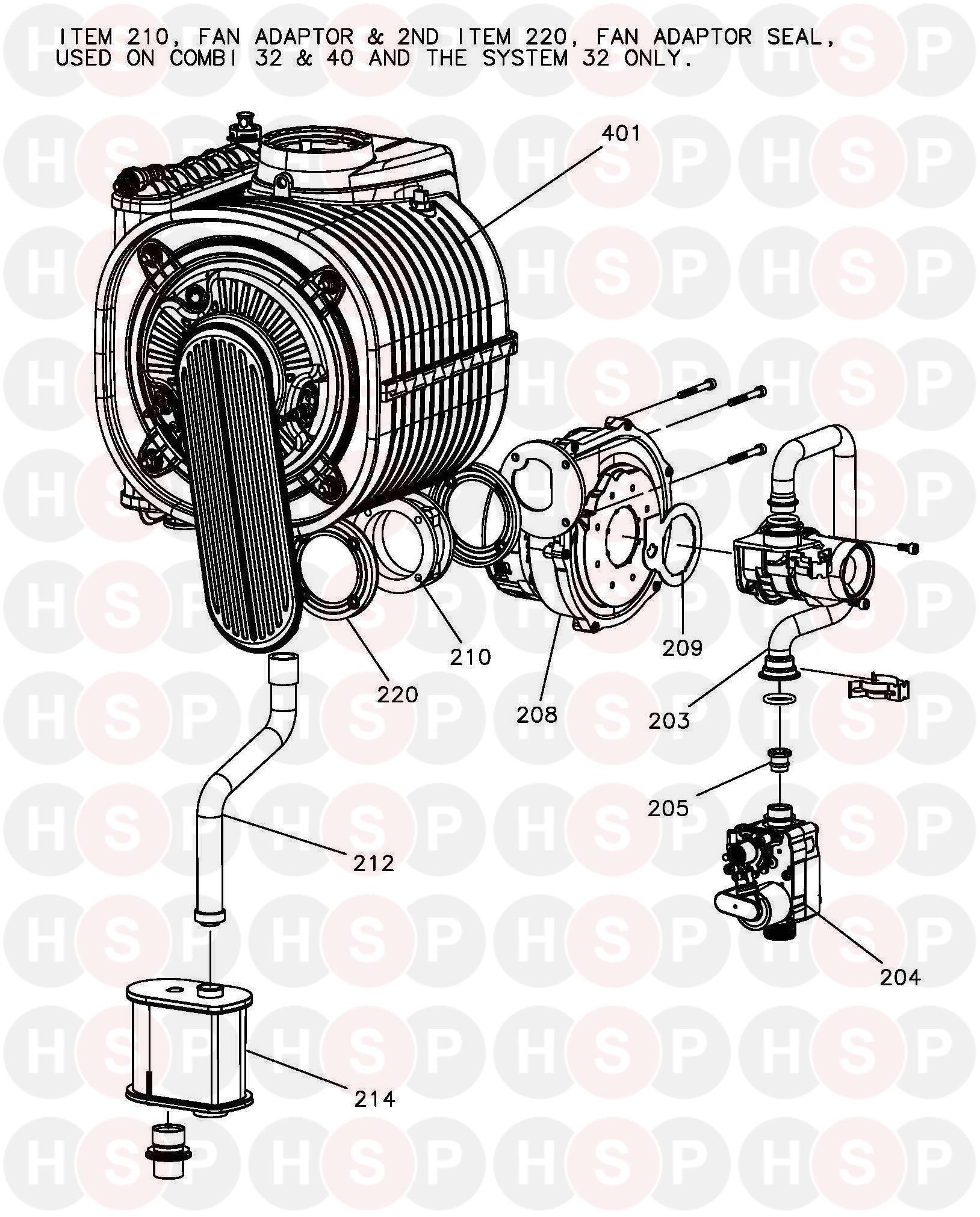

Gas Management diagram for Ideal S15 SystemClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

203   PIPE - GAS INLET - C26- S15-18
Ideal part no. 176885
£24.75
204 Part number 176887, GAS VALVE KIT GAS VALVE KIT
Ideal part no. 176887
£195.13
205   INJECTOR KIT DIAMETER 4.3
Ideal part no. 176890
£21.50
205   INJECTOR KIT DIAMETER 4.8
Ideal part no. 176891
£20.48
205   INJECTOR KIT DIAMETER 3.35
Ideal part no. 176892
£20.48
205   INJECTOR KIT DIAMETER 3.4
Ideal part no. 176893
£19.50
205   INJECTOR KIT 2.65 DIA
Ideal part no. 177154
£16.65
205   INJECTOR KIT 3.75 DIA
Ideal part no. 177155
£16.65
208 Part number 176898, FAN KIT FAN KIT
Ideal part no. 176898
£223.68
209   GASKET FAN
Ideal part no. 176899
£19.29
210   FAN ADAPTER KIT
Ideal part no. 176900
£34.92
212 Part number 176902, CONDENSATE HOSE CONDENSATE HOSE
Ideal part no. 176902
£18.54
212   CONDENSATE HOSE S15
Ideal part no. 176903
£15.08
214 Part number 175583, SIPHON TRAP KIT SIPHON TRAP KIT
Ideal part no. 175583
£23.10
220   FAN ADAPTER SEAL
Ideal part no. 176920
£14.04
401   HEAT ENGINE 2 COIL
Ideal part no. 176905
£433.09
401   HEAT ENGINE 3 COIL
Ideal part no. 176906
£583.18
401   HEAT ENGINE 4 COIL
Ideal part no. 176907
£753.87
401   HEAT ENGINE 5 COIL
Ideal part no. 176908
£775.50
