IDEAL
RL FIRE - (Burner Control Ass 1)
Appliance Code: 37-391-24

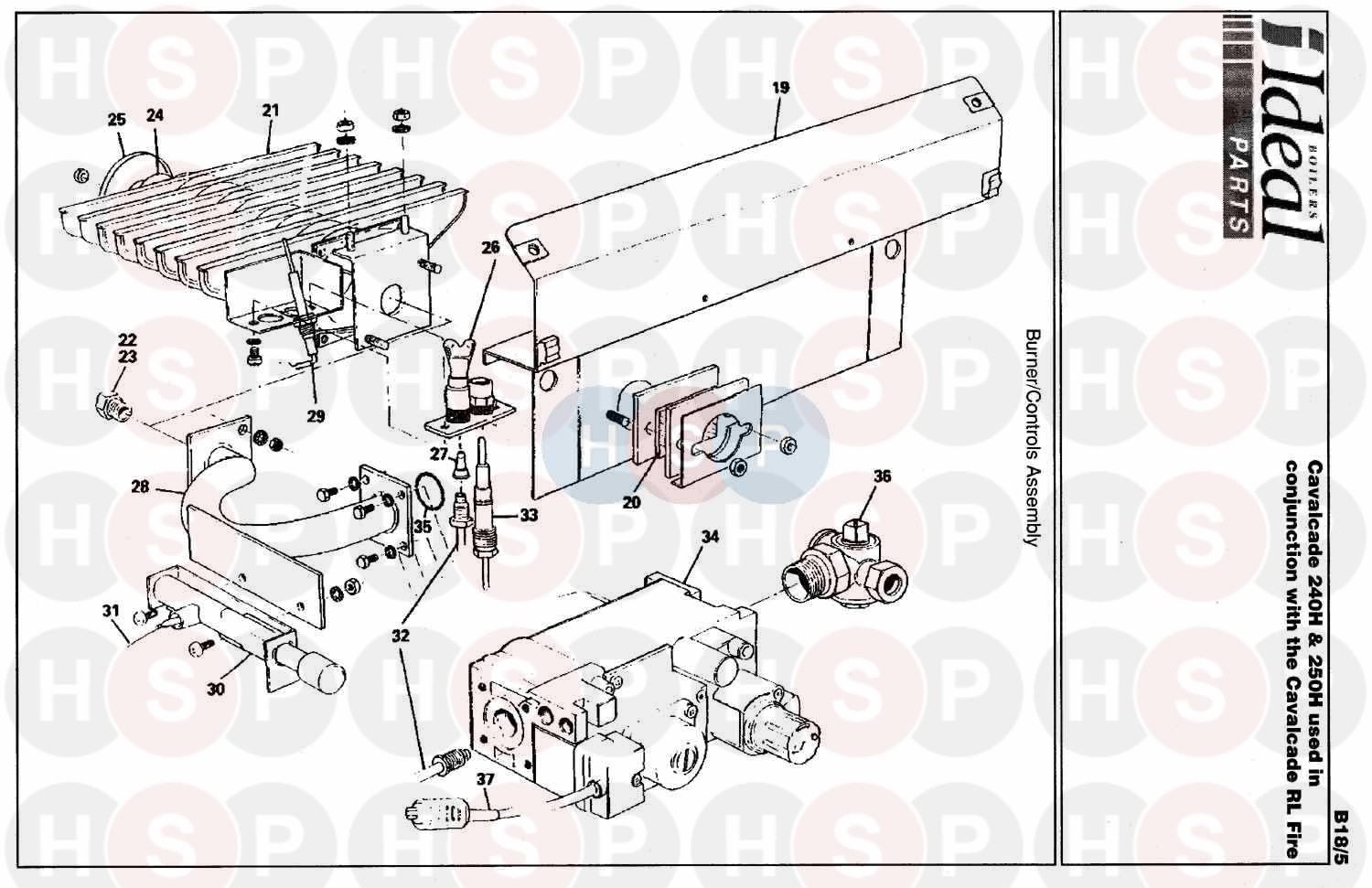

Appliance Diagram


Burner Control Ass 1 diagram for Ideal RL FireClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE HT EXCHANGER ASSY CAV 250H.
Ideal part no. 078626

1   OBSOLETE HT EXCHANGER ASSY CAV 240H.
Ideal part no. 078625

3   OBSOLETE RH END PLT W/GSKT CAV
Ideal part no. 078628

4   OBSOLETE LH END PLT &GSKT CAV 240/250
Ideal part no. 078629

5   OBSOLETE END PLATE GASKET CAVALCADE
Ideal part no. 055348

6   OBSOLETE 4-M8 TDOM RODS W/FTGS CAV
Ideal part no. 078303

7 Part number 055865, T/STAT POCKET ASS 6339004 T/STAT POCKET ASS 6339004
Ideal part no. 055865
£25.42
8   OBSOLETE FLUEWAY BAFFLE CAV 240H
Ideal part no. 059032

8   OBSOLETE FLUEWAY BAFFLE CAV 250H
Ideal part no. 059035

9   OBSOLETE DIST TUBE ASS CAV
Ideal part no. 056647

10   OBSOLETE BASE PLATE ASS CAVLCD 240/250H
Ideal part no. 059036

11   OBSOLETE RH FIRE SUPPORT BRACKET GS/GLS
Ideal part no. 058976

12   OBSOLETE LH FIRE SUPPORT BRACKET GS/GLS
Ideal part no. 058977

13   OBSOLETE DIVERTER ASSY CAV
Ideal part no. 059129

14   OBSOLETE DIVERTER REAR BAFFL CAV 240/50
Ideal part no. 025592

15   OBSOLETE DIVERTER FRT BAFFLE CAV
Ideal part no. 025596

16   OBSOLETE BACK PANEL ASSY CAV250H
Ideal part no. 059132

17   OBSOLETE DOWN DRAUGHT PNL CAV
Ideal part no. 059030

18   OBSOLETE BNR & FRT PLT ASSY CAV 250
Ideal part no. 059094

18   OBSOLETE BNR & FRT PLT ASSY CAV 240
Ideal part no. 059093

20   OBSOLETE SIGHT GLASS ASSY - BNR BOX
Ideal part no. 079333

21   OBSOLETE MAIN BURNER AC19/123226
Ideal part no. 013152

22   OBSOLETE INJECTOR BNR 9.37 X 1.25 CAV 40
Ideal part no. 012854

22   OBSOLETE INJECTOR BNR 1.35 CAV 50
Ideal part no. 012789

24   OBSOLETE MAIN BNR GAUZE MEX 2 CF 50
Ideal part no. 013987

25   OBSOLETE END CAPS(AEROMATIC BNR 36)XL 30/
Ideal part no. 065691

26   OBSOLETE PILOT BURNER - HONEYWELL W/FXG
Ideal part no. 078315

27 Part number 000069, INJECTOR PILOT HONEYWELL 390686-4B INJECTOR PILOT HONEYWELL 390686-4B
Ideal part no. 000069

29 Part number 003777, OBSOLETE IGN ELECTRODE 60877 MX2 100-140 OBSOLETE IGN ELECTRODE 60877 MX2 100-140
Ideal part no. 003777

30   OBSOLETE IGNITOR VERNITRON PT 60038 SPARK GEN
Ideal part no. 052288

31   OBSOLETE H T LEAD ASSY CAVALCADE
Ideal part no. 056571

32   OBSOLETE PILOT PIPE CAV (ALL)
Ideal part no. 078317

33 Part number 002700, NOW USE Q309A2747 THERMOCOUPLE 750MM NOW USE Q309A2747 THERMOCOUPLE 750MM
Ideal part no. 002700

33 Part number Q309A2747, Q309A2747 - thermocouple Q309A2747 - THERMOCOUPLE
Baxi part no. Q309A2747
£9.18
34 Part number 173345, GAS VALVE V4600C 1086 TRADELINE GAS VALVE V4600C 1086 TRADELINE
Ideal part no. 173345
£249.32
34 Part number 053239, NOW USE 173345 1/2IN V4600C1029U COMPACT NOW USE 173345 1/2IN V4600C1029U COMPACT
Ideal part no. 053239

35 Part number 003248, O-RING 25.0 I/D X 4.0 DES 0038 MN70 O-RING 25.0 I/D X 4.0 DES 0038 MN70
Ideal part no. 003248
£8.80
36   OBSOLETE GAS COCK ASSY 004915/921/919
Ideal part no. 077010

37   OBSOLETE GAS VALVE LEAD ASSY CAV
Ideal part no. 056556

40   OBSOLETE INSTALLATION PACKAGE
Ideal part no. 078633

41   OBSOLETE TOP PNL/CTRL BOX ASS:CAV BKRL
Ideal part no. 059634

42   OBSOLETE TOP PANEL ASS:CAV BLACK KNIGHT
Ideal part no. 059637

42   OBSOLETE DOUBLE POLE ROCKER SWITCH C145
Ideal part no. 003870

43   OBSOLETE CONTROL BOX CAV EL/B
Ideal part no. 078636

44 Part number 003209, OBSOLETE T/STAT CL6 PO 105 W 48IN C OBSOLETE T/STAT CL6 PO 105 W 48IN C
Ideal part no. 003209

45   OBSOLETE PLASTIC CAN SUPPRESSOR STC NO
Ideal part no. 004033

46   OBSOLETE SOCKET + BK NUT 3 POLE SA2024
Ideal part no. 003435

46   OBSOLETE SOCKET ASSY BULGIN CAV (A)
Ideal part no. 055861

47   OBSOLETE CONTROL KNOB T/STAT :CAVALCADE
Ideal part no. 012787

48   OBSOLETE RH SIDE RELIEF GRILLE ASSY (RL
Ideal part no. 059721

49   OBSOLETE LH SIDE RELIEF GRILLE ASSY (RL
Ideal part no. 059720

50   OBSOLETE FIRE FLUE DUCT ASS VISA
Ideal part no. 059126

51   OBSOLETE TOP PANEL SUPPORT ANGLE:CAV
Ideal part no. 059636

52   OBSOLETE GAS FIRE PIPE-RL.
Ideal part no. 059686

55   OBSOLETE LOUVE CAV RL
Ideal part no. 060523

56   OBSOLETE DRESS GUARD RL PT 997440.
Ideal part no. 065416

57   OBSOLETE GLASS DIFFUSER RL PT 996912.
Ideal part no. 065417

58   OBSOLETE GLASS COBBLES(SET) RL PT 81070
Ideal part no. 065418

59   OBSOLETE FRT RAIL FENDER 996938 CAV RL
Ideal part no. 065648

60   OBSOLETE OUTER CASING ASSY PT NO 996338
Ideal part no. 065246

61   OBSOLETE FINIAL (BRASS KNOB) RL PT 8204
Ideal part no. 065425

62   OBSOLETE SPINNER SUPPORT BRACKET
Ideal part no. 065242

63   OBSOLETE SPINNER LH D(45) RW 820465
Ideal part no. 065219

64   OBSOLETE SPINNER RH D(45) RW 820466
Ideal part no. 065220

66   OBSOLETE LAMP 60W FYRGLO RED 8200402
Ideal part no. 065320

67   OBSOLETE LAMP HOLDER COVER ASSY(996733).
Ideal part no. 065430

68   OBSOLETE CONTROL KNOB RL PT 996908.
Ideal part no. 065419

69   OBSOLETE FIRE CONTROL PANEL CAV RL
Ideal part no. 060517

70 Part number 065426, OBSOLETE FIRE IGNITER RL PT 820263. OBSOLETE FIRE IGNITER RL PT 820263.
Ideal part no. 065426

71   OBSOLETE RADIANT RL PT 915201.
Ideal part no. 065420

72   OBSOLETE RADIANT SUPPORT PLATE CAV RL
Ideal part no. 060518

74   OBSOLETE INJECTOR NI PT 892001.
Ideal part no. 065403

75   OBSOLETE ELECTRODE KIGASS RW 820937
Ideal part no. 065216

76   OBSOLETE IGNITION LEAD ASSY RL 998092
Ideal part no. 065421

77   OBSOLETE FIRE GAS INNER PIPE (997345)
Ideal part no. 060520

78   OBSOLETE OUTER SUPPLY PIPE 997343 CV/RL
Ideal part no. 060521

79   OBSOLETE GAS TAP ASSEMBLY RL PT 998090.
Ideal part no. 065422

82   OBSOLETE FIRE BACK PLATE CAV RL
Ideal part no. 060516

83   OBSOLETE BOTTOM CONCEALMENT GRILLE:CAV
Ideal part no. 059767

84   OBSOLETE CONCEALMENT GRILL FIX BRKT RH
Ideal part no. 059870

85   OBSOLETE CONCEALMENT GRILL FIX BRKT LH
Ideal part no. 059871
