RESPONSE FF80 - (Service Fault Finding Chart 4)
Appliance Code: 47-415-09

Appliance Diagram

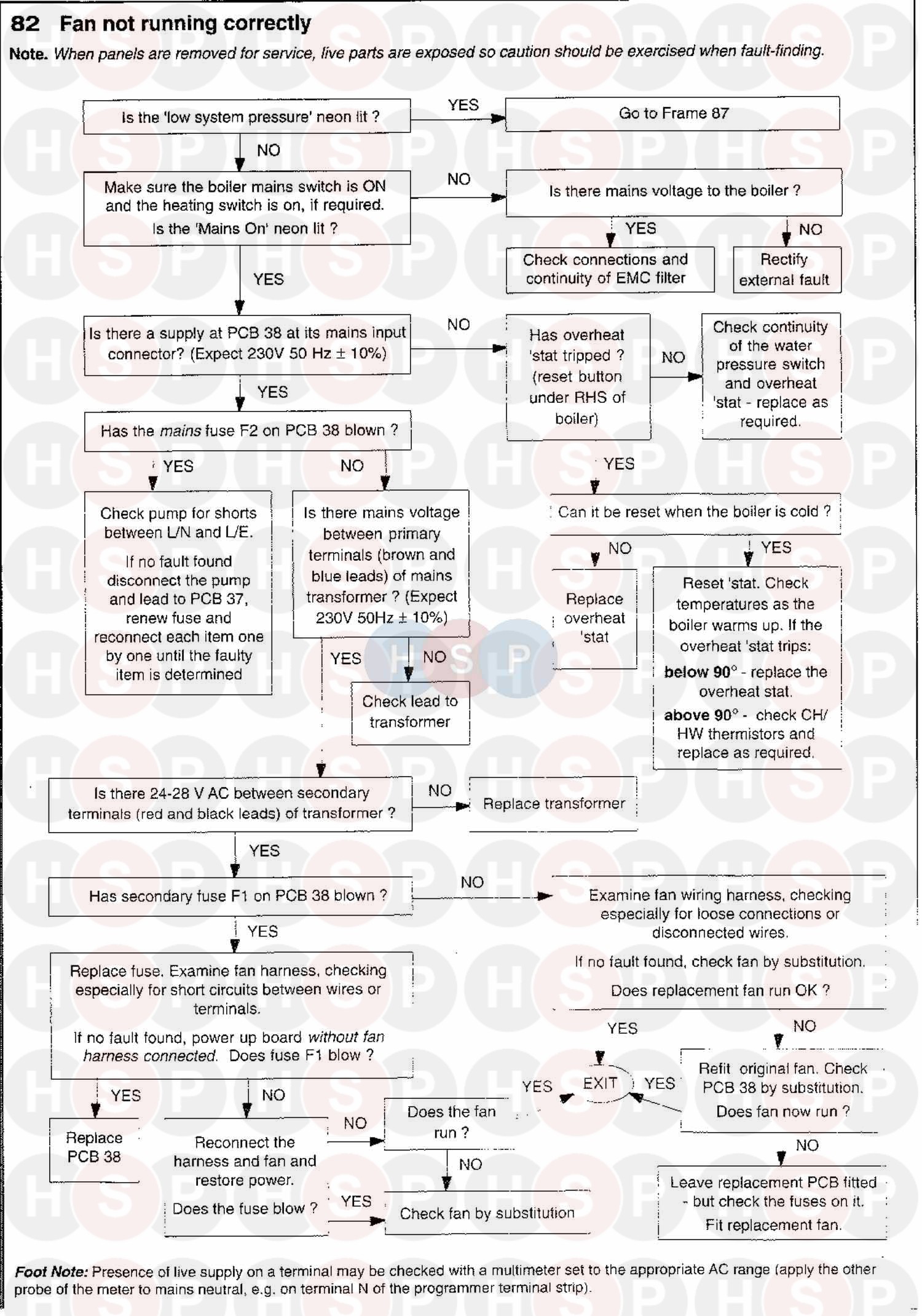

Service Fault Finding Chart 4 diagram for Ideal Response FF80Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   4 X 6 P/P HD SCREW DES SPEC 0250
Ideal part no. 003203		 £2.36
0   M4 X 16 P/P HD SCREW ZP DES SPEC 0250
Ideal part no. 003086		 £2.50
0 Part number 075206, OBSOLETE EV2 SOLENOID SIT 0967066 OBSOLETE EV2 SOLENOID SIT 0967066
Ideal part no. 075206
0 Part number 075205, EV1 SOLENOID SIT 0.007.424 EV1 SOLENOID SIT 0.007.424
Ideal part no. 075205		 £83.13
0   OBSOLETE DISPLAY CSG RESPONSE
Ideal part no. 075246
0   DRAIN NIPPLE BRASS :COMBI
Ideal part no. 005502		 £5.76
0   OBSOLETE SEALING RING CLAMP RESP
Ideal part no. 139219
0   OBSOLETE SEALING RING RESP
Ideal part no. 139218
0   M5 X 10 P/P HD SCREW ZP DES SPEC 0250
Ideal part no. 003252		 £2.35
0   PRESSURE TEST NIPPLE - EVOMAX
Ideal part no. 111512		 £2.60
0   OBSOLETE PROG INFILL SCR/PRINTED RESP
Ideal part no. 139567
0   OBSOLETE HARNESS 140 (WIRING-A) RESP
Ideal part no. 139551
0   OBSOLETE HARNESS 180 (WIRING-A) RESP
Ideal part no. 139751
0   OBSOLETE HARNESS 170 (WIRING-A) RESP
Ideal part no. 139750
0   OBSOLETE PIPING STAND OFF CHANNEL RESP
Ideal part no. 139734
0   OBSOLETE WALL MTG TEMPLATE RESP
Ideal part no. 139738
0   OBSOLETE GAS COCK CLAMP RESP
Ideal part no. 139737
0   OBSOLETE ELECT TIMER KIT :RESPONSE FF80
Ideal part no. 139924
0   OBSOLETE MAINS CONNECTOR ASSEMBLY RESP
Ideal part no. 150270
0   PCB COVER RESP
Ideal part no. 150553		 £7.20
0   OBSOLETE HINGE ASSY RESP
Ideal part no. 150230
0   OBSOLETE SUPPORT BRACKET RESP
Ideal part no. 151230
1 Part number 075214, OBSOLETE MAIN BURNER ASSY RESP 80 PREFIX PR OBSOLETE MAIN BURNER ASSY RESP 80 PREFIX PR
Ideal part no. 075214
2 Part number 139745, OBSOLETE INJECTOR BNR BRAY CAT 10 SIZE 2300C OBSOLETE INJECTOR BNR BRAY CAT 10 SIZE 2300C
Ideal part no. 139745
5 Part number 112417, PRESSURE SWITCH SIT-0380064 MINI/RESP PRESSURE SWITCH SIT-0380064 MINI/RESP
Ideal part no. 112417		 £34.31
6 Part number 075174, NOW USE 172853 PCB 37 ASSY RESPONSE NOW USE 172853 PCB 37 ASSY RESPONSE
Ideal part no. 075174
6 Part number 172853, PCB 41 PACKAGED PCB 41 PACKAGED
Ideal part no. 172853		 £138.10
7 Part number 075175, OBSOLETE PCB 38 ASSY RESP 80 OBSOLETE PCB 38 ASSY RESP 80
Ideal part no. 075175
8   SPARK GENERATOR ASSY
Ideal part no. 150245		 £22.93
9 Part number 138719, O/HT STAT RANCO LM7P5090000 RESP O/HT STAT RANCO LM7P5090000 RESP
Ideal part no. 138719		 £11.97
10 Part number 075176, WATER PRESSURE SWITCH SIT-0340002 WATER PRESSURE SWITCH SIT-0340002
Ideal part no. 075176
11 Part number 075199, O/HT STAT ASSY RESP FF80 O/HT STAT ASSY RESP FF80
Ideal part no. 075199		 £6.61
12 Part number 075201, CH & DHW SENSOR ASSY RESPONSE CH & DHW SENSOR ASSY RESPONSE
Ideal part no. 075201		 £18.61
13   OBSOLETE HARNESS 100 (WIRING-A) RESP
Ideal part no. 139829
14 Part number 139296, OBSOLETE CONTROL KNOB RESP OBSOLETE CONTROL KNOB RESP
Ideal part no. 139296
15 Part number 138953, PRESSURE GAUGE IMIT-IC96466228 PRESSURE GAUGE IMIT-IC96466228
Ideal part no. 138953
16 Part number 139603, ROCKER SWITCH ARCOELH8600VBWHITE ROCKER SWITCH ARCOELH8600VBWHITE
Ideal part no. 139603		 £1.98
17 Part number 138923, OBSOLETE FAN ASSEMBLY 80 RESP OBSOLETE FAN ASSEMBLY 80 RESP
Ideal part no. 138923
18   GROMMET SLEEVE MOSS 60466 RESP
Ideal part no. 138943
19 Part number 075178, PRESSURE RELIEF VALVE ASSY RESPONSE PRESSURE RELIEF VALVE ASSY RESPONSE
Ideal part no. 075178		 £20.38
20 Part number 075179, OBSOLETE DHW ESP VESSEL ASSY RESPONSE OBSOLETE DHW ESP VESSEL ASSY RESPONSE
Ideal part no. 075179
21 Part number 075200, CH EXP VESSEL ASSY RESPONSE CH EXP VESSEL ASSY RESPONSE
Ideal part no. 075200		 £143.95
22 Part number 075180, OBSOLETE PUMP ASSY RESPONSE OBSOLETE PUMP ASSY RESPONSE
Ideal part no. 075180
23   OBSOLETE DHW FILTER RESP
Ideal part no. 139943
24 Part number 139717, FLOW SWITCH ASSEMBLY RESP FLOW SWITCH ASSEMBLY RESP
Ideal part no. 139717		 £95.16
25 Part number 113116, 3/8 IN AUTO AIR VENT 3/8 IN AUTO AIR VENT
Ideal part no. 113116		 £29.95
26   OBSOLETE HT EXCH ASSEMBLY 80 RESP(OLD STYLE)
Ideal part no. 151221
27   OBSOLETE SENSING PIPE ASSY RESP 80
Ideal part no. 075181
28   CAN SENSING PIPE ASSY RESP 80
Ideal part no. 075182		 £12.28
29   OBSOLETE SENS CLAMP PLT ASSY RESPONSE
Ideal part no. 075183
30 Part number 112757, OBSOLETE EMC FILTER-BELLING SF4110-5/01 OBSOLETE EMC FILTER-BELLING SF4110-5/01
Ideal part no. 112757
31   OBSOLETE CASING SEAL ASSY RESPONSE
Ideal part no. 075184
32   OBSOLETE RETURN PIPE ASSY RESPONSE
Ideal part no. 075185
33   OBSOLETE PUMP PIPE ASSY RESP FF80
Ideal part no. 075186
34   OBSOLETE CH FLOW PIPE ASSY RESP FF80
Ideal part no. 075187
35   DHW UPPR CLD PIPE ASS RESPONSE
Ideal part no. 075188		 £83.96
36   OBSOLETE DHW UPP HOT PIPE ASS RESP FF80
Ideal part no. 075189
37   OBSOLETE DHW LOW CLD PIPE ASS RESP FF80
Ideal part no. 075190
38   OBSOLETE DHW LOW HOT PIPE ASS RESP FF80
Ideal part no. 075191
39   OBSOLETE FRONT PANEL ASSY PTD RESP
Ideal part no. 151200
39   OBSOLETE FRONT PANEL ASSY PTD FF80 RESP
Ideal part no. 139792
40   OBSOLETE SLD CSG FT PNL AS RESP
Ideal part no. 151312
40   OBSOLETE SLD CSG FRT PNL ASSY FF80 RESP
Ideal part no. 139793
41   OBSOLETE LH SIDE PANEL ASSY RESPONSE
Ideal part no. 075192
42   OBSOLETE RH SIDE PANEL ASSY RESPONSE
Ideal part no. 075193
43   OBSOLETE TANK COVER PANEL ASSY RESPONSE
Ideal part no. 075194
44   OBSOLETE CTRLS PANEL/DOOR ASS:RESP FF80
Ideal part no. 151199
45 Part number 004673, OBSOLETE RED NEON LENS CLIP TURBO 2 OBSOLETE RED NEON LENS CLIP TURBO 2
Ideal part no. 004673
46 Part number 003022, OBSOLETE AMBER PROG LENS CLIP OBSOLETE AMBER PROG LENS CLIP
Ideal part no. 003022
47   OBSOLETE GAS VALVE LEAD ASSY RESP FF80
Ideal part no. 139749
48   22MM BALL VALVE INC DRAIN VLV
Ideal part no. 075247		 £33.67
49 Part number 075197, 15mm BALL VALVE ASSY RESPONSE 15MM BALL VALVE ASSY RESPONSE
Ideal part no. 075197		 £14.84
50   OBSOLETE 15MM VALVE ASSY RESP FF80
Ideal part no. 075198
51   O RING 20.25 I/D X 1.78 DES 0038 EP70
Ideal part no. 139948		 £1.17
52   O RING 12.42 I/D X 1.78 DES 0038 EP70
Ideal part no. 139691		 £2.00
53 Part number 138112, O RING 91.0 I/D X 2.5 DES 0038 SIL70 O RING 91.0 I/D X 2.5 DES 0038 SIL70
Ideal part no. 138112		 £5.44
54 Part number 111739, O RING 47.30 I/D X 2.62 DES 0038 MN70 O RING 47.30 I/D X 2.62 DES 0038 MN70
Ideal part no. 111739		 £2.21
55   O RING 6.0 I/D X 1.5 DES 0038 SIL70
Ideal part no. 139945		 £1.20
56   OBSOLETE O RING 8.0 I/D X 1.5 DES 0038 SIL70
Ideal part no. 112341
57 Part number 112043, GAS MANIFOLD GASKET MINIMISER GAS MANIFOLD GASKET MINIMISER
Ideal part no. 112043		 £2.06
58 Part number 111733, GAS VALVE GASKET MINIMISER GAS VALVE GASKET MINIMISER
Ideal part no. 111733		 £1.98
59 Part number 138419, TURRET CLAMP TURRET CLAMP
Ideal part no. 138419		 £3.41
60   OBSOLETE H/WARE PK:RESPONSE FF80
Ideal part no. 139786
61   OBSOLETE PRE-PIPING FRAME ASS RESP FF80
Ideal part no. 139917
62   GROMMET AUTO AIR VENT 80 RESP
Ideal part no. 138707
63 Part number 004973, GROMMET GROMMET
Ideal part no. 004973		 £2.44
64   OBSOLETE CONTROLS PANEL/DOOR ASSY RESP
Ideal part no. 138926
65   OBSOLETE CONTROLS PANEL ASSY RESP FF80
Ideal part no. 075196
65   OBSOLETE CTRLS PNL ONLY(EXCLUDING DOOR)RESP
Ideal part no. 075208
66   TRANSFORMER ASSY RESPONSE
Ideal part no. 075271
67   OBSOLETE 1/2 THRO GAS COCK BODY
Ideal part no. 004914
68   OBSOLETE DRAIN VALVE ALTECNIC 39165
Ideal part no. 139659
