IDEAL
PROCOMBI EXCLUSIVE 35 - (Exploded View ABK Onwards)
Appliance Code: 47-348-81

Appliance Diagram

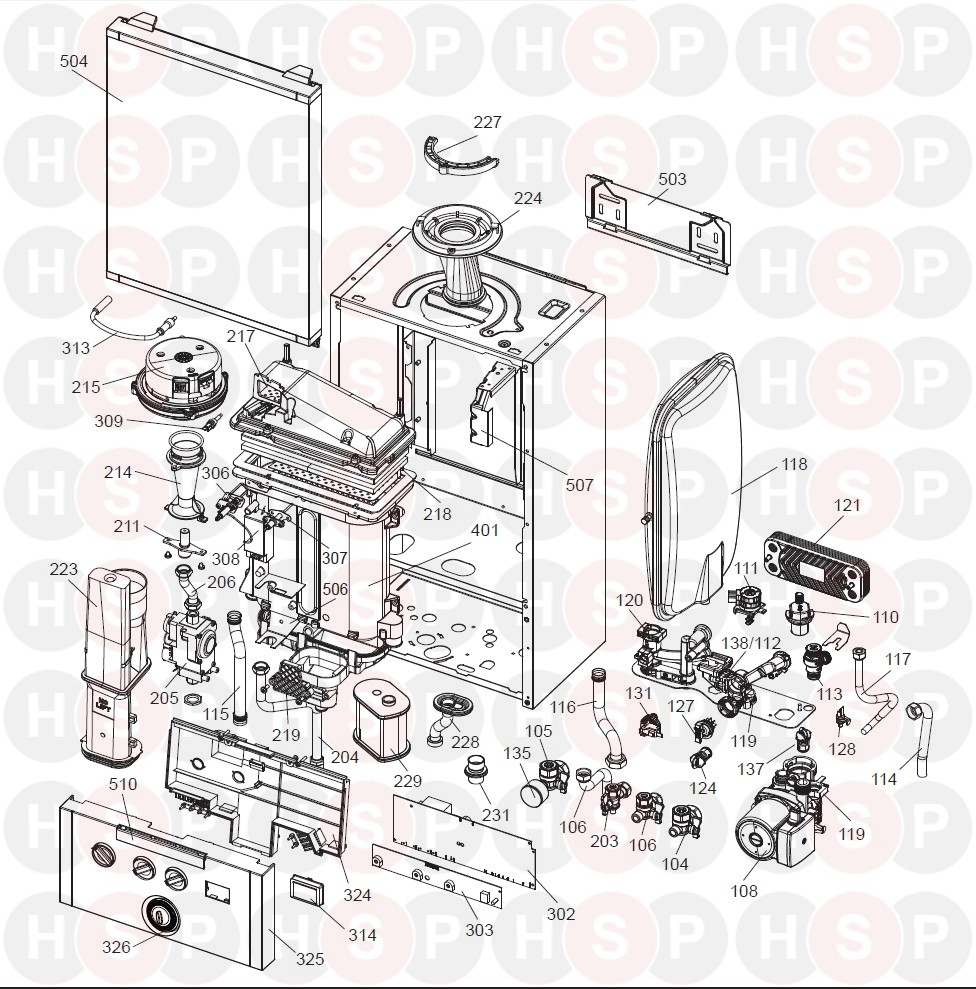

Exploded View ABK Onwards diagram for Ideal Procombi Exclusive 35Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

101 Part number 174827, HYDROBLOCK CLIP KIT HYDROBLOCK CLIP KIT
Ideal part no. 174827		 £25.10
102 Part number 176453, HYDROBLOCK GASKET KIT HYDROBLOCK GASKET KIT
Ideal part no. 176453		 £72.38
103 Part number 176454, HYDROBLOCK FIXINGS KIT (ABS & ABY ONWARDS) HYDROBLOCK FIXINGS KIT (ABS & ABY ONWARDS)
Ideal part no. 176454		 £18.83
104 Part number 175923, CH RETURN VALVE PACK (IND) CH RETURN VALVE PACK (IND)
Ideal part no. 175923		 £26.17
105 Part number 175528, CH FLOW PACK CH FLOW PACK
Ideal part no. 175528		 £40.95
106 Part number 175924, DHW PACK DHW PACK
Ideal part no. 175924		 £27.19
108 Part number 177925, PUMP HEAD KIT ErP 98927074 ( ACQ ONWARDS - 2015 ERP) PUMP HEAD KIT ERP 98927074 ( ACQ ONWARDS - 2015 ERP)
Ideal part no. 177925		 £285.72
110 Part number 176457, AUTO AIR VENT - GRUNDFOS 59200320 (ABY ONWARDS) AUTO AIR VENT - GRUNDFOS 59200320 (ABY ONWARDS)
Ideal part no. 176457		 £44.94
111 Part number 176458, DIV VALVE MOTOR KIT-GRUNDFOS 59200713 DIV VALVE MOTOR KIT-GRUNDFOS 59200713
Ideal part no. 176458		 £51.79
112   OBSOLETE DIVERTER VALVE COMPLETE KIT
Ideal part no. 176479
113 Part number 176610, PRV KIT (ABS & ABY ONWARDS) PRV KIT (ABS & ABY ONWARDS)
Ideal part no. 176610		 £41.91
114   PIPE PRV OUTLET
Ideal part no. 176460		 £16.34
115 Part number 176461, PIPE - FLOW PIPE - FLOW
Ideal part no. 176461		 £33.09
116 Part number 176462, PIPE - RETURN PIPE - RETURN
Ideal part no. 176462		 £32.85
117   PIPE EXPANSION VESSEL KIT (ACE ONWARDS)
Ideal part no. 177600		 £28.66
117 Part number 177707, CLIP EXPANSION VESSEL (ABS & ABY ONWARDS) CLIP EXPANSION VESSEL (ABS & ABY ONWARDS)
Ideal part no. 177707		 £4.44
118 Part number 177601, EXPANSION VESSEL KIT (ACE ONWARDS) EXPANSION VESSEL KIT (ACE ONWARDS)
Ideal part no. 177601		 £108.52
119 Part number 176603, RETURN GROUP KIT (ABS ONWARDS) RETURN GROUP KIT (ABS ONWARDS)
Ideal part no. 176603		 £70.59
120 Part number 176466, FLOW GROUP KIT (ABS ONWARDS) FLOW GROUP KIT (ABS ONWARDS)
Ideal part no. 176466		 £73.36
121 Part number 177530, PLATE HEAT EXCHANGER KIT 59200623 (ABS ONWARDS) PLATE HEAT EXCHANGER KIT 59200623 (ABS ONWARDS)
Ideal part no. 177530		 £123.40
124 Part number 176472, FLOW REGULATOR HE35 - GRUNDFOS 59200315 FLOW REGULATOR HE35 - GRUNDFOS 59200315
Ideal part no. 176472		 £30.49
127 Part number 176473, FLOW SENSOR/TURBINE KIT- 59200311 FLOW SENSOR/TURBINE KIT- 59200311
Ideal part no. 176473		 £42.85
128 Part number 176482, RETURN THERMISTOR - GRUNDFOS 59200324 RETURN THERMISTOR - GRUNDFOS 59200324
Ideal part no. 176482		 £29.48
131 Part number 176480, WATER PRESSURE SWITCH-GRUNDFOS 59200312 (ABU ONWARDS) WATER PRESSURE SWITCH-GRUNDFOS 59200312 (ABU ONWARDS)
Ideal part no. 176480		 £41.27
132   HYDROBLOCK ERP COMPLETE KIT 35KW BASE
Ideal part no. 178110		 £319.09
135 Part number 175679, PRESSURE GAUGE KIT PRESSURE GAUGE KIT
Ideal part no. 175679		 £19.92
136 Part number 176553, PUMP DRAIN KIT GRUNDFOS 59200316 PUMP DRAIN KIT GRUNDFOS 59200316
Ideal part no. 176553		 £5.04
137 Part number 176481, BY PASS CARTRIDGE KIT-GRUNDFOS 59200323 BY PASS CARTRIDGE KIT-GRUNDFOS 59200323
Ideal part no. 176481		 £39.38
138 Part number 176550, DIVERTER VALVE ASSY-GRUNDFOS 59200318 DIVERTER VALVE ASSY-GRUNDFOS 59200318
Ideal part no. 176550		 £47.16
201 Part number 177541, GAS LINE GASKETS KIT (ABS & ABY ONWARDS) GAS LINE GASKETS KIT (ABS & ABY ONWARDS)
Ideal part no. 177541		 £66.39
202   GAS LINE FIXINGS KIT (ABS & ABY ONWARDS)
Ideal part no. 177542		 £22.20
203 Part number 175526, GAS COCK VALVE PACK GAS COCK VALVE PACK
Ideal part no. 175526		 £20.23
203 Part number 176562, GAS COCK TEST NIPPLE SCREW GAS COCK TEST NIPPLE SCREW
Ideal part no. 176562		 £5.67
204   PIPE GAS INLET(ABK ONWARDS)
Ideal part no. 177606		 £28.35
205 Part number 177544, GAS VALVE KIT (ABS & ABY ONWARDS) GAS VALVE KIT (ABS & ABY ONWARDS)
Ideal part no. 177544		 £114.65
205 Part number 177706, CLIP GAS VALVE (ABS & ABY ONWARDS) CLIP GAS VALVE (ABS & ABY ONWARDS)
Ideal part no. 177706		 £4.68
206 Part number 177545, PIPE GAS INJECTOR (ABS & ABY ONWARDS) PIPE GAS INJECTOR (ABS & ABY ONWARDS)
Ideal part no. 177545		 £18.42
208 Part number 175612, INJECTOR 35KW INJECTOR 35KW
Ideal part no. 175612		 £28.22
211 Part number 177548, INJECTOR ASSEMBLY KIT 35KW INJECTOR ASSEMBLY KIT 35KW
Ideal part no. 177548		 £29.58
214 Part number 175567, VENTURI VENTURI
Ideal part no. 175567		 £25.49
215 Part number 175569, FAN KIT FAN KIT
Ideal part no. 175569		 £166.14
216 Part number 175570, GASKET - FAN GASKET - FAN
Ideal part no. 175570		 £18.36
217 Part number 175571, BURNER KIT BURNER KIT
Ideal part no. 175571		 £109.53
218 Part number 175572, GASKET - BURNER GASKET - BURNER
Ideal part no. 175572		 £20.59
221 Part number 175574, SEAL - SUMP CLEANOUT COVER SEAL - SUMP CLEANOUT COVER
Ideal part no. 175574		 £7.09
221 Part number 175896, SUMP KIT XN, XO ONWARDS SUMP KIT XN, XO ONWARDS
Ideal part no. 175896		 £56.37
221 Part number 175954, CLEAN OUT COVER & GASKET-SUMP From XT prefix CLEAN OUT COVER & GASKET-SUMP FROM XT PREFIX
Ideal part no. 175954		 £13.41
223 Part number 175575, MANIFOLD-SUMP SEAL MANIFOLD-SUMP SEAL
Ideal part no. 175575		 £7.58
223 Part number 175579, FLUE MANIFOLD TOP-LOWER SEAL FLUE MANIFOLD TOP-LOWER SEAL
Ideal part no. 175579		 £7.58
223 Part number 175981, FLUE MANIFOLD - HEAT FLUE MANIFOLD - HEAT
Ideal part no. 175981		 £38.98
224 Part number 175578, FLUE MANIFOLD TOP (COMBI PRE ZY - COMBI E/ES PRE AAQ) FLUE MANIFOLD TOP (COMBI PRE ZY - COMBI E/ES PRE AAQ)
Ideal part no. 175578		 £41.38
224 Part number 176986, FLUE MANIFOLD TOP (COMBI ZY ONWARDS - COMBI ES AAQ ONWARDS) FLUE MANIFOLD TOP (COMBI ZY ONWARDS - COMBI ES AAQ ONWARDS)
Ideal part no. 176986		 £43.46
227 Part number 175581, CLAMP RETAINING - FLUE TURRET (COMBI PRE ZY - COMBI E/ES PRE AAQ) CLAMP RETAINING - FLUE TURRET (COMBI PRE ZY - COMBI E/ES PRE AAQ)
Ideal part no. 175581		 £8.37
227 Part number 175983, CLAMP RETAINING FLUE TURRET (COMBI ZY ONWARDS - COMBI ES AAQ ONWARDS) CLAMP RETAINING FLUE TURRET (COMBI ZY ONWARDS - COMBI ES AAQ ONWARDS)
Ideal part no. 175983		 £7.10
228 Part number 176478, HOSE CONDENSATE INTERNAL HOSE CONDENSATE INTERNAL
Ideal part no. 176478		 £10.55
229 Part number 175583, SIPHON TRAP KIT SIPHON TRAP KIT
Ideal part no. 175583		 £23.10
231 Part number 175586, CONDENSATE OUTLET CONNECTION CONDENSATE OUTLET CONNECTION
Ideal part no. 175586		 £7.74
232 Part number 175620, TURRET/MANIFOLD GASKET TURRET/MANIFOLD GASKET
Ideal part no. 175620		 £12.77
233 Part number 175640, FLUE SENSING NIPPLE KIT FLUE SENSING NIPPLE KIT
Ideal part no. 175640		 £27.87
301   CONTROLS BOX FIXINGS & HINGE KIT
Ideal part no. 176483		 £24.17
302 Part number 176401, KIT - BCC COMBI 35 (ZH ONWARDS) KIT - BCC COMBI 35 (ZH ONWARDS)
Ideal part no. 176401		 £25.28
302 Part number 176830, PRIMARY PCB I7/2 KIT (A BCC CARD MUST BE PURCHASED WITH THIS ITEM) PRIMARY PCB I7/2 KIT (A BCC CARD MUST BE PURCHASED WITH THIS ITEM)
Ideal part no. 176830		 £216.89
302 Part number 177608, PRIMARY PCB KIT I11 (A BCC CARD MUST BE PURCHASED WITH THIS ITEM) PRIMARY PCB KIT I11 (A BCC CARD MUST BE PURCHASED WITH THIS ITEM)
Ideal part no. 177608		 £195.96
303 Part number 176831, CUI BOARD I7/2 KIT CUI BOARD I7/2 KIT
Ideal part no. 176831		 £93.36
304 Part number 177494, KNOB POTENTIOMETER KNOB POTENTIOMETER
Ideal part no. 177494		 £8.97
306 Part number 175591, ELECTRODE - IGNITION ELECTRODE - IGNITION
Ideal part no. 175591		 £23.26
306 Part number 178950, GASKET IGNITION ELECTRODE GASKET IGNITION ELECTRODE
Ideal part no. 178950		 £3.59
307 Part number 175592, ELECTRODE - DETECTION ELECTRODE - DETECTION
Ideal part no. 175592		 £16.88
307   GASKET DETECTION ELECTRODE
Ideal part no. 178949		 £3.59
308 Part number 175593, IGNITOR UNIT (PRE ADP) IGNITOR UNIT (PRE ADP)
Ideal part no. 175593		 £35.17
308 Part number 178205, IGNITOR UNIT CLIP ON (ADP ONWARDS) IGNITOR UNIT CLIP ON (ADP ONWARDS)
Ideal part no. 178205		 £33.25
309 Part number 175594, THERMISTOR - NO FLOW THERMISTOR - NO FLOW
Ideal part no. 175594		 £10.81
310   WRIST STRAP
Ideal part no. 175595		 £15.48
312 Part number 175597, HARNESS - EARTH HT (PRE ADP) HARNESS - EARTH HT (PRE ADP)
Ideal part no. 175597		 £6.34
312   HARNESS EARTH HT (ADP ONWARDS)
Ideal part no. 178207		 £9.55
313 Part number 175598, IGNITION LEAD IGNITION LEAD
Ideal part no. 175598		 £16.74
314   CONTROL BOX LENS
Ideal part no. 176489		 £5.50
315 Part number 175600, HARNESS - CUI TO PRIMARY (AAO ONWARDS) HARNESS - CUI TO PRIMARY (AAO ONWARDS)
Ideal part no. 175600		 £17.36
317   HARNESS MAINS BASE COMBI
Ideal part no. 177609		 £59.09
317 Part number 177930, HARNESS MAINS ErP BASE COMBI HARNESS MAINS ERP BASE COMBI
Ideal part no. 177930		 £53.11
318 Part number 176492, HARNESS - LOW VOLTAGE HARNESS - LOW VOLTAGE
Ideal part no. 176492		 £31.63
318 Part number 177931, HARNESS SELV ErP BASE COMBI HARNESS SELV ERP BASE COMBI
Ideal part no. 177931		 £33.97
320 Part number 175604, HARNESS - DETECTION earth lead no longer required HARNESS - DETECTION EARTH LEAD NO LONGER REQUIRED
Ideal part no. 175604		 £14.54
324   CONTROLS BOX REAR COVER KIT
Ideal part no. 176505		 £18.82
325   CONTROLS BOX FRONT-PROCOMBI EXCLUSIVE
Ideal part no. 176502		 £80.16
326 Part number 176506, MECHANICAL TIMER KIT MECHANICAL TIMER KIT
Ideal part no. 176506		 £62.99
328 Part number 175627, PCB FUSE PCB FUSE
Ideal part no. 175627		 £3.79
329   HARNESS CLIPS
Ideal part no. 176552		 £6.12
330 Part number 177494, KNOB POTENTIOMETER KNOB POTENTIOMETER
Ideal part no. 177494		 £8.97
401 Part number 173870, PIPE CLIP PIPE CLIP
Ideal part no. 173870		 £5.05
401 Part number 177566, HEAT ENGINE KIT (ABS & ABY ONWARDS) HEAT ENGINE KIT (ABS & ABY ONWARDS)
Ideal part no. 177566		 £416.91
402 Part number 177567, HEAT ENGINE FIXINGS KIT (ABS & ABY ONWARDS) HEAT ENGINE FIXINGS KIT (ABS & ABY ONWARDS)
Ideal part no. 177567		 £16.06
403 Part number 177568, HEAT ENGINE GASKET KIT (ABS & ABY ONWARDS) HEAT ENGINE GASKET KIT (ABS & ABY ONWARDS)
Ideal part no. 177568		 £61.25
404 Part number 175565, HEAT EXCHANGER PLUG KIT HEAT EXCHANGER PLUG KIT
Ideal part no. 175565		 £27.40
501 Part number 175525, NOW USE 176846 ACCESSORY PACK NOW USE 176846 ACCESSORY PACK
Ideal part no. 175525
501 Part number 176846, ACCESSORY PACK ACCESSORY PACK
Ideal part no. 176846		 £7.50
502 Part number 176508, FRONT PANEL SCREWS FRONT PANEL SCREWS
Ideal part no. 176508		 £4.44
503 Part number 175619, WALL MOUNTING BRACKET KIT WALL MOUNTING BRACKET KIT
Ideal part no. 175619		 £15.48
504   FRONT PANEL KIT PROCOMBI EXCLUSIVE
Ideal part no. 176509		 £177.09
506   BRACKET GAS VALVE KIT (ABS & ABY ONWARDS)
Ideal part no. 177569		 £19.95
507   BRACKET KIT - EXPANSION VESSEL
Ideal part no. 176513		 £17.48
509 Part number 176514, SEAL - SEALING PANEL SEAL - SEALING PANEL
Ideal part no. 176514		 £20.93
510 Part number 176515, ACCESS FLAP KIT - PROCOMBI EXCLUSIVE ACCESS FLAP KIT - PROCOMBI EXCLUSIVE
Ideal part no. 176515		 £30.13
511   GROMMET CABLE ENTRY
Ideal part no. 176519		 £11.89
512   FRONT PANEL ANCHOR POINT (SINGLE ANCHOR POINT)
Ideal part no. 177373		 £8.28
