IDEAL
IDEAL MORCO GB30 LPG,
MORCO GB30 (SERIES 1),
MORCO GB30 (SERIES 11),
MORCO GB30 (SERIES 111) - (Ideal Controls)
Appliance Code: GB30

Appliance Diagram

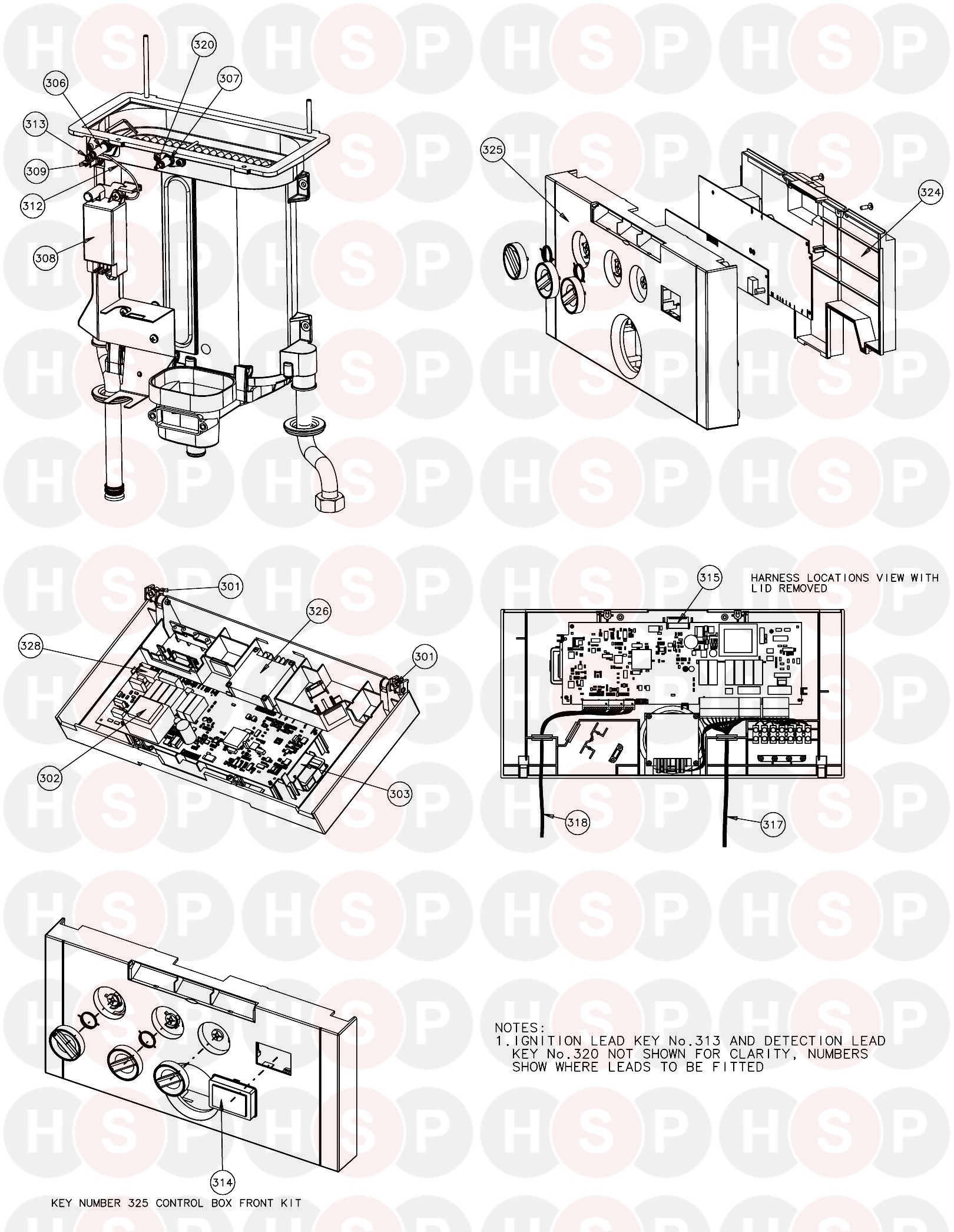

Ideal Controls diagram for Ideal Morco GB30 (Series 1)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

302 Part number 176830, PRIMARY PCB I7/2 KIT (A BCC CARD MUST BE PURCHASED WITH THIS ITEM) PRIMARY PCB I7/2 KIT (A BCC CARD MUST BE PURCHASED WITH THIS ITEM)
Ideal part no. 176830		 £216.89
302   BCC CARD - MORCO GB30
Ideal part no. 177251		 £22.71
302 Part number 177588, BCC MORCO COMBI LPG GB30 KIT BCC MORCO COMBI LPG GB30 KIT
Ideal part no. 177588		 £25.28
302 Part number 177608, PRIMARY PCB KIT I11 (A BCC CARD MUST BE PURCHASED WITH THIS ITEM) PRIMARY PCB KIT I11 (A BCC CARD MUST BE PURCHASED WITH THIS ITEM)
Ideal part no. 177608		 £195.96
303 Part number 176831, CUI BOARD I7/2 KIT CUI BOARD I7/2 KIT
Ideal part no. 176831		 £93.36
304 Part number 177494, KNOB POTENTIOMETER KNOB POTENTIOMETER
Ideal part no. 177494		 £8.97
306 Part number 175591, ELECTRODE - IGNITION ELECTRODE - IGNITION
Ideal part no. 175591		 £23.26
306 Part number 178950, GASKET IGNITION ELECTRODE GASKET IGNITION ELECTRODE
Ideal part no. 178950		 £3.59
307 Part number 175592, ELECTRODE - DETECTION ELECTRODE - DETECTION
Ideal part no. 175592		 £16.88
307   GASKET DETECTION ELECTRODE
Ideal part no. 178949		 £3.59
308 Part number 175593, IGNITOR UNIT (PRE ADP) IGNITOR UNIT (PRE ADP)
Ideal part no. 175593		 £35.17
308 Part number 178205, IGNITOR UNIT CLIP ON (ADP ONWARDS) IGNITOR UNIT CLIP ON (ADP ONWARDS)
Ideal part no. 178205		 £33.25
309 Part number 175594, THERMISTOR - NO FLOW THERMISTOR - NO FLOW
Ideal part no. 175594		 £10.81
310   WRIST STRAP
Ideal part no. 175595		 £15.48
312 Part number 175597, HARNESS - EARTH HT (PRE ADP) HARNESS - EARTH HT (PRE ADP)
Ideal part no. 175597		 £6.34
312   HARNESS EARTH HT (ADP ONWARDS)
Ideal part no. 178207		 £9.55
313 Part number 175598, IGNITION LEAD IGNITION LEAD
Ideal part no. 175598		 £16.74
314   CONTROL BOX LENS
Ideal part no. 176489		 £5.50
315 Part number 175600, HARNESS - CUI TO PRIMARY (AAO ONWARDS) HARNESS - CUI TO PRIMARY (AAO ONWARDS)
Ideal part no. 175600		 £17.36
317 Part number 176491, HARNESS - MAINS VOLTAGE HARNESS - MAINS VOLTAGE
Ideal part no. 176491		 £66.91
317   HARNESS MAINS BASE COMBI
Ideal part no. 177609		 £59.09
317 Part number 177930, HARNESS MAINS ErP BASE COMBI HARNESS MAINS ERP BASE COMBI
Ideal part no. 177930		 £53.11
318 Part number 176492, HARNESS - LOW VOLTAGE HARNESS - LOW VOLTAGE
Ideal part no. 176492		 £31.63
318 Part number 177931, HARNESS SELV ErP BASE COMBI HARNESS SELV ERP BASE COMBI
Ideal part no. 177931		 £33.97
319   HARNESS MAINS LEAD
Ideal part no. 177289		 £15.39
320 Part number 175604, HARNESS - DETECTION earth lead no longer required HARNESS - DETECTION EARTH LEAD NO LONGER REQUIRED
Ideal part no. 175604		 £14.54
324   CONTROLS BOX REAR COVER KIT
Ideal part no. 176505		 £18.82
325   CONTROL BOX FRONT GB30
Ideal part no. 177255		 £60.52
326 Part number 176506, MECHANICAL TIMER KIT MECHANICAL TIMER KIT
Ideal part no. 176506		 £62.99
328 Part number 175627, PCB FUSE PCB FUSE
Ideal part no. 175627		 £3.79
329   HARNESS CLIPS
Ideal part no. 176552		 £6.12
