IDEAL
IDEAL MORCO GB24 LPG,
MORCO GB24 (SERIES 1),
MORCO GB24 (SERIES 11),
MORCO GB24 (SERIES 111) - (Water Management)
Appliance Code: GB24

Appliance Diagram

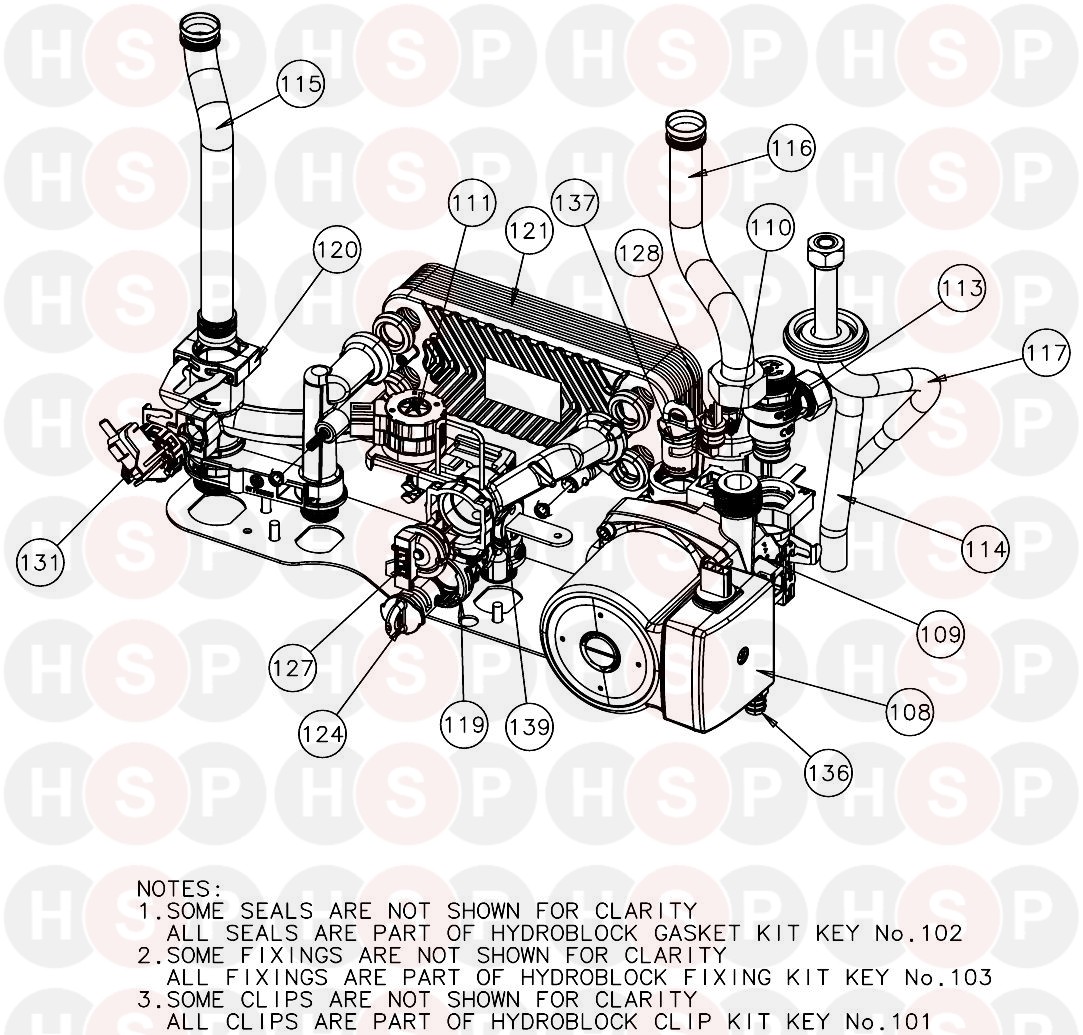

Water Management diagram for Ideal Morco GB24 (Series 1)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

101 Part number 174827, HYDROBLOCK CLIP KIT HYDROBLOCK CLIP KIT
Ideal part no. 174827		 £25.10
102 Part number 176453, HYDROBLOCK GASKET KIT HYDROBLOCK GASKET KIT
Ideal part no. 176453		 £72.38
103 Part number 176454, HYDROBLOCK FIXINGS KIT (ABS & ABY ONWARDS) HYDROBLOCK FIXINGS KIT (ABS & ABY ONWARDS)
Ideal part no. 176454		 £18.83
105   CH FLOW GAUGE KIT MORCO
Ideal part no. 177190
108 Part number 176455, NOW USE 182357 PUMP HEAD KIT - GRUNDFOS 59200322 (ABS & ABY ONWARDS) NOW USE 182357 PUMP HEAD KIT - GRUNDFOS 59200322 (ABS & ABY ONWARDS)
Ideal part no. 176455
108 Part number 177925, PUMP HEAD KIT ErP 98927074 ( ACQ ONWARDS - 2015 ERP) PUMP HEAD KIT ERP 98927074 ( ACQ ONWARDS - 2015 ERP)
Ideal part no. 177925		 £285.72
108   PUMP HEAD KIT
Ideal part no. 182357		 £204.87
110 Part number 176457, AUTO AIR VENT - GRUNDFOS 59200320 (ABY ONWARDS) AUTO AIR VENT - GRUNDFOS 59200320 (ABY ONWARDS)
Ideal part no. 176457		 £44.94
111 Part number 176458, DIV VALVE MOTOR KIT-GRUNDFOS 59200713 DIV VALVE MOTOR KIT-GRUNDFOS 59200713
Ideal part no. 176458		 £51.79
113 Part number 176610, PRV KIT (ABS & ABY ONWARDS) PRV KIT (ABS & ABY ONWARDS)
Ideal part no. 176610		 £41.91
114 Part number 177262, PIPE PRV OUTLET PIPE PRV OUTLET
Ideal part no. 177262		 £17.59
115 Part number 176461, PIPE - FLOW PIPE - FLOW
Ideal part no. 176461		 £33.09
116 Part number 176462, PIPE - RETURN PIPE - RETURN
Ideal part no. 176462		 £32.85
117 Part number 176463, PIPE - EXPANSION VESSEL PIPE - EXPANSION VESSEL
Ideal part no. 176463		 £33.83
117   PIPE EXPANSION VESSEL KIT (ACE ONWARDS)
Ideal part no. 177600		 £28.66
117 Part number 177707, CLIP EXPANSION VESSEL (ABS & ABY ONWARDS) CLIP EXPANSION VESSEL (ABS & ABY ONWARDS)
Ideal part no. 177707		 £4.44
118 Part number 176464, EXPANSION VESSEL KIT (PRE ACE) EXPANSION VESSEL KIT (PRE ACE)
Ideal part no. 176464		 £100.56
118 Part number 177601, EXPANSION VESSEL KIT (ACE ONWARDS) EXPANSION VESSEL KIT (ACE ONWARDS)
Ideal part no. 177601		 £108.52
119 Part number 176603, RETURN GROUP KIT (ABS ONWARDS) RETURN GROUP KIT (ABS ONWARDS)
Ideal part no. 176603		 £70.59
120 Part number 176466, FLOW GROUP KIT (ABS ONWARDS) FLOW GROUP KIT (ABS ONWARDS)
Ideal part no. 176466		 £73.36
121 Part number 176467, PLATE HEAT EXCHANGER KIT 24KW (PRE ACE) PLATE HEAT EXCHANGER KIT 24KW (PRE ACE)
Ideal part no. 176467		 £86.28
121 Part number 177529, PLATE HEAT EXCHANGER KIT 59200622 (ACE ONWARDS) PLATE HEAT EXCHANGER KIT 59200622 (ACE ONWARDS)
Ideal part no. 177529		 £109.32
121 Part number 177530, PLATE HEAT EXCHANGER KIT 59200623 (ABS ONWARDS) PLATE HEAT EXCHANGER KIT 59200623 (ABS ONWARDS)
Ideal part no. 177530		 £123.40
124 Part number 176470, FLOW REGULATOR HE24 - GRUNDFOS 59200313 FLOW REGULATOR HE24 - GRUNDFOS 59200313
Ideal part no. 176470		 £30.49
127 Part number 176473, FLOW SENSOR/TURBINE KIT- 59200311 FLOW SENSOR/TURBINE KIT- 59200311
Ideal part no. 176473		 £42.85
128 Part number 176482, RETURN THERMISTOR - GRUNDFOS 59200324 RETURN THERMISTOR - GRUNDFOS 59200324
Ideal part no. 176482		 £29.48
131 Part number 176480, WATER PRESSURE SWITCH-GRUNDFOS 59200312 (ABU ONWARDS) WATER PRESSURE SWITCH-GRUNDFOS 59200312 (ABU ONWARDS)
Ideal part no. 176480		 £41.27
132   HYDROBLOCK COMPLETE KIT MORCO 24KW
Ideal part no. 177260		 £324.09
132 Part number 177939, HYDROBLOCK ErP COMPLETE KIT 24kW BASE HYDROBLOCK ERP COMPLETE KIT 24KW BASE
Ideal part no. 177939		 £392.79
135 Part number 175679, PRESSURE GAUGE KIT PRESSURE GAUGE KIT
Ideal part no. 175679		 £19.92
136 Part number 176553, PUMP DRAIN KIT GRUNDFOS 59200316 PUMP DRAIN KIT GRUNDFOS 59200316
Ideal part no. 176553		 £5.04
137 Part number 176481, BY PASS CARTRIDGE KIT-GRUNDFOS 59200323 BY PASS CARTRIDGE KIT-GRUNDFOS 59200323
Ideal part no. 176481		 £39.38
138 Part number 176550, DIVERTER VALVE ASSY-GRUNDFOS 59200318 DIVERTER VALVE ASSY-GRUNDFOS 59200318
Ideal part no. 176550		 £47.16
