IDEAL
MEXICO SUPER CF 55 - (Programmer)
Appliance Code: 41-407-22

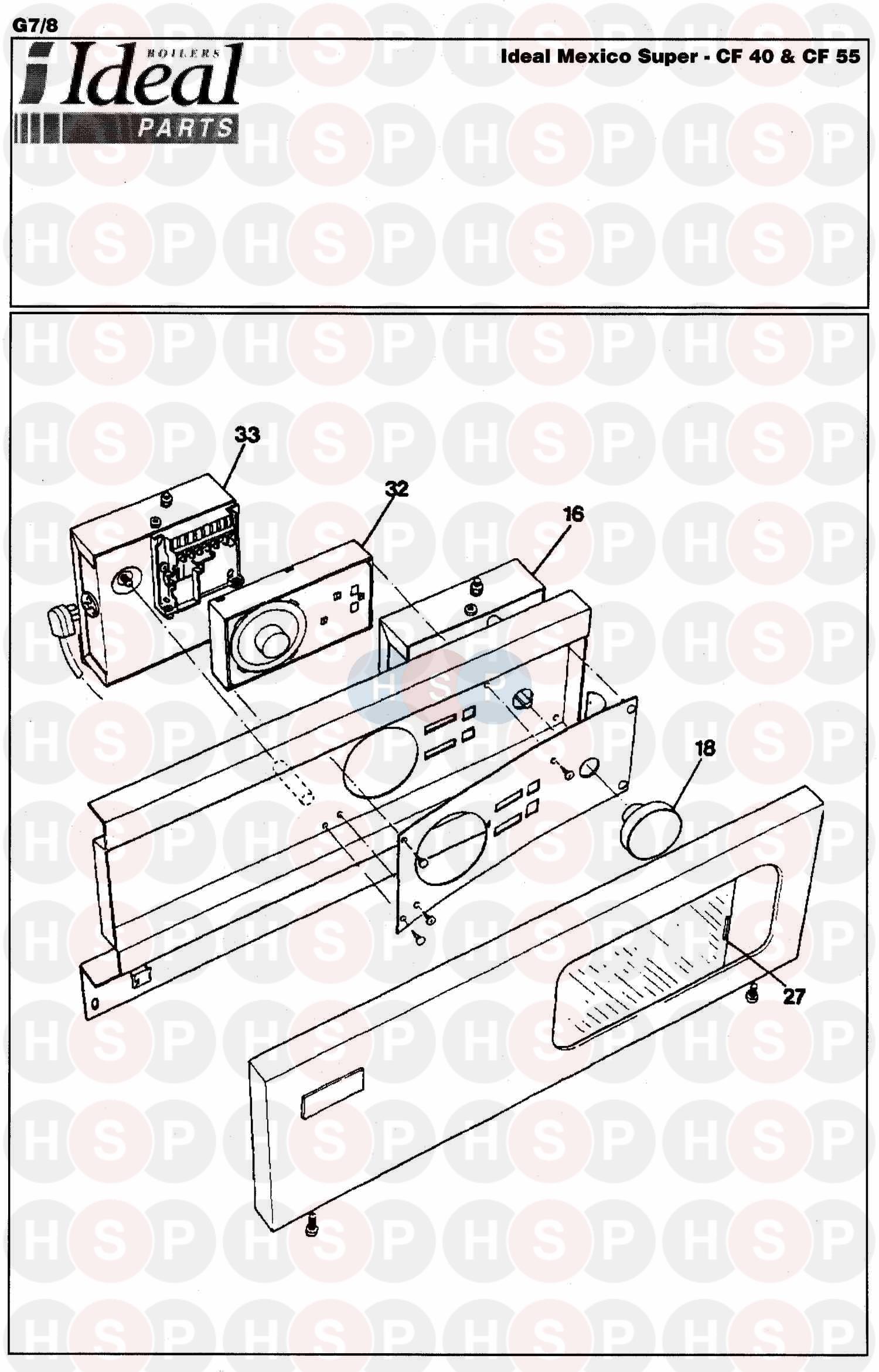

Appliance Diagram


Programmer diagram for Ideal Mexico Super CF 55Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

3   OBSOLETE C/O COVER MEXICO SLIM
Ideal part no. 053582
3   OBSOLETE BACK PLATE MEX SLIM CF40/50
Ideal part no. 053670
4   OBSOLETE FRT PLT BNR ASSY MX CF55 (A)
Ideal part no. 056446
5 Part number 079334, OBSOLETE SIGHT GLASS ASSEMBLY OBSOLETE SIGHT GLASS ASSEMBLY
Ideal part no. 079334
6   OBSOLETE PILOT PIPE ASS MEX CF55
Ideal part no. 078234
7 Part number 012532, MAIN BURNER BRAY MK9 AB 16642 MAIN BURNER BRAY MK9 AB 16642
Ideal part no. 012532
7 Part number 065602, LINT ARREST GAUZE (P51AB16467) LINT ARREST GAUZE (P51AB16467)
Ideal part no. 065602
8   OBSOLETE INJECTOR BNR BRAY CAT 16 SIZE 1500
Ideal part no. 003242
9 Part number 077868, PILOT BURNER ASSY Q359A1041 PILOT BURNER ASSY Q359A1041
Ideal part no. 077868		 £24.81
10 Part number 003825, INJECTOR PILOT HONEYWELL 45900421-029 INJECTOR PILOT HONEYWELL 45900421-029
Ideal part no. 003825		 £5.68
11   OBSOLETE PLT BNR BRKT ASSY SLIM RS/CF
Ideal part no. 078228
12 Part number 003114, GAS VALVE 1/2INCOMPACT V4600A1023U GAS VALVE 1/2INCOMPACT V4600A1023U
Ideal part no. 003114		 £225.72
13   OBSOLETE IGNITOR VERNITRON PT 60038 SPARK GEN
Ideal part no. 052288
14 Part number 077428, IGN ELECTRODE + HT LEAD KIT IGN ELECTRODE + HT LEAD KIT
Ideal part no. 077428
15 Part number 000842, THERMOCOUPLE+600mm LEAD Q309A2739 THERMOCOUPLE+600MM LEAD Q309A2739
Ideal part no. 000842		 £20.99
16   OBSOLETE CONTROL BOX MX SUPER .
Ideal part no. 078293
17 Part number 003178, T/STAT 24INCL6 PO 104 RANGE 54 T/STAT 24INCL6 PO 104 RANGE 54
Ideal part no. 003178
18 Part number 013909, OBSOLETE CONTROL KNOB ASS T/STAT MX2 SUP OBSOLETE CONTROL KNOB ASS T/STAT MX2 SUP
Ideal part no. 013909
19   OBSOLETE PLASTIC CAN SUPPRESSOR STC NO
Ideal part no. 004033
21   OBSOLETE RC 1/2 X RC 1/2 GAS COCK ELAN
Ideal part no. 077013
22   OBSOLETE JKT ASSY MEX SUPER CF40/55
Ideal part no. 078220
23   OBSOLETE LH SD PNL ASS PTD MX 40/100
Ideal part no. 132239
24   OBSOLETE RH SD PNL ASS MEX RS/CF40/100
Ideal part no. 057136
25   OBSOLETE TOP PNL ASS MEX SUP CF 40/55
Ideal part no. 057509
26   OBSOLETE UPR FRT PNL MEX SUP RS/CF
Ideal part no. 078297
27   OBSOLETE SLIDING FASCIA COVER MEXICO
Ideal part no. 057070
28   OBSOLETE LOWER FRT PNL W/GAUZE MEX CF
Ideal part no. 057142
31   OBSOLETE UPPER FRT PNL ASS:MEX RS/CF
Ideal part no. 057212
32   OBSOLETE PROGRAMMER RWB 4 STELRAD
Ideal part no. 012698
33   OBSOLETE PROGRAMMER JUNCTION BOX:MEX
Ideal part no. 057265
35   OBSOLETE FLUE RESTRICTOR MEX SLIM CF50
Ideal part no. 053796
36   OBSOLETE T/STAT POCKET ASS 6339011
Ideal part no. 002523
