MEXICO SUPER CF 140 - (Boiler Assembly 1)
Appliance Code: 41-421-39

Appliance Diagram

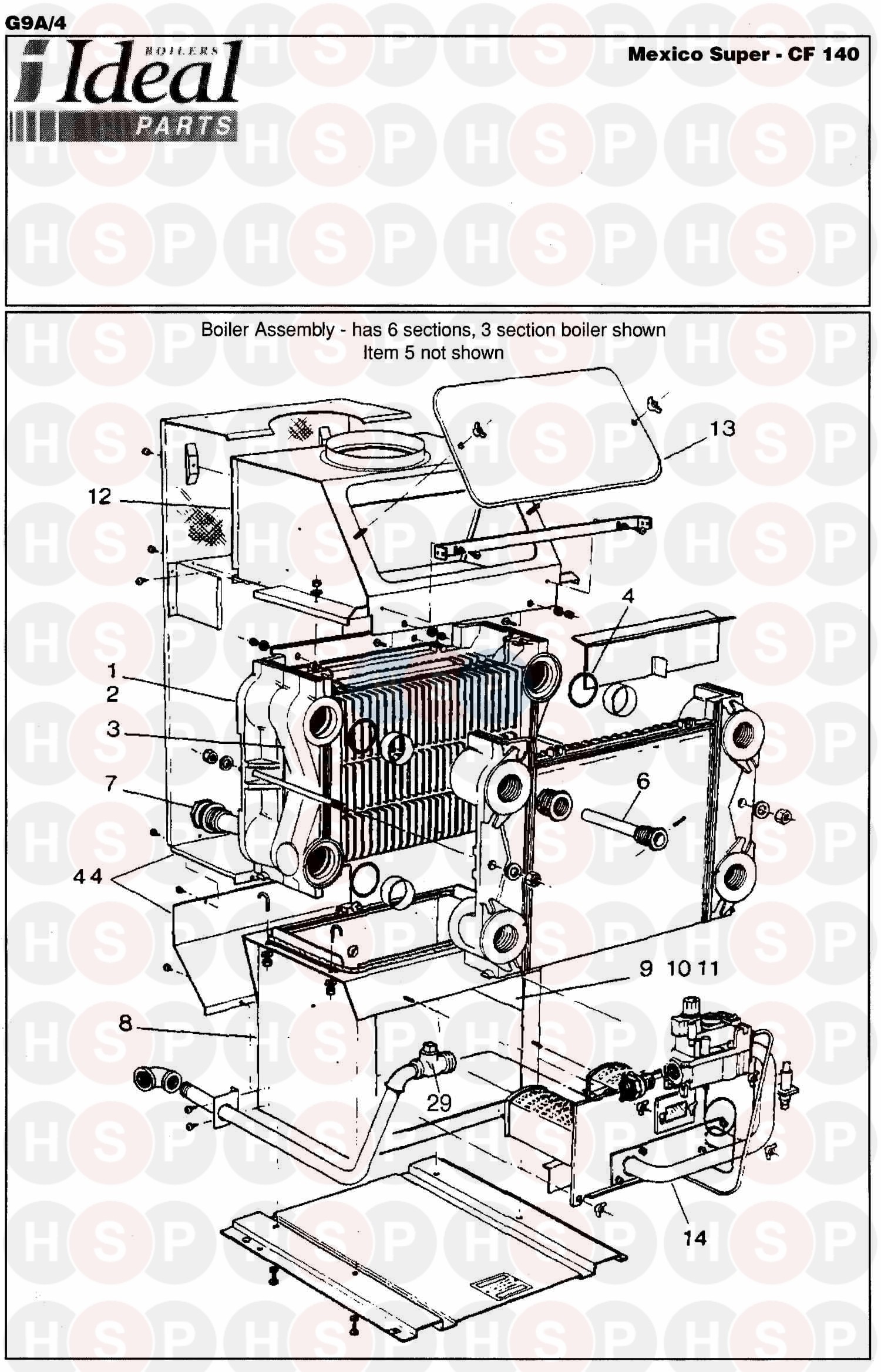

Boiler Assembly 1 diagram for Ideal Mexico Super CF 140Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE HT EXCH ASS:MX2 6 SCTN
Ideal part no. 135743

2   OBSOLETE END SECT W/RING MX2
Ideal part no. 079398

3   OBSOLETE CENTRE SECT MEX2
Ideal part no. 079399

4   OBSOLETE SET OF 4 O RINGS AND ALIGN RINGS
Ideal part no. 078277

6 Part number 055865, T/STAT POCKET ASS 6339004 T/STAT POCKET ASS 6339004
Ideal part no. 055865
£25.42
7   OBSOLETE DIST TUBE ASS MEX SUPER CF 140
Ideal part no. 134681

8   OBSOLETE COMB CHAMBER ASS MX140
Ideal part no. 079272

9   OBSOLETE FRT INSL 10MM-COMB CHMB MEX
Ideal part no. 012967

10   OBSOLETE REAR INSL-COMB CHBR 5MM MEX
Ideal part no. 012968

11   OBSOLETE COMBUSTION CHAMBER SIDE INSUL
Ideal part no. 079273

12   OBSOLETE COLL HOOD ASS MX CF140
Ideal part no. 134665

13   OBSOLETE C/O COVER ASS:MX2 100-140
Ideal part no. 057128

14   OBSOLETE FRT PLT/BNR ASS MX CF140
Ideal part no. 134667

15 Part number 079334, OBSOLETE SIGHT GLASS ASSEMBLY OBSOLETE SIGHT GLASS ASSEMBLY
Ideal part no. 079334

16   OBSOLETE PILOT PIPE ASSY MX CF125
Ideal part no. 078291

17   OBSOLETE MAIN BURNER 118.500.057 MEX SUPER
Ideal part no. 013882

18   OBSOLETE LH MAIN BURNER 118 500 056
Ideal part no. 013881

19   OBSOLETE MAIN BNR GAUZE 538-105-017
Ideal part no. 013986

20   OBSOLETE END CAP GKT (538.300.002)MEX
Ideal part no. 065130

21   OBSOLETE INJECTOR BNR BRAY CAT 10 SIZE 2200
Ideal part no. 004049

22 Part number 076560, NOW USE 171142 PILOT BURNER HONEYWELL MEXICO NOW USE 171142 PILOT BURNER HONEYWELL MEXICO
Ideal part no. 076560

22 Part number 171142, PILOT BURNER & INJECTOR SPARES KIT PILOT BURNER & INJECTOR SPARES KIT
Ideal part no. 171142
£35.12
23 Part number 000069, INJECTOR PILOT HONEYWELL 390686-4B INJECTOR PILOT HONEYWELL 390686-4B
Ideal part no. 000069

24 Part number 003114, GAS VALVE 1/2INCOMPACT V4600A1023U GAS VALVE 1/2INCOMPACT V4600A1023U
Ideal part no. 003114
£225.72
25 Part number 003248, O-RING 25.0 I/D X 4.0 DES 0038 MN70 O-RING 25.0 I/D X 4.0 DES 0038 MN70
Ideal part no. 003248
£8.80
26 Part number 003939, SPARK GENERATOR 60080/002 SPARK GENERATOR 60080/002
Ideal part no. 003939

27 Part number 078292, OBSOLETE IGNI ELECT AND HT LEAD ASSY OBSOLETE IGNI ELECT AND HT LEAD ASSY
Ideal part no. 078292

28 Part number 003876, NOW USE Q309A2747 THERMOCOUPLE 750MM NOW USE Q309A2747 THERMOCOUPLE 750MM
Ideal part no. 003876

28 Part number Q309A2747, Q309A2747 - thermocouple Q309A2747 - THERMOCOUPLE
Baxi part no. Q309A2747
£9.18
29   OBSOLETE RS3/4 X RC1/2 GAS COCK MX CF 140
Ideal part no. 013879

30   OBSOLETE CONTROL BOX MX SUPER .
Ideal part no. 078293

31   THERMO PHIAL BRKT MEX
Ideal part no. 057454

31 Part number 003178, T/STAT 24INCL6 PO 104 RANGE 54 T/STAT 24INCL6 PO 104 RANGE 54
Ideal part no. 003178

32 Part number 013909, OBSOLETE CONTROL KNOB ASS T/STAT MX2 SUP OBSOLETE CONTROL KNOB ASS T/STAT MX2 SUP
Ideal part no. 013909

33   OBSOLETE PLASTIC CAN SUPPRESSOR STC NO
Ideal part no. 004033

34   OBSOLETE JKT ASSY MEX CF140
Ideal part no. 079274

35   OBSOLETE LH SIDE PNL ASS PTD MEX CF140
Ideal part no. 134670

36   OBSOLETE RH SIDE PNL ASS MX 2 CF 140
Ideal part no. 134680

37   OBSOLETE JKT TOP PNL ASS:MEX CF140
Ideal part no. 134701

38   OBSOLETE UPR FRT PNL MEX SUP RS/CF
Ideal part no. 078297

39   OBSOLETE SLIDING FASCIA COVER MEXICO
Ideal part no. 057070

40   OBSOLETE LOWER FRT PNL W/GAUZE MEX CF
Ideal part no. 057142

40   OBSOLETE LINT ARRESTING GAUZE
Ideal part no. 057627

41   OBSOLETE UPPER FRT PNL ASS:MEX RS/CF
Ideal part no. 057212

42   OBSOLETE PROGRAMMER RWB 4 STELRAD
Ideal part no. 012698

43   OBSOLETE PROGRAMMER JUNCTION BOX:MEX
Ideal part no. 057265

45   OBSOLETE H/WARE PK MEX CF140
Ideal part no. 013920
