IDEAL
MEXICO SUPER 3 CF 75P - (Burner Control Ass 2)
Appliance Code: 41-349-24

Appliance Diagram


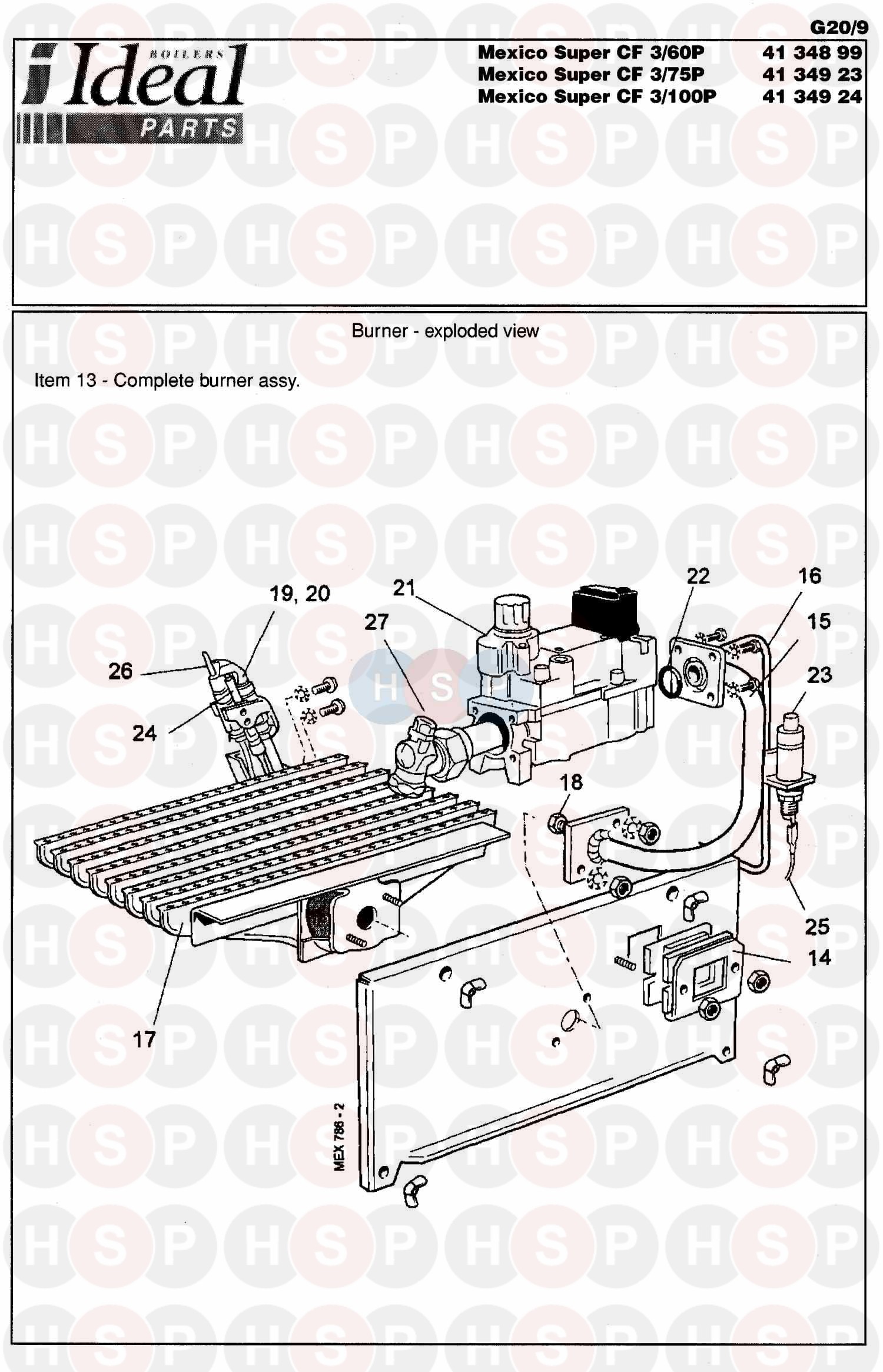

Burner Control Ass 2 diagram for Ideal Mexico Super 3 CF 75PClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE KIT - PROGRAMMER
Ideal part no. 152017
0   OBSOLETE CONV KIT PKGD MX CF3/75P
Ideal part no. 152013
0   OBSOLETE TOP BRACKET C/W FIXINGS MX3
Ideal part no. 075378
0   OBSOLETE KIT - PUMP
Ideal part no. 152019
1 Part number 150746, HT EXCH ASS MX 3 CF50-80 HT EXCH ASS MX 3 CF50-80
Ideal part no. 150746
2   OBSOLETE END SCTN C/W O RINGS:MX2 BED
Ideal part no. 075275
3   OBSOLETE MIDDLE SCTN C/W O RING:MX2 BED
Ideal part no. 075277
4   OBSOLETE SET OF 4 O RINGS AND ALIGN RINGS
Ideal part no. 078277
5 Part number 055865, T/STAT POCKET ASS 6339004 T/STAT POCKET ASS 6339004
Ideal part no. 055865		 £25.42
6 Part number 057159, OBSOLETE DIST TUBE ASS MEX 50/80 OBSOLETE DIST TUBE ASS MEX 50/80
Ideal part no. 057159
7   OBSOLETE C/CHBR+INSL/SEALS:MX2 BED CF50
Ideal part no. 075299
8 Part number 075287, OBSOLETE C/CHBR FRT INS+FTTGS:MX2BED OBSOLETE C/CHBR FRT INS+FTTGS:MX2BED
Ideal part no. 075287
9 Part number 075288, OBSOLETE C/CHBR REAR INS AND FTTGS:MX2BED OBSOLETE C/CHBR REAR INS AND FTTGS:MX2BED
Ideal part no. 075288
10   OBSOLETE C/CHBR SD INSL+FTTG:MX2 BED 50
Ideal part no. 075284
11   COLL HOOD ASS:MX CF3/70
Ideal part no. 075354
12   OBSOLETE CLEANOUT COVER ASS MX 3 40-80
Ideal part no. 150777
13   OBSOLETE FRTPLT/GAS LINE ASS MX 3 CF75P
Ideal part no. 150814
14 Part number 079334, OBSOLETE SIGHT GLASS ASSEMBLY OBSOLETE SIGHT GLASS ASSEMBLY
Ideal part no. 079334
15   OBSOLETE BNR MANIFOLD ASS PTD MX 40-80
Ideal part no. 100598
16   PILOT PIPE ASS MX2 CF70/80
Ideal part no. 079755
17 Part number 013975, MAIN BURNER AC19/123252 MAIN BURNER AC19/123252
Ideal part no. 013975
18 Part number 004858, OBSOLETE INJ BNR BRAY CAT 10 SIZE 800 - P53 10800 OBSOLETE INJ BNR BRAY CAT 10 SIZE 800 - P53 10800
Ideal part no. 004858
19 Part number 079390, PILOT BNR ASS Q385A1020 PILOT BNR ASS Q385A1020
Ideal part no. 079390
20 Part number 004816, INJECTOR PILOT 45004114005 INJECTOR PILOT 45004114005
Ideal part no. 004816
21 Part number 100603, GAS VALVE V4600 E1016 MEXICO GAS VALVE V4600 E1016 MEXICO
Ideal part no. 100603
21 Part number 075736, GAS VALVE ASS MX2 PROP V4600 E1016 GAS VALVE ASS MX2 PROP V4600 E1016
Ideal part no. 075736
22 Part number 003248, O-RING 25.0 I/D X 4.0 DES 0038 MN70 O-RING 25.0 I/D X 4.0 DES 0038 MN70
Ideal part no. 003248		 £8.80
23 Part number 003939, SPARK GENERATOR 60080/002 SPARK GENERATOR 60080/002
Ideal part no. 003939
24 Part number 004713, IGN ELECTRODE BE/3231/SI MX2 IGN ELECTRODE BE/3231/SI MX2
Ideal part no. 004713
25 Part number 052888, HT LEAD ASSY 460mm LG RS/MEXSL HT LEAD ASSY 460MM LG RS/MEXSL
Ideal part no. 052888		 £3.54
26 Part number Q309A2747, Q309A2747 - thermocouple Q309A2747 - THERMOCOUPLE
Baxi part no. Q309A2747		 £9.18
26 Part number 003876, NOW USE Q309A2747 THERMOCOUPLE 750mm NOW USE Q309A2747 THERMOCOUPLE 750MM
Ideal part no. 003876
27 Part number 013580, OBSOLETE 1/2INR/ANGLED GAS COCK F/F OBSOLETE 1/2INR/ANGLED GAS COCK F/F
Ideal part no. 013580		 £37.80
28   OBSOLETE JACKET COMPLETE:MX CF3/40-70
Ideal part no. 075359
29   OBSOLETE CTRLS COMPLETE:MX RS/CF SUPER
Ideal part no. 075364
30   OBSOLETE CTRL BOX ASS MX 3
Ideal part no. 075370
31 Part number 151903, CTRL STAT-RANCO REF K36-P1354 CTRL STAT-RANCO REF K36-P1354
Ideal part no. 151903
32 Part number 111904, CONTROL KNOB ASSY CONTROL KNOB ASSY
Ideal part no. 111904
33   THERMO PHIAL BRKT MEX
Ideal part no. 057454
34 Part number 003147, SPLIT PIN 1/16 X 1 BRASS SPLIT PIN 1/16 X 1 BRASS
Ideal part no. 003147		 £2.76
35   OBSOLETE CTRLS PANEL MX3
Ideal part no. 151428
36   OBSOLETE MAGNETIC STRIP 210 X 13MM
Ideal part no. 151997
37   OBSOLETE CTRLS FRONT PNL ASS:MX 3
Ideal part no. 075346
38   PROGRAMMER-DIEHL REF 16500 MX3
Ideal part no. 151992
39 Part number 139603, ROCKER SWITCH ARCOELH8600VBWHITE ROCKER SWITCH ARCOELH8600VBWHITE
Ideal part no. 139603		 £1.98
40   OBSOLETE JKT SIDE PNL ASSY MX 3/40-100
Ideal part no. 075347
41   OBSOLETE JKT TOP PNL ASSY:MX CF3/40-70
Ideal part no. 075367
42   OBSOLETE GRILLE PANEL MEXICO 3
Ideal part no. 151423
43   OBSOLETE JKT FRT PNL ASSY:MX 3 RS/CF
Ideal part no. 075349
44   OBSOLETE JKT FIXING PACK:MX 3 RS/CF/FAN
Ideal part no. 075350
44   OBSOLETE FLUEWAY BAFFLE MEXICO
Ideal part no. 135770
46   OBSOLETE BOILER BASE PLATE MEX 40-100
Ideal part no. 134236
47   H/WARE PK MEX RS/CF50-80
Ideal part no. 013916
48   OBSOLETE D D BK PNL/TOP INFL MX CF70
Ideal part no. 139555
49   OBSOLETE DOWNDRAFT STAT AND FTTGS:MX3 CF
Ideal part no. 075372
