IDEAL
MEXICO SUPER 3 CF 125P - (First Line Spares 1)
Appliance Code: 41-349-26

Appliance Diagram

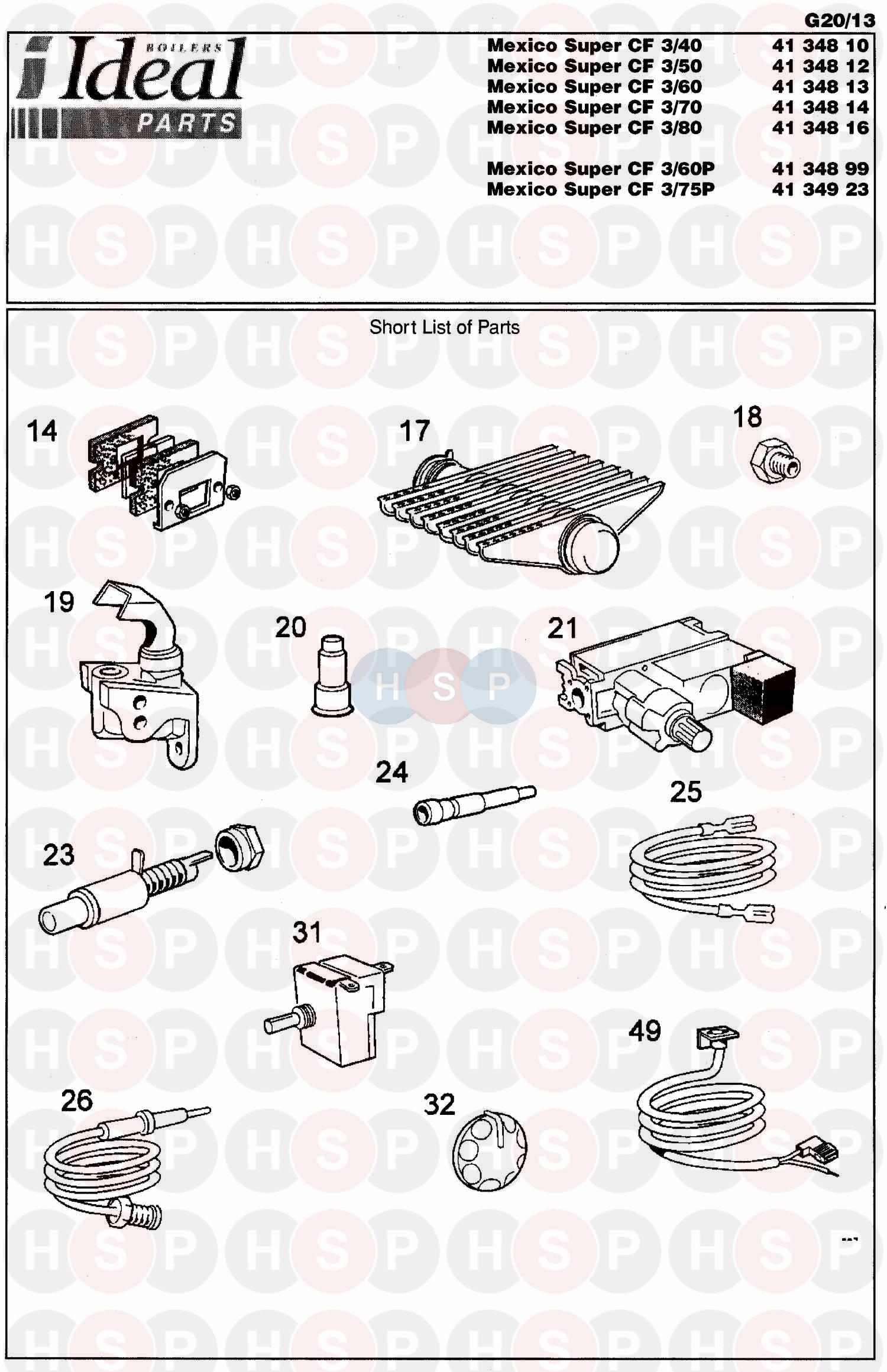

First Line Spares 1 diagram for Ideal Mexico Super 3 CF 125PClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE TOP BRACKET C/W FIXINGS MX3
Ideal part no. 075378
0   HT SHIELD-BASE PLATE MX3 125
Ideal part no. 150839		 £3.95
0   OBSOLETE KIT - PUMP
Ideal part no. 152020
0   OBSOLETE KIT - PROGRAMMER
Ideal part no. 152017
0   CONV KIT PKGD MX CF3/125P
Ideal part no. 152015		 £49.13
1 Part number 150748, HT EXCH ASS MX 3 CF125 HT EXCH ASS MX 3 CF125
Ideal part no. 150748
2   OBSOLETE END SCTN C/W O RINGS:MX2 BED
Ideal part no. 075275
3   OBSOLETE MIDDLE SCTN C/W O RING:MX2 BED
Ideal part no. 075277
4   OBSOLETE SET OF 4 O RINGS AND ALIGN RINGS
Ideal part no. 078277
5 Part number 055865, T/STAT POCKET ASS 6339004 T/STAT POCKET ASS 6339004
Ideal part no. 055865		 £25.42
6   OBSOLETE DIST TUBE ASS MEX RS125
Ideal part no. 059706
7   OBSOLETE C/CHBR+INSL/SEALS:MX2BED CF125
Ideal part no. 075302
8 Part number 075287, OBSOLETE C/CHBR FRT INS+FTTGS:MX2BED OBSOLETE C/CHBR FRT INS+FTTGS:MX2BED
Ideal part no. 075287
9 Part number 075288, OBSOLETE C/CHBR REAR INS AND FTTGS:MX2BED OBSOLETE C/CHBR REAR INS AND FTTGS:MX2BED
Ideal part no. 075288
10 Part number 075286, OBSOLETE C/CHBR SD INSL+FTTG:MX2BED 125 OBSOLETE C/CHBR SD INSL+FTTG:MX2BED 125
Ideal part no. 075286
11   OBSOLETE COLL HOOD ASS:MX CF3/125
Ideal part no. 075357
12   OBSOLETE CLEANOUT CVR ASS MX 3 100-140
Ideal part no. 150778
13   OBSOLETE FRTPLT/GAS LINE ASS MX 3 CF125P
Ideal part no. 150816
14 Part number 079334, OBSOLETE SIGHT GLASS ASSEMBLY OBSOLETE SIGHT GLASS ASSEMBLY
Ideal part no. 079334
15   BNR MFLD ASS PTD MX CF100 UP
Ideal part no. 135620		 £33.16
16   PILOT PIPE ASSY MX2 CF125
Ideal part no. 079683
17 Part number 100162, LH MAIN BURNER AC19/123287 LH MAIN BURNER AC19/123287
Ideal part no. 100162
17 Part number 100161, OBSOLETE RH MAIN BURNER AC19/123286 OBSOLETE RH MAIN BURNER AC19/123286
Ideal part no. 100161
18 Part number 003862, OBSOLETE INJECTOR BNR BRAY CAT 10 SIZE 650 OBSOLETE INJECTOR BNR BRAY CAT 10 SIZE 650
Ideal part no. 003862
19 Part number 079391, PILOT BNR ASS Q349A1067 PILOT BNR ASS Q349A1067
Ideal part no. 079391		 £28.84
20 Part number 004590, INJECTOR PILOT 45004114004B INJECTOR PILOT 45004114004B
Ideal part no. 004590		 £6.60
21 Part number 075736, GAS VALVE ASS MX2 PROP V4600 E1016 GAS VALVE ASS MX2 PROP V4600 E1016
Ideal part no. 075736
21 Part number 100603, GAS VALVE V4600 E1016 MEXICO GAS VALVE V4600 E1016 MEXICO
Ideal part no. 100603
22 Part number 003248, O-RING 25.0 I/D X 4.0 DES 0038 MN70 O-RING 25.0 I/D X 4.0 DES 0038 MN70
Ideal part no. 003248		 £8.80
23 Part number 003939, SPARK GENERATOR 60080/002 SPARK GENERATOR 60080/002
Ideal part no. 003939
24 Part number 003777, OBSOLETE IGN ELECTRODE 60877 MX2 100-140 OBSOLETE IGN ELECTRODE 60877 MX2 100-140
Ideal part no. 003777
25 Part number 057599, H T LEAD 750mm MEX/CONC H T LEAD 750MM MEX/CONC
Ideal part no. 057599
26 Part number 030032, THERMOCOUPLE 900mm Q309A 2754B THERMOCOUPLE 900MM Q309A 2754B
Ideal part no. 030032		 £27.35
27 Part number 013580, OBSOLETE 1/2INR/ANGLED GAS COCK F/F OBSOLETE 1/2INR/ANGLED GAS COCK F/F
Ideal part no. 013580		 £37.80
28   OBSOLETE JACKET COMPLETE:MX CF3/125
Ideal part no. 075362
29   OBSOLETE CTRLS COMPLETE:MX RS/CF SUPER
Ideal part no. 075364
30   OBSOLETE CTRL BOX ASS MX 3
Ideal part no. 075370
31 Part number 151903, CTRL STAT-RANCO REF K36-P1354 CTRL STAT-RANCO REF K36-P1354
Ideal part no. 151903
32 Part number 111904, CONTROL KNOB ASSY CONTROL KNOB ASSY
Ideal part no. 111904
33   THERMO PHIAL BRKT MEX
Ideal part no. 057454
34 Part number 003147, SPLIT PIN 1/16 X 1 BRASS SPLIT PIN 1/16 X 1 BRASS
Ideal part no. 003147		 £2.76
35   OBSOLETE CTRLS PANEL MX3
Ideal part no. 151428
36   OBSOLETE MAGNETIC STRIP 210 X 13MM
Ideal part no. 151997
37   OBSOLETE CTRLS FRONT PNL ASS:MX 3
Ideal part no. 075346
38   PROGRAMMER-DIEHL REF 16500 MX3
Ideal part no. 151992
39 Part number 139603, ROCKER SWITCH ARCOELH8600VBWHITE ROCKER SWITCH ARCOELH8600VBWHITE
Ideal part no. 139603		 £1.98
40   OBSOLETE JKT SIDE PNL ASSY MX 3/125
Ideal part no. 075348
41   OBSOLETE JKT TOP PNL ASSY:MX CF3/125
Ideal part no. 075369
42   OBSOLETE GRILLE PNL ASSY:MX CF3/100-140
Ideal part no. 075371
43   OBSOLETE JKT FRT PNL ASSY:MX 3 RS/CF
Ideal part no. 075349
44   OBSOLETE JKT FIXING PACK:MX 3 RS/CF/FAN
Ideal part no. 075350
46   OBSOLETE BLR BASE PLATE MX RS/CF125
Ideal part no. 134237
47   OBSOLETE H/WARE PK MEX RS/CF125
Ideal part no. 013919
48   OBSOLETE D D BK/TOP INFL MX CF125
Ideal part no. 151019
49   OBSOLETE DOWNDRAFT STAT AND FTTGS:MX3 CF
Ideal part no. 075372
