IDEAL
MEXICO SUPER 2 RS 100 - (First Line Spares 1)
Appliance Code: 41-421-06

Appliance Diagram


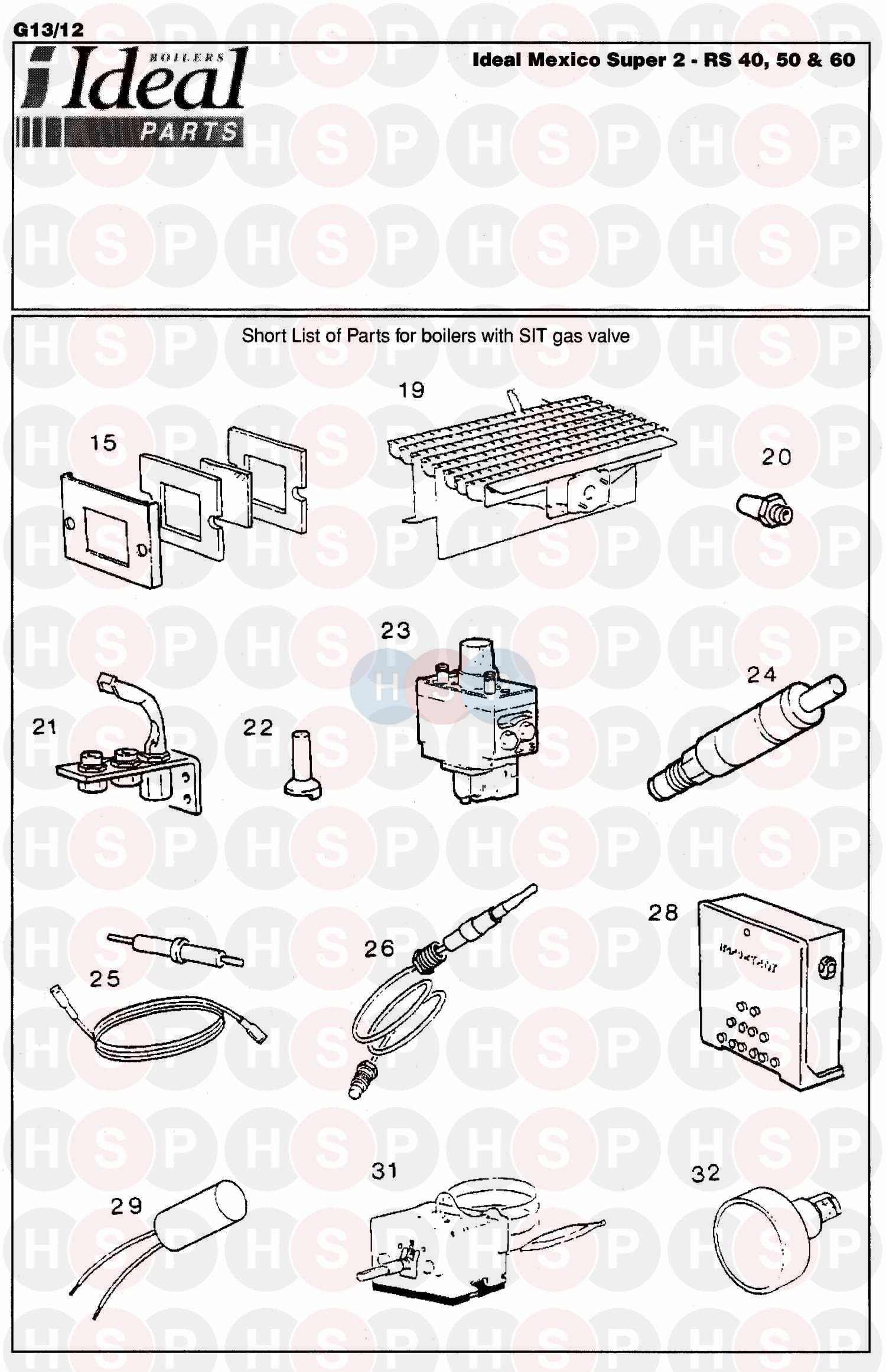

First Line Spares 1 diagram for Ideal Mexico Super 2 RS 100Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE GAS VALVE 240V SOLENOID
Ideal part no. 065723
0   OBSOLETE H/WARE PK MEX RS/CF100
Ideal part no. 013918
0   OBSOLETE FLUEWAY BAFFLE MEXICO
Ideal part no. 135770
0 Part number 132009, NOW USE 173228 T/CPL INTERRUPTER LD ASS-SENSOR NOW USE 173228 T/CPL INTERRUPTER LD ASS-SENSOR
Ideal part no. 132009
0 Part number 100355, L/STAT RANCO LM7 P9015 L/STAT RANCO LM7 P9015
Ideal part no. 100355		 £26.10
0   OBSOLETE METRES 10MM. FIBREGLASS ROPE
Ideal part no. 077381
0   OBSOLETE GAS VALVE COVER 45900401-007B
Ideal part no. 003986
0   THERMO PHIAL BRKT MEX
Ideal part no. 057454
0   OBSOLETE MAGNETIC STRIP S/ADH 438X6.5MM
Ideal part no. 113011
0 Part number 003147, SPLIT PIN 1/16 X 1 BRASS SPLIT PIN 1/16 X 1 BRASS
Ideal part no. 003147		 £2.76
0 Part number 173228, ECO LEADS ASSY ECO LEADS ASSY
Ideal part no. 173228		 £51.27
1   OBSOLETE HT EXCH ASS:MX2 4 SCTN
Ideal part no. 135741
2   OBSOLETE END SECT W/RING MX2
Ideal part no. 079398
3   OBSOLETE CENTRE SECT MEX2
Ideal part no. 079399
4   OBSOLETE SET OF 4 O RINGS AND ALIGN RINGS
Ideal part no. 078277
6 Part number 055865, T/STAT POCKET ASS 6339004 T/STAT POCKET ASS 6339004
Ideal part no. 055865		 £25.42
7   DIST TUBE ASS MX RS/CF100
Ideal part no. 057160		 £41.14
8   OBSOLETE COMB CHAMBER ASSY MX2 RS100
Ideal part no. 079353
9   OBSOLETE COMB CHAMBER SIDE INSUL
Ideal part no. 078286
10   OBSOLETE FRT INSL 10MM-COMB CHMB MEX
Ideal part no. 012967
11   OBSOLETE REAR INSL-COMB CHBR 5MM MEX
Ideal part no. 012968
12   OBSOLETE COLL HOOD ASS:MX2 RS100
Ideal part no. 135260
13   OBSOLETE C/O COVER ASS:MX2 100-140
Ideal part no. 057128
14   OBSOLETE FRT PLT BURNER ASS MX2RS100
Ideal part no. 079744
15 Part number 079334, OBSOLETE SIGHT GLASS ASSEMBLY OBSOLETE SIGHT GLASS ASSEMBLY
Ideal part no. 079334
16   OBSOLETE GAS INLET PIPE MEX 100
Ideal part no. 056905
17   OBSOLETE BNR MANIFOLD ASS PTD MX 40-80
Ideal part no. 100598
17   BNR MFLD ASS PTD MX CF100 UP
Ideal part no. 135620		 £33.16
18 Part number 078245, OBSOLETE PILOT PIPE ASS MX2 RS 100P OBSOLETE PILOT PIPE ASS MX2 RS 100P
Ideal part no. 078245
19 Part number 012959, LH MAIN BURNER AC19/123216 LH MAIN BURNER AC19/123216
Ideal part no. 012959		 £227.08
19   OBSOLETE RH MAIN BURNER-AEROMATIC
Ideal part no. 012960
20   OBSOLETE INJECTOR BNR BRAY CAT 103 SIZE 1500
Ideal part no. 004597
21 Part number 079356, PILOT BNR-H/WELL Q349A-1067 PILOT BNR-H/WELL Q349A-1067
Ideal part no. 079356		 £43.96
22 Part number 003825, INJECTOR PILOT HONEYWELL 45900421-029 INJECTOR PILOT HONEYWELL 45900421-029
Ideal part no. 003825		 £5.68
23 Part number 003114, GAS VALVE 1/2INCOMPACT V4600A1023U GAS VALVE 1/2INCOMPACT V4600A1023U
Ideal part no. 003114		 £225.72
23 Part number 004997, GAS VALVE HONEYWELL V4700E1098U GAS VALVE HONEYWELL V4700E1098U
Ideal part no. 004997
23 Part number 079756, GAS VALVE ASS MX2 V4600 A1130 GAS VALVE ASS MX2 V4600 A1130
Ideal part no. 079756		 £229.28
24 Part number 003939, SPARK GENERATOR 60080/002 SPARK GENERATOR 60080/002
Ideal part no. 003939
25   H T LEAD ASSY 600MM LG MEX SUP
Ideal part no. 057254
25 Part number 078292, OBSOLETE IGNI ELECT AND HT LEAD ASSY OBSOLETE IGNI ELECT AND HT LEAD ASSY
Ideal part no. 078292
26 Part number Q309A2747, Q309A2747 - thermocouple Q309A2747 - THERMOCOUPLE
Baxi part no. Q309A2747		 £9.18
26 Part number 003876, NOW USE Q309A2747 THERMOCOUPLE 750mm NOW USE Q309A2747 THERMOCOUPLE 750MM
Ideal part no. 003876
27 Part number 078760, OBSOLETE G/COCK C/W 1/2IN X 114 S/NIP MEXS OBSOLETE G/COCK C/W 1/2IN X 114 S/NIP MEXS
Ideal part no. 078760
28   OBSOLETE CONTROL BOX MX2 40/125
Ideal part no. 134761
29   OBSOLETE PLASTIC CAN SUPPRESSOR STC NO
Ideal part no. 004033
30   OBSOLETE T/STAT BOX MEX 2
Ideal part no. 079358
31 Part number 110541, OBSOLETE T/STAT K36 REF P1317 MEX 2 OBSOLETE T/STAT K36 REF P1317 MEX 2
Ideal part no. 110541
32 Part number 013909, OBSOLETE CONTROL KNOB ASS T/STAT MX2 SUP OBSOLETE CONTROL KNOB ASS T/STAT MX2 SUP
Ideal part no. 013909
33   OBSOLETE JKT ASSY MEX2 RS 100
Ideal part no. 079361
34   OBSOLETE SD PNL PTD MEX 2 RS/CF40-100
Ideal part no. 134596
36   OBSOLETE JKT TOP PNL ASS MEX 2 RS40/100
Ideal part no. 134931
37   OBSOLETE UPR FRT PNL ASS:MX2 RS/CF100UP
Ideal part no. 135255
37   OBSOLETE UPR FRT PNL ASS:MX2 RS
Ideal part no. 101160
38   OBSOLETE CTRL PNL CVR PTD MEX 2
Ideal part no. 134207
39   OBSOLETE CONTROL PANEL FXGS (PAIR)
Ideal part no. 079363
40   OBSOLETE FRONT PNL C/W GRILLE MX2 CF100
Ideal part no. 079943
41   OBSOLETE PROGRAMMER RWB 4 STELRAD
Ideal part no. 012698
43   OBSOLETE BOILER BASE PLATE MEX 40-100
Ideal part no. 134236
