IDEAL
MEXICO SLIMLINE RS4 45 - (Service Fault Finding 1)
Appliance Code: 41-392-88

Appliance Diagram

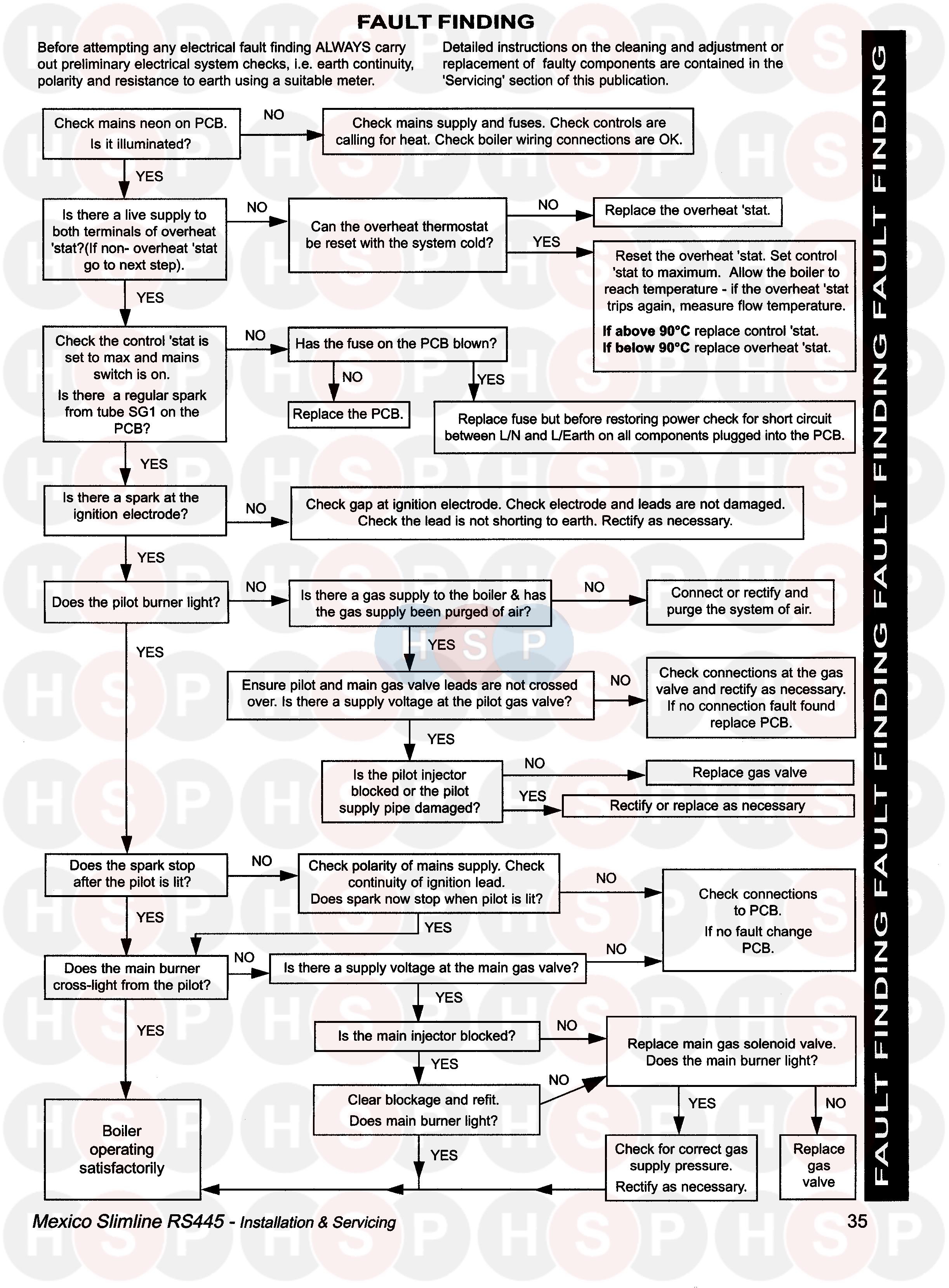

Service Fault Finding 1 diagram for Ideal Mexico Slimline RS4 45Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE BLR BODY ASS MXSL 3 RS40-50
Ideal part no. 150818
6   OBSOLETE T/STAT POCKET ASS 6339011
Ideal part no. 002523
16   OBSOLETE FRT PLATE/GAS LINE ASSY
Ideal part no. 172019
17 Part number 079334, OBSOLETE SIGHT GLASS ASSEMBLY OBSOLETE SIGHT GLASS ASSEMBLY
Ideal part no. 079334
18   BURNER MANIFOLD
Ideal part no. 172444		 £17.30
19   OBSOLETE PILOT PIPE MEX SLIM 40
Ideal part no. 078227
20 Part number 012533, MAIN BURNER BRAY MK9 NO AB16641 MAIN BURNER BRAY MK9 NO AB16641
Ideal part no. 012533
21   MAIN INJECTOR 445
Ideal part no. 171991		 £4.10
23 Part number 171434, PILOT BURNER INJECTOR CLA FF30-80 PILOT BURNER INJECTOR CLA FF30-80
Ideal part no. 171434
24 Part number 170797, GAS VALVE ASSY(VR4605CA1076 & 0 RING)RD2 GAS VALVE ASSY(VR4605CA1076 & 0 RING)RD2
Ideal part no. 170797
25 Part number 003248, O-RING 25.0 I/D X 4.0 DES 0038 MN70 O-RING 25.0 I/D X 4.0 DES 0038 MN70
Ideal part no. 003248		 £8.80
27   OBSOLETE COLL HOOD ASSY MX RS65/80
Ideal part no. 057199
28   OBSOLETE G/COCK C/W G/INLET PIPE MEX SL
Ideal part no. 078759
32   OBSOLETE GAS VALVE HARNESS MEXICO FF
Ideal part no. 153195
33 Part number 004420, PCB SUPPORT CLIP TCBS-6 PCB SUPPORT CLIP TCBS-6
Ideal part no. 004420		 £2.90
37   OBSOLETE CONTROL BOX COVER
Ideal part no. 172446
47   OBSOLETE BOILER FOOT ASS MEX SLIM RS/CF
Ideal part no. 054387
48   OBSOLETE H/WARE PK MEX SLIM CF/RS
Ideal part no. 012995
62   OBSOLETE JACKET COMPLETE RS SLIMLINE
Ideal part no. 172453
63   OBSOLETE CONTROLS COMPLETE MX SL RS4 SERIES
Ideal part no. 172023
67 Part number 111904, CONTROL KNOB ASSY CONTROL KNOB ASSY
Ideal part no. 111904
68   THERMO PHIAL BRKT MEX
Ideal part no. 057454
69 Part number 003147, SPLIT PIN 1/16 X 1 BRASS SPLIT PIN 1/16 X 1 BRASS
Ideal part no. 003147		 £2.76
72   OBSOLETE MAGNETIC STRIP 210 X 13MM
Ideal part no. 151997
73   JACKET LH SIDE PANEL
Ideal part no. 172020		 £23.59
74   JACKET RH SIDE PANEL
Ideal part no. 172021		 £41.97
75   OBSOLETE JACKET FRONT PANEL
Ideal part no. 172012
76   OBSOLETE TP PNL INFIL PC PTD MX SLIM CF
Ideal part no. 132244
76   OBSOLETE TOP PANEL
Ideal part no. 172464
77   OBSOLETE GRILLE PANEL
Ideal part no. 172470
78   OBSOLETE JKT FIXING PACK:MX 3 RS/CF/FAN
Ideal part no. 075350
79 Part number 139603, ROCKER SWITCH ARCOELH8600VBWHITE ROCKER SWITCH ARCOELH8600VBWHITE
Ideal part no. 139603		 £1.98
