MEXICO SLIMLINE 3 RS 40 - (First Line Spares 1)
Appliance Code: 41-348-04

Appliance Diagram

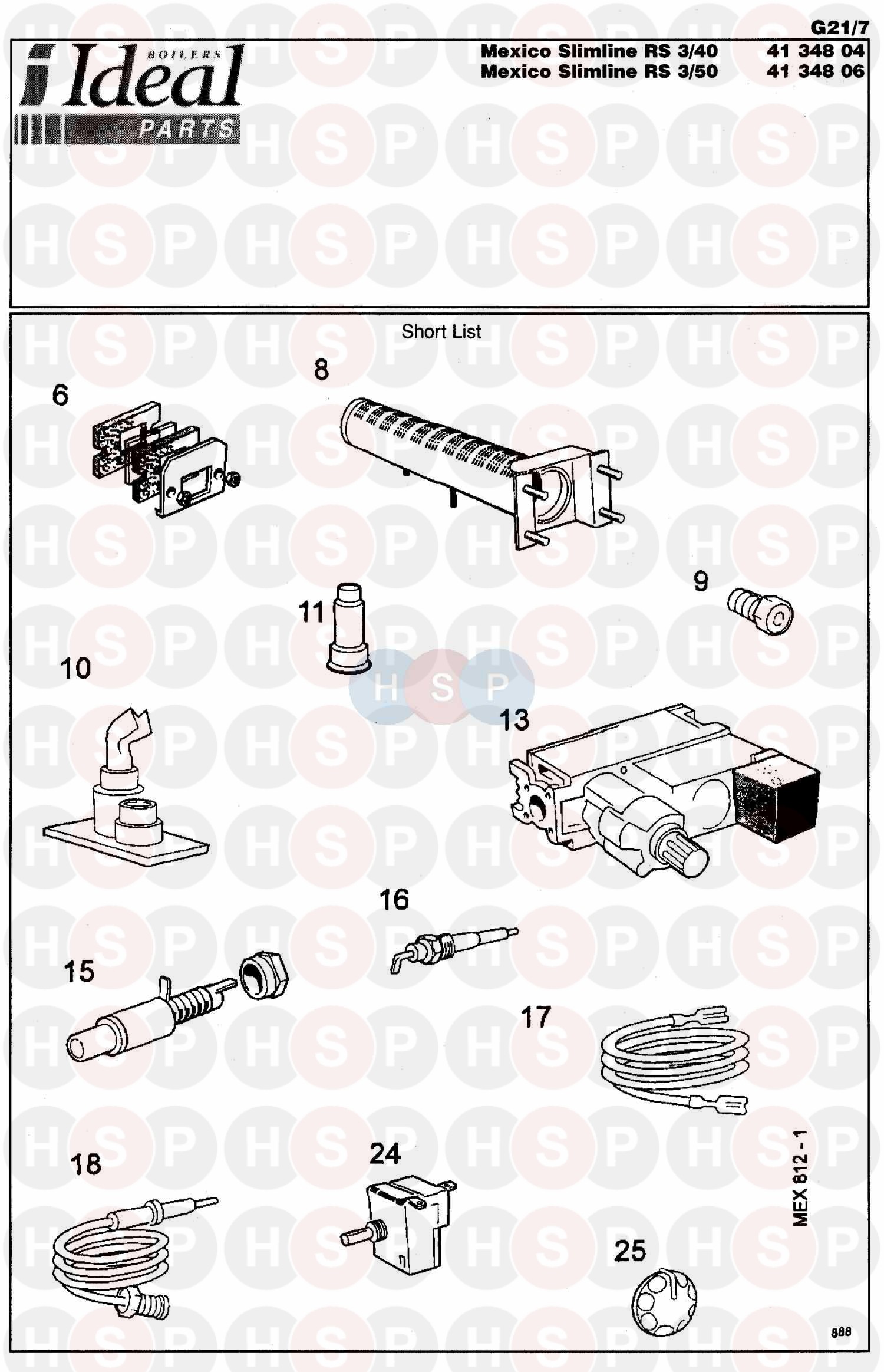

First Line Spares 1 diagram for Ideal Mexico Slimline 3 RS 40Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE BLR BODY ASS MXSL 3 RS40-50
Ideal part no. 150818
2   OBSOLETE BOILER FOOT ASS MEX SLIM RS/CF
Ideal part no. 054387
3   OBSOLETE T/STAT POCKET ASS 6339011
Ideal part no. 002523
4   OBSOLETE C/O COVER MEXICO SLIM
Ideal part no. 053582
5   OBSOLETE FRONT PLATE & GAS LINE KIT S/LINE RS3/40
Ideal part no. 075714
6 Part number 079334, OBSOLETE SIGHT GLASS ASSEMBLY OBSOLETE SIGHT GLASS ASSEMBLY
Ideal part no. 079334
7   OBSOLETE PILOT PIPE MEX SLIM 40
Ideal part no. 078227
8 Part number 012533, MAIN BURNER BRAY MK9 NO AB16641 MAIN BURNER BRAY MK9 NO AB16641
Ideal part no. 012533
9   OBSOLETE INJECTOR BNR BRAY CAT 10 SIZE 1200
Ideal part no. 004190
10 Part number 077868, PILOT BURNER ASSY Q359A1041 PILOT BURNER ASSY Q359A1041
Ideal part no. 077868		 £24.81
11 Part number 003825, INJECTOR PILOT HONEYWELL 45900421-029 INJECTOR PILOT HONEYWELL 45900421-029
Ideal part no. 003825		 £5.68
12   OBSOLETE PLT BNR BRKT ASSY SLIM RS/CF
Ideal part no. 078228
13 Part number 079756, GAS VALVE ASS MX2 V4600 A1130 GAS VALVE ASS MX2 V4600 A1130
Ideal part no. 079756		 £229.28
14 Part number 003248, O-RING 25.0 I/D X 4.0 DES 0038 MN70 O-RING 25.0 I/D X 4.0 DES 0038 MN70
Ideal part no. 003248		 £8.80
15 Part number 003939, SPARK GENERATOR 60080/002 SPARK GENERATOR 60080/002
Ideal part no. 003939
16 Part number 003038, IGN ELECTRODE 60843 MX S/LINE IGN ELECTRODE 60843 MX S/LINE
Ideal part no. 003038
17 Part number 052888, HT LEAD ASSY 460MM LG RS/MEXSL HT LEAD ASSY 460MM LG RS/MEXSL
Ideal part no. 052888		 £3.54
18 Part number 000842, THERMOCOUPLE+600MM LEAD Q309A2739 THERMOCOUPLE+600MM LEAD Q309A2739
Ideal part no. 000842		 £20.99
19 Part number 013580, OBSOLETE 1/2INR/ANGLED GAS COCK F/F OBSOLETE 1/2INR/ANGLED GAS COCK F/F
Ideal part no. 013580		 £37.80
20   OBSOLETE JACKET COMPLETE:MXSL RS3/40-50
Ideal part no. 075373
22   OBSOLETE CTRL BOX ASS MX 3
Ideal part no. 075370
24 Part number 151903, CTRL STAT-RANCO REF K36-P1354 CTRL STAT-RANCO REF K36-P1354
Ideal part no. 151903
25 Part number 111904, CONTROL KNOB ASSY CONTROL KNOB ASSY
Ideal part no. 111904
26   OBSOLETE CTRLS PANEL MX3 SLIMLINE
Ideal part no. 151429
27   OBSOLETE MAGNETIC STRIP 210 X 13MM
Ideal part no. 151997
28   OBSOLETE CTRL FRT PNL:MXSL CF/RS3
Ideal part no. 075374
29   PROGRAMMER-DIEHL REF 16500 MX3
Ideal part no. 151992
30 Part number 139603, ROCKER SWITCH ARCOELH8600VBWHITE ROCKER SWITCH ARCOELH8600VBWHITE
Ideal part no. 139603		 £1.98
31   OBSOLETE LH SIDE PANEL MX3 S/LINE RS
Ideal part no. 151440
32   OBSOLETE RH SIDE PANEL MX3 S/LINE RS
Ideal part no. 151441
33   OBSOLETE TOP PANEL MX3 S/LINE RS
Ideal part no. 151444
34   OBSOLETE GRILLE PANEL MX3 S/LINE RS/CF
Ideal part no. 151438
35   OBSOLETE JKT FRONT PNL ASSY:MXSL RS/CF3
Ideal part no. 075375
36   OBSOLETE JKT FIXINGS:MXSL CF/RS3
Ideal part no. 075376
37 Part number 003147, SPLIT PIN 1/16 X 1 BRASS SPLIT PIN 1/16 X 1 BRASS
Ideal part no. 003147		 £2.76
38   OBSOLETE AIR DUCT ASS MEX SLIM RS
Ideal part no. 053623
39   OBSOLETE FLUE DUCT ASS MEX SLIM RS
Ideal part no. 053622
40   OBSOLETE FLUE BFFL ASS MXSL RS40
Ideal part no. 151061
41   OBSOLETE GAS VALVE OUTLET PIPE MX SL CF
Ideal part no. 012973
42   OBSOLETE GAS VALVE INLET PIPE MX3 S/LINE
Ideal part no. 151862
43   OBSOLETE H/WARE PK MEX SLIM CF/RS
Ideal part no. 012995
44 Part number 013311, SEALING GASKET MEX RS SEALING GASKET MEX RS
Ideal part no. 013311
45 Part number 053596, OBSOLETE SEALING PLT MEX RS 40-125 OBSOLETE SEALING PLT MEX RS 40-125
Ideal part no. 053596
