MEXICO MONO RS 40 - (Boiler Assembly 1)
Appliance Code: 41-407-61

Appliance Diagram

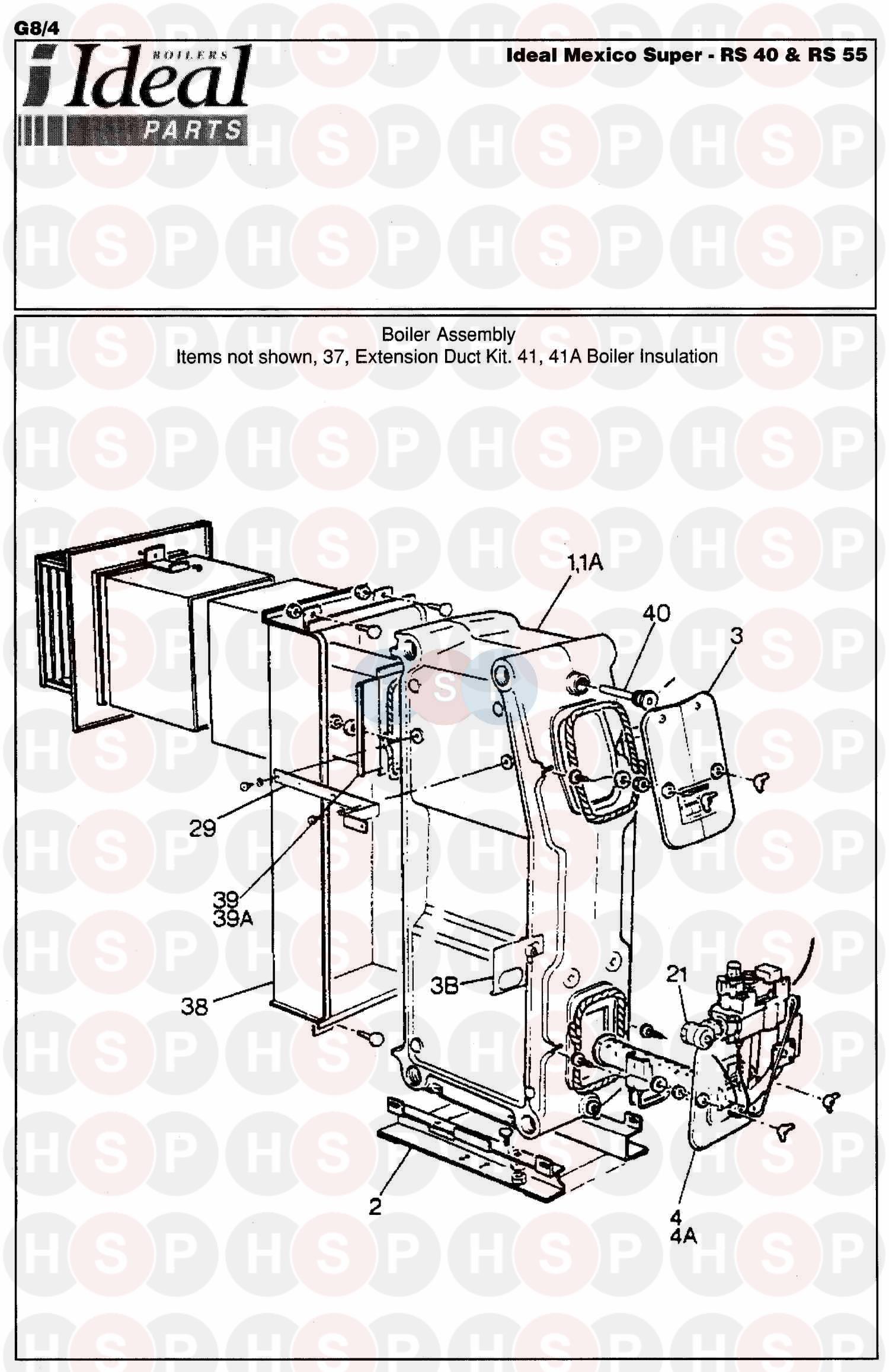

Boiler Assembly 1 diagram for Ideal Mexico Mono RS 40Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

3   OBSOLETE C/O COVER MEXICO SLIM
Ideal part no. 053582
5 Part number 079334, OBSOLETE SIGHT GLASS ASSEMBLY OBSOLETE SIGHT GLASS ASSEMBLY
Ideal part no. 079334
6   OBSOLETE PILOT PIPE ASS MEX CF55
Ideal part no. 078234
6   OBSOLETE PILOT PIPE ASSY MX CF40
Ideal part no. 078233
7   OBSOLETE MAIN BURNER 604/4/24
Ideal part no. 012564
8   OBSOLETE INJECTOR BNR BRAY CAT 16 SIZE 1100
Ideal part no. 003279
9 Part number 077868, PILOT BURNER ASSY Q359A1041 PILOT BURNER ASSY Q359A1041
Ideal part no. 077868		 £24.81
10 Part number 003825, INJECTOR PILOT HONEYWELL 45900421-029 INJECTOR PILOT HONEYWELL 45900421-029
Ideal part no. 003825		 £5.68
12 Part number 003114, GAS VALVE 1/2INCOMPACT V4600A1023U GAS VALVE 1/2INCOMPACT V4600A1023U
Ideal part no. 003114		 £225.72
13   OBSOLETE IGNITOR VERNITRON PT 60038 SPARK GEN
Ideal part no. 052288
14 Part number 077428, IGN ELECTRODE + HT LEAD KIT IGN ELECTRODE + HT LEAD KIT
Ideal part no. 077428
15 Part number 000842, THERMOCOUPLE+600mm LEAD Q309A2739 THERMOCOUPLE+600MM LEAD Q309A2739
Ideal part no. 000842		 £20.99
16   OBSOLETE CONTROL BOX MX SUPER .
Ideal part no. 078293
17 Part number 003178, T/STAT 24INCL6 PO 104 RANGE 54 T/STAT 24INCL6 PO 104 RANGE 54
Ideal part no. 003178
19   OBSOLETE PLASTIC CAN SUPPRESSOR STC NO
Ideal part no. 004033
21   OBSOLETE RC1/2 X R1/2 SPRING LD ELBOW GAS COCK
Ideal part no. 003860
23   OBSOLETE LH SD PNL ASS PTD MX 40/100
Ideal part no. 132239
24   OBSOLETE RH SD PNL ASS MEX RS/CF40/100
Ideal part no. 057136
25   OBSOLETE TOP PNL ASS MEX SUP RS40/100
Ideal part no. 057210
26   OBSOLETE UPR FRT PNL MEX SUP RS/CF
Ideal part no. 078297
27   OBSOLETE SLIDING FASCIA COVER MEXICO
Ideal part no. 057070
28   OBSOLETE LWR FRT PNL ASS MEX RS 65/125
Ideal part no. 057213
31   OBSOLETE UPPER FRT PNL ASS:MEX RS/CF
Ideal part no. 057212
32   OBSOLETE PROGRAMMER RWB 4 STELRAD
Ideal part no. 012698
33   OBSOLETE PROGRAMMER JUNCTION BOX:MEX
Ideal part no. 057265
38   OBSOLETE AIR DUCT ASS MEX SLIM RS
Ideal part no. 053623
39   OBSOLETE FLUE DUCT ASS:MEX SLIM RS 40
Ideal part no. 053798
40   OBSOLETE T/STAT POCKET ASS 6339011
Ideal part no. 002523
41   OBSOLETE BLR INSUL MX SLIM RS/CF
Ideal part no. 078595
