MEXICO 2 B.E.D.SUPER RS 40 - (Boiler Casing)
Appliance Code: 41-349-40

Appliance Diagram


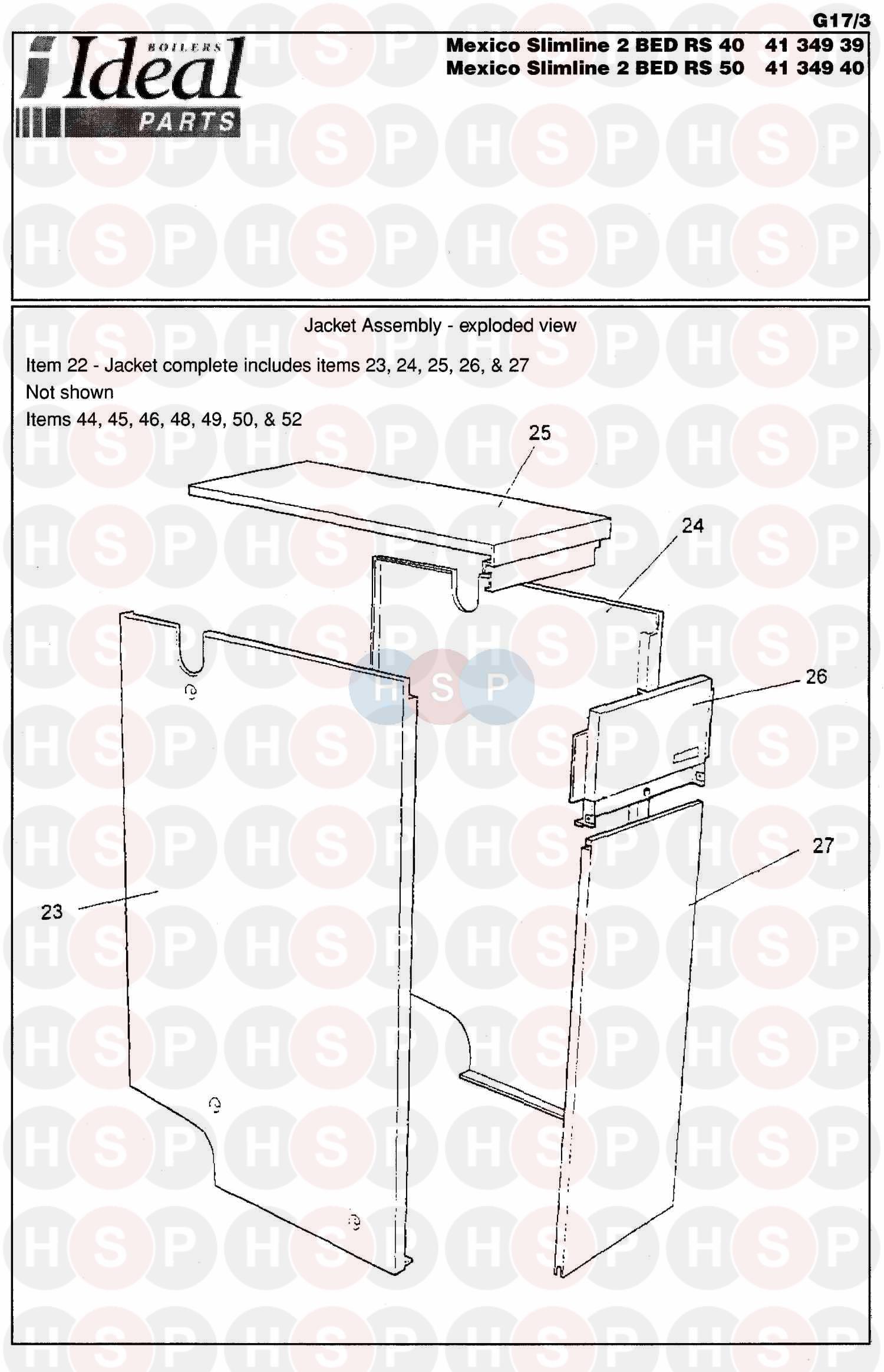

Boiler Casing diagram for Ideal Mexico 2 B.E.D.Super RS 40Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE BLR BODY ASS MXSL 3 RS40-50
Ideal part no. 150818

2   OBSOLETE BOILER FOOT ASS MEX SLIM RS/CF
Ideal part no. 054387

3   OBSOLETE C/O COVER MEXICO SLIM
Ideal part no. 053582

4   OBSOLETE FRTPLT/GAS LINE ASS MXSL 3 RS40
Ideal part no. 150789

5 Part number 079334, OBSOLETE SIGHT GLASS ASSEMBLY OBSOLETE SIGHT GLASS ASSEMBLY
Ideal part no. 079334

6   OBSOLETE PILOT PIPE MEX SLIM 40
Ideal part no. 078227

7 Part number 012533, MAIN BURNER BRAY MK9 NO AB16641 MAIN BURNER BRAY MK9 NO AB16641
Ideal part no. 012533

8   OBSOLETE INJECTOR BNR BRAY CAT 10 SIZE 1200
Ideal part no. 004190

9 Part number 077868, PILOT BURNER ASSY Q359A1041 PILOT BURNER ASSY Q359A1041
Ideal part no. 077868
£24.81
10 Part number 003825, INJECTOR PILOT HONEYWELL 45900421-029 INJECTOR PILOT HONEYWELL 45900421-029
Ideal part no. 003825
£5.68
11   OBSOLETE PLT BNR BRKT ASSY SLIM RS/CF
Ideal part no. 078228

12 Part number 003114, GAS VALVE 1/2INCOMPACT V4600A1023U GAS VALVE 1/2INCOMPACT V4600A1023U
Ideal part no. 003114
£225.72
13   OBSOLETE IGNITOR VERNITRON PT 60038 SPARK GEN
Ideal part no. 052288

14 Part number 077428, IGN ELECTRODE + HT LEAD KIT IGN ELECTRODE + HT LEAD KIT
Ideal part no. 077428

15 Part number 000842, THERMOCOUPLE+600mm LEAD Q309A2739 THERMOCOUPLE+600MM LEAD Q309A2739
Ideal part no. 000842
£20.99
16   OBSOLETE CTRL BOX MX2 SLIMLINE RS
Ideal part no. 053621

17 Part number 003178, T/STAT 24INCL6 PO 104 RANGE 54 T/STAT 24INCL6 PO 104 RANGE 54
Ideal part no. 003178

18   OBSOLETE CONTROL KNOB T/STAT RANCO 83151-31
Ideal part no. 002434

19   OBSOLETE SUPPRESSOR HRNS ASS MEX
Ideal part no. 058887

20   OBSOLETE PLUG-BULGIN PX0587/ASHLY C4000
Ideal part no. 003069

21   OBSOLETE G/COCK C/W G/INLET PIPE MEX SL
Ideal part no. 078759

22   OBSOLETE JACKET COMPL:MX2 BED S/L RS
Ideal part no. 075304

23   OBSOLETE LH SIDE PNL PTD MEX SLIM RS
Ideal part no. 132258

24   OBSOLETE RH SIDE PNL PTD MEX/SLIM RS
Ideal part no. 132259

25   OBSOLETE TOP PNL PTD MEX2 SLIM RS
Ideal part no. 132262

26   OBSOLETE UPR FRT PNL ASS MEX 2 SLIM
Ideal part no. 135914

27   OBSOLETE JKT LWR FRT PNL:MX2 BED S/L
Ideal part no. 075305

33   OBSOLETE T/STAT POCKET ASS 6339011
Ideal part no. 002523

34   OBSOLETE AIR DUCT ASS MEX SLIM RS
Ideal part no. 053623

35   OBSOLETE FLUE DUCT ASS MEX SLIM RS
Ideal part no. 053622

36   OBSOLETE FLUE BFFL ASS MXSL RS40
Ideal part no. 151061

40 Part number 003248, O-RING 25.0 I/D X 4.0 DES 0038 MN70 O-RING 25.0 I/D X 4.0 DES 0038 MN70
Ideal part no. 003248
£8.80
41 Part number 052888, HT LEAD ASSY 460mm LG RS/MEXSL HT LEAD ASSY 460MM LG RS/MEXSL
Ideal part no. 052888
£3.54
42   OBSOLETE GAS VALVE OUTLET PIPE MX SL CF
Ideal part no. 012973

43   OBSOLETE GAS VALVE INLET PIPE MEX SLIM
Ideal part no. 053604

44   OBSOLETE STUD ANCHOR-PLASTIC MEX SLIM
Ideal part no. 003225

45   OBSOLETE LOCATION STUD
Ideal part no. 003228

46   OBSOLETE HINGE STUD 204-120601 MEX S/L
Ideal part no. 003267

47   OBSOLETE MAINS SOCK-BULGIN PX0590/28
Ideal part no. 003068

48   OBSOLETE M5 SPIRE CLIP U TYPE 0376/00
Ideal part no. 002312

50   NO 6X10 PP SCW S/TAP ZP AB DES SPEC 0250
Ideal part no. 003775
£2.22
51   1 INCH PLUG BLR BSPT HEX HD TAPER MI
Ideal part no. 000352
£8.06
52   OBSOLETE SPIRE CLIP PSM 0243/00
Ideal part no. 003773

53 Part number 053596, OBSOLETE SEALING PLT MEX RS 40-125 OBSOLETE SEALING PLT MEX RS 40-125
Ideal part no. 053596
