MEXICO 2 B.E.D.SLIMLINE CF 40 - (Control Box Ass)
Appliance Code: 41-349-38

Appliance Diagram

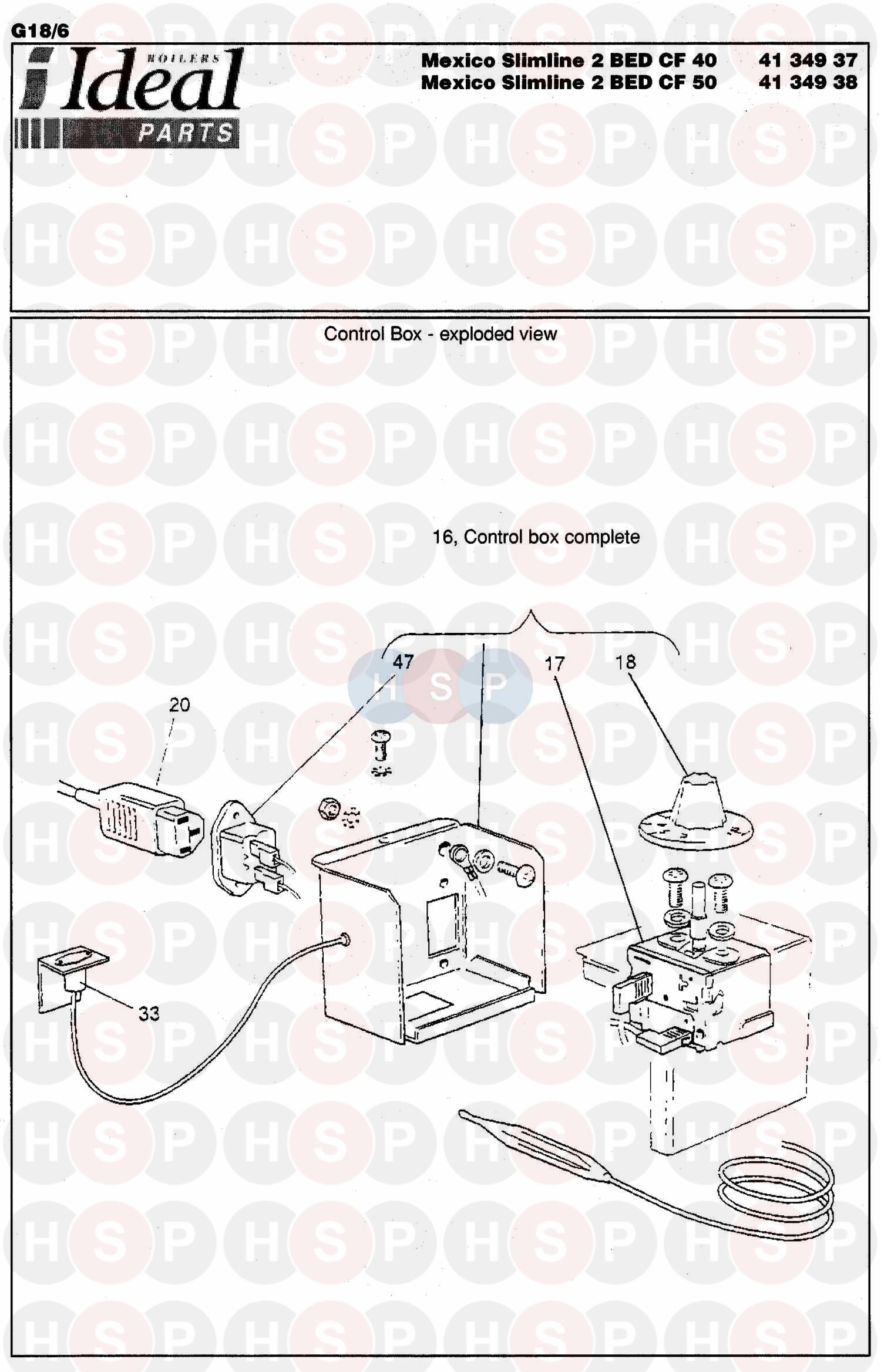

Control Box Ass diagram for Ideal Mexico 2 B.E.D.Slimline CF 40 Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1	BLR BODY ASS MXSL 3 CF40-50 Ideal part n^o. 150819	£481.09
2	OBSOLETE BOILER FOOT ASS MEX SLIM RS/CF Ideal part n^o. 054387
3	OBSOLETE C/O COVER MEXICO SLIM Ideal part n^o. 053582
3	OBSOLETE BACK PLATE MEX SLIM CF40/50 Ideal part n^o. 053670
4	OBSOLETE FRTPLT/GAS LINE ASS MXSL 3 CF40 Ideal part n^o. 150791
5	OBSOLETE SIGHT GLASS ASSEMBLY Ideal part n^o. 079334
6	OBSOLETE PILOT PIPE MEX SLIM 40 Ideal part n^o. 078227
7	MAIN BURNER BRAY MK9 AB 16642 Ideal part n^o. 012532
7	LINT ARREST GAUZE (P51AB16467) Ideal part n^o. 065602
8	OBSOLETE INJECTOR BNR BRAY CAT 16 SIZE 1200 Ideal part n^o. 002608
9	PILOT BURNER ASSY Q359A1041 Ideal part n^o. 077868	£24.81
10	INJECTOR PILOT HONEYWELL 45900421-029 Ideal part n^o. 003825	£5.68
11	OBSOLETE PLT BNR BRKT ASSY SLIM RS/CF Ideal part n^o. 078228
12	GAS VALVE 1/2INCOMPACT V4600A1023U Ideal part n^o. 003114	£225.72
13	OBSOLETE IGNITOR VERNITRON PT 60038 SPARK GEN Ideal part n^o. 052288
14	IGN ELECTRODE + HT LEAD KIT Ideal part n^o. 077428
15	THERMOCOUPLE+600MM LEAD Q309A2739 Ideal part n^o. 000842	£20.99
16	OBSOLETE CTRL BOX MEX SL CF40/50 Ideal part n^o. 150296
17	T/STAT 24INCL6 PO 104 RANGE 54 Ideal part n^o. 003178
18	OBSOLETE CONTROL KNOB T/STAT RANCO 83151-31 Ideal part n^o. 002434
20	OBSOLETE PLUG-BULGIN PX0587/ASHLY C4000 Ideal part n^o. 003069
21	OBSOLETE G/COCK C/W G/INLET PIPE MEX SL Ideal part n^o. 078759
22	OBSOLETE JACKET COMPL:MX2 BED S/L CF Ideal part n^o. 075306
23	OBSOLETE LH SIDE PNL PTD MX S/LINE CF Ideal part n^o. 132260
24	OBSOLETE RH SIDE PNL PTD MX S/LINE CF Ideal part n^o. 132261
25	OBSOLETE TOP PNL PTD MEX SLIM CF Ideal part n^o. 132263
26	OBSOLETE UPR FRT PNL ASS MEX 2 SLIM Ideal part n^o. 135914
27	OBSOLETE JKT LWR FRT PNL:MX2 BED S/L Ideal part n^o. 075305
28	OBSOLETE TP PNL INFIL PC PTD MX SLIM CF Ideal part n^o. 132244
30	OBSOLETE T/STAT POCKET ASS 6339011 Ideal part n^o. 002523
31	OBSOLETE D/DIVERTER ASS MX S/LINE CF Ideal part n^o. 139566
32	OBSOLETE FLUE BFFL ASSY MX S/L CF40 Ideal part n^o. 150989
33	OBSOLETE FLUEWAY STAT AND FTTGS MX2 BED Ideal part n^o. 075309
40	O-RING 25.0 I/D X 4.0 DES 0038 MN70 Ideal part n^o. 003248	£8.80
41	HT LEAD ASSY 460MM LG RS/MEXSL Ideal part n^o. 052888	£3.54
42	OBSOLETE GAS VALVE OUTLET PIPE MX SL CF Ideal part n^o. 012973
43	OBSOLETE GAS VALVE INLET PIPE MEX SLIM Ideal part n^o. 053604
44	OBSOLETE STUD ANCHOR-PLASTIC MEX SLIM Ideal part n^o. 003225
45	OBSOLETE LOCATION STUD Ideal part n^o. 003228
46	OBSOLETE HINGE STUD 204-120601 MEX S/L Ideal part n^o. 003267
47	OBSOLETE MAINS SOCK-BULGIN PX0590/28 Ideal part n^o. 003068
48	OBSOLETE M5 SPIRE CLIP U TYPE 0376/00 Ideal part n^o. 002312
49	M5 X 8 P/P HD SCREW DES SPEC 0250 Ideal part n^o. 003227	£2.22
50	NO 6X10 PP SCW S/TAP ZP AB DES SPEC 0250 Ideal part n^o. 003775	£2.22
51	1 INCH PLUG BLR BSPT HEX HD TAPER MI Ideal part n^o. 000352	£8.06
52	OBSOLETE SPIRE CLIP PSM 0243/00 Ideal part n^o. 003773
