IDEAL
LOGIC SYSTEM S18IE - (Gas Management)
Appliance Code: 41-750-74

Appliance Diagram

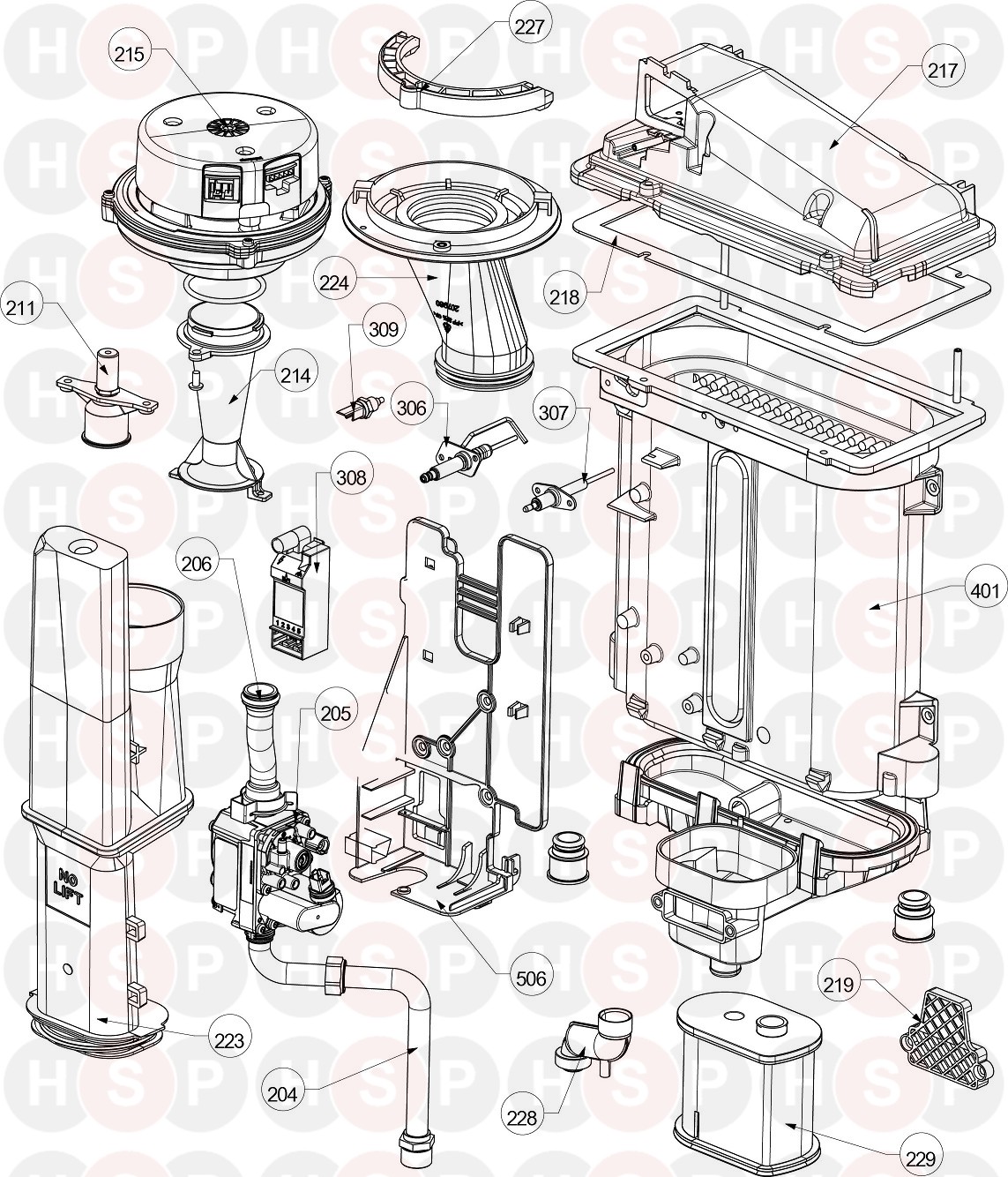

Gas Management diagram for Ideal Logic System S18IEClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

201 Part number 177541, GAS LINE GASKETS KIT (ABS & ABY ONWARDS) GAS LINE GASKETS KIT (ABS & ABY ONWARDS)
Ideal part no. 177541		 £66.39
202   GAS LINE FIXINGS KIT (ABS & ABY ONWARDS)
Ideal part no. 177542		 £22.20
203 Part number 175526, GAS COCK VALVE PACK GAS COCK VALVE PACK
Ideal part no. 175526		 £20.23
203 Part number 176562, GAS COCK TEST NIPPLE SCREW GAS COCK TEST NIPPLE SCREW
Ideal part no. 176562		 £5.67
204 Part number 177543, PIPE GAS INLET (ABS & ABY ONWARDS) PIPE GAS INLET (ABS & ABY ONWARDS)
Ideal part no. 177543		 £29.63
205 Part number 177706, CLIP GAS VALVE (ABS & ABY ONWARDS) CLIP GAS VALVE (ABS & ABY ONWARDS)
Ideal part no. 177706		 £4.68
205 Part number 179032, 24 VOLT GAS VALVE KIT 24 VOLT GAS VALVE KIT
Ideal part no. 179032		 £67.45
205 Part number 179033, GAS VALVE KIT (LPG) GAS VALVE KIT (LPG)
Ideal part no. 179033		 £60.88
206 Part number 177545, PIPE GAS INJECTOR (ABS & ABY ONWARDS) PIPE GAS INJECTOR (ABS & ABY ONWARDS)
Ideal part no. 177545		 £18.42
208 Part number 175610, INJECTOR 24KW INJECTOR 24KW
Ideal part no. 175610		 £26.56
211 Part number 177546, INJECTOR ASSEMBLY KIT 24KW INJECTOR ASSEMBLY KIT 24KW
Ideal part no. 177546		 £31.82
211 Part number 177549, INJECTOR & HOUSING KIT (LPG) INJECTOR & HOUSING KIT (LPG)
Ideal part no. 177549		 £30.58
214 Part number 175567, VENTURI VENTURI
Ideal part no. 175567		 £25.49
215 Part number 175569, FAN KIT FAN KIT
Ideal part no. 175569		 £166.14
216 Part number 175570, GASKET - FAN GASKET - FAN
Ideal part no. 175570		 £18.36
217 Part number 175571, BURNER KIT BURNER KIT
Ideal part no. 175571		 £109.53
218 Part number 175572, GASKET - BURNER GASKET - BURNER
Ideal part no. 175572		 £20.59
221 Part number 175954, CLEAN OUT COVER & GASKET-SUMP From XT prefix CLEAN OUT COVER & GASKET-SUMP FROM XT PREFIX
Ideal part no. 175954		 £13.41
223 Part number 175575, MANIFOLD-SUMP SEAL MANIFOLD-SUMP SEAL
Ideal part no. 175575		 £7.58
223 Part number 175576, FLUE MANIFOLD FLUE MANIFOLD
Ideal part no. 175576		 £39.29
223 Part number 175579, FLUE MANIFOLD TOP-LOWER SEAL FLUE MANIFOLD TOP-LOWER SEAL
Ideal part no. 175579		 £7.58
223 Part number 179058, NOW USE 175576 FLUE MANIFOLD NOW USE 175576 FLUE MANIFOLD
Ideal part no. 179058
224 Part number 176986, FLUE MANIFOLD TOP (COMBI ZY ONWARDS - COMBI ES AAQ ONWARDS) FLUE MANIFOLD TOP (COMBI ZY ONWARDS - COMBI ES AAQ ONWARDS)
Ideal part no. 176986		 £43.46
227 Part number 175983, CLAMP RETAINING FLUE TURRET (COMBI ZY ONWARDS - COMBI ES AAQ ONWARDS) CLAMP RETAINING FLUE TURRET (COMBI ZY ONWARDS - COMBI ES AAQ ONWARDS)
Ideal part no. 175983		 £7.10
228 Part number 175582, HOSE - CONDENSATE INTERNAL HOSE - CONDENSATE INTERNAL
Ideal part no. 175582		 £9.51
229 Part number 175583, SIPHON TRAP KIT SIPHON TRAP KIT
Ideal part no. 175583		 £23.10
231 Part number 175586, CONDENSATE OUTLET CONNECTION CONDENSATE OUTLET CONNECTION
Ideal part no. 175586		 £7.74
232 Part number 175620, TURRET/MANIFOLD GASKET TURRET/MANIFOLD GASKET
Ideal part no. 175620		 £12.77
238 Part number 176938, FLUE TURRET WITH SAMPLE POINT (11 3818) FLUE TURRET WITH SAMPLE POINT (11 3818)
Ideal part no. 176938		 £35.59
238 Part number 176939, O RING - FLUE NOSE (11 0752) O RING - FLUE NOSE (11 0752)
Ideal part no. 176939		 £10.35
238 Part number 176940, FLUE TURRET THREADED CAP (12 03523) FLUE TURRET THREADED CAP (12 03523)
Ideal part no. 176940		 £9.41
238 Part number 176941, FLUE TURRET AIR STOPPER (12 03524) FLUE TURRET AIR STOPPER (12 03524)
Ideal part no. 176941		 £9.77
306 Part number 175591, ELECTRODE - IGNITION ELECTRODE - IGNITION
Ideal part no. 175591		 £23.26
306 Part number 178950, GASKET IGNITION ELECTRODE GASKET IGNITION ELECTRODE
Ideal part no. 178950		 £3.59
307 Part number 175592, ELECTRODE - DETECTION ELECTRODE - DETECTION
Ideal part no. 175592		 £16.88
307   GASKET DETECTION ELECTRODE
Ideal part no. 178949		 £3.59
308 Part number 178205, IGNITOR UNIT CLIP ON (ADP ONWARDS) IGNITOR UNIT CLIP ON (ADP ONWARDS)
Ideal part no. 178205		 £33.25
309 Part number 175594, THERMISTOR - NO FLOW THERMISTOR - NO FLOW
Ideal part no. 175594		 £10.81
401 Part number 175896, SUMP KIT XN, XO ONWARDS SUMP KIT XN, XO ONWARDS
Ideal part no. 175896		 £56.37
401   HEAT ENGINE KIT SYSTEM IE
Ideal part no. 176644		 £401.08
