IDEAL
LOGIC COMBI 30 - (Gas Management - ABK Onwards)
Appliance Code: 47-348-57

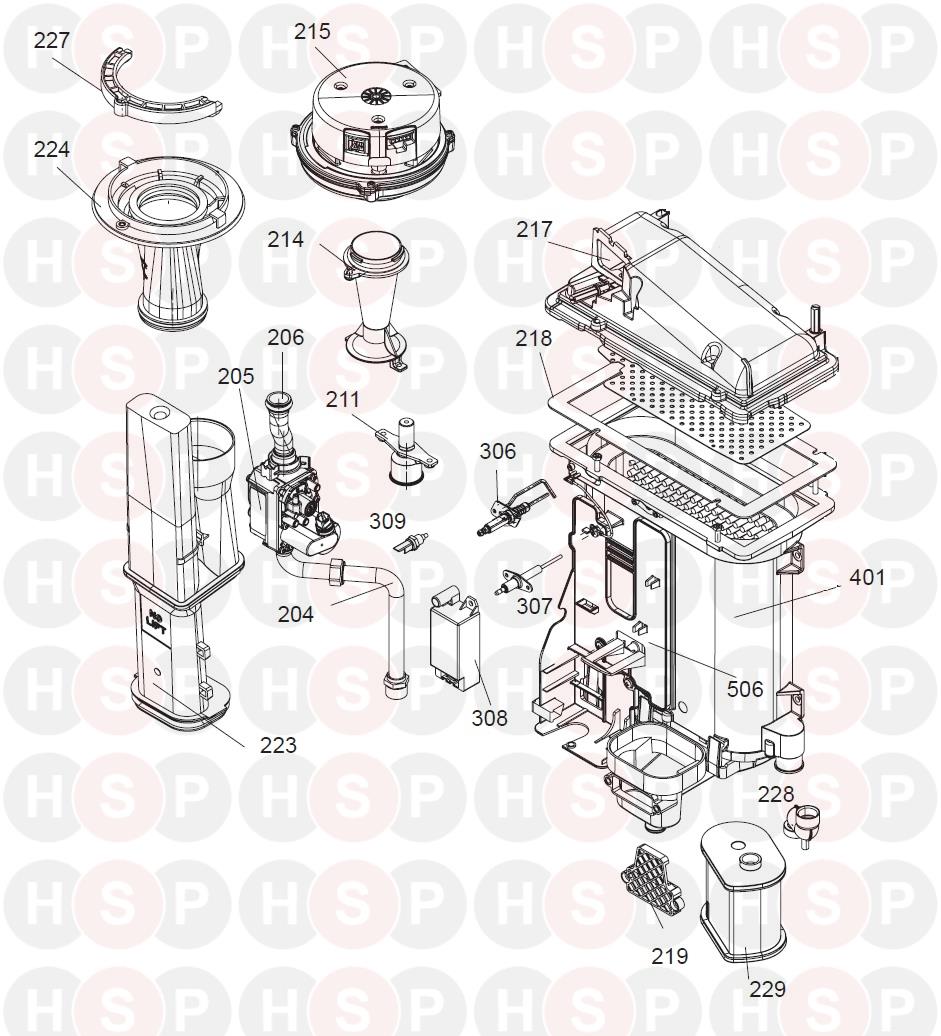

Appliance Diagram


Gas Management - ABK Onwards diagram for Ideal Logic Combi 30Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

204 Part number 177543, PIPE GAS INLET (ABS & ABY ONWARDS) PIPE GAS INLET (ABS & ABY ONWARDS)
Ideal part no. 177543		 £29.63
205 Part number 177544, GAS VALVE KIT (ABS & ABY ONWARDS) GAS VALVE KIT (ABS & ABY ONWARDS)
Ideal part no. 177544		 £114.65
205 Part number 177582, GAS VALVE KIT (LPG) (ABK ONWARDS) GAS VALVE KIT (LPG) (ABK ONWARDS)
Ideal part no. 177582		 £135.14
206 Part number 177545, PIPE GAS INJECTOR (ABS & ABY ONWARDS) PIPE GAS INJECTOR (ABS & ABY ONWARDS)
Ideal part no. 177545		 £18.42
211 Part number 177547, INJECTOR ASSEMBLY KIT 30KW (NG) (ABS ONWARDS) INJECTOR ASSEMBLY KIT 30KW (NG) (ABS ONWARDS)
Ideal part no. 177547		 £31.07
211 Part number 177549, INJECTOR & HOUSING KIT (LPG) INJECTOR & HOUSING KIT (LPG)
Ideal part no. 177549		 £30.58
214 Part number 175567, VENTURI VENTURI
Ideal part no. 175567		 £25.49
215 Part number 175569, FAN KIT FAN KIT
Ideal part no. 175569		 £166.14
217 Part number 175571, BURNER KIT BURNER KIT
Ideal part no. 175571		 £109.53
218 Part number 175572, GASKET - BURNER GASKET - BURNER
Ideal part no. 175572		 £20.59
223 Part number 175576, FLUE MANIFOLD FLUE MANIFOLD
Ideal part no. 175576		 £39.29
224 Part number 175578, FLUE MANIFOLD TOP (COMBI PRE ZY - COMBI E/ES PRE AAQ) FLUE MANIFOLD TOP (COMBI PRE ZY - COMBI E/ES PRE AAQ)
Ideal part no. 175578		 £41.38
224 Part number 176986, FLUE MANIFOLD TOP (COMBI ZY ONWARDS - COMBI ES AAQ ONWARDS) FLUE MANIFOLD TOP (COMBI ZY ONWARDS - COMBI ES AAQ ONWARDS)
Ideal part no. 176986		 £43.46
227 Part number 175581, CLAMP RETAINING - FLUE TURRET (COMBI PRE ZY - COMBI E/ES PRE AAQ) CLAMP RETAINING - FLUE TURRET (COMBI PRE ZY - COMBI E/ES PRE AAQ)
Ideal part no. 175581		 £8.37
227 Part number 175983, CLAMP RETAINING FLUE TURRET (COMBI ZY ONWARDS - COMBI ES AAQ ONWARDS) CLAMP RETAINING FLUE TURRET (COMBI ZY ONWARDS - COMBI ES AAQ ONWARDS)
Ideal part no. 175983		 £7.10
228 Part number 175582, HOSE - CONDENSATE INTERNAL HOSE - CONDENSATE INTERNAL
Ideal part no. 175582		 £9.51
229 Part number 175583, SIPHON TRAP KIT SIPHON TRAP KIT
Ideal part no. 175583		 £23.10
306 Part number 175591, ELECTRODE - IGNITION ELECTRODE - IGNITION
Ideal part no. 175591		 £23.26
307 Part number 175592, ELECTRODE - DETECTION ELECTRODE - DETECTION
Ideal part no. 175592		 £16.88
308 Part number 175593, IGNITOR UNIT (PRE ADP) IGNITOR UNIT (PRE ADP)
Ideal part no. 175593		 £35.17
309 Part number 175594, THERMISTOR - NO FLOW THERMISTOR - NO FLOW
Ideal part no. 175594		 £10.81
401 Part number 177566, HEAT ENGINE KIT (ABS & ABY ONWARDS) HEAT ENGINE KIT (ABS & ABY ONWARDS)
Ideal part no. 177566		 £416.91
506   BRACKET GAS VALVE KIT (ABS & ABY ONWARDS)
Ideal part no. 177569		 £19.95
