IDEAL
ISAR M30100 - (Appliance Overview)
Appliance Code: 47-348-15

Appliance Diagram

Appliance Overview diagram for Ideal Isar M30100 Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1	OBSOLETE FRONT CASING KIT ISAR/ICOS SYSTEM Ideal part n^o. 170994
2	CASE SEALING PANEL KIT ISAR M30100 Ideal part n^o. 171026	£126.34
3	SUMP COVER PLATE KIT ICOS/ISAR/ICOS SYST Ideal part n^o. 170899	£13.91
4	BOTTOM COVER PANEL KIT ISAR M30100 Ideal part n^o. 171027
5	FLUE SENSING NIPPLE KIT M SERIES Ideal part n^o. 170901	£9.88
6	RETURN PIPE KIT ISAR/ICOS SYSTEM Ideal part n^o. 171030	£48.05
8	OBSOLETE FLUE MANIFOLD KIT ICOS/ISAR/ICOS SYSTEM Ideal part n^o. 170904
8	OBSOLETE FLUE MANIFOLD KIT PRE WM Ideal part n^o. 172484
9	FLUE MFD/PIPEWORK FIXING KIT ICOS/ISAR/SYS Ideal part n^o. 170958	£30.08
11	BURNER KIT M SERIES Ideal part n^o. 170905	£87.83
12	OBSOLETE COMB CHAMBER INSULATION KIT M SERDOMS Ideal part n^o. 170906
13	HEAT ENGINE KIT ISAR/ICOS SYSTEM Ideal part n^o. 171033	£697.08
14	INJECTOR & HOUSING KIT ICOS/ISAR/SYSTEM Ideal part n^o. 170908	£13.56
15	NOW USE 170915 VENTURI KIT M SERIES Ideal part n^o. 170910
15	VENT/ORIFICE PLATE KIT ICOS/ISAR/ICOS S Ideal part n^o. 170915	£12.83
16	FAN KIT ICOS/ISAR/ICOS SYSTEM Ideal part n^o. 170909	£200.33
16	FAN KIT (FIME FAN PX130/0158) Ideal part n^o. 172625	£147.55
17	AUTO AIR VENT KIT ISAR/ICOS SYSTEM Ideal part n^o. 170988	£29.87
18	GAS COCK KIT Ideal part n^o. 170912	£25.42
19	GAS VALVE KIT ISAR/ICOS SYSTEM Ideal part n^o. 171035	£109.95
20	FAN FIXING KIT M SERIES Ideal part n^o. 170914	£11.86
21	VENT/ORIFICE PLATE KIT ICOS/ISAR/ICOS S Ideal part n^o. 170915	£12.83
22	DRY FIRE STAT KIT ICOS/ISAR/ICOS SYSTEM Ideal part n^o. 170916	£24.60
23	THERMISTOR (BOILER CONTROL) KIT M SERIES Ideal part n^o. 170917	£15.17
24	OVERHEAT THERMOSTAT KIT M SERIES Ideal part n^o. 170918	£15.22
25	IGNITION ELECTRODE KIT ISAR/ICOS SYSTEM Ideal part n^o. 170985	£50.84
26	FLAME SENSING ELECTRODE KIT M SERIES Ideal part n^o. 170920	£35.28
27	MAINS INPUT HARNESS KIT M SERIES Ideal part n^o. 170921	£14.21
28	GAS VALVE EARTH LEAD KIT M SERIES Ideal part n^o. 170922
29	OBSOLETE FAN HARNESS KIT ISAR/ICOS SYSTEM Ideal part n^o. 171147
31	THERMISTOR HARNESS KIT ISAR Ideal part n^o. 171046	£14.56
32	NOW USE 174244 S TRAP KIT ICOS/ISAR/ICOS SYSTEM Ideal part n^o. 170926
32	KIT - TRAP & SEAL Ideal part n^o. 174244	£28.45
33	OBSOLETE CONTROLS ASSEMBLY KIT ISAR Ideal part n^o. 172489
33	OBSOLETE CONTROLS ASSEMBLY KIT ISAR Ideal part n^o. 171039
34	CONTROLS HINGE KIT ISAR/ICOS SYSTEM Ideal part n^o. 170983
35	POTENTIOMETER KNOB KIT M SERIES Ideal part n^o. 172491	£5.24
35	USER CONTROLS KIT ISAR Ideal part n^o. 170993	£107.58
36	PRIMARY CTRL/EMC RETR KIT ISAR/ICOS SYST Ideal part n^o. 157928	£376.79
36	PCB PRIMARY CONTROLS KIT Ideal part n^o. 172490	£292.44
36	EMC FILTER M SERIES Ideal part n^o. 172604	£43.10
37	FUSE PCB KIT M SERIES Ideal part n^o. 170931	£14.88
38	USER CTRLS HOUSING KIT ISAR/ICOS SYSTEM Ideal part n^o. 171826	£32.88
39	MAINS SWITCH KIT M SERIES Ideal part n^o. 170933	£24.38
41	CASE SENSING NIPPLE KIT (TUBE 110MM) Ideal part n^o. 170935
42	SIGHT GLASS KIT M SERIES Ideal part n^o. 170949	£18.28
44	OBSOLETE PRE-PIPING FRAME KIT ISAR Ideal part n^o. 171042
45	GASKET KIT SERVICING M SERIES Ideal part n^o. 170938	£38.64
46	INSTALL/SERVICING INSTRUCTIONS PK ISAR Ideal part n^o. 171043	£9.74
47	GASKET KIT COMPLETE BOILER M SERIES Ideal part n^o. 170940	£92.30
48	BOILER FIXINGS KIT M SERIES Ideal part n^o. 170941	£35.11

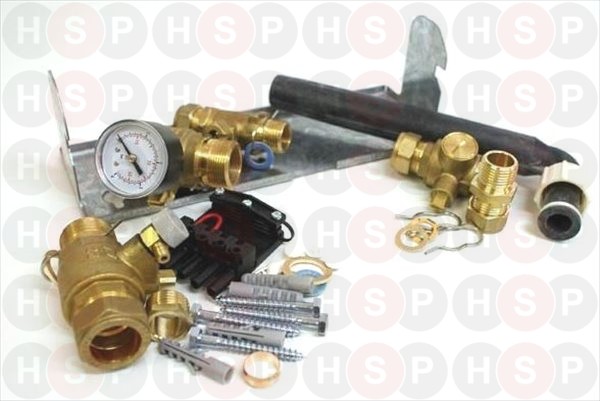

49	OBSOLETE HARDWARE PACK KIT ISAR Ideal part n^o. 171131
49	OBSOLETE HARDWARE KIT BOX (GREEN) ISAR HE24 Ideal part n^o. 174237
52	SEAL KIT (CASE SEALING PANEL) M SERIES Ideal part n^o. 171014	£17.70
53	TURRET GASKET KIT M SERIES Ideal part n^o. 171022	£18.95
54	JUMPER LINK KIT ICOS/ICOS SYSTEM/CLASS M Ideal part n^o. 171021	£9.63
55	O RING KIT (PRE-PIPING) ISAR/ICOS SYSTEM Ideal part n^o. 171032	£8.94
56	O RING KIT (HYDROBLOCK) ISAR/ICOS SYSTEM Ideal part n^o. 171031	£15.17
57	CH STUB PIPE KIT ISAR/ICOS SYSTEM Ideal part n^o. 171049	£40.56

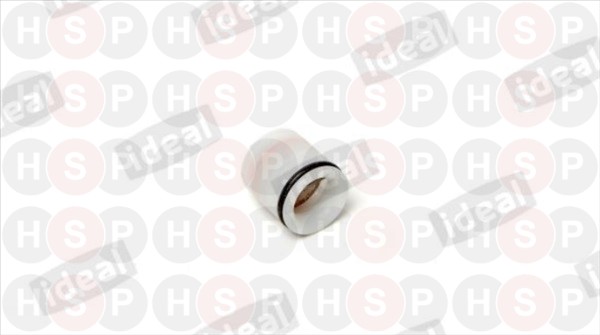

59	FLOW RESTRICTOR KIT ISAR M30100 Ideal part n^o. 171047	£11.54
60	DHW INLET/OUTLET PIPE KIT ISAR Ideal part n^o. 171050	£18.95
61	PRESSURE RELIEF VALVE KIT ISAR/ICOS SYST Ideal part n^o. 170992	£36.68
62	NOW USE 170989 EXPANSION VESSEL KIT ISAR/ICOS SYSTEM Ideal part n^o. 173066
62	EXPANSION VESSEL KIT ISAR/ICOS SYSTEM Ideal part n^o. 170989	£213.61
63	EXPANSION VESSEL PIPE KIT ISAR/ICOS SYST Ideal part n^o. 172492	£36.02
63	EXPANSION VESSEL PIPE KIT ISAR/ICOS SYST Ideal part n^o. 170982	£63.32
64	PRESSURE GAUGE KIT ISAR/ICOS SYSTEM Ideal part n^o. 170991	£39.95
65	DHW THERMISTOR KIT ISAR Ideal part n^o. 170996	£41.53
66	NOW USE 173628 DIVERTER VALVE HEAD KIT ISAR Ideal part n^o. 170997
66	DIVERTER VALVE HEAD KIT ISAR Ideal part n^o. 173628	£127.59
67	OBSOLETE DIVERTER VALVE KIT ISAR Ideal part n^o. 170998
68	DIVERTER VALVE MANIFOLD KIT ISAR Ideal part n^o. 171025
69	NOW USE 182443 PUMP HEAD KIT ISAR/ICOS SYSTEM Ideal part n^o. 170990
69	PUMP HEAD KIT ISAR/ICOS SYSTEM Ideal part n^o. 182443	£230.84
70	PUMP MANIFOLD KIT ISAR Ideal part n^o. 171037	£79.04
71	PLATE HEAT EXCHANGER KIT ISAR Ideal part n^o. 170995	£113.34
72	PCB USER CTRLS HARNESS KIT ISAR/ICOS SYS Ideal part n^o. 171041	£18.95
73	GAS VALVE/PUMP/DIVERTER HARNESS KIT ISAR Ideal part n^o. 171040	£25.06
75	OBSOLETE CONTROLS BOX CLAMP KIT ISAR/ICOS SYSTEM Ideal part n^o. 171038
76	CONTROL BOX EARTH HARNESS KIT M SERIES Ideal part n^o. 171155	£4.55
78	INSULATION RETAINER-IONISATION KIT Ideal part n^o. 171845	£9.70
79	HYDROBLOCK CLIP KIT M SERIES Ideal part n^o. 171367	£21.54
80	NOW USE 174560 22MM RETURN VALVE KIT ISAR/ICOS SYSTEM Ideal part n^o. 171848
80	DRAIN VALVE PACK - C/W 22MM VALVE Ideal part n^o. 174560	£45.61
81	GAUGE PACK - C/W 22MM VALVE Ideal part n^o. 174559	£66.37
81	NOW USE 174559 22MM FLOW VALVE KIT ISAR/ICOS SYSTEM Ideal part n^o. 171849
82	OBSOLETE 15MM RETURN VALVE KIT ISAR Ideal part n^o. 171850
83	NOW USE 174564 15MM FLOW CONNECTOR ISAR Ideal part n^o. 171851
83	DHW PACK - ISAR HE30 Ideal part n^o. 174564	£33.72
84	S TRAP CONNECTOR HOSE KIT ISAR/ICOS SYST Ideal part n^o. 171855	£28.32
85	OBSOLETE SUPPORT BKR-PRE-PIPING FRAME KIT Ideal part n^o. 171859
86	OBSOLETE HYDROBLOCK COMPLETE KIT (WILO) Ideal part n^o. 171966
86	OBSOLETE HYDROBLOCK 30KW COMPLETE KIT (CP) Ideal part n^o. 173953
300	TURRET CLAMP Ideal part n^o. 138419	£3.41
300	OBSOLETE FLUE PIPE SPARES KIT Ideal part n^o. 172846
