IDEAL
ISAR HE30 - (Ideal Isar HE Casing)
Appliance Code: 47-348-30

Appliance Diagram

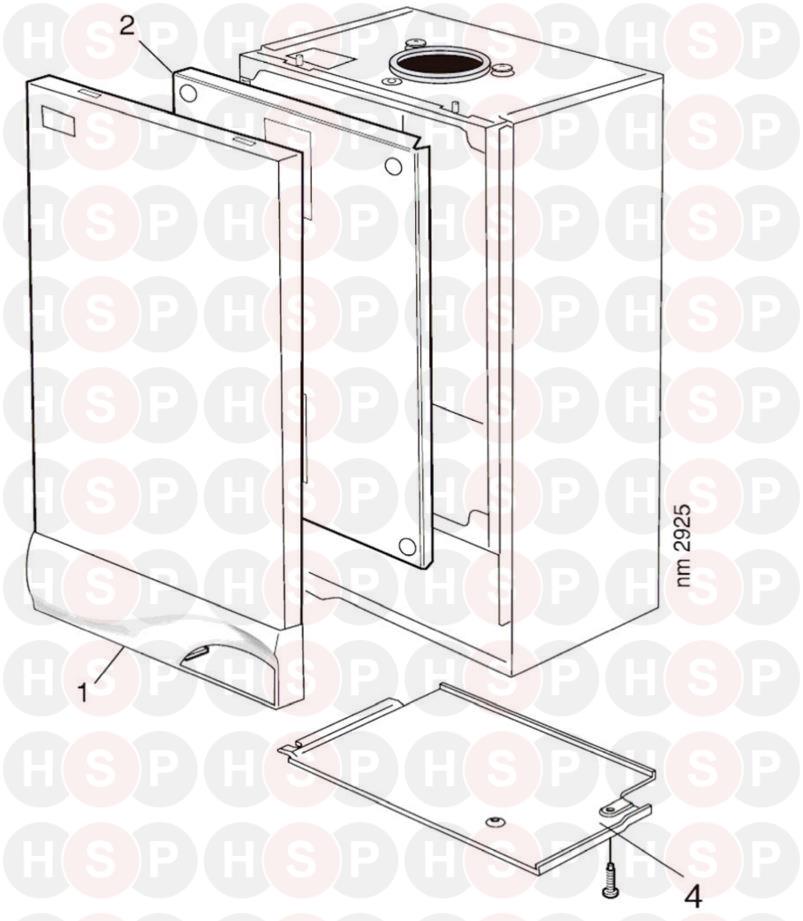

Ideal Isar HE Casing diagram for Ideal Isar HE30Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 173509, FRONT CASING PANEL ICOS SYST HE/ISAR HE FRONT CASING PANEL ICOS SYST HE/ISAR HE
Ideal part no. 173509

1   FRONT CASING PANEL ISAR HE+PROGRAMMER
Ideal part no. 174645

2 Part number 171026, CASE SEALING PANEL KIT ISAR M30100 CASE SEALING PANEL KIT ISAR M30100
Ideal part no. 171026
£126.34
4 Part number 171027, BOTTOM COVER PANEL KIT ISAR M30100 BOTTOM COVER PANEL KIT ISAR M30100
Ideal part no. 171027

4 Part number 175414, BOTTOM COVER PANEL KIT BOTTOM COVER PANEL KIT
Ideal part no. 175414
