IDEAL
INSTINCT HEAT 120 - (Fan Assemblies)
Appliance Code: HEAT-120

Appliance Diagram

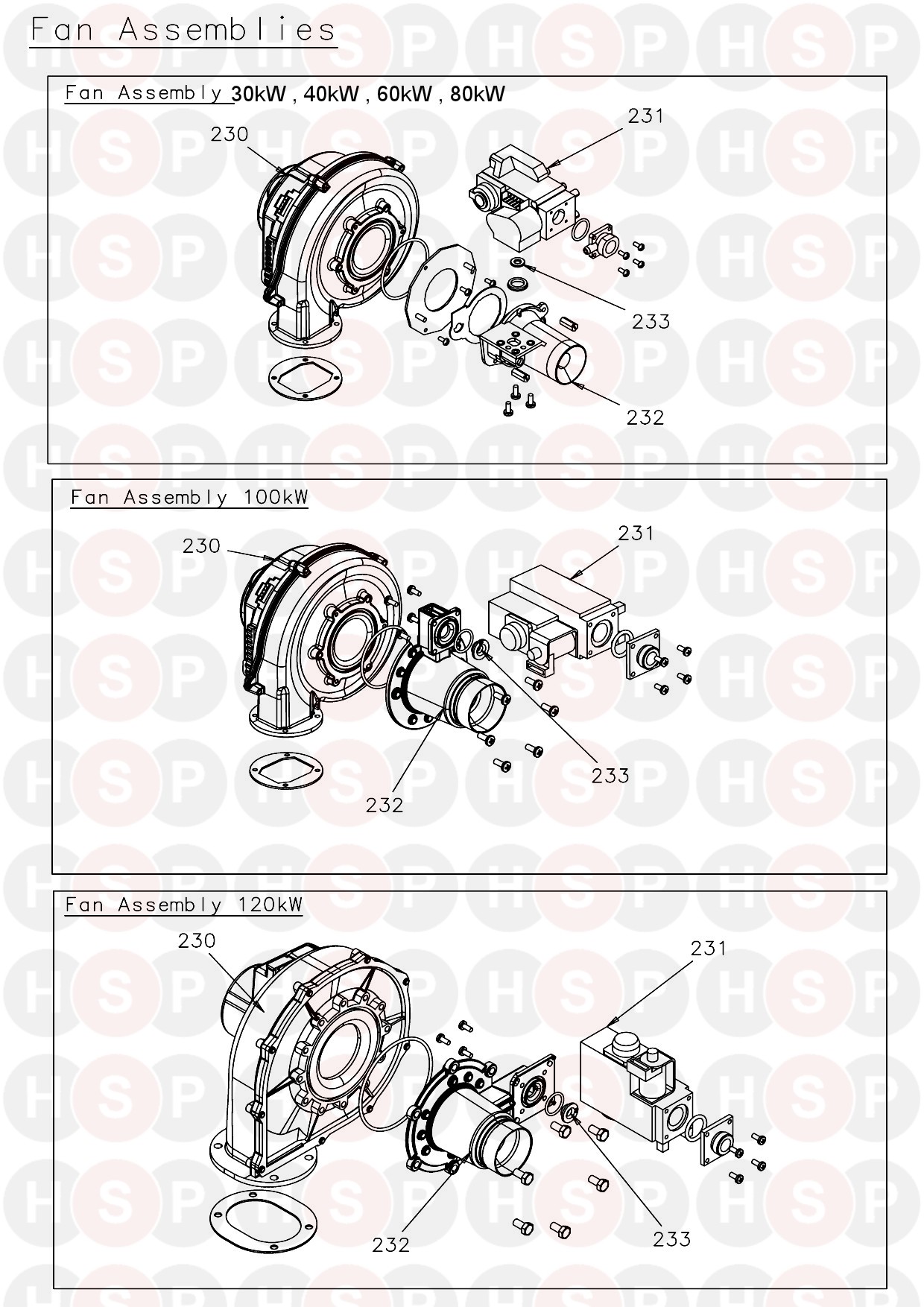

Fan Assemblies diagram for Ideal Instinct Heat 120Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

230 Part number 176274, FAN - 120 & 150KW FAN - 120 & 150KW
Ideal part no. 176274
£1,022.30
231 Part number 176777, GAS VALVE 120KW KIT GAS VALVE 120KW KIT
Ideal part no. 176777
£265.60
232 Part number 174381, VENTURI - IMAX XTRA 80-120 VENTURI - IMAX XTRA 80-120
Ideal part no. 174381
£82.81
233   ORIFICE DIAMETER 8.8 100KW 120KW KIT
Ideal part no. 176373
£12.49
