IDEAL
INSTINCT COMBI 35 - (Water Management)
Appliance Code: 47-349-11

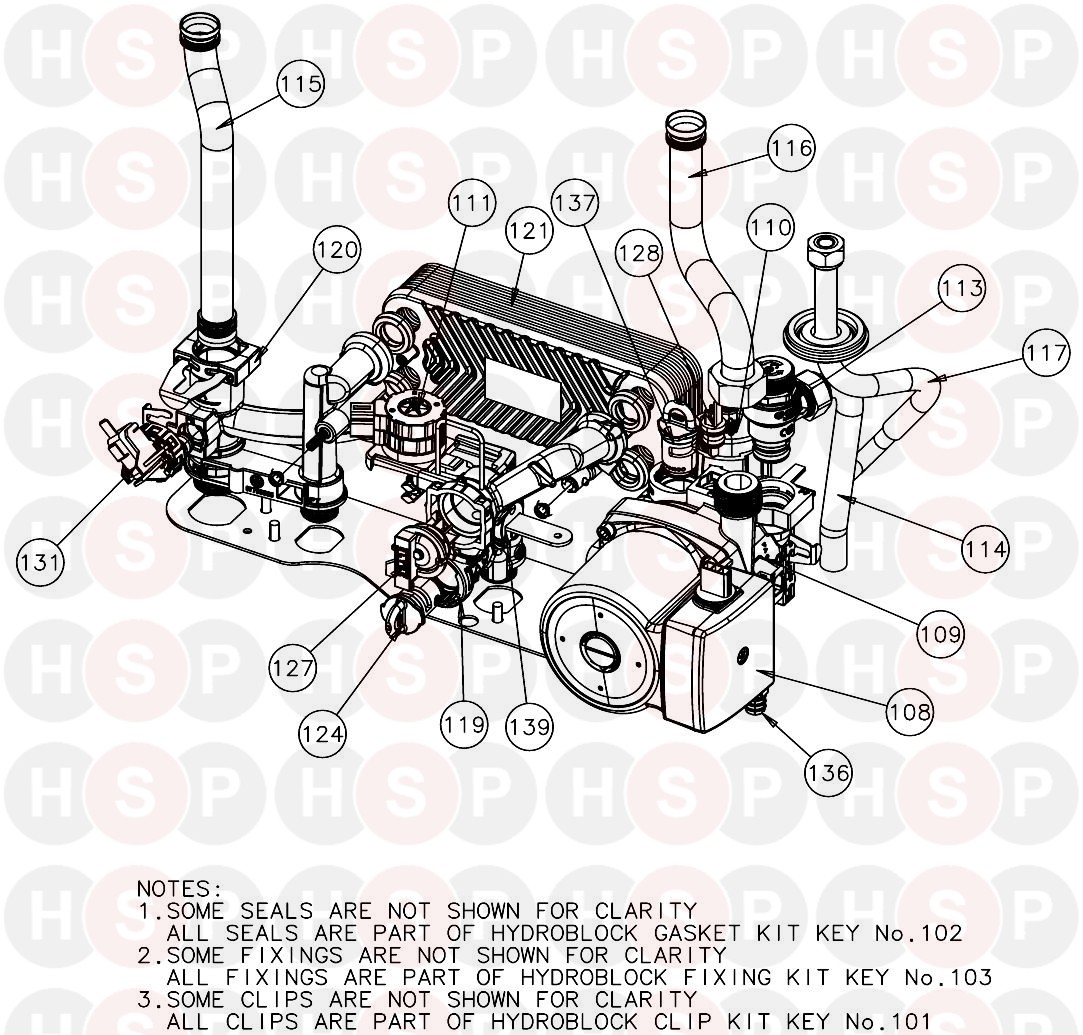

Appliance Diagram


Water Management diagram for Ideal Instinct Combi 35Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

101 Part number 174827, HYDROBLOCK CLIP KIT HYDROBLOCK CLIP KIT
Ideal part no. 174827		 £25.10
102 Part number 176453, HYDROBLOCK GASKET KIT HYDROBLOCK GASKET KIT
Ideal part no. 176453		 £72.38
103 Part number 176454, HYDROBLOCK FIXINGS KIT (ABS & ABY ONWARDS) HYDROBLOCK FIXINGS KIT (ABS & ABY ONWARDS)
Ideal part no. 176454		 £18.83
104 Part number 175923, CH RETURN VALVE PACK (IND) CH RETURN VALVE PACK (IND)
Ideal part no. 175923		 £26.17
105 Part number 175528, CH FLOW PACK CH FLOW PACK
Ideal part no. 175528		 £40.95
106 Part number 175924, DHW PACK DHW PACK
Ideal part no. 175924		 £27.19
108 Part number 176455, NOW USE 182357 PUMP HEAD KIT - GRUNDFOS 59200322 (ABS & ABY ONWARDS) NOW USE 182357 PUMP HEAD KIT - GRUNDFOS 59200322 (ABS & ABY ONWARDS)
Ideal part no. 176455
108 Part number 177925, PUMP HEAD KIT ErP 98927074 ( ACQ ONWARDS - 2015 ERP) PUMP HEAD KIT ERP 98927074 ( ACQ ONWARDS - 2015 ERP)
Ideal part no. 177925		 £285.72
108   PUMP HEAD KIT
Ideal part no. 182357		 £204.87
110 Part number 176457, AUTO AIR VENT - GRUNDFOS 59200320 (ABY ONWARDS) AUTO AIR VENT - GRUNDFOS 59200320 (ABY ONWARDS)
Ideal part no. 176457		 £44.94
111 Part number 176458, DIV VALVE MOTOR KIT-GRUNDFOS 59200713 DIV VALVE MOTOR KIT-GRUNDFOS 59200713
Ideal part no. 176458		 £51.79
112   OBSOLETE DIVERTER VALVE COMPLETE KIT
Ideal part no. 176479
113 Part number 176610, PRV KIT (ABS & ABY ONWARDS) PRV KIT (ABS & ABY ONWARDS)
Ideal part no. 176610		 £41.91
114   PIPE PRV OUTLET
Ideal part no. 176460		 £16.34
115 Part number 176461, PIPE - FLOW PIPE - FLOW
Ideal part no. 176461		 £33.09
116 Part number 176462, PIPE - RETURN PIPE - RETURN
Ideal part no. 176462		 £32.85
117 Part number 176463, PIPE - EXPANSION VESSEL PIPE - EXPANSION VESSEL
Ideal part no. 176463		 £33.83
117   PIPE EXPANSION VESSEL KIT (ACE ONWARDS)
Ideal part no. 177600		 £28.66
117 Part number 177707, CLIP EXPANSION VESSEL (ABS & ABY ONWARDS) CLIP EXPANSION VESSEL (ABS & ABY ONWARDS)
Ideal part no. 177707		 £4.44
118 Part number 176464, EXPANSION VESSEL KIT (PRE ACE) EXPANSION VESSEL KIT (PRE ACE)
Ideal part no. 176464		 £100.56
118 Part number 177601, EXPANSION VESSEL KIT (ACE ONWARDS) EXPANSION VESSEL KIT (ACE ONWARDS)
Ideal part no. 177601		 £108.52
119 Part number 176603, RETURN GROUP KIT (ABS ONWARDS) RETURN GROUP KIT (ABS ONWARDS)
Ideal part no. 176603		 £70.59
120 Part number 176466, FLOW GROUP KIT (ABS ONWARDS) FLOW GROUP KIT (ABS ONWARDS)
Ideal part no. 176466		 £73.36
121 Part number 176469, PLATE HEAT EXCHANGER KIT 35kW PLATE HEAT EXCHANGER KIT 35KW
Ideal part no. 176469		 £102.20
121 Part number 177530, PLATE HEAT EXCHANGER KIT 59200623 (ABS ONWARDS) PLATE HEAT EXCHANGER KIT 59200623 (ABS ONWARDS)
Ideal part no. 177530		 £123.40
124 Part number 176472, FLOW REGULATOR HE35 - GRUNDFOS 59200315 FLOW REGULATOR HE35 - GRUNDFOS 59200315
Ideal part no. 176472		 £30.49
127 Part number 176473, FLOW SENSOR/TURBINE KIT- 59200311 FLOW SENSOR/TURBINE KIT- 59200311
Ideal part no. 176473		 £42.85
128 Part number 176482, RETURN THERMISTOR - GRUNDFOS 59200324 RETURN THERMISTOR - GRUNDFOS 59200324
Ideal part no. 176482		 £29.48
131 Part number 176480, WATER PRESSURE SWITCH-GRUNDFOS 59200312 (ABU ONWARDS) WATER PRESSURE SWITCH-GRUNDFOS 59200312 (ABU ONWARDS)
Ideal part no. 176480		 £41.27
132   HYDROBLOCK COMPLETE KIT
Ideal part no. 176476		 £370.65
132   HYDROBLOCK ERP COMPLETE KIT 35KW BASE
Ideal part no. 178110		 £319.09
135 Part number 175679, PRESSURE GAUGE KIT PRESSURE GAUGE KIT
Ideal part no. 175679		 £19.92
136 Part number 176553, PUMP DRAIN KIT GRUNDFOS 59200316 PUMP DRAIN KIT GRUNDFOS 59200316
Ideal part no. 176553		 £5.04
137 Part number 176481, BY PASS CARTRIDGE KIT-GRUNDFOS 59200323 BY PASS CARTRIDGE KIT-GRUNDFOS 59200323
Ideal part no. 176481		 £39.38
138 Part number 176550, DIVERTER VALVE ASSY-GRUNDFOS 59200318 DIVERTER VALVE ASSY-GRUNDFOS 59200318
Ideal part no. 176550		 £47.16
