IDEAL
INSTINCT COMBI 24 - (Gas Management ABK Onwards)
Appliance Code: 47-349-09

Appliance Diagram


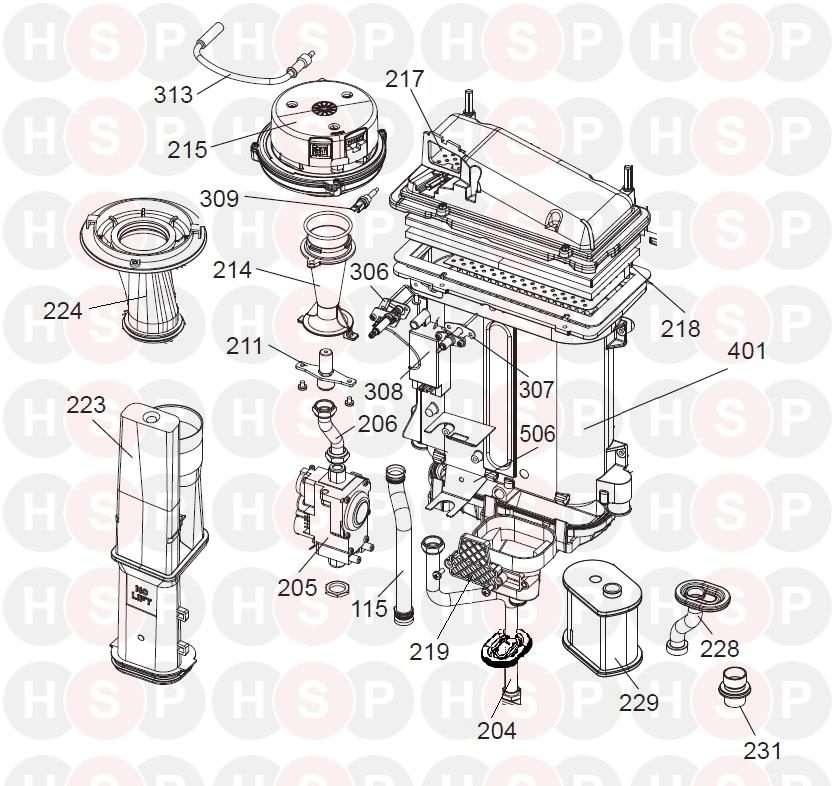

Gas Management ABK Onwards diagram for Ideal Instinct Combi 24Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

204   PIPE - GAS INLET (PRE ABK)
Ideal part no. 176477		 £21.89
204   PIPE GAS INLET(ABK ONWARDS)
Ideal part no. 177606		 £28.35
205 Part number 175562, GAS VALVE KIT (PRE ABS) GAS VALVE KIT (PRE ABS)
Ideal part no. 175562		 £203.49
205 Part number 177544, GAS VALVE KIT (ABS & ABY ONWARDS) GAS VALVE KIT (ABS & ABY ONWARDS)
Ideal part no. 177544		 £114.65
206 Part number 175563, PIPE - GAS INJECTOR (AAC & AAB ONLY) PIPE - GAS INJECTOR (AAC & AAB ONLY)
Ideal part no. 175563		 £15.75
206 Part number 177545, PIPE GAS INJECTOR (ABS & ABY ONWARDS) PIPE GAS INJECTOR (ABS & ABY ONWARDS)
Ideal part no. 177545		 £18.42
211 Part number 175566, INJECTOR ASSEMBLY KIT 24KW INJECTOR ASSEMBLY KIT 24KW
Ideal part no. 175566		 £30.63
211 Part number 177546, INJECTOR ASSEMBLY KIT 24KW INJECTOR ASSEMBLY KIT 24KW
Ideal part no. 177546		 £31.82
214 Part number 175567, VENTURI VENTURI
Ideal part no. 175567		 £25.49
215 Part number 175569, FAN KIT FAN KIT
Ideal part no. 175569		 £166.14
217 Part number 175571, BURNER KIT BURNER KIT
Ideal part no. 175571		 £109.53
218 Part number 175572, GASKET - BURNER GASKET - BURNER
Ideal part no. 175572		 £20.59
223 Part number 175981, FLUE MANIFOLD - HEAT FLUE MANIFOLD - HEAT
Ideal part no. 175981		 £38.98
224 Part number 176986, FLUE MANIFOLD TOP (COMBI ZY ONWARDS - COMBI ES AAQ ONWARDS) FLUE MANIFOLD TOP (COMBI ZY ONWARDS - COMBI ES AAQ ONWARDS)
Ideal part no. 176986		 £43.46
228 Part number 176478, HOSE CONDENSATE INTERNAL HOSE CONDENSATE INTERNAL
Ideal part no. 176478		 £10.55
229 Part number 175583, SIPHON TRAP KIT SIPHON TRAP KIT
Ideal part no. 175583		 £23.10
231 Part number 175586, CONDENSATE OUTLET CONNECTION CONDENSATE OUTLET CONNECTION
Ideal part no. 175586		 £7.74
306 Part number 175591, ELECTRODE - IGNITION ELECTRODE - IGNITION
Ideal part no. 175591		 £23.26
307 Part number 175592, ELECTRODE - DETECTION ELECTRODE - DETECTION
Ideal part no. 175592		 £16.88
308 Part number 175593, IGNITOR UNIT (PRE ADP) IGNITOR UNIT (PRE ADP)
Ideal part no. 175593		 £35.17
309 Part number 175594, THERMISTOR - NO FLOW THERMISTOR - NO FLOW
Ideal part no. 175594		 £10.81
313 Part number 175598, IGNITION LEAD IGNITION LEAD
Ideal part no. 175598		 £16.74
401 Part number 175615, HEAT ENGINE KIT (AAC & AAB ONLY) HEAT ENGINE KIT (AAC & AAB ONLY)
Ideal part no. 175615		 £391.16
401 Part number 177566, HEAT ENGINE KIT (ABS & ABY ONWARDS) HEAT ENGINE KIT (ABS & ABY ONWARDS)
Ideal part no. 177566		 £416.91
506   BRACKET KIT - GAS VALVE
Ideal part no. 176512		 £22.89
506   BRACKET GAS VALVE KIT (ABS & ABY ONWARDS)
Ideal part no. 177569		 £19.95
