IDEAL
INDEPENDENT COMBI 30 - (Water Management)
Appliance Code: 47-349-25

Appliance Diagram

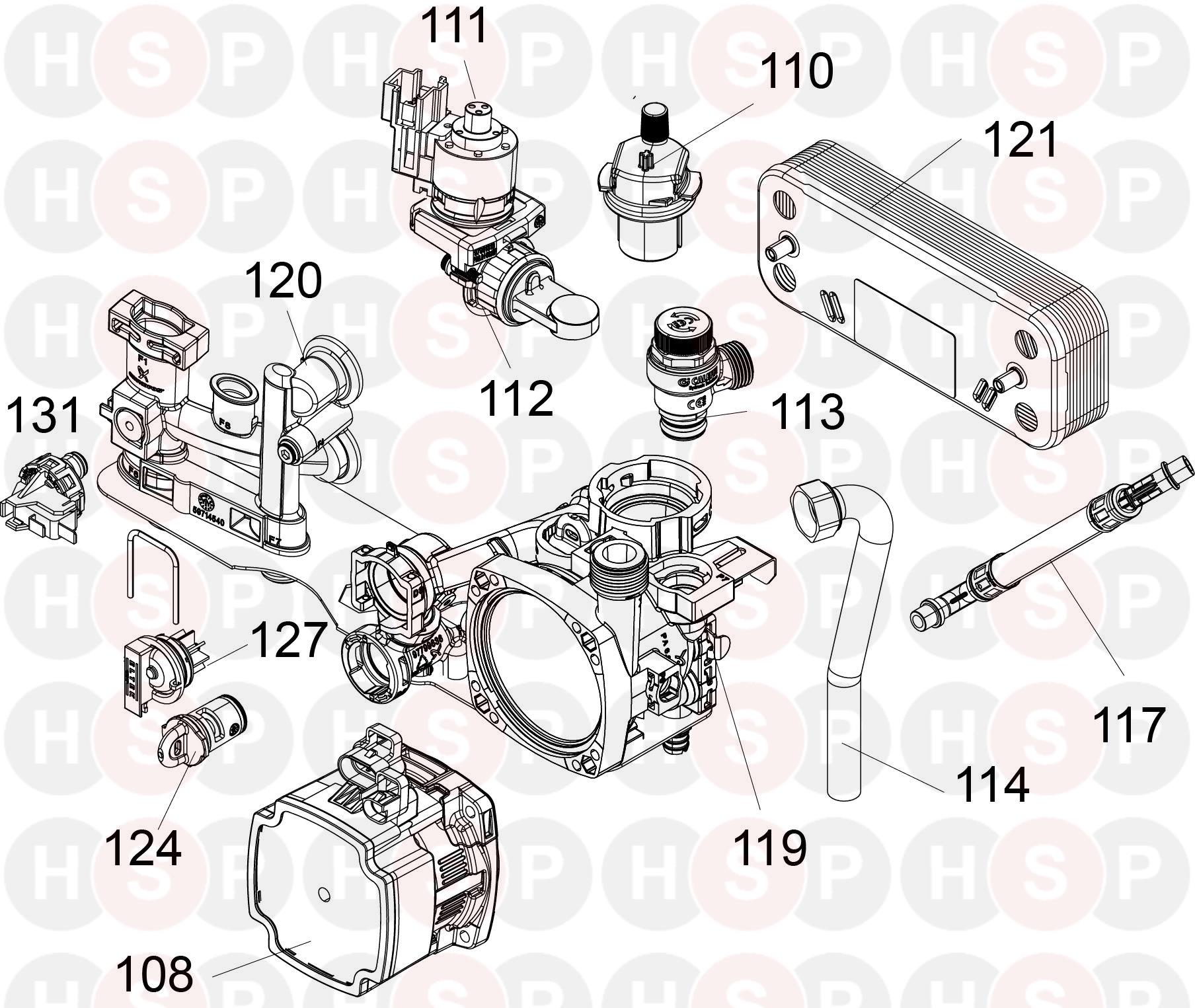

Water Management diagram for Ideal Independent Combi 30Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

108 Part number 177925, PUMP HEAD KIT ErP 98927074 ( ACQ ONWARDS - 2015 ERP) PUMP HEAD KIT ERP 98927074 ( ACQ ONWARDS - 2015 ERP)
Ideal part no. 177925
£285.72
108 Part number 179263, PUMP HOUSING IB (99190650) PUMP HOUSING IB (99190650)
Ideal part no. 179263
£84.69
110 Part number 176457, AUTO AIR VENT - GRUNDFOS 59200320 (ABY ONWARDS) AUTO AIR VENT - GRUNDFOS 59200320 (ABY ONWARDS)
Ideal part no. 176457
£44.94
111 Part number 179019, 24VOLT DIVERTER MOTOR PL25LGFB8 99114481 24VOLT DIVERTER MOTOR PL25LGFB8 99114481
Ideal part no. 179019
£69.03
112 Part number 179020, DIVERTER VALVE PADDLE &BODY KIT 99183191 DIVERTER VALVE PADDLE &BODY KIT 99183191
Ideal part no. 179020
£78.78
113 Part number 176610, PRV KIT (ABS & ABY ONWARDS) PRV KIT (ABS & ABY ONWARDS)
Ideal part no. 176610
£41.91
114 Part number 177536, PIPE PRV OUTLET (ABS & ABY ONWARDS) PIPE PRV OUTLET (ABS & ABY ONWARDS)
Ideal part no. 177536
£19.30
117 Part number 177539, HOSE EXPANSION VESSEL KIT (ABS & ABY ONWARDS) HOSE EXPANSION VESSEL KIT (ABS & ABY ONWARDS)
Ideal part no. 177539
£33.83
117 Part number 177707, CLIP EXPANSION VESSEL (ABS & ABY ONWARDS) CLIP EXPANSION VESSEL (ABS & ABY ONWARDS)
Ideal part no. 177707
£4.44
119 Part number 176603, RETURN GROUP KIT (ABS ONWARDS) RETURN GROUP KIT (ABS ONWARDS)
Ideal part no. 176603
£70.59
120 Part number 179168, FLOW GROUP KIT INC PRESSURE GAUGE FLOW GROUP KIT INC PRESSURE GAUGE
Ideal part no. 179168
£90.74
121 Part number 177530, PLATE HEAT EXCHANGER KIT 59200623 (ABS ONWARDS) PLATE HEAT EXCHANGER KIT 59200623 (ABS ONWARDS)
Ideal part no. 177530
£123.40
124 Part number 176471, FLOW REGULATOR HE30 - GRUNDFOS 59200314 FLOW REGULATOR HE30 - GRUNDFOS 59200314
Ideal part no. 176471
£30.49
127 Part number 176473, FLOW SENSOR/TURBINE KIT- 59200311 FLOW SENSOR/TURBINE KIT- 59200311
Ideal part no. 176473
£42.85
131 Part number 176480, WATER PRESSURE SWITCH-GRUNDFOS 59200312 (ABU ONWARDS) WATER PRESSURE SWITCH-GRUNDFOS 59200312 (ABU ONWARDS)
Ideal part no. 176480
£41.27
