IDEAL
ICOS SYSTEM HE15 - (Casing)
Appliance Code: 41-421-99

Appliance Diagram

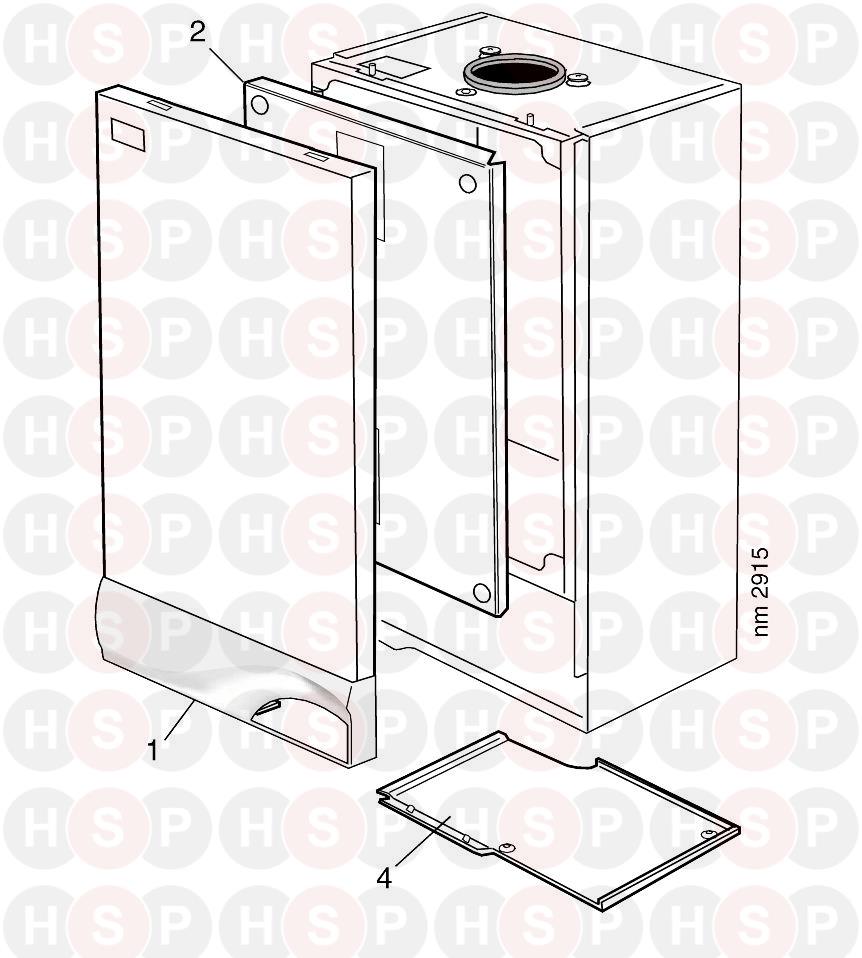

Casing diagram for Ideal Icos System HE15Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 173509, FRONT CASING PANEL ICOS SYST HE/ISAR HE FRONT CASING PANEL ICOS SYST HE/ISAR HE
Ideal part no. 173509

2 Part number 170898, CASE SEALING PANEL KIT ICOS/ICOS SYSTEM CASE SEALING PANEL KIT ICOS/ICOS SYSTEM
Ideal part no. 170898
£124.70
4 Part number 171027, BOTTOM COVER PANEL KIT ISAR M30100 BOTTOM COVER PANEL KIT ISAR M30100
Ideal part no. 171027
