IDEAL
EXCEL 30F - (Burner Control Ass 1)
Appliance Code: 41-415-33

Appliance Diagram

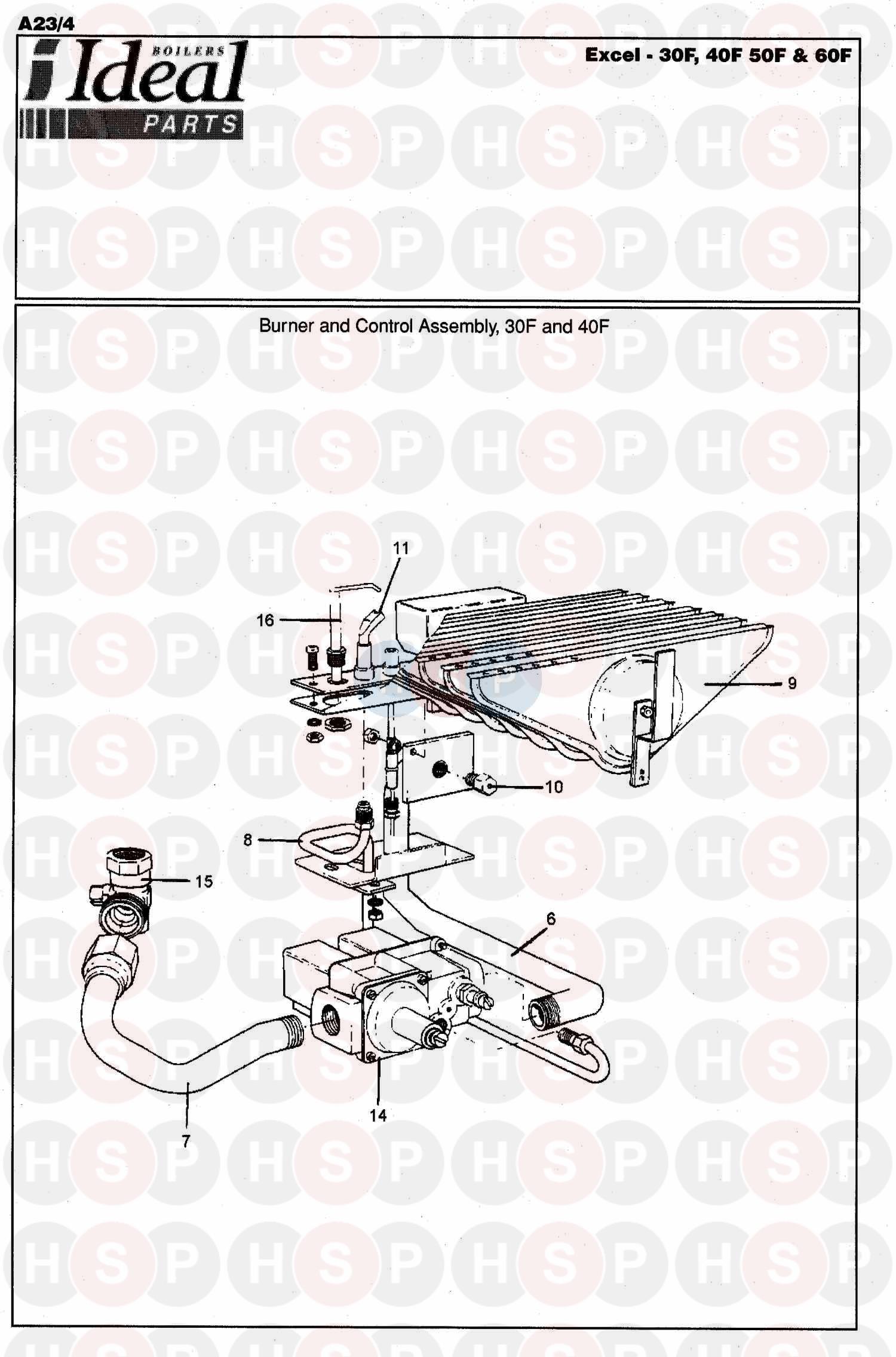

Burner Control Ass 1 diagram for Ideal Excel 30FClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE WATER MFLD 2715 GASKET:EXCEL
Ideal part no. 130079
0 Part number 3106, S TYPE EDGE CLIP FT22970 S TYPE EDGE CLIP FT22970
Ideal part no. 3106		 £2.06
0   OBSOLETE INPUT WIRE HRNS XL 60F
Ideal part no. 130714
0   MAGNETIC CATCH MX SL
Ideal part no. 004246		 £3.17
0   OBSOLETE ORANGE LENSES SPRINT
Ideal part no. 003938
0   OBSOLETE PCB SUPPORT-CBS1019
Ideal part no. 013348
0   OBSOLETE PUSH SPACER - PS-4R
Ideal part no. 013349
0   OBSOLETE CTRL BOX CVR ELAN/TURBO
Ideal part no. 058689
0 Part number 065652, OBSOLETE TEKNIGAS SOLENOID REF 25146 OBSOLETE TEKNIGAS SOLENOID REF 25146
Ideal part no. 065652
0   1/8 PRESSURE TEST NIPPLE
Ideal part no. 000030		 £9.86
0   O RING 21.9 I/D X 2.62 DES 0038 MN80
Ideal part no. 003988		 £2.59
0   OBSOLETE CROSS TRIM XL RSCF 50/60F
Ideal part no. 130083
0   OBSOLETE GAS VALVE WRNG HRNS XL30-40F
Ideal part no. 132864
0 Part number 013514, NO 10X2 1/2IN WOOD SCREW RD HD DES 0250 NO 10X2 1/2IN WOOD SCREW RD HD DES 0250
Ideal part no. 013514		 £2.47
0   OBSOLETE COVER EXCEL/ELAN 45900401-008
Ideal part no. 004185		 £8.25
0   OBSOLETE SPACER SUPPORT HEYCO 3686
Ideal part no. 004139
1   OBSOLETE HT EXCHANGER XL 30/40F.
Ideal part no. 078738
2   OBSOLETE C/HOOD W/SEAL ROPE XL 30/40F
Ideal part no. 078740
3   OBSOLETE COMB CHAMBER ASSY EXCEL (A)
Ideal part no. 130670
4   OBSOLETE COM CHAMB INSUL XL 30/40F
Ideal part no. 078742
6   OBSOLETE BNR MANIFOLD ASS EXCEL 30/40F
Ideal part no. 132818
7   OBSOLETE GAS INLET M/FOLD EXL 30/40F
Ideal part no. 132817
8   OBSOLETE PILOT PIPE ASS XL30/40F
Ideal part no. 078747
9   OBSOLETE MAIN BURNER AC19/123236.
Ideal part no. 013677
10   OBSOLETE INJECTOR BNR BRAY CAT 10 SIZE 850
Ideal part no. 003240
11 Part number 078716, PILOT BURNER - HONEYWELL PILOT BURNER - HONEYWELL
Ideal part no. 078716		 £21.73
12 Part number 003825, INJECTOR PILOT HONEYWELL 45900421-029 INJECTOR PILOT HONEYWELL 45900421-029
Ideal part no. 003825		 £5.68
13   OBSOLETE PILOT BNR SEALING PLT XL
Ideal part no. 078749
15   OBSOLETE GASCOCK ASSY 004913/924/919
Ideal part no. 077012
16   OBSOLETE IGN ELECTRODE VERNITRON NO 609
Ideal part no. 004364
17   OBSOLETE BNR/GAS LINE ASS EXCEL 30F
Ideal part no. 132830
18   OBSOLETE CTRL BOX:EXCEL 30/40F
Ideal part no. 132839
18   OBSOLETE PCB 8A BOARD (404202)
Ideal part no. 060556
19 Part number 132789, PCB 7B W/LINK XL30/60F PCB 7B W/LINK XL30/60F
Ideal part no. 132789
20   OBSOLETE DOUBLE POLE ROCKER SWITCH C1470
Ideal part no. 004352
21   OBSOLETE WIRE ENDED NEON ASS ELAN/EXCEL
Ideal part no. 058566
22   OBSOLETE HIGH THERMOSTAT 2455R-821-5
Ideal part no. 013554
23 Part number 013472, OBSOLETE LOW SETTING STAT ELM 2455R-821 OBSOLETE LOW SETTING STAT ELM 2455R-821
Ideal part no. 013472
24 Part number 013370, STAT TEXAS T20600D043-757. STAT TEXAS T20600D043-757.
Ideal part no. 013370		 £16.83
25   OBSOLETE T/STAT WIRING HARNESS XL30/40/
Ideal part no. 130099
26 Part number 130666, OBSOLETE FAN ASSY XL30F/40F OBSOLETE FAN ASSY XL30F/40F
Ideal part no. 130666
29   OBSOLETE PRESSURE SWITCH DUNGS 1.5 XL
Ideal part no. 004327
30 Part number 078753, OBSOLETE PRES SENSE PIPE.EXCEL OBSOLETE PRES SENSE PIPE.EXCEL
Ideal part no. 078753
31   OBSOLETE WIRING HARNESS ASSY ELAN 2 FAN
Ideal part no. 130715
33   OBSOLETE LH AIR DEF ASS:EXCEL 30/40F
Ideal part no. 130969
34   OBSOLETE RH AIR DEF ASS:EXCEL 30F/40F
Ideal part no. 130968
37   OBSOLETE CTRL CSG BTM PNL ASS:XL 30/40F
Ideal part no. 130679
38   OBSOLETE CNT CSG DOOR W/SLEEVE XL
Ideal part no. 079665
39   OBSOLETE CONCEALMENT PNL ASS:XL 30-60F
Ideal part no. 131311
41   OBSOLETE WALL MNTG PLT W/FIX XL30/40F
Ideal part no. 078754
44   OBSOLETE D PACK FLUE EXT :EXCEL 60F
Ideal part no. 130654
45   OBSOLETE PROGRAMMER KIT:EXCEL MK1
Ideal part no. 130779
46   OBSOLETE GAS VALVE 2574110/23 TEKNIGAS 1/2" BSP
Ideal part no. 004430
47   OBSOLETE 240 VOLT G54 COILS PT NO C27AA
Ideal part no. 065442
48   OBSOLETE H/WARE PK:EXCEL 30/60F
Ideal part no. 130688
49   OBSOLETE PCB 14 PUMP DELAY XL F
Ideal part no. 133684
50   OBSOLETE PUMP DELAY TIMER XL FAN
Ideal part no. 134372
51   OBSOLETE SET OF FACIA SIDE TRIMS XL F
Ideal part no. 079261
52   OBSOLETE INSTALLATION PACK 30/40F EXCEL
Ideal part no. 130660
54   OBSOLETE JKT SEAL ELAN 2 FAN
Ideal part no. 130871
55   DRAIN COCK 1/2 INCH
Ideal part no. 004166		 £14.03
56   OBSOLETE FUSES FOR NO 8APCB 3 AMP XLF.
Ideal part no. 065666
57 Part number 132788, PCB 7A LINK ASSY EXCEL F PCB 7A LINK ASSY EXCEL F
Ideal part no. 132788		 £2.24
58   OBSOLETE REWORK KIT-TEKNIGAS:XL30/40F
Ideal part no. 134538
59   OBSOLETE RE-WORK/SERVICE KIT :XL50/60F
Ideal part no. 134751
60   OBSOLETE 1 AMP FUSES BOARD 7
Ideal part no. 065668
