IDEAL
ESPRIT ECO 24 - (Gas Management)
Appliance Code: 47-348-91

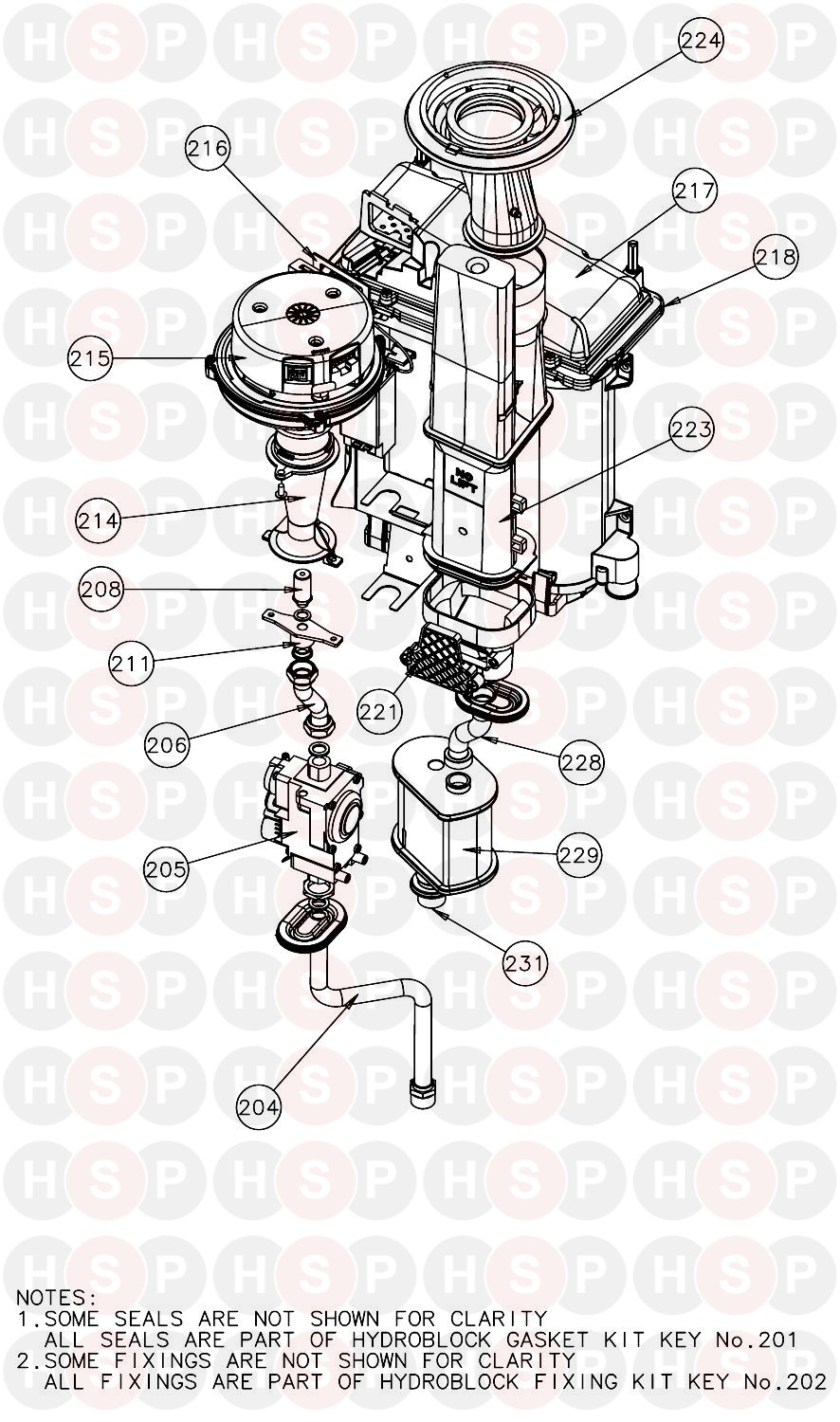

Appliance Diagram


Gas Management diagram for Ideal Esprit Eco 24Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

204   PIPE GAS INLET(ABK ONWARDS)
Ideal part no. 177606
£28.35
205 Part number 175562, GAS VALVE KIT (PRE ABS) GAS VALVE KIT (PRE ABS)
Ideal part no. 175562
£203.49
205 Part number 177544, GAS VALVE KIT (ABS & ABY ONWARDS) GAS VALVE KIT (ABS & ABY ONWARDS)
Ideal part no. 177544
£114.65
206 Part number 175563, PIPE - GAS INJECTOR (AAC & AAB ONLY) PIPE - GAS INJECTOR (AAC & AAB ONLY)
Ideal part no. 175563
£15.75
206 Part number 177545, PIPE GAS INJECTOR (ABS & ABY ONWARDS) PIPE GAS INJECTOR (ABS & ABY ONWARDS)
Ideal part no. 177545
£18.42
208 Part number 175610, INJECTOR 24KW INJECTOR 24KW
Ideal part no. 175610
£26.56
208 Part number 175611, NOW USE 181959 INJECTOR 30KW NOW USE 181959 INJECTOR 30KW
Ideal part no. 175611

208 Part number 175612, INJECTOR 35KW INJECTOR 35KW
Ideal part no. 175612
£28.22
208   INJECTOR 30KW
Ideal part no. 181959
£10.92
211 Part number 175566, INJECTOR ASSEMBLY KIT 24KW INJECTOR ASSEMBLY KIT 24KW
Ideal part no. 175566
£30.63
211 Part number 175613, INJECTOR ASSEMBLY KIT 30KW (AAC ONLY) INJECTOR ASSEMBLY KIT 30KW (AAC ONLY)
Ideal part no. 175613
£30.47
211 Part number 175614, INJECTOR ASSEMBLY KIT 35KW INJECTOR ASSEMBLY KIT 35KW
Ideal part no. 175614
£30.47
211 Part number 177546, INJECTOR ASSEMBLY KIT 24KW INJECTOR ASSEMBLY KIT 24KW
Ideal part no. 177546
£31.82
211 Part number 177547, INJECTOR ASSEMBLY KIT 30KW (NG) (ABS ONWARDS) INJECTOR ASSEMBLY KIT 30KW (NG) (ABS ONWARDS)
Ideal part no. 177547
£31.07
211 Part number 177548, INJECTOR ASSEMBLY KIT 35KW INJECTOR ASSEMBLY KIT 35KW
Ideal part no. 177548
£29.58
214 Part number 175567, VENTURI VENTURI
Ideal part no. 175567
£25.49
215 Part number 175569, FAN KIT FAN KIT
Ideal part no. 175569
£166.14
216 Part number 175570, GASKET - FAN GASKET - FAN
Ideal part no. 175570
£18.36
