IDEAL
ESPRIT 2 30 - (Short List XF Later)
Appliance Code: 47-348-72

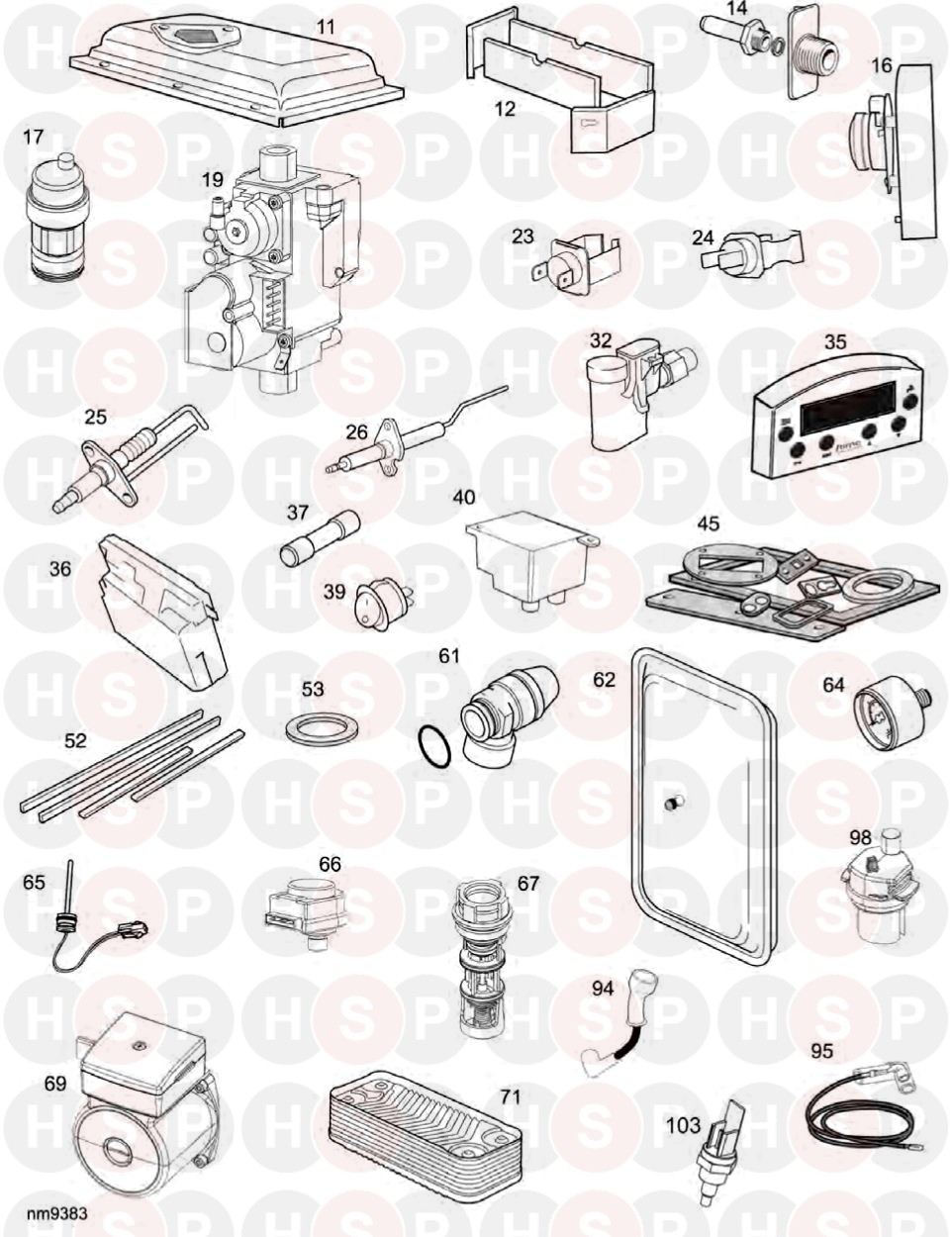

Appliance Diagram


Short List XF Later diagram for Ideal Esprit 2 30Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

11 Part number 170905, BURNER KIT M SERIES BURNER KIT M SERIES
Ideal part no. 170905		 £87.83
11 Part number 173752, BURNER KIT EVO HE BURNER KIT EVO HE
Ideal part no. 173752		 £94.55
12 Part number 173520, COMBUSTION CHBR INSULATION KIT HE SERIES COMBUSTION CHBR INSULATION KIT HE SERIES
Ideal part no. 173520		 £69.02
14 Part number 170908, INJECTOR & HOUSING KIT ICOS/ISAR/SYSTEM INJECTOR & HOUSING KIT ICOS/ISAR/SYSTEM
Ideal part no. 170908		 £13.56
14 Part number 173522, INJECTOR & HOUSING KIT - ISAR HE35 INJECTOR & HOUSING KIT - ISAR HE35
Ideal part no. 173522		 £9.04
16 Part number 172625, FAN KIT (FIME FAN PX130/0158) FAN KIT (FIME FAN PX130/0158)
Ideal part no. 172625		 £147.55
16 Part number 173525, FAN KIT(RUBBER MOUNTS)-ISAR HE35 FAN KIT(RUBBER MOUNTS)-ISAR HE35
Ideal part no. 173525		 £149.83
17 Part number 170988, AUTO AIR VENT KIT ISAR/ICOS SYSTEM AUTO AIR VENT KIT ISAR/ICOS SYSTEM
Ideal part no. 170988		 £29.87
19 Part number 174789, GAS VALVE KIT GAS VALVE KIT
Ideal part no. 174789		 £123.50
23 Part number 174790, THERMISTOR (BOILER CONTROL) THERMISTOR (BOILER CONTROL)
Ideal part no. 174790		 £9.45
24 Part number 174791, OVERHEAT THERMOSTAT OVERHEAT THERMOSTAT
Ideal part no. 174791		 £8.14
25 Part number 173528, IGNITION ELECTRODE KIT - PRE XH IGNITION ELECTRODE KIT - PRE XH
Ideal part no. 173528		 £23.90
25 Part number 175406, IGNITION ELECTRODE KIT IGNITION ELECTRODE KIT
Ideal part no. 175406		 £22.56
26 Part number 173529, FLAMESENSING ELECTRODE KIT FLAMESENSING ELECTRODE KIT
Ideal part no. 173529		 £22.48
32 Part number 174244, KIT - TRAP & SEAL KIT - TRAP & SEAL
Ideal part no. 174244		 £28.45
35 Part number 173533, USER CONTROL KIT ISAR HE USER CONTROL KIT ISAR HE
Ideal part no. 173533		 £111.49
35 Part number 173671, USER CONTROLS KIT EVO HE C USER CONTROLS KIT EVO HE C
Ideal part no. 173671		 £104.66
35 Part number 174487, PROGRAMMER KIT - ISAR HE + PROG DIGITAL PROGRAMMER KIT - ISAR HE + PROG DIGITAL
Ideal part no. 174487
36 Part number 174486, PCB PRIMARY CONTROL KIT PCB PRIMARY CONTROL KIT
Ideal part no. 174486		 £201.55
36 Part number 174981, PCB/USER RETRO KIT-EVO HE C V9 PCB/USER RETRO KIT-EVO HE C V9
Ideal part no. 174981		 £353.56
39 Part number 173537, MAINS SWITCH KIT MAINS SWITCH KIT
Ideal part no. 173537		 £17.21
40 Part number 173538, SPARK GENERATOR KIT SPARK GENERATOR KIT
Ideal part no. 173538		 £49.77
45 Part number 170938, GASKET KIT SERVICING M SERIES GASKET KIT SERVICING M SERIES
Ideal part no. 170938		 £38.64
52 Part number 171014, SEAL KIT (CASE SEALING PANEL) M SERIES SEAL KIT (CASE SEALING PANEL) M SERIES
Ideal part no. 171014		 £17.70
53 Part number 171022, TURRET GASKET KIT M SERIES TURRET GASKET KIT M SERIES
Ideal part no. 171022		 £18.95
61 Part number 175413, PRESSURE RELIEF VALVE KIT (AAC & AAB ONLY) PRESSURE RELIEF VALVE KIT (AAC & AAB ONLY)
Ideal part no. 175413		 £16.43
62 Part number 175415, EXPANSION VESSEL KIT EXPANSION VESSEL KIT
Ideal part no. 175415		 £178.15
64 Part number 170991, PRESSURE GAUGE KIT ISAR/ICOS SYSTEM PRESSURE GAUGE KIT ISAR/ICOS SYSTEM
Ideal part no. 170991		 £39.95
64 Part number 175431, FLOW VALVE (GAUGE) PACK FLOW VALVE (GAUGE) PACK
Ideal part no. 175431		 £54.74
65 Part number 170996, DHW THERMISTOR KIT ISAR DHW THERMISTOR KIT ISAR
Ideal part no. 170996		 £41.53
65 Part number 173974, NOW USE 170996 DHW THERMISTOR KIT NOW USE 170996 DHW THERMISTOR KIT
Ideal part no. 173974
66 Part number 174813, DIVERTER VALVE HEAD DIVERTER VALVE HEAD
Ideal part no. 174813		 £55.20
67 Part number 175407, FLOW GROUP KIT FLOW GROUP KIT
Ideal part no. 175407		 £352.89
69 Part number 175409, PUMP HEAD KIT PUMP HEAD KIT
Ideal part no. 175409		 £197.54
69 Part number 175541, PUMP KIT PUMP KIT
Ideal part no. 175541		 £334.53
71 Part number 175418, PLATE HEAT EXCHANGER KIT 30KW (AAC ONLY) PLATE HEAT EXCHANGER KIT 30KW (AAC ONLY)
Ideal part no. 175418		 £71.40
94 Part number 175424, IGNITION LEAD IGNITION LEAD
Ideal part no. 175424		 £12.98
95 Part number 173512, DETECTION LEAD - ISAR HE/ICOS SYST HE DETECTION LEAD - ISAR HE/ICOS SYST HE
Ideal part no. 173512		 £21.24
98 Part number 175804, KIT-AUTO AIR VENT WITH O RING 12.0113 (PRE ABY) KIT-AUTO AIR VENT WITH O RING 12.0113 (PRE ABY)
Ideal part no. 175804		 £48.00
103 Part number 174087, DRY FIRE THERMISTOR KIT DRY FIRE THERMISTOR KIT
Ideal part no. 174087		 £16.64
