CONCORD WRS 440 - (Wiring Diagram 1)
Appliance Code: 41-407-54

Appliance Diagram


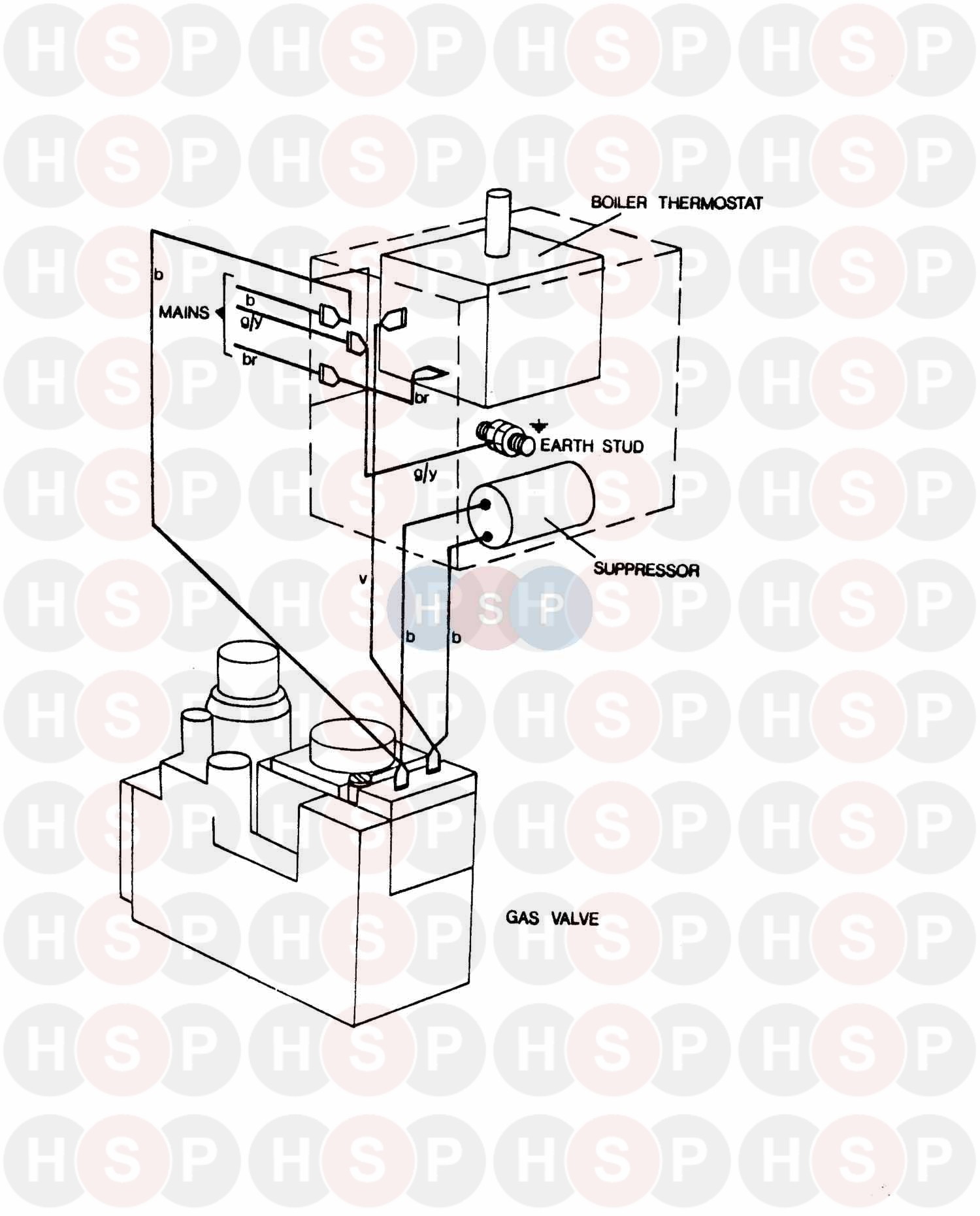

Wiring Diagram 1 diagram for Ideal Concord WRS 440Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE CONV KIT:WRS450 (KIT)
Ideal part no. 131033

0   OBSOLETE CONV KIT WRS 460P (KIT)
Ideal part no. 131034

0   OBSOLETE M8 TDOM RODS W2000 & FAN
Ideal part no. 049578

0   OBSOLETE M5 WING NUT ZP
Ideal part no. 000799

0   OBSOLETE PLASTIC CAN SUPPRESSOR STC NO
Ideal part no. 004033

0   M8 HEX NUT ZP DES SPEC 0250
Ideal part no. 003380
£2.36
0   M8 FORM A WASHER ZP DES SPEC 0250
Ideal part no. 003381
£2.73
0   OBSOLETE HINGE CLIP KITS WRS/CF MK 4.
Ideal part no. 058768

0   OBSOLETE H/WARE PK:WCF 240/255 A & B
Ideal part no. 012536

0   OBSOLETE 50GRM HERMITITE
Ideal part no. 003717

0 Part number 002921, OBSOLETE O RING 31.34 I/D X 3.53 DES 0038 EP70 OBSOLETE O RING 31.34 I/D X 3.53 DES 0038 EP70
Ideal part no. 002921

0   OBSOLETE T/STAT L7-P4001 RANCO LO7
Ideal part no. 004706

1   OBSOLETE DUAL HT EXCH WRS/CF
Ideal part no. 076663

2   OBSOLETE BLR INSUL W/STRAP WRS440
Ideal part no. 078251

3   OBSOLETE C/HOOD ASSY WLX RS 30/40
Ideal part no. 076356

4   OBSOLETE M6 TEE BOLT ASSY PAIR WRS440
Ideal part no. 077866

5   OBSOLETE C/O COVER ASS W2000 RS
Ideal part no. 052249

7   OBSOLETE SIGHT GLASS ASSY - BNR BOX
Ideal part no. 079333

9 Part number 077362, OBSOLETE PILOT PIPE WLX RS/CF40/50 OBSOLETE PILOT PIPE WLX RS/CF40/50
Ideal part no. 077362

10   OBSOLETE MAIN BURNER MK9 AB16638
Ideal part no. 053546

12 Part number 003205, OBSOLETE INJECTOR BNR BRAY CAT 10 SIZE 1150 OBSOLETE INJECTOR BNR BRAY CAT 10 SIZE 1150
Ideal part no. 003205

13 Part number 003825, INJECTOR PILOT HONEYWELL 45900421-029 INJECTOR PILOT HONEYWELL 45900421-029
Ideal part no. 003825
£5.68
14   OBSOLETE PILOT BURNER WITH INJECTOR
Ideal part no. 078253

15   OBSOLETE PILOT BRKT SHIELD WRS 240A/255
Ideal part no. 053536

16 Part number 003114, GAS VALVE 1/2INCOMPACT V4600A1023U GAS VALVE 1/2INCOMPACT V4600A1023U
Ideal part no. 003114
£225.72
17 Part number 003248, O-RING 25.0 I/D X 4.0 DES 0038 MN70 O-RING 25.0 I/D X 4.0 DES 0038 MN70
Ideal part no. 003248
£8.80
18   OBSOLETE SPARK GENERATOR 60038 RH OUTLE
Ideal part no. 053541

19   OBSOLETE ELECTRODE/LEAD 240A/255A
Ideal part no. 077364

20 Part number 000842, THERMOCOUPLE+600MM LEAD Q309A2739 THERMOCOUPLE+600MM LEAD Q309A2739
Ideal part no. 000842
£20.99
21   OBSOLETE BNR ASS:WLX RS40
Ideal part no. 057030

22   OBSOLETE CTRL BOX WRS MK 2A/4.
Ideal part no. 053540

23 Part number 003209, OBSOLETE T/STAT CL6 PO 105 W 48IN C OBSOLETE T/STAT CL6 PO 105 W 48IN C
Ideal part no. 003209

24   OBSOLETE CONTROL KNOB T/STAT RANCO 83151-31
Ideal part no. 002434

25   OBSOLETE T/STAT POCKET W/PIN WLX
Ideal part no. 079646

26   OBSOLETE SUPPRESSOR HRNS ASS MEX
Ideal part no. 058887

27   OBSOLETE PLUG-BULGIN PX0587/ASHLY C4000
Ideal part no. 003069

29   OBSOLETE CTRL POD ASS WRS/CF MK4.
Ideal part no. 056980

31   OBSOLETE RH SIDE PLT PTD:WRS/CF MK4
Ideal part no. 132320

32   OBSOLETE LH SIDE PLT PTD:WRS/CF MK4
Ideal part no. 132321

33 Part number 078260, OBSOLETE SEALING PK WRS/CF MK4 (KIT) OBSOLETE SEALING PK WRS/CF MK4 (KIT)
Ideal part no. 078260

37   OBSOLETE WALL MOUNTING PLATE WRS 40/55
Ideal part no. 076124

38   OBSOLETE BCK PNL ASSY WRS/WLX4
Ideal part no. 078261

39   OBSOLETE RC1/2 X R1/2 SPRING LD ELBOW GAS COCK
Ideal part no. 003860

40   OBSOLETE BALLOFIX VALVE 1.5INX28 NO 5306
Ideal part no. 003834

42   OBSOLETE PROGRAMMER ASS WLX
Ideal part no. 057080

43   OBSOLETE PROGRAMMER RWB 4 STELRAD
Ideal part no. 012698

44   OBSOLETE PROGRAMMER HOUSING ASS WRS/CF
Ideal part no. 132309
