IDEAL
CONCORD WLX RS 30 - (Boiler Casing)
Appliance Code: 41-415-63

Appliance Diagram


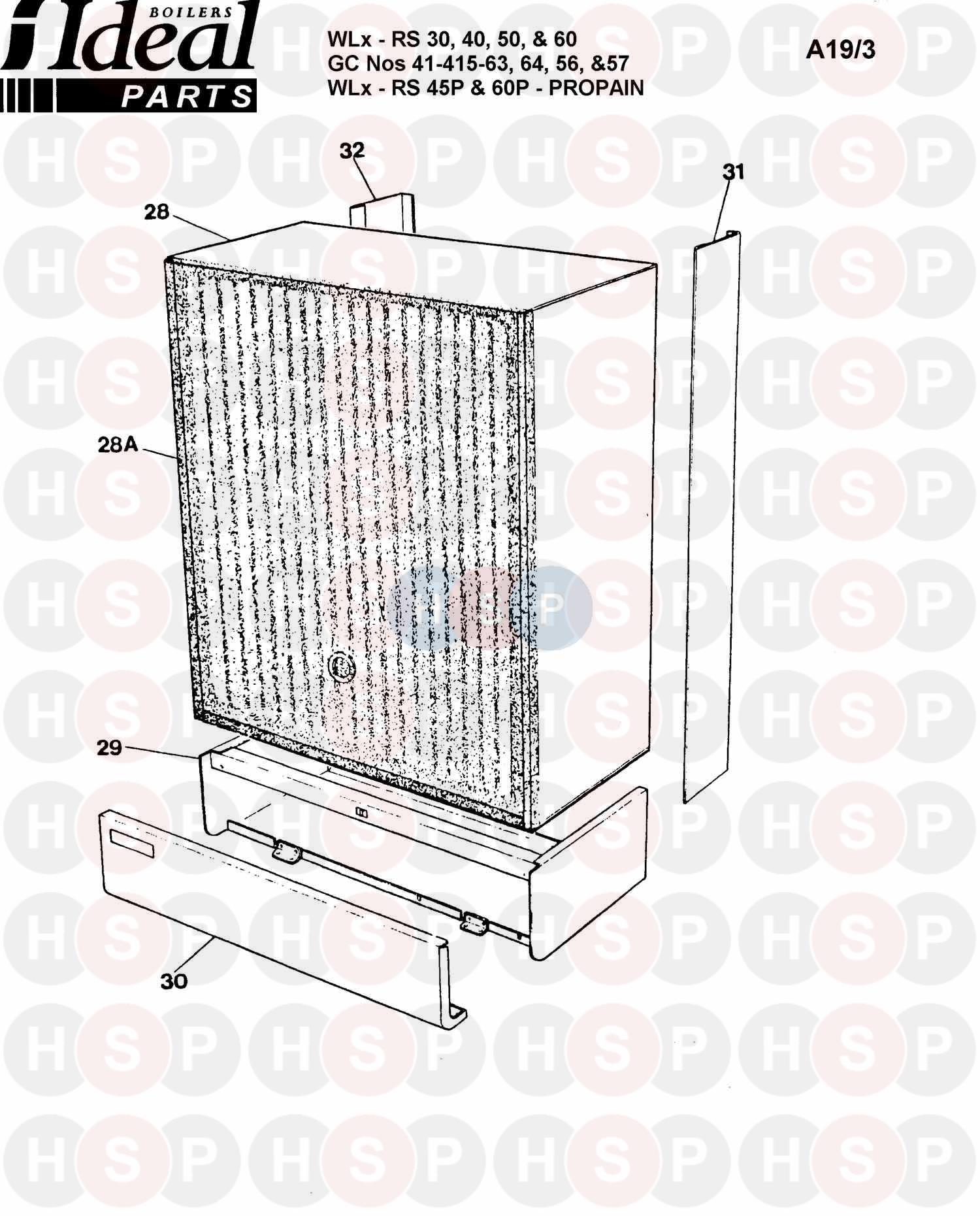

Boiler Casing diagram for Ideal Concord WLX RS 30Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE M8 TDOM RODS W2000 & FAN
Ideal part no. 049578

0   OBSOLETE M5 WING NUT ZP
Ideal part no. 000799

0   1 INCH PLUG BLR BSPT HEX HD TAPER MI
Ideal part no. 000352
£8.06
0 Part number 000635, M8 FORM A WASHER M8 FORM A WASHER
Ideal part no. 000635
£2.33
0   OBSOLETE 50GRM HERMITITE
Ideal part no. 003717

0   OBSOLETE CONV KIT WLX RS45P (KIT)
Ideal part no. 132931

0   OBSOLETE DOOR LATCH ITW NO 162-EM-560-0
Ideal part no. 004042

0   OBSOLETE DOOR STRIKE ITW NO 263-000006-
Ideal part no. 004043

0   REDUCING BUSH 1IN X 1/2INMI 140
Ideal part no. 000361
£2.46
0   OBSOLETE H/WARE PK:WLX RS30
Ideal part no. 013611

0 Part number 002921, OBSOLETE O RING 31.34 I/D X 3.53 DES 0038 EP70 OBSOLETE O RING 31.34 I/D X 3.53 DES 0038 EP70
Ideal part no. 002921

0   M8 HEX NUT ZP DES SPEC 0250
Ideal part no. 003380
£2.36
0   M5 X 8 P/P HD SCREW DES SPEC 0250
Ideal part no. 003227
£2.22
1   OBSOLETE BLR BODY HT EXCH WRS 230/430
Ideal part no. 054399

2   OBSOLETE BLR INSUL W/STRAP WRS440
Ideal part no. 078251

3   OBSOLETE C/HOOD ASSY WLX RS 30/40
Ideal part no. 076356

4   OBSOLETE M6 TEE BOLT ASSY PAIR WRS440
Ideal part no. 077866

5   OBSOLETE C/O COVER ASS W2000 RS
Ideal part no. 052249

7   OBSOLETE SIGHT GLASS ASSY - BNR BOX
Ideal part no. 079333

8   OBSOLETE GAS M/FOLD ASS WRS 230A
Ideal part no. 053547

9   OBSOLETE PILOT PIPE ASS 230A/WRS430
Ideal part no. 077361

10   OBSOLETE MAIN BURNER MK9 AB16637
Ideal part no. 053545

12   OBSOLETE INJECTOR BNR BRAY CAT 10 SIZE 850
Ideal part no. 003240

13 Part number 003825, INJECTOR PILOT HONEYWELL 45900421-029 INJECTOR PILOT HONEYWELL 45900421-029
Ideal part no. 003825
£5.68
14   OBSOLETE PILOT BURNER WITH INJECTOR
Ideal part no. 078253

15   OBSOLETE PILOT BRKT SHIELD WRS 240A/255
Ideal part no. 053536

16 Part number 003114, GAS VALVE 1/2INCOMPACT V4600A1023U GAS VALVE 1/2INCOMPACT V4600A1023U
Ideal part no. 003114
£225.72
17 Part number 003248, O-RING 25.0 I/D X 4.0 DES 0038 MN70 O-RING 25.0 I/D X 4.0 DES 0038 MN70
Ideal part no. 003248
£8.80
18   OBSOLETE SPARK GENERATOR 60038 RH OUTLE
Ideal part no. 053541

19   OBSOLETE ELECTRODE/LEAD 240A/255A
Ideal part no. 077364

20 Part number 000842, THERMOCOUPLE+600mm LEAD Q309A2739 THERMOCOUPLE+600MM LEAD Q309A2739
Ideal part no. 000842
£20.99
21   OBSOLETE BNR & CTRLS ASS WLX (A)
Ideal part no. 057029

22   OBSOLETE CTRL BOX WRS MK 2A/4.
Ideal part no. 053540

23 Part number 003209, OBSOLETE T/STAT CL6 PO 105 W 48IN C OBSOLETE T/STAT CL6 PO 105 W 48IN C
Ideal part no. 003209

24   OBSOLETE CONTROL KNOB T/STAT RANCO 83151-31
Ideal part no. 002434

25   OBSOLETE T/STAT POCKET W/PIN WLX
Ideal part no. 079646

26   OBSOLETE SUPPRESSOR HRNS ASS MEX
Ideal part no. 058887

27   OBSOLETE PLUG-BULGIN PX0587/ASHLY C4000
Ideal part no. 003069

28 Part number 130838, OBSOLETE SMOKED BRO GLASS FASCIA:WLX 50 OBSOLETE SMOKED BRO GLASS FASCIA:WLX 50
Ideal part no. 130838

29   OBSOLETE CONT CASING(LESS DOOR)WLX
Ideal part no. 078642

30   OBSOLETE CONT CSG DOOR W/INS WLX
Ideal part no. 078643

31   OBSOLETE RH SIDE PLATE PTD:WLX50/60
Ideal part no. 132318

32   OBSOLETE LH SIDE PLATE PTD:WLX50/60
Ideal part no. 132319

33 Part number 078260, OBSOLETE SEALING PK WRS/CF MK4 (KIT) OBSOLETE SEALING PK WRS/CF MK4 (KIT)
Ideal part no. 078260

37   OBSOLETE WALL MOUNTING PLATE WRS 40/55
Ideal part no. 076124

38   OBSOLETE BCK PNL ASSY WRS/WLX4
Ideal part no. 078261

39   OBSOLETE RC1/2 X R1/2 SPRING LD ELBOW GAS COCK
Ideal part no. 003860

40   OBSOLETE BALLOFIX VALVE 1.5INX28 NO 5306
Ideal part no. 003834

42   OBSOLETE PROGRAMMER ASS WLX
Ideal part no. 057080

43   OBSOLETE PROGRAMMER RWB 4 STELRAD
Ideal part no. 012698

44   OBSOLETE PROGRAMMER HOUSING ASS WRS/CF
Ideal part no. 132309

46   OBSOLETE CONV KIT WLX RS60 (KIT)
Ideal part no. 131392
