CONCORD CXC 2 - 310 & 310P - (Boiler Assembly 1)
Appliance Code: 41-421-38

Appliance Diagram

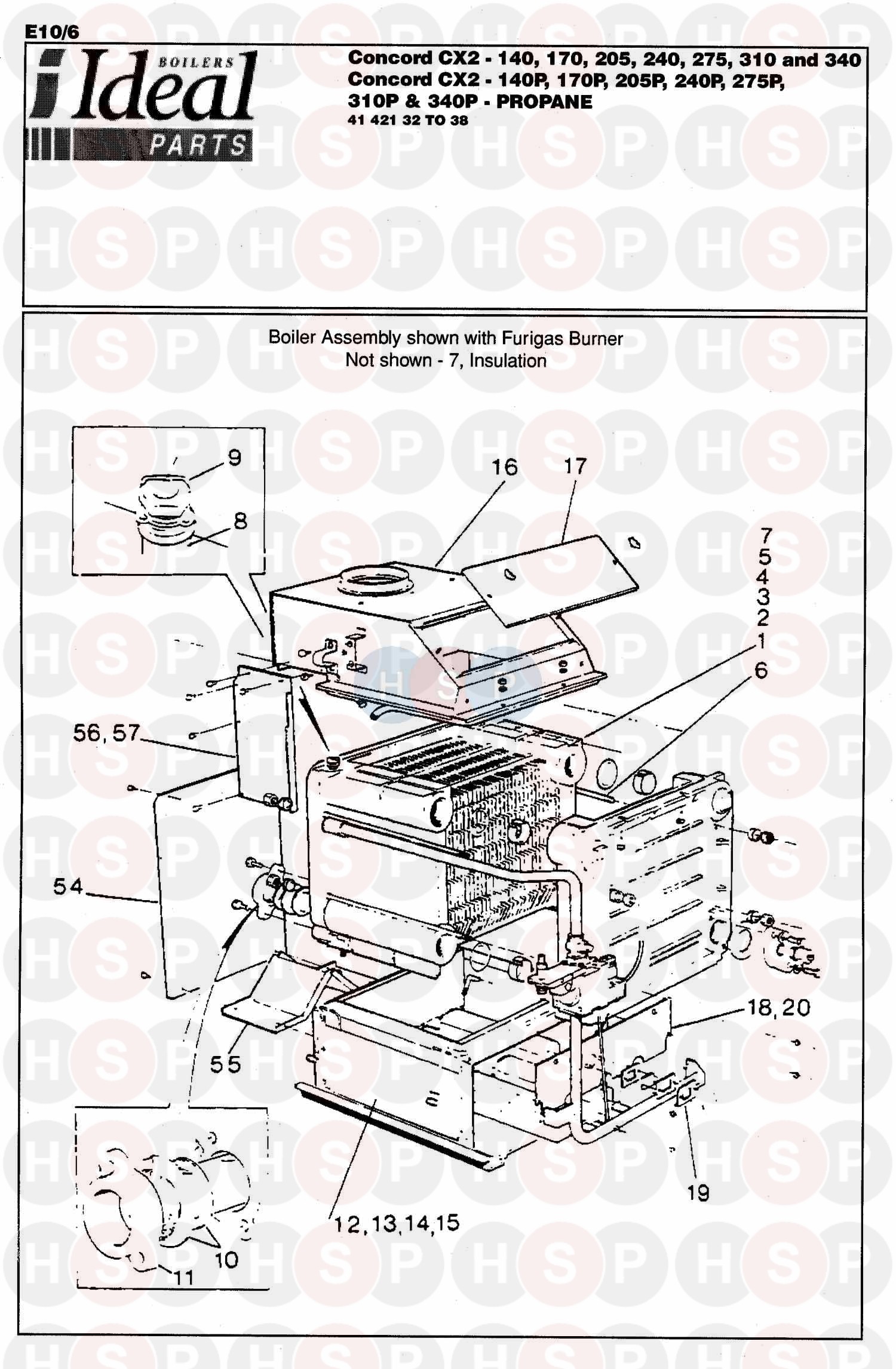

Boiler Assembly 1 diagram for Ideal Concord CXC 2 - 310 & 310PClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0 Part number 113013, GASKET EPDM EP 1/1/5 GASKET EPDM EP 1/1/5
Ideal part no. 113013		 £4.02
0 Part number 079334, OBSOLETE SIGHT GLASS ASSEMBLY OBSOLETE SIGHT GLASS ASSEMBLY
Ideal part no. 079334
0   OBSOLETE BNR FRT PLATE ASS CX2
Ideal part no. 008423
0 Part number 079675, OBSOLETE Mastic + Nozzle Assy OBSOLETE MASTIC + NOZZLE ASSY
Ideal part no. 079675
0 Part number 135506, OBSOLETE CONNECTOR SOCKET ASSY CX 2 OBSOLETE CONNECTOR SOCKET ASSY CX 2
Ideal part no. 135506
0   PLT DRAUGHT SHIELD: CX2 (AC)
Ideal part no. 135509		 £2.52
1   OBSOLETE HT EXCH ASS CXC 88
Ideal part no. 134744
1   OBSOLETE HT EXCH ASS CXC 44
Ideal part no. 134742
1   OBSOLETE HT EXCH ASS CXC 66
Ideal part no. 134743
1   OBSOLETE HT EXCH ASS CXC 110
Ideal part no. 134745
2   OBSOLETE FRONT SECTION ASSY CX2
Ideal part no. 079476
3   OBSOLETE REAR SECT WITH 4-O RINGS CX2
Ideal part no. 079478
4   OBSOLETE CENTRE SECT W/8X0 RINGS
Ideal part no. 078802
5 Part number 078800, OBSOLETE SET OF 4 O RINGS + 4 SPLIT OBSOLETE SET OF 4 O RINGS + 4 SPLIT
Ideal part no. 078800
6   OBSOLETE SET 4-M12 X 439 MM TIE RODS
Ideal part no. 078804
6   OBSOLETE SET TIE RODS CX140
Ideal part no. 078803
6   OBSOLETE SET OF 4-M12X562 MM TIE RODS
Ideal part no. 078805
6   OBSOLETE 4 M12X685 TIE RODS CX (AC)
Ideal part no. 078806
7   OBSOLETE HEAT EXCH INSUL CXI 410
Ideal part no. 078807
7   OBSOLETE HT EXCH INSUL CXI 550
Ideal part no. 078809
7 Part number 078808, OBSOLETE HT EXCH INSUL CXI 480 OBSOLETE HT EXCH INSUL CXI 480
Ideal part no. 078808
7   OBSOLETE HT EXCH INSUL CXI 620
Ideal part no. 078810
8 Part number 130782, T/STAT POCKET ASS CX T/STAT POCKET ASS CX
Ideal part no. 130782		 £71.38
9   THERMOSTAT CAPILLARY CLAMP CX
Ideal part no. 098183		 £4.77
10   DIST TUBE ASS CXC94/CX70-80
Ideal part no. 135499		 £32.40
10   DIST TUBE AS CXC116/CX90-100
Ideal part no. 135500		 £31.36
10   OBSOLETE DIST TUBE ASS CXC66/CX2170-205
Ideal part no. 135498
10   DIST TUBE ASS CXC48/CX40
Ideal part no. 135497		 £125.63
11   OBSOLETE 2IN SCREWED FLANGE & GSKT CX-CX1
Ideal part no. 078815
12   OBSOLETE COMB CMBR ASSY CX2 140 (AC)
Ideal part no. 079458
12   OBSOLETE COMBUSTION CHAMBER ASS CX170
Ideal part no. 079459
12   OBSOLETE COMBUSTION CHAMBER ASSY CX2
Ideal part no. 079460
12   OBSOLETE COMB CHAMBER ASSY.CX310
Ideal part no. 079463
12   OBSOLETE COMB CHBR ASS CX2 275
Ideal part no. 079462
12   OBSOLETE COMBUSTION CHAMBER ASSY.WITH
Ideal part no. 079468
12   OBSOLETE COMBUSTION CHAMBER ASSY.WITH
Ideal part no. 079470
12   OBSOLETE COMBUSTION CHAMBER ASSY.WITH
Ideal part no. 079469
12   OBSOLETE COMB CHAMBER ASS CX 340
Ideal part no. 079464
12   OBSOLETE COMBUSTION CHAMBER ASSY.WITH
Ideal part no. 079467
12   OBSOLETE COMBUSTION CHAMBER ASSY.WITH
Ideal part no. 079466
12   OBSOLETE COMB CHAMBER ASSY CX240/P
Ideal part no. 079461
12   OBSOLETE COMBUSTION CHAMBER ASSY.WITH
Ideal part no. 079471
12   OBSOLETE COMB/CHAMBER ASSY CX2 340P
Ideal part no. 079472
13 Part number 078816, COMB CHAMBER FRT INSUL:CX COMB CHAMBER FRT INSUL:CX
Ideal part no. 078816		 £14.59
14 Part number 078817, COMB CHAMBER REAR INSUL:CX COMB CHAMBER REAR INSUL:CX
Ideal part no. 078817		 £19.92
15   OBSOLETE COMB CHAMBER SIDE INSUL W/FTGS
Ideal part no. 078820
15   OBSOLETE COMB CHAMBER SIDE INSUL
Ideal part no. 078821
15   OBSOLETE COMB CHAMBER SIDE INSUL W/FTGS
Ideal part no. 078819
15   OBSOLETE COMB CHAMBER SIDE INSUL W/FTGS
Ideal part no. 078818
16   OBSOLETE COLL HOOD ASSY CX340 (AC)
Ideal part no. 059695
16   OBSOLETE COLL HOOD ASSY CX310
Ideal part no. 059694
16   OBSOLETE COLL HD ASS CX140
Ideal part no. 059689
16   OBSOLETE COLL HD ASSY CX240
Ideal part no. 059692
16   OBSOLETE COLL HD ASS CX275 (AC)
Ideal part no. 059693
16   OBSOLETE COLL HD ASS CX170
Ideal part no. 059690
16   OBSOLETE COLL HD ASS CX205
Ideal part no. 059691
17   OBSOLETE C/O COVER ASS CX2 240-340
Ideal part no. 059716
17   OBSOLETE C/O COVER ASS CX2 140-205
Ideal part no. 059715
19   OBSOLETE BNR FRT PLT ASS CX140-340
Ideal part no. 059681
20 Part number 078822, OBSOLETE FRT PLT F/BRD INSUL CERAMIC OBSOLETE FRT PLT F/BRD INSUL CERAMIC
Ideal part no. 078822
21   OBSOLETE BNR MANIFOLD W/3 MAIN BNR INJS
Ideal part no. 078868
21   OBSOLETE BNR MANIFOLD ASSY CX340 (AC)
Ideal part no. 078828
21   OBSOLETE BNR M/FOLD W/3 BNR INJ CX2 310
Ideal part no. 078827
21   OBSOLETE BNR M/FOLD W/3 BNR INJ CX2 275
Ideal part no. 078826
21   OBSOLETE BNR MANIFOLD W/3 MAIN BNR INJS
Ideal part no. 078864
21   OBSOLETE BNR MANIFOLD W/3 MAIN BNR INJS
Ideal part no. 078862
21   OBSOLETE BNR MANIFOLD ASSY CX170P (AC)
Ideal part no. 078863
21   OBSOLETE BNR MANIFOLD W/3 MAIN BNR INJS
Ideal part no. 078866
21   OBSOLETE BNR MANIFOLD W/3 MAIN BNR INJS
Ideal part no. 078867
21   OBSOLETE BNR MANIFOLD ASSY CX
Ideal part no. 078865
21   OBSOLETE BNR MANIFOLD CX170/205
Ideal part no. 078824
21   OBSOLETE BNR M/FOLD W/3 BNR INJ CX2 140
Ideal part no. 078823
21   OBSOLETE BNR M/FOLD W/3 BNR INJ CX 275
Ideal part no. 078825
22 Part number 078829, OBSOLETE PILOT PIPE ASSY CX MK 1 OBSOLETE PILOT PIPE ASSY CX MK 1
Ideal part no. 078829
23 Part number 013934, MAIN BURNER 118.500.075 CX2 240/275 MAIN BURNER 118.500.075 CX2 240/275
Ideal part no. 013934
23 Part number 013935, MAIN BURNER 118.500.076 CX2 310/340 MAIN BURNER 118.500.076 CX2 310/340
Ideal part no. 013935		 £404.53
23 Part number 013933, CENTRE MAIN BURNER 118500074 CX CENTRE MAIN BURNER 118500074 CX
Ideal part no. 013933		 £275.86
23   CENTRE MAIN BURNER 118.500.073 CX2 140
Ideal part no. 013932		 £67.69
23   OBSOLETE CENTRE BNR ASS CX2 240P
Ideal part no. 100656
23   OBSOLETE CENTRE MAIN BNR SUB ASS:CX2 170P
Ideal part no. 137543
23   OBSOLETE CENTRE MAIN BURNER CX/CXD
Ideal part no. 009116
23   OBSOLETE CENTRE MAIN BURNER CX/CXD
Ideal part no. 009118
23   OBSOLETE CENTRE MAIN BURNER CX/CXD
Ideal part no. 009115
23   OBSOLETE CENTRE MAIN BURNER CX/CXD
Ideal part no. 009117
24   OBSOLETE END MAIN BURNER CX/CXD
Ideal part no. 009112
24   OBSOLETE END MAIN BURNER CX/CXD 310/340
Ideal part no. 009113
24   OBSOLETE END MAIN BURNER CX/CXD
Ideal part no. 009111
24   OBSOLETE END MAIN BURNER CX/CXD/
Ideal part no. 009110
24 Part number 013561, END MAIN BURNER 118500033 CX SER 2 END MAIN BURNER 118500033 CX SER 2
Ideal part no. 013561		 £217.82
24   MAIN BURNER 118.500.031 CX 170/205 P/N
Ideal part no. 013559		 £245.43
24   OBSOLETE END MAIN BNR ASS:CX & CX2 170P
Ideal part no. 137542
24   OBSOLETE MAIN BNR ASSY CX2 240P
Ideal part no. 100654
24 Part number 013558, MAIN BURNER END CX140 118500030 MAIN BURNER END CX140 118500030
Ideal part no. 013558		 £253.52
24 Part number 013560, MAIN BURNER 118.500.032 END CX 240/275 MAIN BURNER 118.500.032 END CX 240/275
Ideal part no. 013560		 £305.10
25   OBSOLETE LINT ARR/GAUZE F/GAS 118500005
Ideal part no. 065443
25   OBSOLETE LINT ARR/GAUZE F/GAS 118500007
Ideal part no. 065445
25   OBSOLETE LINT ARR/GAUZE F/GAS 118500008
Ideal part no. 065446
25   OBSOLETE LINT ARR/GAUZE F/GAS 538-105-011
Ideal part no. 065444
26 Part number 013574, INJECTOR BNR 3.09 - CX PROPANE INJECTOR BNR 3.09 - CX PROPANE
Ideal part no. 013574		 £5.27
26   INJECTOR BNR 2.54 - CX PROPANE
Ideal part no. 013571		 £5.30
26   INJECTOR BNR 2.96 - CX PROPANE
Ideal part no. 013573		 £5.92
26   INJECTOR BNR 2.69 - CX PROPANE
Ideal part no. 013572		 £6.87
26   INJECTOR BNR 2.15 - CX PROPANE
Ideal part no. 013569		 £7.25
26   INJECTOR BNR 2.30 - CX PROPANE
Ideal part no. 013570		 £5.84
26 Part number 013575, INJECTOR BNR 3.27 - CX PROPANE INJECTOR BNR 3.27 - CX PROPANE
Ideal part no. 013575		 £11.99
26   INJECTOR BNR 5.30 - CX
Ideal part no. 013179		 £10.99
26 Part number 013177, INJECTOR BNR 4-86 - CX INJECTOR BNR 4-86 - CX
Ideal part no. 013177		 £10.99
26   OBSOLETE INJECTOR BNR 4.91
Ideal part no. 013178
26   OBSOLETE INJECTOR BNR 3.33
Ideal part no. 013174
26   OBSOLETE INJECTOR BNR 4.48
Ideal part no. 013176
26 Part number 013175, INJECTOR BNR 4.02 - CX110 INJECTOR BNR 4.02 - CX110
Ideal part no. 013175		 £9.38
27 Part number 171142, PILOT BURNER & INJECTOR SPARES KIT PILOT BURNER & INJECTOR SPARES KIT
Ideal part no. 171142		 £35.12
28 Part number 000069, INJECTOR PILOT HONEYWELL 390686-4B INJECTOR PILOT HONEYWELL 390686-4B
Ideal part no. 000069
28   INJECTOR PILOT 390686-1 BBR10
Ideal part no. 003899
29 Part number 131528, OBSOLETE GAS VALVE V4400D1011 BS OBSOLETE GAS VALVE V4400D1011 BS
Ideal part no. 131528
29 Part number 056193, GAS VALVE V4400C1211U 3/4IN GAS VALVE V4400C1211U 3/4IN
Ideal part no. 056193
30 Part number 003939, SPARK GENERATOR 60080/002 SPARK GENERATOR 60080/002
Ideal part no. 003939
31   OBSOLETE BRKT-GEN/L-STAT MTG CX 2
Ideal part no. 135919
32 Part number 130947, ELECTRODE ASSY CX ELECTRODE ASSY CX
Ideal part no. 130947		 £30.14
33 Part number 030032, THERMOCOUPLE 900mm Q309A 2754B THERMOCOUPLE 900MM Q309A 2754B
Ideal part no. 030032		 £27.35
34 Part number 132009, NOW USE 173228 T/CPL INTERRUPTER LD ASS-SENSOR NOW USE 173228 T/CPL INTERRUPTER LD ASS-SENSOR
Ideal part no. 132009
34 Part number 173228, ECO LEADS ASSY ECO LEADS ASSY
Ideal part no. 173228		 £51.27
35   OBSOLETE THERMOCOUPLE INTER LEAD ASS CX
Ideal part no. 135944
36   OBSOLETE RC1 X RC1 UNION COCK SPRG LDD
Ideal part no. 004417
36   OBSOLETE RC3/4 X R3/4 GAS COCK
Ideal part no. 013132
36   OBSOLETE GAS COCK ASSY 004822/23/24
Ideal part no. 077047
36   RC1XRC1 FEM GASCOCK
Ideal part no. 077045		 £107.20
37 Part number 013248, SENSOR ASSY ELECTRONIC T/STAT SENSOR ASSY ELECTRONIC T/STAT
Ideal part no. 013248		 £90.24
38 Part number 058511, POTENTIOMETER ASS SUP+/CXC/CX2 POTENTIOMETER ASS SUP+/CXC/CX2
Ideal part no. 058511		 £38.43
39 Part number 013241, CONTROL KNOB T/STAT K526 CONTROL KNOB T/STAT K526
Ideal part no. 013241		 £17.14
40 Part number 156017, O/H STAT KIT2 PKD CX1/CX2/CX3 O/H STAT KIT2 PKD CX1/CX2/CX3
Ideal part no. 156017		 £159.24
41   OBSOLETE CTRL BOX PKGD CX2
Ideal part no. 135816
42 Part number 060562, PCB 1C BOARD (409800) PCB 1C BOARD (409800)
Ideal part no. 060562
43 Part number 060554, PCB 6A BOARD (403602) PCB 6A BOARD (403602)
Ideal part no. 060554		 £312.15
44   OBSOLETE FASCIA PNL STANDARD CX2 + P
Ideal part no. 135811
45   OBSOLETE DROP DOWN DOOR HINGE KIT
Ideal part no. 079549
46   OBSOLETE FRT FIX BRKT CX2/CXD
Ideal part no. 059525
47   OBSOLETE TOP FIXING BRKT ASS CX140-340
Ideal part no. 059827
48   OBSOLETE RH SIDE PNL ASS CX170/205
Ideal part no. 059813
48   OBSOLETE RH JKT SIDE PNL ASS CX140 AC
Ideal part no. 059812
48   OBSOLETE RH SIDE PNL ASS CX310/340 A
Ideal part no. 059815
48   OBSOLETE RH JKT SD PNL ASS CX240/275
Ideal part no. 059814
49   OBSOLETE LH SIDE PNL ASS CX140
Ideal part no. 059816
49   OBSOLETE LH SIDE PNL ASS CX310/340 A
Ideal part no. 059819
49   OBSOLETE LH JKT SD PNL ASS CX170/205
Ideal part no. 059817
49   OBSOLETE LH SIDE PNL ASS CX240/275 AC
Ideal part no. 059818
50   OBSOLETE JKT TOP PNL ASS CX240
Ideal part no. 059823
50   OBSOLETE JKT TOP PNL ASS CX275
Ideal part no. 059824
50   OBSOLETE JKT TOP PNL ASS CX170
Ideal part no. 059821
50   OBSOLETE JKT TOP PNL ASS CX205 AC
Ideal part no. 059822
50   OBSOLETE JKT TOP PNL ASS CX 140
Ideal part no. 059820
50   OBSOLETE JKT TOP PNL ASS CX310/340
Ideal part no. 059825
51   OBSOLETE JKT LWR FRT PNL ASS:CX140-340
Ideal part no. 059826
52   OBSOLETE CTRL BOX FRT PNL CX2
Ideal part no. 134274
53   OBSOLETE JKT ASSY CX2 310/340
Ideal part no. 135851
53   OBSOLETE JKT ASSY CX2 275 AC
Ideal part no. 135850
53   OBSOLETE JKT ASSY CX2 240
Ideal part no. 135849
53   OBSOLETE JKT ASSY CX2 170
Ideal part no. 135847
53   OBSOLETE JKT ASSY CX2 140 AC
Ideal part no. 135846
53   OBSOLETE JKT ASSY CX2 205
Ideal part no. 135848
54   OBSOLETE DRAUGHT DIVERTER BK PNL CX2
Ideal part no. 120002
55   OBSOLETE DOWNDRAFT DEFLECTOR CX 140
Ideal part no. 059504
55   OBSOLETE D/DRAUGHT DEFLECTOR CX240/275
Ideal part no. 059506
55   OBSOLETE D/DRAUGHT DEFLECTOR CX310/340
Ideal part no. 059507
55   OBSOLETE D/DRAUGHT DEFLECTOR CX170/205
Ideal part no. 059505
56   OBSOLETE RH SPILLAGE SKIRT CX 240
Ideal part no. 059499
56   OBSOLETE RH SPILLAGE SKIRT CX 275
Ideal part no. 059501
56   OBSOLETE RH SPILLAGE SKIRT CX 310/340
Ideal part no. 059503
56   OBSOLETE RH SPILLAGE SKIRT CX 140
Ideal part no. 130069
56   OBSOLETE RH SPILLAGE SKIRT CX 170
Ideal part no. 059495
56   OBSOLETE RH SPILLAGE SKIRT CX 205
Ideal part no. 059497
57   OBSOLETE LH SPILLAGE SKIRT CX 170
Ideal part no. 059494
57   OBSOLETE LH SPILLAGE SKIRT CX 310/340
Ideal part no. 059502
57   OBSOLETE LH SPILLAGE SKIRT CX 240
Ideal part no. 059498
57   OBSOLETE LH SPILLAGE SKIRT CX 275
Ideal part no. 059500
57   OBSOLETE LH SPILLAGE SKIRT CX 205
Ideal part no. 059496
57   OBSOLETE LH SPILLAGE SKIRT CX 140
Ideal part no. 130068
58   OBSOLETE FLUE BRUSHINPINNACLEIN CX RANGE
Ideal part no. 017498
59   OBSOLETE H/WARE PK-JKT CX140-340
Ideal part no. 013265
60   OBSOLETE INSTALLATION PACK CX2
Ideal part no. 135860
63   PCB 2 BOARD (409900)
Ideal part no. 060563		 £112.24
64 Part number 060551, OBSOLETE PCB 3 BOARD (402201) OBSOLETE PCB 3 BOARD (402201)
Ideal part no. 060551
65 Part number 060553, PCB 5A BOARD (402401) PCB 5A BOARD (402401)
Ideal part no. 060553		 £208.24
66   OBSOLETE PCB 21 BOARD (410900)
Ideal part no. 060564
67   OBSOLETE FASCIA PNL-OPT KIT 1:CX2
Ideal part no. 135812
68   OBSOLETE FACIA PNL-OPT KIT 2:CX2
Ideal part no. 135813


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
