CONCORD CXC - 68 - (Burner Pipework Assembly)
Appliance Code: 41-421-18

Appliance Diagram


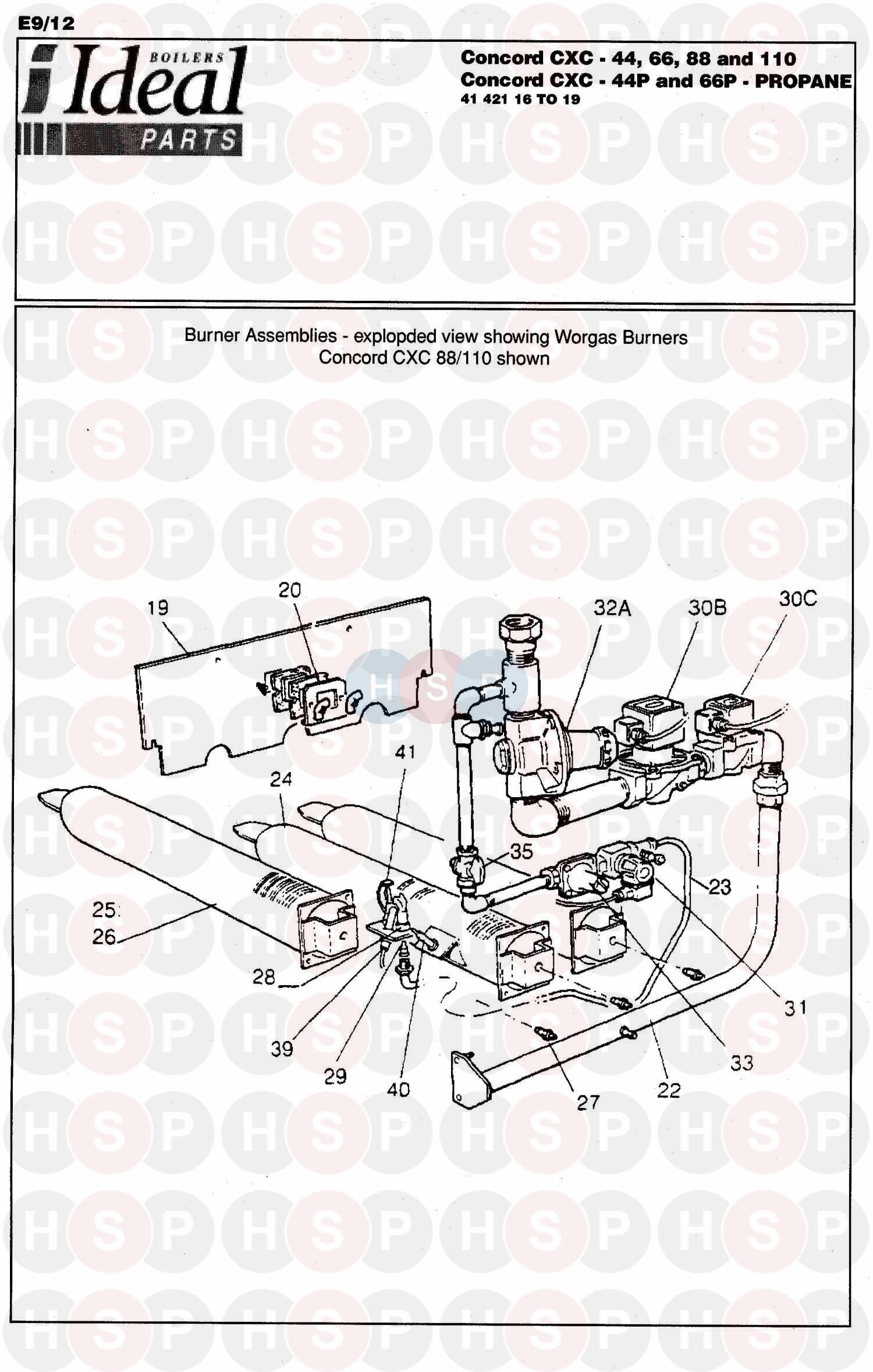

Burner Pipework Assembly diagram for Ideal Concord CXC - 68Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE ELECTRODE REPLACEMENT KIT:CXC
Ideal part no. 111927
0   OBSOLETE GAS LINE ASSY PKGD (ASCO) PROP
Ideal part no. 111626
1   OBSOLETE HT EXCH ASS CXC 66
Ideal part no. 134743
1   OBSOLETE HT EXCH ASS CXC 88
Ideal part no. 134744
1   OBSOLETE HT EXCH ASS CXC 44
Ideal part no. 134742
1   OBSOLETE HT EXCH ASS CXC 110
Ideal part no. 134745
2   OBSOLETE FRONT SECTION ASSY CX2
Ideal part no. 079476
3   OBSOLETE REAR SECT WITH 4-O RINGS CX2
Ideal part no. 079478
4   OBSOLETE CENTRE SECT W/8X0 RINGS
Ideal part no. 078802
5 Part number 078800, OBSOLETE SET OF 4 O RINGS + 4 SPLIT OBSOLETE SET OF 4 O RINGS + 4 SPLIT
Ideal part no. 078800
6   OBSOLETE SET TIE RODS CX140
Ideal part no. 078803
6   OBSOLETE SET 4-M12 X 439 MM TIE RODS
Ideal part no. 078804
6   OBSOLETE SET OF 4-M12X562 MM TIE RODS
Ideal part no. 078805
6   OBSOLETE 4 M12X685 TIE RODS CX (AC)
Ideal part no. 078806
8 Part number 130782, T/STAT POCKET ASS CX T/STAT POCKET ASS CX
Ideal part no. 130782		 £71.38
9   THERMOSTAT CAPILLARY CLAMP CX
Ideal part no. 098183		 £4.77
10   DIST TUBE AS CXC116/CX90-100
Ideal part no. 135500		 £31.36
10   DIST TUBE ASS CXC94/CX70-80
Ideal part no. 135499		 £32.40
10   OBSOLETE DIST TUBE ASS CXC66/CX2170-205
Ideal part no. 135498
10   DIST TUBE ASS CXC48/CX40
Ideal part no. 135497		 £125.63
11   OBSOLETE 2IN SCREWED FLANGE & GSKT CX-CX1
Ideal part no. 078815
12   OBSOLETE COMB CHAMBER W/FTGS CXC
Ideal part no. 079486
12   OBSOLETE COMB CHAMBER W/FTGS CXC
Ideal part no. 079485
12   OBSOLETE COMB CHAMBER W/FTGS CXC
Ideal part no. 079487
12   OBSOLETE COMB CHAMBER W/FTGS CXC
Ideal part no. 079484
13 Part number 078816, COMB CHAMBER FRT INSUL:CX COMB CHAMBER FRT INSUL:CX
Ideal part no. 078816		 £14.59
14 Part number 078817, COMB CHAMBER REAR INSUL:CX COMB CHAMBER REAR INSUL:CX
Ideal part no. 078817		 £19.92
15   OBSOLETE COMB CHAMBER SIDE INSUL W/FTGS
Ideal part no. 078818
15   OBSOLETE COMB CHAMBER SIDE INSUL W/FTGS
Ideal part no. 078820
15   OBSOLETE COMB CHAMBER SIDE INSUL W/FTGS
Ideal part no. 078819
15   OBSOLETE COMB CHAMBER SIDE INSUL
Ideal part no. 078821
16   OBSOLETE COMB CHBR REAR COVER ASS CXC
Ideal part no. 133950
17   OBSOLETE COLL HD/SUMP ASS CXC 44
Ideal part no. 133929
17   OBSOLETE COLL HD/SUMP ASS CXC 88
Ideal part no. 133931
17   OBSOLETE COLL HOOD/SUMP ASS CXC 110
Ideal part no. 133932
17   OBSOLETE COLL HD/SUMP ASS CXC 66
Ideal part no. 133930
18   OBSOLETE C/O COVER ASS CX2 240-340
Ideal part no. 059716
18   OBSOLETE C/O COVER ASS CX2 140-205
Ideal part no. 059715
19   OBSOLETE BNR FRT PLT ASS CX140-340
Ideal part no. 059681
20 Part number 079334, OBSOLETE SIGHT GLASS ASSEMBLY OBSOLETE SIGHT GLASS ASSEMBLY
Ideal part no. 079334
21 Part number 078822, OBSOLETE FRT PLT F/BRD INSUL CERAMIC OBSOLETE FRT PLT F/BRD INSUL CERAMIC
Ideal part no. 078822
22   OBSOLETE BURNER MANIFOLD C/W 3 MAIN
Ideal part no. 079546
22   OBSOLETE BNR M/FOLD W/3 BNR INJ CXD 205
Ideal part no. 079493
22   OBSOLETE BNR M/FOLD W/3 BNR INJ CXD 140
Ideal part no. 079492
22   OBSOLETE BNR M/FOLD W/3 BNR INJ CXD 275
Ideal part no. 079494
22   OBSOLETE BNR M/FOLD W/3 BNR INJS CXC110
Ideal part no. 079495
23   OBSOLETE PILOT PIPE ASS CXC
Ideal part no. 079488
24   OBSOLETE CENTRE BNR ASS CXC 44
Ideal part no. 100052
24   OBSOLETE CENTRE BNR ASS CXC 88
Ideal part no. 100054
24   OBSOLETE CENTRE BNR ASS CXC 110
Ideal part no. 100055
24   OBSOLETE CENTRE BNR ASS CXC 66
Ideal part no. 100053
24   CENTRE BNR ASS CXC 66P
Ideal part no. 100057
24   OBSOLETE CENTRE BNR ASS CXC 44P
Ideal part no. 100056
24   OBSOLETE CENTRE MAIN BURNER CX C44P
Ideal part no. 013940
24   CENTRE MAIN BURNER 118500070 CXC
Ideal part no. 013941
24   OBSOLETE CENTRE MAIN BURNER CX C110
Ideal part no. 013943
24   OBSOLETE CENTRE MAIN BURNER 118500071 CXC88
Ideal part no. 013942
25   OBSOLETE END MAIN BURNER CX/CXD
Ideal part no. 009112
25   OBSOLETE END MAIN BURNER CX/CXD 310/340
Ideal part no. 009113
25 Part number 013558, MAIN BURNER END CX140 118500030 MAIN BURNER END CX140 118500030
Ideal part no. 013558		 £253.52
25   MAIN BURNER 118.500.031 CX 170/205 P/N
Ideal part no. 013559		 £245.43
25 Part number 013560, MAIN BURNER 118.500.032 END CX 240/275 MAIN BURNER 118.500.032 END CX 240/275
Ideal part no. 013560		 £305.10
25 Part number 013561, END MAIN BURNER 118500033 CX SER 2 END MAIN BURNER 118500033 CX SER 2
Ideal part no. 013561		 £217.82
25   OBSOLETE END MAIN BURNER CX/CXD/
Ideal part no. 009110
25   OBSOLETE END MAIN BURNER CX/CXD
Ideal part no. 009111
26   OBSOLETE LINT ARR/GAUZE F/GAS 118500005
Ideal part no. 065443
26   OBSOLETE LINT ARR/GAUZE F/GAS 118500007
Ideal part no. 065445
26   OBSOLETE LINT ARR/GAUZE F/GAS 118500008
Ideal part no. 065446
26   OBSOLETE LINT ARR/GAUZE F/GAS 538-105-011
Ideal part no. 065444
27   OBSOLETE INJECTOR BNR 3.33
Ideal part no. 013174
27 Part number 013177, INJECTOR BNR 4-86 - CX INJECTOR BNR 4-86 - CX
Ideal part no. 013177		 £10.99
27 Part number 013180, INJECTOR BNR - CX INJECTOR BNR - CX
Ideal part no. 013180		 £10.37
27   INJECTOR BNR 2.54 - CX PROPANE
Ideal part no. 013571		 £5.30
27   OBSOLETE INJECTOR BNR 5.60 CXC 110
Ideal part no. 013898
27   INJECTOR BNR 2.15 - CX PROPANE
Ideal part no. 013569		 £7.25
28 Part number 079489, PILOT BNR H/WELL Q371A-1012 PILOT BNR H/WELL Q371A-1012
Ideal part no. 079489		 £24.80
29 Part number 003825, INJECTOR PILOT HONEYWELL 45900421-029 INJECTOR PILOT HONEYWELL 45900421-029
Ideal part no. 003825		 £5.68
29 Part number 004545, INJECTOR PILOT HONEYWELL 45900421-011 INJECTOR PILOT HONEYWELL 45900421-011
Ideal part no. 004545		 £6.68
30 Part number 111566, GAS VALVE SOLENOID RC3/4IN ASCO GAS VALVE SOLENOID RC3/4IN ASCO
Ideal part no. 111566		 £557.42
30 Part number 013842, GAS VALVE 3/4IN ASCO CXC GAS VALVE 3/4IN ASCO CXC
Ideal part no. 013842		 £582.02
30   OBSOLETE GAS VALVE 1IN CXC88/110
Ideal part no. 013849
31   OBSOLETE GAS VALVE SOLENOID 1/8IN CX/SUP PLUS
Ideal part no. 004300
32   OBSOLETE GOVERNOR 1IN J48 JEAVONS CX C88/110
Ideal part no. 013899
32 Part number 113204, GOVERNOR J78R 1IN (13-19MB) GOVERNOR J78R 1IN (13-19MB)
Ideal part no. 113204		 £138.60
33   OBSOLETE 1/4INGOVERNER SUP+/CX
Ideal part no. 100696
34   RC1XRC1 FEM GASCOCK
Ideal part no. 077045		 £107.20
34   OBSOLETE GAS COCK ASSY 004822/23/24
Ideal part no. 077047
34   OBSOLETE RC1 X RC1 UNION COCK SPRG LDD
Ideal part no. 004417
35   1/4 INCH D/F UNION GAS COCK STRAIGHT
Ideal part no. 004561		 £23.90
36   OBSOLETE O HEAT/SPK GEN ASS CXC
Ideal part no. 135573
37 Part number 156016, O/H STAT KIT1 PKD CXA/P/C/D/I/S/SD/SI/DI O/H STAT KIT1 PKD CXA/P/C/D/I/S/SD/SI/DI
Ideal part no. 156016		 £156.60
37 Part number 004301, NOW USE 156016 L/STAT RAK 21.4/2926 CX NOW USE 156016 L/STAT RAK 21.4/2926 CX
Ideal part no. 004301
38   SPARK GENERATOR (405900)
Ideal part no. 060573
39 Part number 135920, IGN ELECTRODE ASS-SPARK CXC44/110 IGN ELECTRODE ASS-SPARK CXC44/110
Ideal part no. 135920		 £29.13
40   OBSOLETE ELECTRODE ASS W/LEAD-BNR CXC 44P
Ideal part no. 135918
41   OBSOLETE ELECTRODE ASS W/LEAD-PILOT CXC 44P
Ideal part no. 135917
42   OBSOLETE MAIN GAS INLET PIPE CXC
Ideal part no. 133959
42   OBSOLETE MAIN GAS INLET PIPE CXC
Ideal part no. 133960
42   OBSOLETE MAIN GAS INLET PIPE CXC
Ideal part no. 133958
42   OBSOLETE MAIN GAS INLET PIPE CXC
Ideal part no. 133957
43   OBSOLETE GAS INLET PIPE CLAMP & SUPP BK
Ideal part no. 079496
44   OBSOLETE HT EXCH S/ASS 2NDRY CXC 44-66
Ideal part no. 134012
44   OBSOLETE HT EXCH S/ASS 2NDRY CXC 88-110
Ideal part no. 134013
45   OBSOLETE TUBE PLATE W/GASKET CXC 88-110
Ideal part no. 079497
46   OBSOLETE RETURN TUBE PLATE GASKET CXC
Ideal part no. 134015
47   OBSOLETE RETURN TUBE PLT W/GSKT CXC
Ideal part no. 079498
49   OBSOLETE SECONDARY HT EXCH BAFFLE CXC
Ideal part no. 134011
50   OBSOLETE FRONT ACCESS COVER ASSY CXC
Ideal part no. 133916
51   OBSOLETE REAR ACCESS COVER ASSY CXC
Ideal part no. 133917
52   OBSOLETE ACCESS COVER SEAL CXC
Ideal part no. 079499
53 Part number 078345, AUTO AIR VENT ASS SPRINT AUTO AIR VENT ASS SPRINT
Ideal part no. 078345
54   OBSOLETE CHECK VALVE R3/8 X G3/8 CXC
Ideal part no. 013864
55   OBSOLETE UPPER CHAMBER ASS CXC 44
Ideal part no. 133912
55   OBSOLETE UPPER CHAMBER ASS CXC 88
Ideal part no. 133914
56 Part number 134029, OBSOLETE FAN TORIN CXC OBSOLETE FAN TORIN CXC
Ideal part no. 134029
57   PRESSURE SWITCH GASKET CXC
Ideal part no. 134030		 £1.20
57   OBSOLETE PRESSURE SWITCH CX C44/66/88
Ideal part no. 004616
57   OBSOLETE PRESSURE SWITCH CX C110
Ideal part no. 004617
58   PRESS SWITCH HARNESS CXC 44-66
Ideal part no. 135582		 £5.98
58   OBSOLETE PRESS SWITCH HARNESS CXC 88-110
Ideal part no. 135583
59   FLOAT SWITCH ASS CXC 44-66
Ideal part no. 135748		 £41.20
59   OBSOLETE FLOAT SWITCH ASS CXC 88-110
Ideal part no. 135749
60   OBSOLETE HIGH PRESS TEST LINE ASS CXC
Ideal part no. 135745
61   OBSOLETE LOW PRESS TEST LINE ASS CXC
Ideal part no. 135746
62   OBSOLETE PRESS SENSING PIPE ASS LH CXC
Ideal part no. 135569
62   OBSOLETE PRESS SENSING PIPE ASS RH CXC
Ideal part no. 135568
62   OBSOLETE PRESSURE SENSING PIPE ASS CXC
Ideal part no. 134361
63   OBSOLETE UPPER CHAMBER GSK SET CXC
Ideal part no. 079490
64   OBSOLETE 9MM GRADA 515 SILICONE RUBS
Ideal part no. 082704
65   OBSOLETE INSTALLATION PACK CXC
Ideal part no. 133919
66   OBSOLETE H/WARE PK CXC INSTL PK
Ideal part no. 134038
67   OBSOLETE UNION FLEXIBLE HOSE CXC
Ideal part no. 133786
70   OBSOLETE TEE BEADED 2INX 2INX 2INBLK MALL
Ideal part no. 001356
71   OBSOLETE RED BUSH 2INX1IN MI BSP FIG 140
Ideal part no. 001334
73   R1 X 28MM COMP COUPLING
Ideal part no. 003840		 £9.65
74   OBSOLETE BALLOFIX VALVE 1.5INX28 NO 5306
Ideal part no. 003834
75   OBSOLETE PUMP 15-60 MEX/CXC
Ideal part no. 004812
76 Part number 133937, OBSOLETE CONDENSATE DRAIN ASS CXC OBSOLETE CONDENSATE DRAIN ASS CXC
Ideal part no. 133937
77   OBSOLETE RUNNING TRAP PCT 25 CXC
Ideal part no. 004636
78   OBSOLETE REDUCER 1 1/2IN X 1 1/4IN CXC
Ideal part no. 004635
79   OBSOLETE PUMP LEAD CXC
Ideal part no. 134043
80   OBSOLETE TRIPLE CONN CVR S/ASS CXC
Ideal part no. 135617
81   OBSOLETE CTRL BOX ASS CXC
Ideal part no. 135694
82   OBSOLETE CTRL BOX BK PNL ASSY CXC
Ideal part no. 135695
83 Part number 060562, PCB 1C BOARD (409800) PCB 1C BOARD (409800)
Ideal part no. 060562
84 Part number 060554, PCB 6A BOARD (403602) PCB 6A BOARD (403602)
Ideal part no. 060554		 £312.15
85   OBSOLETE SATRONIC BOX MM1810 MOD4034:CXC
Ideal part no. 004798
86   OBSOLETE CTRL BOX FRT PNL ASS CXC
Ideal part no. 135696
87   OBSOLETE SINGLE POLE ROCKER SWITCH
Ideal part no. 004832
88 Part number 058511, POTENTIOMETER ASS SUP+/CXC/CX2 POTENTIOMETER ASS SUP+/CXC/CX2
Ideal part no. 058511		 £38.43
89 Part number 013241, CONTROL KNOB T/STAT K526 CONTROL KNOB T/STAT K526
Ideal part no. 013241		 £17.14
90   OBSOLETE NEON GREEN LIGHT CAT 430C
Ideal part no. 003397
91   OBSOLETE NEON RED LIGHT CAT 430C
Ideal part no. 003395
92   OBSOLETE L E D LIGHT DOUBLE RED
Ideal part no. 004799
93   OBSOLETE FASCIA LABEL CXC
Ideal part no. 134982
94 Part number 013248, SENSOR ASSY ELECTRONIC T/STAT SENSOR ASSY ELECTRONIC T/STAT
Ideal part no. 013248		 £90.24
96   OBSOLETE CONNECTION PLUG ASS CXC
Ideal part no. 135684
97   OBSOLETE JKT PKGD CXC 66
Ideal part no. 133906
97   OBSOLETE JKT PKGD CXC 44
Ideal part no. 133905
97   OBSOLETE JKT PKGD CXC 110
Ideal part no. 133908
97   OBSOLETE JKT PKGD CXC 88
Ideal part no. 133907
98   OBSOLETE LWR LH JKT SIDE ASS CXC 88
Ideal part no. 133972
98   OBSOLETE LWR LH JKT SIDE ASS CXC 110
Ideal part no. 133973
98   OBSOLETE LWR LH JKT SIDE ASS CXC 44
Ideal part no. 133970
98   OBSOLETE LWR LH JKT SIDE ASS CXC 66
Ideal part no. 133971
99   OBSOLETE LWR RH JKT SIDE ASS CXC 66
Ideal part no. 133967
99   OBSOLETE LWR RH JKT SIDE ASS CXC 88
Ideal part no. 133968
99   OBSOLETE LWR RH JKT SIDE ASS CXC 110
Ideal part no. 133969
99   OBSOLETE LWR RH JKT SIDE ASS CXC 44
Ideal part no. 133966
100   OBSOLETE JACKET TOP PNL ASS CXC 88
Ideal part no. 133976
100   OBSOLETE JACKET TOP PNL ASS CXC 66
Ideal part no. 133975
100   OBSOLETE JACKET TOP PNL ASS CXC 44
Ideal part no. 133974
100   OBSOLETE JACKET TOP PNL ASS CXC 110
Ideal part no. 133977
101   OBSOLETE UPPER LH SIDE PNL ASS CXC
Ideal part no. 133982
102   OBSOLETE UPPER RH SIDE PNL ASS CXC
Ideal part no. 133981
103   OBSOLETE FLUE TOP PANEL ASS CXC
Ideal part no. 133984
104   OBSOLETE UPPER FRONT PANEL PTD CXC
Ideal part no. 133983
105   OBSOLETE LOWER FRONT PANEL ASS CXC
Ideal part no. 133978
106   OBSOLETE UPPER BACK PNL ASS CXC
Ideal part no. 133980
107   OBSOLETE LOWER BACK PNL ASS CXC
Ideal part no. 133979
108   OBSOLETE UPP/LWR INFILL PNLS CXC
Ideal part no. 079500
109   OBSOLETE LOWER FRONT DEFLECTOR PNL CXC
Ideal part no. 133986
110   OBSOLETE TOP FIXING BRKT ASS CX140-340
Ideal part no. 059827
111   OBSOLETE JACKET TOP STRAP ASS CXC
Ideal part no. 133985
112   OBSOLETE H/WARE PK-JKT CXC
Ideal part no. 013837
113   OBSOLETE FLUE BRUSHINPINNACLEIN CX RANGE
Ideal part no. 017498
114   OBSOLETE SP NPL 1/4 X 118
Ideal part no. 135697
115   OBSOLETE SP NPL 1/4 X 173
Ideal part no. 135698
116   OBSOLETE SP NPL 1 X 156
Ideal part no. 135699
117   OBSOLETE SP NPL 3/4 X 167
Ideal part no. 135744
118   OBSOLETE SP NPL 1/4 X 59
Ideal part no. 135747
119   OBSOLETE TEE RC 1 X RC1 RC1/4IN
Ideal part no. 004836
120   OBSOLETE SP NPL 2 X 337
Ideal part no. 134037
121   OBSOLETE SP NPL 1 1/4 X 335
Ideal part no. 134040
122   OBSOLETE SP NPL 2 X 374
Ideal part no. 135621
123   OBSOLETE CONV KIT PROP TO NG:CXC 44P
Ideal part no. 136106
124   OBSOLETE CONV KIT PROP TO NG:CXC 66P
Ideal part no. 136107


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
