COMPACT EXTRA - (Burner Control Ass 1)
Appliance Code: 41-421-52

Appliance Diagram

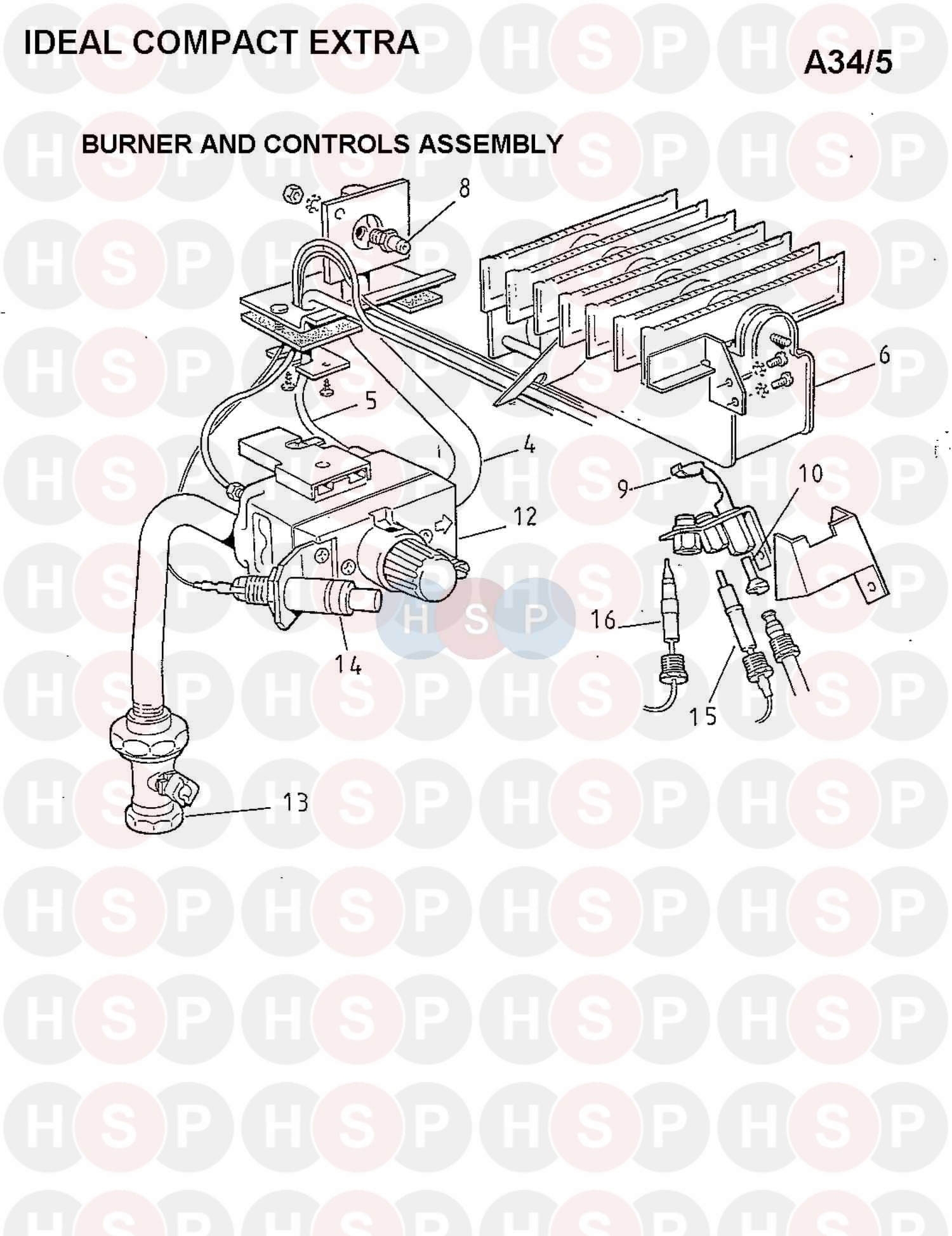

Burner Control Ass 1 diagram for Ideal Compact ExtraClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE M5 HOOK BOLT ZP ELAN SR1-SR2-2
Ideal part no. 058490

0   OBSOLETE TIME SWITCH MOD TEK PTS 31-M PROGRAMMER
Ideal part no. 113140

0   OBSOLETE M5 WING NUT ZP
Ideal part no. 000799

1   OBSOLETE HT EXCH ASS COMPACT EXTRA
Ideal part no. 136575

2   OBSOLETE COLL HOOD ASSY ELAN RS30/40
Ideal part no. 078553

3   OBSOLETE SIGHT GLASS ASSY - BNR BOX
Ideal part no. 079333

4   OBSOLETE GAS MANIFOLD ELAN 2 RS
Ideal part no. 079337

5   OBSOLETE PLT PIPE ELAN2 CF30/60 SIT
Ideal part no. 079259

6   OBSOLETE MAIN BURNER 118 500 047
Ideal part no. 013703

7   OBSOLETE BNR MTG FLANGE GASKET:ELAN
Ideal part no. 058496

8   OBSOLETE INJECTOR BNR BRAY CAT 103 SIZE 900
Ideal part no. 004544

9   OBSOLETE PILOT BNR C/W INJECTOR
Ideal part no. 079298

10 Part number 004053, INJECTOR PILOT SIT 0-977-113 DBL INJECTOR PILOT SIT 0-977-113 DBL
Ideal part no. 004053

11   OBSOLETE PLT SHIELD:EL 2 RS50-60(SIT)
Ideal part no. 028020

12   OBSOLETE GAS VALVE RC3/8 SIT 0680 009
Ideal part no. 004050

13   OBSOLETE GAS COCK ASSY COMPACT EXTRA
Ideal part no. 077011

14 Part number 003939, SPARK GENERATOR 60080/002 SPARK GENERATOR 60080/002
Ideal part no. 003939

15 Part number 078611, OBSOLETE IGN E/TRODE 0-007-213 KIT OBSOLETE IGN E/TRODE 0-007-213 KIT
Ideal part no. 078611

16 Part number 004058, THERMOCOUPLE 600mm LG 0.290.150 THERMOCOUPLE 600MM LG 0.290.150
Ideal part no. 004058
£18.94
17   OBSOLETE GAS INLET PIPE PTD COMPACT EX
Ideal part no. 135422

18   OBSOLETE BNR & CTRLS ASS COMPACT EX
Ideal part no. 136632

21   OBSOLETE BULGIN CNTRL KNOB COMP EXTRA
Ideal part no. 078790

22   OBSOLETE GAS VALVE LEAD COMPACT EXTRA
Ideal part no. 136532

23   OBSOLETE BLR T/STAT LEAD COMPACT EXTRA
Ideal part no. 136637

24   OBSOLETE MAINS LEAD COMPACT EXTRA
Ideal part no. 136641

25   OBSOLETE PUMP LEAD COMPACT EXTRA
Ideal part no. 136645

26 Part number 079634, OBSOLETE T/STAT H/STAT ASSY COMBI OBSOLETE T/STAT H/STAT ASSY COMBI
Ideal part no. 079634

27   OBSOLETE BLR CSG ASS COMPACT EXTRA
Ideal part no. 078791

28   OBSOLETE CTRL DOOR ASS COMPACT EXTRA
Ideal part no. 136643

29   OBSOLETE CSG TRIMS GREY(PR)COMPACTX
Ideal part no. 078792

30   OBSOLETE SEALING PACK COMPACT RS30
Ideal part no. 079188

34   OBSOLETE H/WARE PK ELAN CF
Ideal part no. 132961

35   OBSOLETE BACK PNL/INTERPANEL ASS COM XTRA
Ideal part no. 078793

36   OBSOLETE FLOW/VENT/COLD FEED PIPE COMPAT
Ideal part no. 135072

37   OBSOLETE BOILER RETURN PIPE COMP EXTRA
Ideal part no. 135070

38   OBSOLETE DIV VALVE O/LET PIPE COMPACT
Ideal part no. 136097

39   OBSOLETE PUMP/DIV VALVE PIPE COMP EXTRA
Ideal part no. 135071

40   OBSOLETE POWER HEAD 40003916-052
Ideal part no. 065745

40   OBSOLETE SYNCRON MOTOR 40002737-003/U
Ideal part no. 065746

40 Part number 079689, OBSOLETE DIVERTER VALVE RAP NF/RS KIT OBSOLETE DIVERTER VALVE RAP NF/RS KIT
Ideal part no. 079689

41   OBSOLETE PUMP GRUNDFOS UPS 15/50 SPEC
Ideal part no. 113109

42 Part number 004893, BALL VALVE 22mm REF 5305 BALL VALVE 22MM REF 5305
Ideal part no. 004893
£19.56
44   OBSOLETE THERMISTOR BOX ASS ROOM COMPX
Ideal part no. 136646

45   OBSOLETE THERMISTOR BOX ASS CYLINDER
Ideal part no. 136647

46   OBSOLETE THERMISTOR MULLARD 232264262223
Ideal part no. 004894

47   OBSOLETE H/WARE PK COMPACT EXTRA
Ideal part no. 136644

48   OBSOLETE LIMIT STAT KIT COMPACT EXTRA
Ideal part no. 136649
