IDEAL
CLASSIC RS3 30 - (Burner)
Appliance Code: 41-392-09

Appliance Diagram

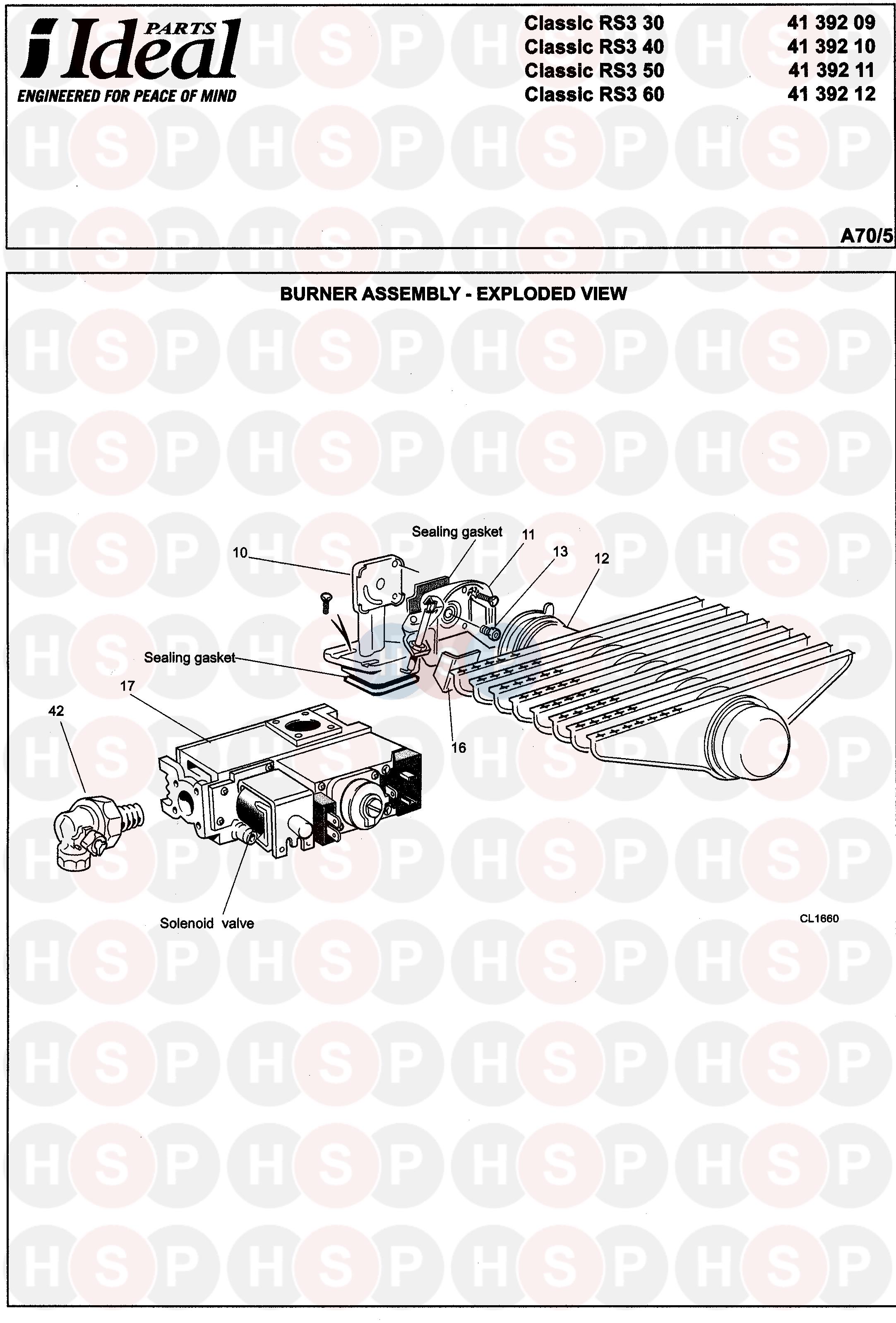

Burner diagram for Ideal Classic RS3 30Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   HEAT EXCHANGER ASSY 30/40 KIT
Ideal part no. 171910
£242.06
1   HEAT EXCHANGER ASSY 50/60 KIT
Ideal part no. 171911
£436.45
2   OBSOLETE FLUE BAFFLE 30 KIT
Ideal part no. 171912

2   OBSOLETE FLUE BAFFLE 50 KIT
Ideal part no. 171914

2   FLUE BAFFLE 40 KIT
Ideal part no. 171913
£15.63
2   FLUE BAFFLE 60 KIT
Ideal part no. 171915
£12.10
3 Part number 171385, HOOK BOLT KIT CLA FF50-60 HOOK BOLT KIT CLA FF50-60
Ideal part no. 171385

3 Part number 171384, HOOK BOLT KIT CLA FF30-40 HOOK BOLT KIT CLA FF30-40
Ideal part no. 171384

4   PIPE - LH FLOW KIT
Ideal part no. 171916
£13.14
4 Part number 171918, PIPE - RETURN KIT PIPE - RETURN KIT
Ideal part no. 171918
£24.41
4 Part number 171917, PIPE - RH FLOW KIT PIPE - RH FLOW KIT
Ideal part no. 171917
£10.81
5 Part number 171919, PIPE - RETURN ASSY 30/40 KIT PIPE - RETURN ASSY 30/40 KIT
Ideal part no. 171919
£22.31
5 Part number 171920, PIPE - RETURN ASSY 50/60 KIT PIPE - RETURN ASSY 50/60 KIT
Ideal part no. 171920
£37.06
6   COLLECTOR HOOD ASSY 60 KIT
Ideal part no. 171924
£28.25
6 Part number 171923, OBSOLETE COLLECTOR HOOD ASSY 40/50 KIT OBSOLETE COLLECTOR HOOD ASSY 40/50 KIT
Ideal part no. 171923

7 Part number 171403, COMBUSTION CHMB ASSY KIT CLA COMBUSTION CHMB ASSY KIT CLA
Ideal part no. 171403

7   COMBUSTION CHMB ASSY KIT CLA
Ideal part no. 171402
£31.22
8 Part number 171413, COMB CHAMB INSULATION KIT CLA FF70-80-10 COMB CHAMB INSULATION KIT CLA FF70-80-10
Ideal part no. 171413

8 Part number 171412, COMB CHAMB INSULATION KIT CLA FF50-60 COMB CHAMB INSULATION KIT CLA FF50-60
Ideal part no. 171412

9 Part number 171414, SIGHT GLASS ASSY KIT CLA FF SIGHT GLASS ASSY KIT CLA FF
Ideal part no. 171414
£9.33
10 Part number 171415, OBSOLETE GAS MANIFOLD & GASKET KIT CLA FF OBSOLETE GAS MANIFOLD & GASKET KIT CLA FF
Ideal part no. 171415

11 Part number 171455, OBSOLETE AIR BOX & GASKET KIT CLA FF OBSOLETE AIR BOX & GASKET KIT CLA FF
Ideal part no. 171455

12 Part number 171416, OBSOLETE MAIN BURNER KIT CLA FF70-80-100 OBSOLETE MAIN BURNER KIT CLA FF70-80-100
Ideal part no. 171416

12 Part number 171013, OBSOLETE MAIN BURNER FF250/260 SPARES KIT OBSOLETE MAIN BURNER FF250/260 SPARES KIT
Ideal part no. 171013

13 Part number 171427, MAIN INJECTOR KIT CLA FF60 MAIN INJECTOR KIT CLA FF60
Ideal part no. 171427

13 Part number 171425, MAIN INJECTOR KIT CLA FF40 MAIN INJECTOR KIT CLA FF40
Ideal part no. 171425
£7.00
13 Part number 171426, MAIN INJECTOR KIT CLA FF50 MAIN INJECTOR KIT CLA FF50
Ideal part no. 171426

14 Part number 171434, PILOT BURNER INJECTOR CLA FF30-80 PILOT BURNER INJECTOR CLA FF30-80
Ideal part no. 171434

14 Part number 171437, PILOT BURNER INJECTOR SLG WAS KIT CLA FF PILOT BURNER INJECTOR SLG WAS KIT CLA FF
Ideal part no. 171437

15 Part number 171438, PILOT BNR HEAD C/W INJ KIT CLA FF30-80 PILOT BNR HEAD C/W INJ KIT CLA FF30-80
Ideal part no. 171438

16 Part number 171506, PILOT BURNER SHIELD KIT CLA FF PILOT BURNER SHIELD KIT CLA FF
Ideal part no. 171506

17 Part number 171925, GAS VALVE KIT GAS VALVE KIT
Ideal part no. 171925
£251.88
18 Part number 171442, IGNITION ELECTRODE KIT CLA FF IGNITION ELECTRODE KIT CLA FF
Ideal part no. 171442
£27.65
18 Part number 171973, DETECTION ELECTRODE ASSY KIT DETECTION ELECTRODE ASSY KIT
Ideal part no. 171973

19   CONTROL BOX KIT
Ideal part no. 171969
£29.11
19 Part number 171928, OBSOLETE CONTROL BOX(COMPLETE WITH PCB) KIT OBSOLETE CONTROL BOX(COMPLETE WITH PCB) KIT
Ideal part no. 171928

20   MAINS CONNECTOR KIT CLA FF
Ideal part no. 171453
£9.22
20   MAINS & PCB HARNESS ASSY KIT
Ideal part no. 171977
£14.77
22 Part number 171930, THERMOSTAT POCKET KIT THERMOSTAT POCKET KIT
Ideal part no. 171930
£22.75
23 Part number 079716, NOW USE PART NO 173799 PCB 25D BOARD NOW USE PART NO 173799 PCB 25D BOARD
Ideal part no. 079716

23   CONTROLS POD DOOR KIT
Ideal part no. 171978
£18.31
23   OBSOLETE 1 AMP FUSES BOARD 7
Ideal part no. 065668

23 Part number 173799, PCB 25E PCB 25E
Ideal part no. 173799
£166.72
25 Part number 171970, OBSOLETE THERMOSTAT KIT OBSOLETE THERMOSTAT KIT
Ideal part no. 171970

26 Part number 171929, THERMOSTAT KNOB KIT THERMOSTAT KNOB KIT
Ideal part no. 171929

34 Part number 172004, OBSOLETE FLUE DUCT ASSY OBSOLETE FLUE DUCT ASSY
Ideal part no. 172004

35   OBSOLETE BOILER CASING ASSY 50-60 KIT
Ideal part no. 171975

35   OBSOLETE BOILER CASING ASSY 30-40 KIT
Ideal part no. 171974

35 Part number 171478, CASING FIXING PACK KIT CLA FF CASING FIXING PACK KIT CLA FF
Ideal part no. 171478
£16.19
37 Part number 171460, CASING - CONTROLS AREA CLA FF CASING - CONTROLS AREA CLA FF
Ideal part no. 171460
£47.71
39 Part number 171479, CASING SEAL & JKT SCREWS KIT CLA FF CASING SEAL & JKT SCREWS KIT CLA FF
Ideal part no. 171479
£13.73
41 Part number 171482, TERMINAL WALL PLATE KIT CLA FF TERMINAL WALL PLATE KIT CLA FF
Ideal part no. 171482

42 Part number 171927, GAS COCK ASSY KIT GAS COCK ASSY KIT
Ideal part no. 171927
£43.36
45 Part number 171950, LIMIT STAT (LM7) LIMIT STAT (LM7)
Ideal part no. 171950
£42.72
48 Part number 170719, OBSOLETE AIR DUCT SEALING PLT ASSY CLASSIC FF200 OBSOLETE AIR DUCT SEALING PLT ASSY CLASSIC FF200
Ideal part no. 170719

53   OBSOLETE WALL MNTG PLT ASSY CLASSIC RS
Ideal part no. 079593

53   WALL MOUNTING TEMPLATE KIT
Ideal part no. 172005
£4.97
300 Part number 171951, FLUE EXT TUBE KIT FLUE EXT TUBE KIT
Ideal part no. 171951

300 Part number 171926, GAS VALVE COVER & SCREW KIT GAS VALVE COVER & SCREW KIT
Ideal part no. 171926
£8.38
500 Part number 113089, PRESSURE GAUGE PRESSURE GAUGE
Ideal part no. 113089
£103.05
500 Part number 113116, 3/8 IN AUTO AIR VENT 3/8 IN AUTO AIR VENT
Ideal part no. 113116
£29.95
500 Part number 137663, T/STAT POCKET ASS CLASSIC T/STAT POCKET ASS CLASSIC
Ideal part no. 137663

500 Part number 113205, EXPANSION VESSEL 8 LTR S/S KIT EXPANSION VESSEL 8 LTR S/S KIT
Ideal part no. 113205
£108.69
500 Part number 112047, ECO LEAD ASS NO 1 STAT KIT CL2 ECO LEAD ASS NO 1 STAT KIT CL2
Ideal part no. 112047
£9.54
500   H/WARE PK SEALED/SYS RS200 CLA
Ideal part no. 112383
£29.74
500   WALL PLATE SEALED SYSTEM
Ideal part no. 100786
£5.50
500 Part number 013300, 1/2 SEAL WASHER 1/2 SEAL WASHER
Ideal part no. 013300
£2.47
500   OBSOLETE PUMP 5M HEAD ONLY SPARES KIT
Ideal part no. 171867

500   OBSOLETE 5M DW CIRCULATING PUMP COMPLETE
Ideal part no. 171865

500 Part number 005713, FLEXIBLE HOSE COMBI FLEXIBLE HOSE COMBI
Ideal part no. 005713
£26.60
500 Part number 075248, 1/2IN SAFETY VALVE ASSY ALTECNI 1/2IN SAFETY VALVE ASSY ALTECNI
Ideal part no. 075248
£36.00
500 Part number 013914, OBSOLETE PUMP WASHER SPRINT OBSOLETE PUMP WASHER SPRINT
Ideal part no. 013914

500 Part number 113201, LIMIT STAT LM7 P9054 CLASSIC RS LIMIT STAT LM7 P9054 CLASSIC RS
Ideal part no. 113201
