IDEAL
CLASSIC RS 230 - (Boiler Assembly 1)
Appliance Code: 41-387-10

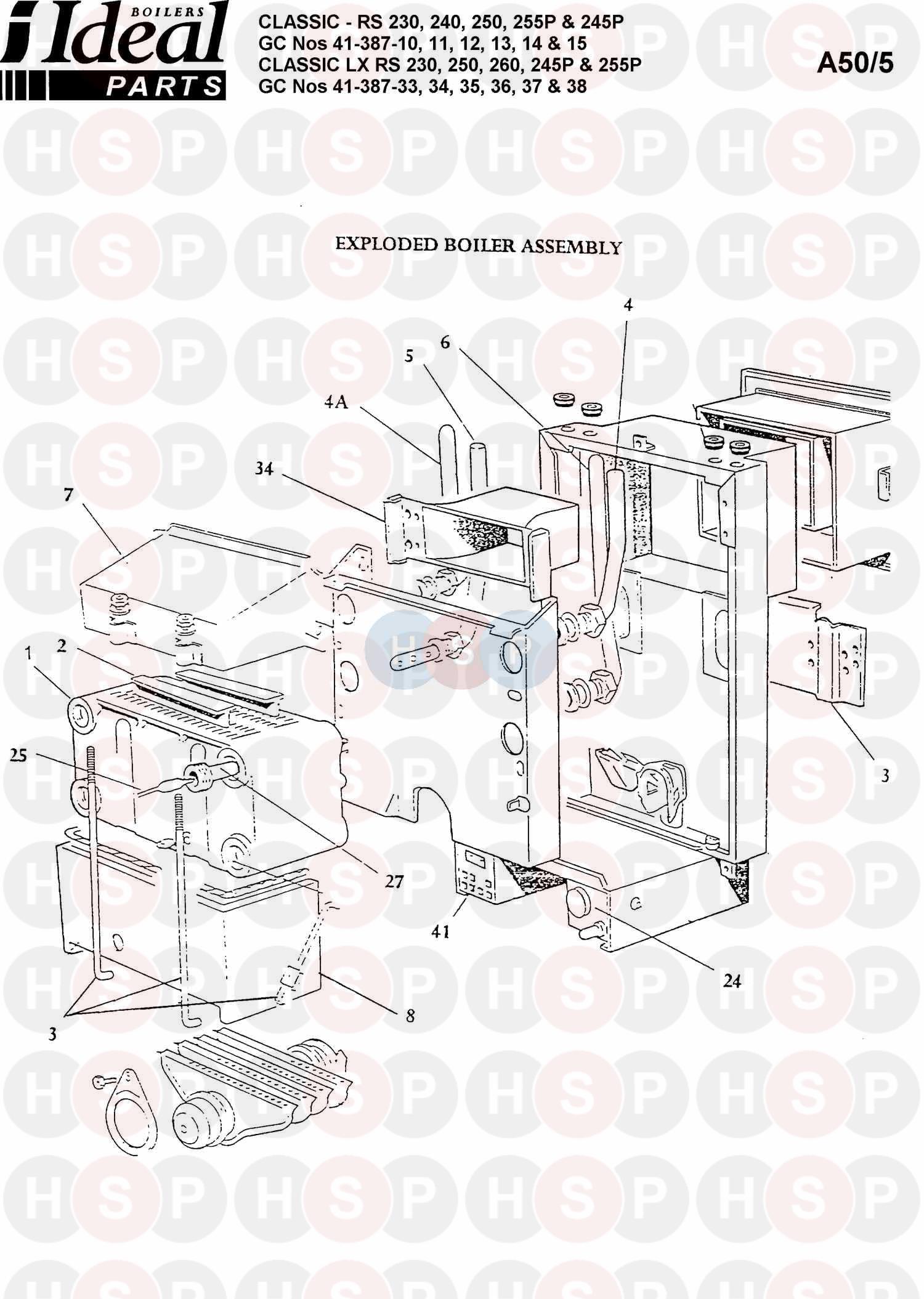

Appliance Diagram


Boiler Assembly 1 diagram for Ideal Classic RS 230Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE PUMP GRUNDFOS UPS 15-50 STD
Ideal part no. 113221
0 Part number 112047, ECO LEAD ASS NO 1 STAT KIT CL2 ECO LEAD ASS NO 1 STAT KIT CL2
Ideal part no. 112047		 £9.54
0 Part number 100788, FLOW P/WORK ASS SEALED SYSTEM FLOW P/WORK ASS SEALED SYSTEM
Ideal part no. 100788		 £393.32
0   RETURN PIPE SEALED SYSTEM
Ideal part no. 100792		 £8.67
0   OBSOLETE PUMP OUTLET PIPE SEALED SYSTEM
Ideal part no. 100791
0   WALL PLATE SEALED SYSTEM
Ideal part no. 100786		 £5.50
0   OBSOLETE PIPEWORK ASS:SEALED SYSTEM
Ideal part no. 100818
0 Part number 005713, FLEXIBLE HOSE COMBI FLEXIBLE HOSE COMBI
Ideal part no. 005713		 £26.60
0 Part number 004984, BURNER BRKT ASS Q359A 1124B BURNER BRKT ASS Q359A 1124B
Ideal part no. 004984		 £16.91
0 Part number 004944, GROMMET DIAPHRAGM R/MOSS800475 GROMMET DIAPHRAGM R/MOSS800475
Ideal part no. 004944		 £3.17
0   JKT ASS PTD SEALED/SYS CL2
Ideal part no. 112350		 £78.66
0 Part number 113089, PRESSURE GAUGE PRESSURE GAUGE
Ideal part no. 113089		 £103.05
0 Part number 137663, T/STAT POCKET ASS CLASSIC T/STAT POCKET ASS CLASSIC
Ideal part no. 137663
0 Part number 113201, LIMIT STAT LM7 P9054 CLASSIC RS LIMIT STAT LM7 P9054 CLASSIC RS
Ideal part no. 113201
0 Part number 113205, EXPANSION VESSEL 8 LTR S/S KIT EXPANSION VESSEL 8 LTR S/S KIT
Ideal part no. 113205		 £108.69
0   CONV KIT PKGD:CLASSIC RS255P
Ideal part no. 112698		 £80.65
0   CONV KIT PKGD:CLASSIC RS245P
Ideal part no. 112697		 £75.67
0 Part number 113116, 3/8 IN AUTO AIR VENT 3/8 IN AUTO AIR VENT
Ideal part no. 113116		 £29.95
0 Part number 113026, NOW USE 075248 1/2IN SAFETY VALVE ASS ALTECNIC NOW USE 075248 1/2IN SAFETY VALVE ASS ALTECNIC
Ideal part no. 113026
0 Part number 013914, OBSOLETE PUMP WASHER SPRINT OBSOLETE PUMP WASHER SPRINT
Ideal part no. 013914
0 Part number 013300, 1/2 SEAL WASHER 1/2 SEAL WASHER
Ideal part no. 013300		 £2.47
0 Part number 111377, OBSOLETE THERMOCOUPLE REROUT 45002663-001 CL2 OBSOLETE THERMOCOUPLE REROUT 45002663-001 CL2
Ideal part no. 111377
0   OBSOLETE CTRL CSG POD ASSY CLASS RS 200
Ideal part no. 075236
0   H/WARE PK SEALED/SYS RS200 CLA
Ideal part no. 112383		 £29.74
0 Part number 004893, BALL VALVE 22MM REF 5305 BALL VALVE 22MM REF 5305
Ideal part no. 004893		 £19.56
0 Part number 075248, 1/2IN SAFETY VALVE ASSY ALTECNI 1/2IN SAFETY VALVE ASSY ALTECNI
Ideal part no. 075248		 £36.00
1 Part number 137485, INTERPANEL ASS RS230 CLASSIC INTERPANEL ASS RS230 CLASSIC
Ideal part no. 137485		 £344.19
2 Part number 079930, OBSOLETE 2 FLUEWAY BAFFLES CLASSIC RS30 OBSOLETE 2 FLUEWAY BAFFLES CLASSIC RS30
Ideal part no. 079930
3   OBSOLETE HOOK BOLTS C/W FIXINGS 50/80NF
Ideal part no. 079583
4   OBSOLETE R H FLOW PIPE CLASSIC RS
Ideal part no. 137457
4   OBSOLETE L H FLOW PIPE CLASSIC RS
Ideal part no. 137458
5 Part number 137460, RETURN PIPE ASS CLASSIC RS 30 RETURN PIPE ASS CLASSIC RS 30
Ideal part no. 137460		 £12.61
6   OBSOLETE RTRN PIPE/DHW CLASSIC RS
Ideal part no. 137459
7   OBSOLETE COLL HD ASS CLASSIC RS30
Ideal part no. 137334
8 Part number 112442, OBSOLETE Combustion Chamber Ass Rs230 1HBR ASS RS230 OBSOLETE COMBUSTION CHAMBER ASS RS230 1HBR ASS RS230
Ideal part no. 112442
9   OBSOLETE COMB CHAMB INSUL CLASSIC RS 30
Ideal part no. 079933
10 Part number 079602, NOW USE171414 SIGHT GLASS KIT CLASSIC (DEN) NOW USE171414 SIGHT GLASS KIT CLASSIC (DEN)
Ideal part no. 079602
10 Part number 171414, SIGHT GLASS ASSY KIT CLA FF SIGHT GLASS ASSY KIT CLA FF
Ideal part no. 171414		 £9.33
11   OBSOLETE GAS M/FOLD ASSY CLASSIC 2 RS/NF
Ideal part no. 079588
12   OBSOLETE AIR BOX C/W GSKT RS/NF CLASSIC
Ideal part no. 079589
13   OBSOLETE MAIN BURNER AEROMATIC NF230/240 RS230
Ideal part no. 111707
14 Part number 004858, OBSOLETE INJ BNR BRAY CAT 10 SIZE 800 - P53 10800 OBSOLETE INJ BNR BRAY CAT 10 SIZE 800 - P53 10800
Ideal part no. 004858
15   OBSOLETE INJECTOR PILOT 45900421-001 38/36A
Ideal part no. 004981
16   OBSOLETE P/BNR HEAD Q359A 1124 W/INJ
Ideal part no. 079590
17 Part number 137330, PILOT SHIELD CLASSIC/ELAN PILOT SHIELD CLASSIC/ELAN
Ideal part no. 137330
18 Part number 075697, NOW USE 171925 GAS VALVE KIT CLASSIC RS NOW USE 171925 GAS VALVE KIT CLASSIC RS
Ideal part no. 075697
18 Part number 171925, GAS VALVE KIT GAS VALVE KIT
Ideal part no. 171925		 £251.88
19   OBSOLETE GAS VALVE COVER + SCREW
Ideal part no. 079936
20   OBSOLETE GAS COCK ASSY CLASSIC NF/RS
Ideal part no. 079946
21 Part number 003939, SPARK GENERATOR 60080/002 SPARK GENERATOR 60080/002
Ideal part no. 003939
22 Part number 111881, IGN/DETN ELECTRODE AND LEAD CL2 NOW USE 171442 IGN/DETN ELECTRODE AND LEAD CL2 NOW USE 171442
Ideal part no. 111881
22 Part number 171442, IGNITION ELECTRODE KIT CLA FF IGNITION ELECTRODE KIT CLA FF
Ideal part no. 171442		 £27.65
23 Part number 111880, THERMOCOUPLE RS CL2 THERMOCOUPLE RS CL2
Ideal part no. 111880
24 Part number 111974, OBSOLETE CTRL BOX ASS RS200 CLASSIC OBSOLETE CTRL BOX ASS RS200 CLASSIC
Ideal part no. 111974
25 Part number 113193, OBSOLETE T/STAT K36L1016 CLASSIC OBSOLETE T/STAT K36L1016 CLASSIC
Ideal part no. 113193
25 Part number 171970, OBSOLETE THERMOSTAT KIT OBSOLETE THERMOSTAT KIT
Ideal part no. 171970
26 Part number 013909, OBSOLETE CONTROL KNOB ASS T/STAT MX2 SUP OBSOLETE CONTROL KNOB ASS T/STAT MX2 SUP
Ideal part no. 013909
27   OBSOLETE T/STAT POCKET CLASSIC RS
Ideal part no. 137710
28   OBSOLETE BOILER CASE C/W DOOR CLA RS
Ideal part no. 079932
29 Part number 079937, CONTROL CSG DOOR W/INST CLA2RS CONTROL CSG DOOR W/INST CLA2RS
Ideal part no. 079937
30   OBSOLETE WALL MNTG PLT ASSY CLASSIC RS
Ideal part no. 079593
31 Part number 079594, CSG SEAL W/FIX CLASSIC (KIT) CSG SEAL W/FIX CLASSIC (KIT)
Ideal part no. 079594
32 Part number 100368, EDGE CLIP D TYPE H/DORE 3791 EDGE CLIP D TYPE H/DORE 3791
Ideal part no. 100368		 £2.47
33 Part number 100369, MAGNETIC CATCH-GREY RAL.7035 MAGNETIC CATCH-GREY RAL.7035
Ideal part no. 100369		 £5.22
34   OBSOLETE FLUE DUCT ASS CLASSIC RS
Ideal part no. 137309
35   OBSOLETE H/WARE PK CLASSIC RS/EL 2
Ideal part no. 137567
36 Part number 013514, NO 10X2 1/2IN WOOD SCREW RD HD DES 0250 NO 10X2 1/2IN WOOD SCREW RD HD DES 0250
Ideal part no. 013514		 £2.47
37 Part number 079662, MANIFOLD GASKET SET MANIFOLD GASKET SET
Ideal part no. 079662		 £20.23
38   OBSOLETE JACKING SCREW ASS UNPTD VAR S
Ideal part no. 131711
39 Part number 113164, OBSOLETE BACK PNL GASKET CLASSIC/EL2-2 OBSOLETE BACK PNL GASKET CLASSIC/EL2-2
Ideal part no. 113164
40   OBSOLETE TOP CVR PNL PTD EL2/CLASSIC RS
Ideal part no. 137950
41 Part number 110080, PROGRAMMER MP 241/01 PROGRAMMER MP 241/01
Ideal part no. 110080		 £297.70
42   WIRING ASSY RS200 CLASSIC
Ideal part no. 112029		 £6.23
43   EARTH LEAD ASS- SUP-BOX RS CL2
Ideal part no. 112028		 £1.98
45   M5 X 8 P/P HD SCREW DES SPEC 0250
Ideal part no. 003227		 £2.22
46   OBSOLETE BLR CASING ASS COMPLETE:LX RS
Ideal part no. 077357
47   OBSOLETE JACKET CSG ASSY RS200 LX CLASS
Ideal part no. 112731
48   OBSOLETE GLASS FASCIA LOW-IRON RS200 LX
Ideal part no. 112733
49   OBSOLETE FASCIA TRIM WHITE RS200 LX CLA
Ideal part no. 138406
50   OBSOLETE FASCIA TRIM BEIGE RS200 LX CLA
Ideal part no. 138251
