IDEAL
CLASSIC COMBI NF80 - (Boiler Assembly 1)
Appliance Code: 47-415-07

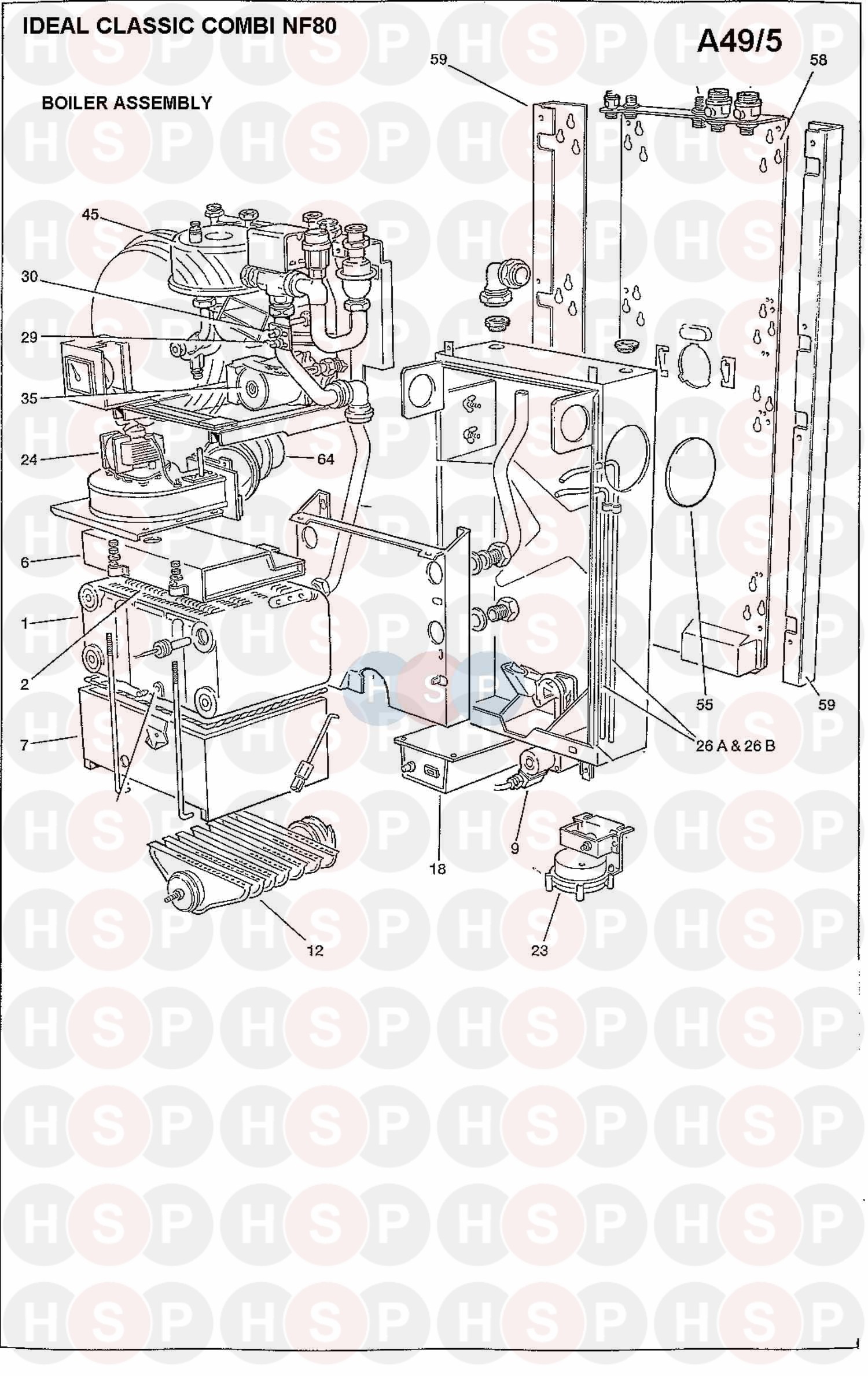

Appliance Diagram


Boiler Assembly 1 diagram for Ideal Classic Combi NF80Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   7/8IN SEALING WASHER
Ideal part no. 113048		 £2,24
0 Part number 100369, MAGNETIC CATCH-GREY RAL.7035 MAGNETIC CATCH-GREY RAL.7035
Ideal part no. 100369		 £5,22
0 Part number 013300, 1/2 SEAL WASHER 1/2 SEAL WASHER
Ideal part no. 013300		 £2,47
0 Part number 060526, OBSOLETE PLASTIC COOL/FAN REF WCF690153 OBSOLETE PLASTIC COOL/FAN REF WCF690153
Ideal part no. 060526
0 Part number 013324, 3/4IN SEALING WASHER VARS 3/4IN SEALING WASHER VARS
Ideal part no. 013324		 £3,98
0 Part number 079662, MANIFOLD GASKET SET MANIFOLD GASKET SET
Ideal part no. 079662		 £20,23
0   OBSOLETE WALL MTG TEMPLATE COMBI
Ideal part no. 005587
0 Part number 005627, BALL VALVE 22mm COMP B/HD CONN BALL VALVE 22MM COMP B/HD CONN
Ideal part no. 005627		 £30,30
0   OBSOLETE ISO VALVE 15MM
Ideal part no. 005628
1   OBSOLETE INTERPANEL ASS:COMBI
Ideal part no. 005819
2   OBSOLETE FLUEWAY BAFFLES
Ideal part no. 079597
3   OBSOLETE HOOK BOLTS C/W FIXINGS 50/80NF
Ideal part no. 079583
4   OBSOLETE R H FLOW PIPE CLASSIC NF
Ideal part no. 137463
5   OBSOLETE RETURN PIPE ASS CLASSIC 80NF
Ideal part no. 137468
6   OBSOLETE COLL HD ASS CLASSIC NF 80
Ideal part no. 137510
7   COMB CHAMBER INSUL NF/RS
Ideal part no. 079586
7   OBSOLETE COMB CHBR ASS CLASS RS60/NF80
Ideal part no. 137479
8 Part number 171414, SIGHT GLASS ASSY KIT CLA FF SIGHT GLASS ASSY KIT CLA FF
Ideal part no. 171414		 £9,33
8 Part number 079602, NOW USE171414 SIGHT GLASS KIT CLASSIC (DEN) NOW USE171414 SIGHT GLASS KIT CLASSIC (DEN)
Ideal part no. 079602
9   OBSOLETE GAS VALVE KIT TK/GAS (KIT)
Ideal part no. 079639
9   OBSOLETE GAS VALVE-RED RATE SER 25 BLACK
Ideal part no. 005820
10   OBSOLETE GAS M/FOLD ASSY CLASSIC 2 RS/NF
Ideal part no. 079588
11   OBSOLETE AIR BOX C/W GSKT RS/NF CLASSIC
Ideal part no. 079589
12   OBSOLETE MAIN BURNER AEROMATIC 19/123264 80NF
Ideal part no. 113179
13   OBSOLETE INJECTOR BNR BRAY CAT 10 SIZE 2400
Ideal part no. 004444
14 Part number 004982, INJECTOR PILOT 45900421-002 56/42A INJECTOR PILOT 45900421-002 56/42A
Ideal part no. 004982
14   OBSOLETE P/BNR HEAD Q359A1124 NF CL/SIC
Ideal part no. 079599
15 Part number 137330, PILOT SHIELD CLASSIC/ELAN PILOT SHIELD CLASSIC/ELAN
Ideal part no. 137330
16   SOLENOID COIL 45900406-003U
Ideal part no. 060524		 £45,78
16 Part number 079600, H/WELL VALVE 1042 NF CLASSIC H/WELL VALVE 1042 NF CLASSIC
Ideal part no. 079600		 £250,88
17 Part number 113172, IGNITION ELECTRODE CLASSIC IGNITION ELECTRODE CLASSIC
Ideal part no. 113172
18   OBSOLETE CTRL BOX ASS COMBI
Ideal part no. 005818
19   OBSOLETE ROTARY ON/OFF SWITCH:COMBI
Ideal part no. 005823
20 Part number 079601, NOW USE 171504 T/STAT KNOB ASSY CLASSIC NOW USE 171504 T/STAT KNOB ASSY CLASSIC
Ideal part no. 079601
20 Part number 171504, POTENTIOMETER KNOB & CAP KIT CLA FF POTENTIOMETER KNOB & CAP KIT CLA FF
Ideal part no. 171504		 £7,89
21 Part number 079716, NOW USE PART NO 173799 PCB 25D BOARD NOW USE PART NO 173799 PCB 25D BOARD
Ideal part no. 079716
21 Part number 173799, PCB 25E PCB 25E
Ideal part no. 173799		 £166,72
22   OBSOLETE 1 POLE ROCK/SWITCH 100011E BLK
Ideal part no. 004882
23 Part number 137990, PRESSURE SWITCH ASS CLASSIC NF PRESSURE SWITCH ASS CLASSIC NF
Ideal part no. 137990		 £95,79
24 Part number 137568, FAN ASS CLASSIC NF30-80 FAN ASS CLASSIC NF30-80
Ideal part no. 137568
25   OBSOLETE FAN HARNESS CLASSIC NF/EL2-2
Ideal part no. 137660
26   OBSOLETE PRESS SENSING PIPE - COMBI NF
Ideal part no. 137471
26   PRESS SENSING PIPE POSITIVE COMBI NF
Ideal part no. 137472
27 Part number 113116, 3/8 IN AUTO AIR VENT 3/8 IN AUTO AIR VENT
Ideal part no. 113116		 £29,95
28 Part number 113089, PRESSURE GAUGE PRESSURE GAUGE
Ideal part no. 113089		 £103,05
29 Part number 079634, OBSOLETE T/STAT H/STAT ASSY COMBI OBSOLETE T/STAT H/STAT ASSY COMBI
Ideal part no. 079634
30 Part number 079635, OBSOLETE T/STAT PRE HT ASSY COMBI OBSOLETE T/STAT PRE HT ASSY COMBI
Ideal part no. 079635		 £12,34
31 Part number 079636, OBSOLETE T/STAT D.H.W ASSY COMBI OBSOLETE T/STAT D.H.W ASSY COMBI
Ideal part no. 079636		 £12,34
32 Part number 075248, 1/2IN SAFETY VALVE ASSY ALTECNI 1/2IN SAFETY VALVE ASSY ALTECNI
Ideal part no. 075248		 £36,00
33   OBSOLETE COMBI 280 MODULE CVR ASSY
Ideal part no. 079637
34   OBSOLETE PUMP INLET PIPE ASS COMBI
Ideal part no. 005593
35   OBSOLETE GRUNDFOS PUMP 15/50 W FITT
Ideal part no. 079638
36   OBSOLETE PUMP O/LET PIPE ASS COMBI
Ideal part no. 005595
37   22MM X 90 SHORT RAD ELBOW-BRASS
Ideal part no. 100984		 £5,37
38   OBSOLETE 22MM PUSH-FIT ELBOW-BRASS
Ideal part no. 111649
39   OBSOLETE DIV VALVE INLET PIPE ASS COMBI
Ideal part no. 005598
40   OBSOLETE SAFETY VALVE OUTLET PIPE COMBI
Ideal part no. 005705
41 Part number 005871, OBSOLETE DIVERTER VALVE S/ASS:COMBI OBSOLETE DIVERTER VALVE S/ASS:COMBI
Ideal part no. 005871
42   OBSOLETE DIV VALVE O/LET PIPE ASS COMBI
Ideal part no. 005599
43 Part number 005803, OBSOLETE WAX STAT ASS PTD COMBI OBSOLETE WAX STAT ASS PTD COMBI
Ideal part no. 005803		 £91,44
44   OBSOLETE G3/4 ADAPTER
Ideal part no. 005777
45 Part number 070000, DHW CALORIFIER W/WASH COMBI DHW CALORIFIER W/WASH COMBI
Ideal part no. 070000		 £191,86
46   OBSOLETE FLOW SWITCH INLET PIPE ASS COMBI
Ideal part no. 005601
47 Part number 005856, OBSOLETE FLOW SWITCH S/ASS COMBI OBSOLETE FLOW SWITCH S/ASS COMBI
Ideal part no. 005856		 £122,13
48   OBSOLETE DOM HOT WATER STRAINER GASCON
Ideal part no. 005810
49   OBSOLETE FLOW SWITCH O/LET PIPE ASS COMBI
Ideal part no. 005603
50   OBSOLETE DHW FLOW PIPE ASS COMBI
Ideal part no. 005604
51 Part number 005713, FLEXIBLE HOSE COMBI FLEXIBLE HOSE COMBI
Ideal part no. 005713		 £26,60
52 Part number 060569, PCB 27 BOARD (414900) PCB 27 BOARD (414900)
Ideal part no. 060569		 £94,73
53 Part number 113205, EXPANSION VESSEL 8 LTR S/S KIT EXPANSION VESSEL 8 LTR S/S KIT
Ideal part no. 113205		 £108,69
54   OBSOLETE BLR CSG C/W DOOR COMBI
Ideal part no. 079707
55   OBSOLETE AIR DUCT SLG PLT ASS PTD
Ideal part no. 134048
56   OBSOLETE CONT CASING POD ASSY COMBI
Ideal part no. 079704
56   OBSOLETE CONT CSG DOOR ASSY COMBI
Ideal part no. 079710
57 Part number 079605, CSG SEAL PK CLASSIC NF CSG SEAL PK CLASSIC NF
Ideal part no. 079605
58   OBSOLETE WALL MTG PLT ASS:COMBI
Ideal part no. 079642
59   OBSOLETE STAND OFF BRKT LH/RH COMBI
Ideal part no. 079643
60   OBSOLETE SD WALL MTG PLATE CL/EL/RAPIDE
Ideal part no. 026550
61   OBSOLETE TERMINAL WALL PLATE (PLASTIC 15881)
Ideal part no. 131662
63   OBSOLETE ANGLE FLANGE GASCOCK RS/NF
Ideal part no. 079592
64   OBSOLETE 45 FLUE ELBOW M/CD CLASSIC NF
Ideal part no. 113185
65   45 FAN ELBOW ALUMINIUM
Ideal part no. 113028		 £24,23
66   OBSOLETE SD OUTLET PIPE ASS CLASSIC NF
Ideal part no. 137580
67 Part number 005900, OBSOLETE O/HT STAT LM7 P8511:COMBI OBSOLETE O/HT STAT LM7 P8511:COMBI
Ideal part no. 005900		 £17,09
70   OBSOLETE H/WARE PK COMBI
Ideal part no. 005586
