CFE 400 - 400E BOILER - (Boiler Casing)
Appliance Code: CFE 400

Appliance Diagram

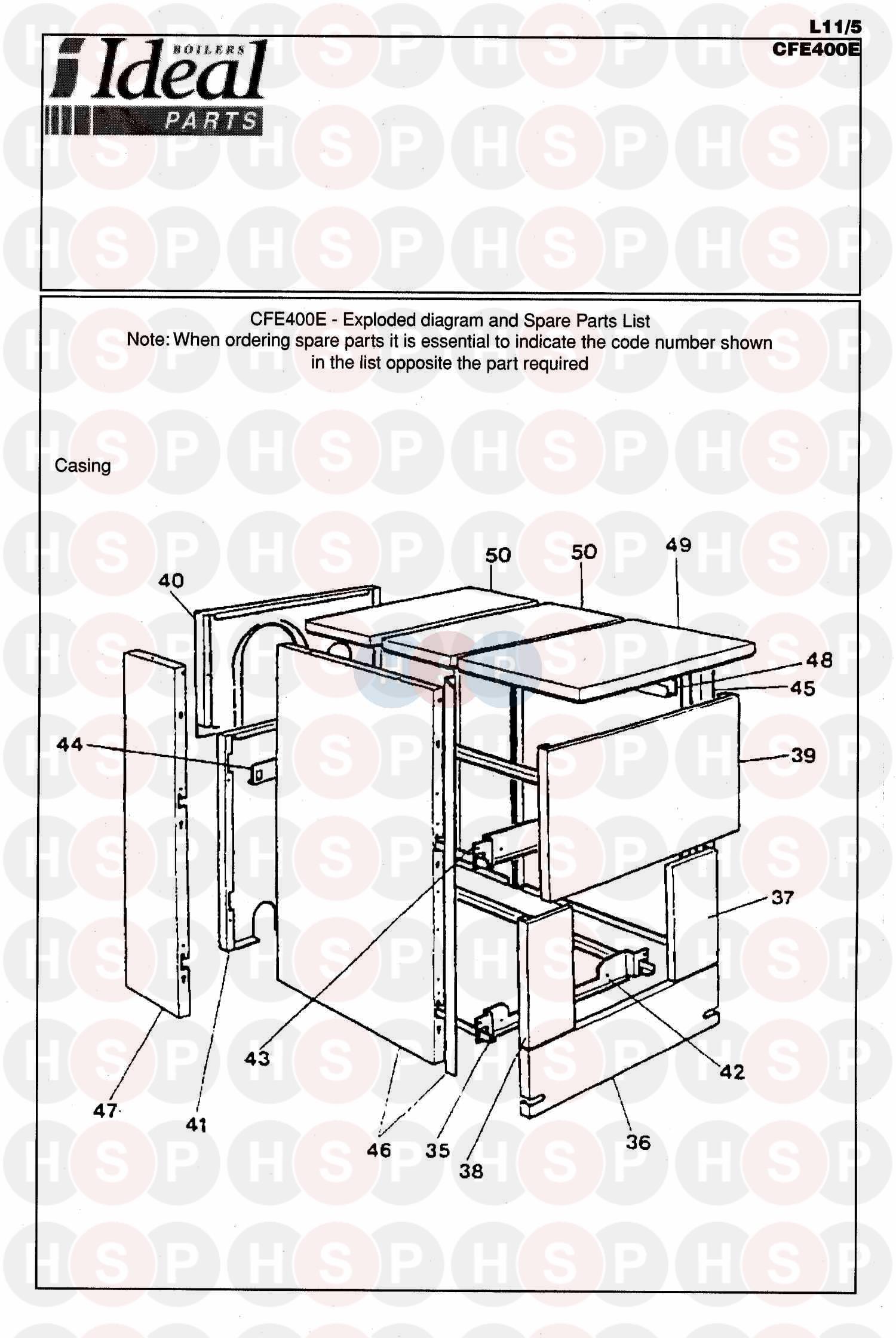

Boiler Casing diagram for Ideal CFE 400 - 400E BoilerClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE JKT FXG PACK VIC ES 81047750
Ideal part no. 065899
0   OBSOLETE COMB CHMB DR C/W PLT 81048948
Ideal part no. 069737
0   OBSOLETE COMB CHMB DR C/WPLT 81048947
Ideal part no. 069736
0   OBSOLETE BOX AD 12 COMP 81048819
Ideal part no. 069730
0   OBSOLETE BOX AD16 COMP 81048838
Ideal part no. 069734
0   OBSOLETE COMB CHMB C/W PLT 81048946
Ideal part no. 069735
0   OBSOLETE BOX AD15 COMP 81048835
Ideal part no. 069733
0   OBSOLETE BOX AD13 COMP 81048824
Ideal part no. 069731
0   OBSOLETE BOX AD 14 COMP 81048832
Ideal part no. 069732
0   OBSOLETE COMPLETE CASING 81048805 CFE
Ideal part no. 170638
0   OBSOLETE EXTERNAL SENSOR(95365626)
Ideal part no. 067813
0   OBSOLETE BLR OR FLOW SENSOR 95365315
Ideal part no. 067823
0   OBSOLETE EXTERNAL SENSOR AF(95365488)
Ideal part no. 067821
0   OBSOLETE BNR HARNESS VIC ES 81044905
Ideal part no. 066045
0   OBSOLETE FLOW SWITCH HARNESS 81044907
Ideal part no. 066047
0   OBSOLETE MAINS W/HARNESS VIC 81044906
Ideal part no. 066046
0   OBSOLETE DAILY CLOCK (95362602)
Ideal part no. 067605
0   OBSOLETE TIME CLOCK DAY/WEEK (95362603)
Ideal part no. 067606
0   OBSOLETE INDICATOR LIGHT (95216279)
Ideal part no. 067589
0   OBSOLETE CONN BOX 222B (95365391)
Ideal part no. 068062
0   OBSOLETE CONN BOX 222B (95365396)
Ideal part no. 068063
0   NIPPLE LUBRICANT 94305027
Ideal part no. 068057		 £59.13
0   OBSOLETE CONTROL PANEL 81047721
Ideal part no. 067895
0 Part number 065996, OBSOLETE FLUE BRUSH HARRIER ES 97505039 OBSOLETE FLUE BRUSH HARRIER ES 97505039
Ideal part no. 065996
0   OBSOLETE FLW FLANGE/PIPE/GSKT 81048960
Ideal part no. 067885
0   OBSOLETE FLW FLANGE/PIPE/GSKT 81048961
Ideal part no. 067886
0   OBSOLETE COMP BLR LAGG 13SECT 81048991
Ideal part no. 066084
0   OBSOLETE COMP BLR LAGG 15SECT 81048992
Ideal part no. 066085
0   OBSOLETE COMP BLR LAGG 7 SECT 81048988
Ideal part no. 066081
0   OBSOLETE COMP BLR LAGG 5 SECT 81048986
Ideal part no. 066079
0   OBSOLETE COMP BLR LAGG 6 SECT 81048987
Ideal part no. 066080
0   OBSOLETE COMP BLR LAGG 9/10SECT81048990
Ideal part no. 066083
0   OBSOLETE COMP BLR LAGG 8 SECT 81048989
Ideal part no. 066082
0   OBSOLETE 4 JKT ANG 1490MM(81048816)
Ideal part no. 137133
0   OBSOLETE BUNDLE-4 JACKET ANGLES-1640MM
Ideal part no. 137134
5   NIPPLES VIC ES 80050200
Ideal part no. 065853		 £111.05
6   OBSOLETE 3MTRS THERMOCORD VICEROY ES
Ideal part no. 079714
7   OBSOLETE COMP TIE ROD 470MM 82028931
Ideal part no. 065998
7   ASSEMBLY ROD 12-520 LONG 80158930
Ideal part no. 065999		 £19.86
7   ASSEMBLY ROD DIA 12-385 LONG 80158928
Ideal part no. 065997		 £19.86
10   2 1/2IN PLUG HARR ES 80130028
Ideal part no. 065859		 £45.55
11   T/STAT POCKET 85000027 VISC ES
Ideal part no. 065862		 £44.41
12   NIPPLE VISCOUNT 80060212
Ideal part no. 065863		 £129.62
13   OBSOLETE SMOKE NOZZLE 200 81048910
Ideal part no. 065890
14   THERMOCORD GSKT 95046115
Ideal part no. 066030		 £26.84
15   OBSOLETE FRT SECT COLL HOOD 81040020
Ideal part no. 066032
15   OBSOLETE FRT FLUE GAS CONN 81040021
Ideal part no. 066031
15   OBSOLETE FRT SEC COLL HOOD 4-8 81040026
Ideal part no. 065960
16   OBSOLETE REAR FLUE GAS COLL 81040023
Ideal part no. 066036
16   OBSOLETE REAR FLUE GAS COLL 81040022
Ideal part no. 066035
16   OBSOLETE REAR FLUE GAS COLL 81040025
Ideal part no. 066034
17   OBSOLETE FXG F/S/HOOD VIC ES 81048925
Ideal part no. 065892
18   OBSOLETE FXG NUT SPEC F/S/HOOD 97558400
Ideal part no. 065893
19   20MM T/CORD 5MM LG 95086019
Ideal part no. 065911		 £30.31
21   OBSOLETE FLW FLANGE/PIPE/GSKT 81048962
Ideal part no. 067887
22   OBSOLETE RTN FLANGE/PIPE/GSKT 81048966
Ideal part no. 067889
22   RTN FLANGE/PIPE/GSKT 81048965
Ideal part no. 067888		 £256.76
23 Part number 065894, FLANGE GSKT VICE ES 95014135 FLANGE GSKT VICE ES 95014135
Ideal part no. 065894		 £50.33
24   OBSOLETE FLOW SWITCH 12-13 (81044720)
Ideal part no. 067446
24   OBSOLETE PRE FLOW SWITCH 81044721
Ideal part no. 067892
24   OBSOLETE PRESET FLW SWITCH 88024703
Ideal part no. 067890
24   OBSOLETE PRE FLW SWITCH 81044719
Ideal part no. 067891
26   COMP BNR DOOR 81048908 V/RY ES
Ideal part no. 066040		 £650.13
27   OBSOLETE STEEL PLT F/BNR DOOR 81040500
Ideal part no. 066041
28   BNR DOOR INSUL VICE 97550435
Ideal part no. 065897		 £53.30
29   OBSOLETE BNR W/INSPECTION GLASS 81048936
Ideal part no. 066042
30   INSPECTION GLS COMP 80158902
Ideal part no. 066043		 £65.17
31 Part number 065898, SIGHT GLASS & GASKETS 80157700 SIGHT GLASS & GASKETS 80157700
Ideal part no. 065898		 £33.20
32   HINGE PIN 97560203
Ideal part no. 065896		 £19.89
42   OBSOLETE SPECIAL CROSS BAR 81048826
Ideal part no. 066061
43   OBSOLETE REAR CROSS BAR 81048827
Ideal part no. 066062
44   OBSOLETE REAR CROSS BAR 81048014 V/ROY
Ideal part no. 066063
45   OBSOLETE FRT RH SIDE 1060 (81048847)
Ideal part no. 067448
45   OBSOLETE FRT RH SIDE PNL 1210(81048848)
Ideal part no. 067449
45   OBSOLETE FRT RH SIDE PNL 81048846
Ideal part no. 067893
46   OBSOLETE FRT LH SIDE PNL 81048849
Ideal part no. 067894
46   OBSOLETE FRT LH SIDE PNL 1060(81048850)
Ideal part no. 067450
46   OBSOLETE FRT LH SIDE PNL 400(81048851)
Ideal part no. 067451
47   OBSOLETE REAR SD PNL 400MM 81048828
Ideal part no. 066070
49   TOP COVER CFE408 (81041014)
Ideal part no. 067443
52   OVERHEAT THERMOSTAT 95363311
Ideal part no. 065869		 £324.94
53 Part number 065872, THERMOMETER VISC ES 85000006 THERMOMETER VISC ES 85000006
Ideal part no. 065872		 £140.20
54   PUSH SWITCH VISC ES 95330030
Ideal part no. 065913		 £29.71
55 Part number 067447, BOILER THERMOSTAT (81044740) BOILER THERMOSTAT (81044740)
Ideal part no. 067447		 £194.56
60   SWITCH VIC/VIS ES 95325116
Ideal part no. 065875
61   OBSOLETE 3 POSITION SWITCH 95325079
Ideal part no. 065878
62   PRESS SWITCH VIC/VISC ES 95325118
Ideal part no. 065876		 £13.70
64 Part number 065873, OBSOLETE TEMPERATURE GAUGE 95365157 OBSOLETE TEMPERATURE GAUGE 95365157
Ideal part no. 065873		 £82.68
65   FLUE GAS THERMOMETER 95365156
Ideal part no. 065874		 £240.11
66   INDICATOR LIGHTS 95216280
Ideal part no. 065879		 £19.60
68   OBSOLETE RESISTANCE/SLEEVE 81044910
Ideal part no. 065966
69   THERMOSTAT VISC ES 83304700
Ideal part no. 065870		 £138.15
70   INDICATOR LIGHT 95216258
Ideal part no. 065880		 £7.63
75   OBSOLETE HOUR RUN METER 95355152
Ideal part no. 067883
