IDEAL
CF/CFM 240 - 2400 BOILER - (Boiler Casing)
Appliance Code: CF/CFM

Appliance Diagram


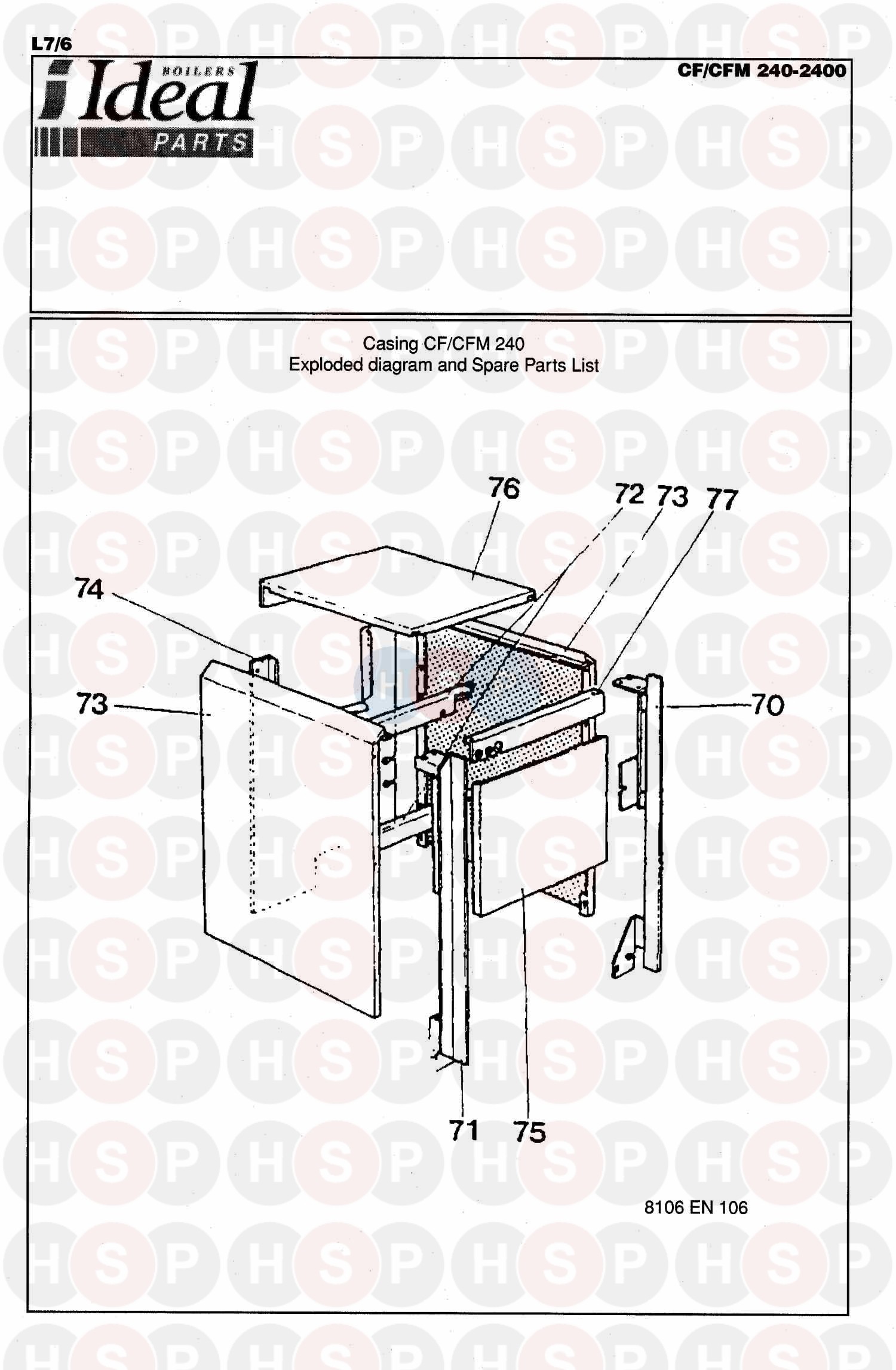

Boiler Casing diagram for Ideal CF/CFM 240 - 2400 BoilerClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE FLOW SENSOR (95365630)
Ideal part no. 067814
0   CONTROL PNL 2400 (81078930)
Ideal part no. 067811
0   NON RETURN VALVE (94914284)
Ideal part no. 067810		 £113.44
0   OBSOLETE EXTERNAL SENSOR(95365626)
Ideal part no. 067813
0   OBSOLETE SV-MATIC 220 PACK(88018917)
Ideal part no. 067815
0   OBSOLETE LH SIDE VERT BRKT (81068806)
Ideal part no. 067827
0   OBSOLETE RH SIDE VERT BRKT (81068805)
Ideal part no. 067826
0   OBSOLETE REMOTE CNTRL UNIT (81067721)
Ideal part no. 067825
0   OBSOLETE BLR BODY INSUL 5 SEC(81078957)
Ideal part no. 067852
0   OBSOLETE BLR BODY INSUL 6 SEC(81078958)
Ideal part no. 067853
0   OBSOLETE BLR BODY INSUL 3 SEC(81078955)
Ideal part no. 067850
0   OBSOLETE BLR BODY INSUL 4 SEC(81078956)
Ideal part no. 067851
0   OBSOLETE JACKET SCREW PACK(81077725)
Ideal part no. 067849
0   OBSOLETE OPERATOR BLOCK (95365324)
Ideal part no. 067818
0   OBSOLETE OPERATOR BLOCK (95365326)
Ideal part no. 067819
0   OBSOLETE OPERATOR BLOCK (95365314)
Ideal part no. 067816
0   OBSOLETE OPERATOR BLOCK (95365322)
Ideal part no. 067817
0   OBSOLETE BLR OR FLOW SENSOR 95365315
Ideal part no. 067823
0   OBSOLETE ADAPT KIT CNTRL PNL(88004906)
Ideal part no. 067824
0   OBSOLETE OPERATOR BLOCK (95365352)
Ideal part no. 067820
0   OBSOLETE EXTERNAL SENSOR AF(95365488)
Ideal part no. 067821
0   OBSOLETE BLR BODY INSUL (81078959)CF247
Ideal part no. 069928
0   OBSOLETE CONTROL PNL 240 81067798
Ideal part no. 069728
0   OBSOLETE PUMP WIRING 82264900
Ideal part no. 066347
0   OBSOLETE PUMP WIRING 82264902
Ideal part no. 066348
0   OBSOLETE 130 TANK INSUL 81078961
Ideal part no. 066335
0   2IN PLUG TAPPED 82010028
Ideal part no. 066333
0   OBSOLETE 170 TANK INSUL 81078962
Ideal part no. 066336
0   OBSOLETE CALORIFIER 170L (81077746)
Ideal part no. 067455
0   OBSOLETE BLR BODY INSUL 3 SECT 81068928
Ideal part no. 065951
0   OBSOLETE BAG SCREWS FOR CASING 81067740
Ideal part no. 065950
0   OBSOLETE BLR BODY INSUL 5 SECT 81068930
Ideal part no. 065953
0   OBSOLETE BLR BODY INSUL 6 SECT 81068931
Ideal part no. 065954
0   OBSOLETE BLR BODY INSUL 4 SECT 81068929
Ideal part no. 065952
0   FLUE BRUSH 97505037 BUCC ES
Ideal part no. 065956		 £30.06
0   OBSOLETE BLR BODY INSUL 7 SECT 81068932
Ideal part no. 065955
0   OBSOLETE BAG SCREWS FOR C/PLT 81068952
Ideal part no. 065925
0   OBSOLETE ASSY/PLUG/POCKET 81068925
Ideal part no. 065926
0   OBSOLETE WIRING HARNESS /BNR 81064935
Ideal part no. 065933
0   HARNESS F/CIRCULATOR 81064902
Ideal part no. 065932
0   OBSOLETE MAINS WIRING HARNESS 81064901
Ideal part no. 065931
0   OBSOLETE ROOM TEMP SENSOR (95365367)
Ideal part no. 068361
0   OBSOLETE FLEX PIPE 94994093
Ideal part no. 067690
0   OBSOLETE 130 TANK INSUL 81078910
Ideal part no. 067683
0   OBSOLETE 170 TANK INSUL 81078911
Ideal part no. 067684
0   DRAIN COCK 85000022
Ideal part no. 067691		 £36.56
1   OBSOLETE FRT SECTION 81068951
Ideal part no. 067801
2   OBSOLETE REAR SECTION 81068950
Ideal part no. 067802
3   OBSOLETE CENTRE SECTION 81060001
Ideal part no. 067803
4   NIPPLES BUCCANEER ES 83360507
Ideal part no. 065851		 £35.47
5   OBSOLETE ASS TIE RODS 81068940
Ideal part no. 067804
5   ASS TIE RODS 81068944
Ideal part no. 067808		 £6.96
5   OBSOLETE ASS TIE RODS 81068943
Ideal part no. 067807
5   OBSOLETE ASS TIE RODS 81068941
Ideal part no. 067805
5   OBSOLETE ASS TIE RODS 81068942
Ideal part no. 067806
6   COUNTER FLANGE/GASKET 82218950
Ideal part no. 065817
7   COUNTER FLANGE GSKT 95043253
Ideal part no. 065881		 £4.33
8   PLUG 1 1/2 94950249
Ideal part no. 065855		 £10.98
9   OBSOLETE C/PLT CLEANING PLT 81068906
Ideal part no. 065919
9   OBSOLETE COMP CLEANING PLT 81068905
Ideal part no. 065918
9   OBSOLETE C/PLT CLEANING PLT 81068908
Ideal part no. 065921
9   OBSOLETE C/PLT CLEANING PLT 81068909
Ideal part no. 065922
9   OBSOLETE C/PLT CLEANING PLT 81068907
Ideal part no. 065920
10   THERMOCORD GSKT 95046115
Ideal part no. 066030		 £26.84
11   BAFFLE PLATE 81060022
Ideal part no. 065924
12   1 1/2 X 1/2 RED BUSH 94948312
Ideal part no. 065857
13   THERMOSTAT POCKET 1/2 95365611
Ideal part no. 065861		 £41.92
15   OBSOLETE C/PLT BNR PLT 81068949 BUCC ES
Ideal part no. 065929
15   OBSOLETE C/PLT BNR PLT 81208979 BUCC ES
Ideal part no. 065928
16   THERMOCORD 10 X 10 95086010
Ideal part no. 065910		 £31.39
17   OBSOLETE BNR PLT INSULATION 81068922
Ideal part no. 065882
17   OBSOLETE BNR PLT INSULATION 81068923
Ideal part no. 065883
18   OBSOLETE C/PLT HINGE BNR PLT 81068953
Ideal part no. 065884
20   OBSOLETE CALORIFIER 130L (81077745)
Ideal part no. 067454
21   OBSOLETE 130 TANK 82707700
Ideal part no. 067680
21   OBSOLETE 170 TANK 82707701
Ideal part no. 067681
22   OBSOLETE INSPECTION HOLE COVER 82308901
Ideal part no. 067809
23   OBSOLETE WASHER/INSPECTION COVER 97581333
Ideal part no. 067682
24   OBSOLETE MAGNESIUM ANODE 97581442
Ideal part no. 066334
25   OBSOLETE 130 TANK FRAME R/H 81078820
Ideal part no. 066337
25   OBSOLETE 170 TANK FRAME R/H 81078821
Ideal part no. 066338
26   OBSOLETE 130 FRAME COMPLETE 81078811
Ideal part no. 067685
26   OBSOLETE 170 FRAME COMPLETE 81078812
Ideal part no. 067686
26   OBSOLETE 170 TANK FRAME L/H 81078823
Ideal part no. 066340
26   OBSOLETE 130 TANK FRAME L/H 81078822
Ideal part no. 066339
27   OBSOLETE UPPER FLOW PIPE 97549390
Ideal part no. 066341
28   AUTO AIR VENT 85000023
Ideal part no. 067687		 £76.23
30   OBSOLETE FLEX PIPE W/CONN 81078942
Ideal part no. 067688
31   OBSOLETE UPPER RETURN PIPE 97549391
Ideal part no. 069727
33   1IN NON RETURN VALVE 94914295
Ideal part no. 067689		 £142.79
34   PUMP 95132277 15-45X20
Ideal part no. 066346
35   OBSOLETE RETURN PIPE/PUMP 97549392
Ideal part no. 066349
36   OBSOLETE TOP FRAME FRT COMP 81078936
Ideal part no. 067679
40   OBSOLETE T/STAT ES 85000020 BUC
Ideal part no. 065865
41   OBSOLETE T/STAT KNOB AND PINS 81068954
Ideal part no. 065866
42   T/METER/HARR/BUCC ES 85000014
Ideal part no. 065871		 £70.57
43 Part number 065868, T/STAT ES 85000031 BUCC T/STAT ES 85000031 BUCC
Ideal part no. 065868		 £331.18
45   SWITCH VIC/VIS ES 95325116
Ideal part no. 065875
46   PRESS SWITCH VIC/VISC ES 95325118
Ideal part no. 065876		 £13.70
47   TEST SWITCH 95325120 BUCC ES
Ideal part no. 065877		 £14.68
48   SEPARATOR 95365613
Ideal part no. 065927		 £259.95
49 Part number 067558, CONTROL STAT 95365574 (was 85000002) CONTROL STAT 95365574 (WAS 85000002)
Ideal part no. 067558		 £151.36
50   OBSOLETE THERMOSTAT 95365541
Ideal part no. 066332
51   OBSOLETE RELAY (81077726)
Ideal part no. 067812
72   OBSOLETE REAR CROSS PIECE 81068013
Ideal part no. 065936
73   OBSOLETE SIDE PNL 6 SEC (81068818)
Ideal part no. 067831
73   OBSOLETE SIDE PNL 4 SEC (81068816)
Ideal part no. 067829
73   OBSOLETE SIDE PNL 5 SEC (81068817)
Ideal part no. 067830
73   OBSOLETE SIDE PNL 7 SEC (81068819)
Ideal part no. 067832
73   OBSOLETE SIDE PNL 3 SEC (81068815)
Ideal part no. 067828
74   OBSOLETE REAR PANEL/FIXINGS 81068807
Ideal part no. 065942
75   OBSOLETE FRONT PANEL/FIXINGS 81061005
Ideal part no. 065943
76   OBSOLETE TOP PNL W/INSL 3 SECT 81061006
Ideal part no. 065944
76   OBSOLETE TOP PNL/INSUL 4 SECT 81061007
Ideal part no. 065945
76   OBSOLETE TOP PNL/INSUL 7 SECT 81061010
Ideal part no. 065948
76   OBSOLETE TOP PNL/INSUL 6 SECT 81061009
Ideal part no. 065947
76   OBSOLETE TOP PNL/INSUL 5 SECT 81061008
Ideal part no. 065946
77   OBSOLETE C/PNL TRANS BRKT(81068946)
Ideal part no. 067833
80   OBSOLETE FRT TRANSVERSE BRKT(81078802)
Ideal part no. 067834
81   OBSOLETE REAR TRANSVERSE BRKT 81078001
Ideal part no. 067835
82   OBSOLETE RH SIDE VERT BRKT (81078803)
Ideal part no. 067836
83   OBSOLETE LH SIDE VERT BRKT (81078804)
Ideal part no. 067837
84   OBSOLETE FRT CENTRE PNL (81070508)
Ideal part no. 067838
85   OBSOLETE SIDE PANEL COMP 170(81078806)
Ideal part no. 067840
85   OBSOLETE SIDE PNL COMP 130(81078805)
Ideal part no. 067839
86   OBSOLETE INSUL UP FRT PANEL(81071002)
Ideal part no. 067841
87   OBSOLETE INSUL LOW FRT PNL(81071003)
Ideal part no. 067842
88   OBSOLETE INSUL TOP PNL 130 (81071004)
Ideal part no. 067843
88   OBSOLETE INSUL TOP PNL 170 (81071005)
Ideal part no. 067844
89   OBSOLETE UPPER REAR PNL (81078809)
Ideal part no. 067845
90   OBSOLETE CENTRE REAR PNL (81078815)
Ideal part no. 067846
91   OBSOLETE LOW RH REAR PNL (81078810)
Ideal part no. 067847
92   OBSOLETE LOWE LH REAR PNL (81070513)
Ideal part no. 067848
111   OBSOLETE 1IN MIX VALVE (94908630)
Ideal part no. 067855
111   OBSOLETE 1 1/4IN MIX VALVE (94908633)
Ideal part no. 067856
111   OBSOLETE 3/4IN MIX VALVE (94908622)
Ideal part no. 067854
112   OBSOLETE HANDLE FOR VALVE (94908629)
Ideal part no. 067857
115   1.8KW IMMER/HEATER(82707715)
Ideal part no. 067858
117   OBSOLETE O/HEAT THERMOSTAT(97553714)
Ideal part no. 067859
