IDEAL
BRITISH GAS 80 RD1 - (Casing)
Appliance Code: 41-349-77

Appliance Diagram

Casing diagram for Ideal British Gas 80 RD1 Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1	HEAT EXCHANGER ASSY KIT RD1 70-80 Ideal part n^o. 171379	£601.64
1	HEAT EXCHANGER ASSY KIT RD1 30-40 Ideal part n^o. 171377	£324.74
1	OBSOLETE HEAT EXCHANGER ASSY CLA FF50-60 Ideal part n^o. 171378
1	OBSOLETE HEAT EXCHANGER ASSY KIT CLA FF100 Ideal part n^o. 171380
2	OBSOLETE FLUE BAFFLE KIT 70-80 Ideal part n^o. 171960
2	FLUE BAFFLE KIT 50-60 Ideal part n^o. 171959	£20.06
2	FLUE BAFFLE KIT FF30/40 - RS30- RS SE9 Ideal part n^o. 171958	£8.68
2	OBSOLETE FLUEWAY BAFFLE:CLASSIC FF 2 100 Ideal part n^o. 112540
3	HOOK BOLT KIT CLA FF100 Ideal part n^o. 171386
3	HOOK BOLT KIT CLA FF30-40 Ideal part n^o. 171384
4	PIPE-GRAVITY RETURN KIT CLA FF Ideal part n^o. 171389	£29.72
4	PIPE-PUMP FLOW KIT CLA FF Ideal part n^o. 171388	£15.26
4	PIPE-GRAVITY FLOW KIT CLA FF Ideal part n^o. 171390	£17.20
5	PIPE-RETURN PIPE ASSY KIT CLA FF50-60 Ideal part n^o. 171395	£25.10
5	PIPE-RETURN PIPE ASSY KIT CLA FF30-40 Ideal part n^o. 171394	£23.85
5	PIPE-RETURN PIPE ASSY KIT CLA FF70-80-10 Ideal part n^o. 171396	£31.62
6	COLL HOOD ASSY CLASS NF 270 Ideal part n^o. 170529
6	COLL HOOD ASSY CLASS NF 230 Ideal part n^o. 170525
6	COLL HOOD ASSY CLASS NF 260 Ideal part n^o. 170528
6	COLL HOOD ASSY CLASS NF 250 Ideal part n^o. 170527	£47.30
6	COLL HOOD ASSY CLASS NF 240 Ideal part n^o. 170526	£40.20
6	COVER RCI 400 CPLT 9793-9303 Ideal part n^o. 171937	£2,218.72
7	COMBUSTION CHMB ASSY KIT CLA Ideal part n^o. 171403
7	COMBUSTION CHMB ASSY KIT CLA Ideal part n^o. 171402	£31.22
7	COMBUSTION CHMB ASSY KIT CLA Ideal part n^o. 171401	£47.99
8	COMB CHAMB INSULATION KIT CLA FF30-40 Ideal part n^o. 171411	£6.88
8	COMB CHAMB INSULATION KIT CLA FF70-80-10 Ideal part n^o. 171413
8	COMB CHAMB INSULATION KIT CLA FF50-60 Ideal part n^o. 171412
9	SIGHT GLASS ASSY KIT CLA FF Ideal part n^o. 171414	£9.33
10	OBSOLETE GAS MANIFOLD & GASKET KIT CLA FF Ideal part n^o. 171415
11	OBSOLETE AIR BOX & GASKET KIT CLA FF Ideal part n^o. 171455
12	MAIN BURNER KIT 50/60 Ideal part n^o. 171953	£30.19
12	MAIN BURNER KIT 71/80/100 Ideal part n^o. 171954	£109.75
12	OBSOLETE MAIN BURNER KIT 30/40 Ideal part n^o. 171952
13	MAIN INJECTOR KIT 30 Ideal part n^o. 171955	£3.50
13	MAIN INJECTOR KIT CLA FF80 Ideal part n^o. 171429	£6.67
13	INJECTOR BNR AEROMATIC 939021 Ideal part n^o. 152320	£3.02
13	MAIN INJECTOR KIT CLA FF50 Ideal part n^o. 171426
13	MAIN INJECTOR KIT CLA FF40 Ideal part n^o. 171425	£7.00
13	MAIN INJECTOR KIT CLA FF60 Ideal part n^o. 171427
13	MAIN INJECTOR KIT CLA FF70 Ideal part n^o. 171428	£5.88
14	PILOT BURNER INJECTOR CLA FF PROPANE Ideal part n^o. 171436	£13.43
14	PILOT BURNER INJECTOR SLG WAS KIT CLA FF Ideal part n^o. 171437
14	PILOT BURNER INJECTOR CLA FF100 Ideal part n^o. 171435	£11.33
14	PILOT BURNER INJECTOR CLA FF30-80 Ideal part n^o. 171434
15	PILOT BNR HEAD C/W INJ KIT CLA FF100 Ideal part n^o. 171439	£29.19
15	PILOT BNR HEAD C/W INJ KIT CLA FF30-80 Ideal part n^o. 171438
15	PILOT BNR HEAD C/W INJ KIT CLA FF PROPANE Ideal part n^o. 171440	£29.00
16	PILOT SHIELD CLASSIC/ELAN Ideal part n^o. 137330
17	GAS VALVE KIT CLASSIC Ideal part n^o. 171441	£155.53
18	IGNITION ELECTRODE KIT CLA FF Ideal part n^o. 171442	£27.65
18	ELECTRODE - HOT SURFACE IGNITOR (HSI) Ideal part n^o. 171443
18	OBSOLETE ELECTRODE HSI ASSY KIT Ideal part n^o. 171490
19	OBSOLETE CONTROLS BOX ASSY RD1 Ideal part n^o. 155382
21	POT HARNESS KIT(INCL NUT & WASHER)RD1 Ideal part n^o. 171875	£13.70
22	OBSOLETE THERMOSTAT POCKET KIT CLA FF Ideal part n^o. 171449
25	THERMOSTAT HARNESS KIT CLA FF Ideal part n^o. 171872	£55.76
26	POTENTIOMETER KNOB & CAP KIT CLA FF Ideal part n^o. 171504	£7.89
27	OBSOLETE AIR PRESSURE SWITCH Ideal part n^o. 155412
28	GAS VALVE LEAD KIT Ideal part n^o. 171459	£6.49
30	FAN ASSY KIT CLA FF 30-80 Ideal part n^o. 171461	£156.51
30	FAN ASSY KIT CLA FF 100 Ideal part n^o. 171462	£486.86
31	OBSOLETE FAN HARNESS KIT CLA FF Ideal part n^o. 171873
32	NEG PRESS SENSING PIPE CL2 Ideal part n^o. 111482	£4.44
33	PRESS SENSING PIPE POSITIVE COMBI NF Ideal part n^o. 137472
33	PRESSURE SENSING PIPE KIT CLA FF Ideal part n^o. 171468	£16.44
34	OBSOLETE PRESS SENSING PIPE - COMBI NF Ideal part n^o. 137471
35	OBSOLETE CASING ASSY RD1 100 Ideal part n^o. 172623
35	OBSOLETE 330-380 RDI JACKET ASSEMBLY Ideal part n^o. 171847
36	OBSOLETE CASING - CONTROLS AREA Ideal part n^o. 171452
37	OBSOLETE CONTROL CASING DOOR RD1 Ideal part n^o. 155383
38	MAGNETIC CATCH-GREY RAL.7035 Ideal part n^o. 100369	£5.22
39	CSG SEAL PK CLASSIC NF Ideal part n^o. 079605
39	CASING SEAL & JKT SCREWS KIT CLA FF Ideal part n^o. 171479	£13.73
40	OBSOLETE WALL MOUNTING PLATE ASSY KIT CLA FF Ideal part n^o. 171480
41	OBSOLETE TERMINAL WALL PLATE (PLASTIC 15881) Ideal part n^o. 131662
42	GAS COCK ASSY KIT Ideal part n^o. 171927	£43.36
43	FLUE ELBOW ASSY KIT CLA FF Ideal part n^o. 171483
45	LIMIT STAT (LM7) Ideal part n^o. 171950	£42.72
46	BOILER HARDWARE PACK KIT 70-80-100 Ideal part n^o. 171488	£30.65
46	BOILER HARDWARE PACK KIT 30-60 Ideal part n^o. 171487	£31.80
47	GASKET-GROMMET & BUSH KIT CLA FF Ideal part n^o. 171887	£11.67
48	OBSOLETE AIR DUCT SLG PLT AS PTD CL2 Ideal part n^o. 110886
49	AIR DUCT SLG PLT GASKET CL2 Ideal part n^o. 110887
50	OBSOLETE JACKING SCREW CLA FF Ideal part n^o. 171492
50	OBSOLETE JACKING SCREW ASSY Ideal part n^o. 152044
51	NO 10 U- NUT 91-2.03 ZY 40106 0537 40 Ideal part n^o. 004986	£2.11
58	SINGLE POLE HTG SWITCH-RESET KIT CLA FF Ideal part n^o. 171497	£4.47
59	T/STAT POCKET ASS CLASSIC Ideal part n^o. 137663
300	O RING (SSL207 EP70) Ideal part n^o. 154731	£1.17
300	OBSOLETE MAINS HARNESS RD1 Ideal part n^o. 152586
300	EARTH LEAD - CTRL BOX RD1 Ideal part n^o. 152775	£18.90
300	EARTH LEAD - GAS VALVE RD1 Ideal part n^o. 152626	£17.28
500	EXPANSION VESSEL 8 LTR S/S KIT Ideal part n^o. 113205	£108.69
500	WALL PLATE SEALED SYSTEM Ideal part n^o. 100786	£5.50
500	3/8 IN AUTO AIR VENT Ideal part n^o. 113116	£29.95
500	PRESSURE GAUGE Ideal part n^o. 113089	£103.05
500	NOW USE 075248 1/2IN SAFETY VALVE ASS ALTECNIC Ideal part n^o. 113026
500	FLEXIBLE HOSE COMBI Ideal part n^o. 005713	£26.60

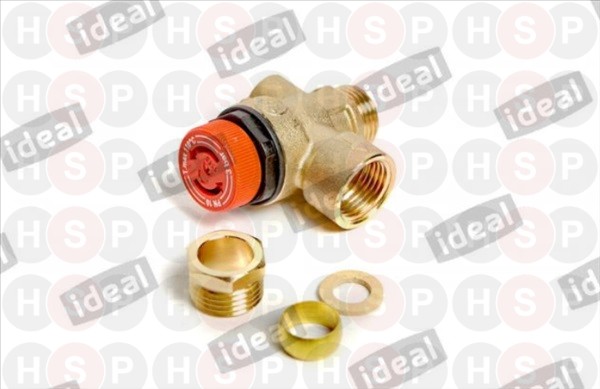

500	1/2IN SAFETY VALVE ASSY ALTECNI Ideal part n^o. 075248	£36.00
500	OBSOLETE 5M DW CIRCULATING PUMP COMPLETE Ideal part n^o. 171865
500	OBSOLETE PUMP 5M HEAD ONLY SPARES KIT Ideal part n^o. 171867
